Toyota 4-Runner Truck

1983-08 → 1989-03 · chassis RN5#,6#,7#,VZN6#,LN5#,6# · catalogue 671440 · Europe

Discontinued model Data version 1989-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

38 part groups · 8 illustrations

Illustrations

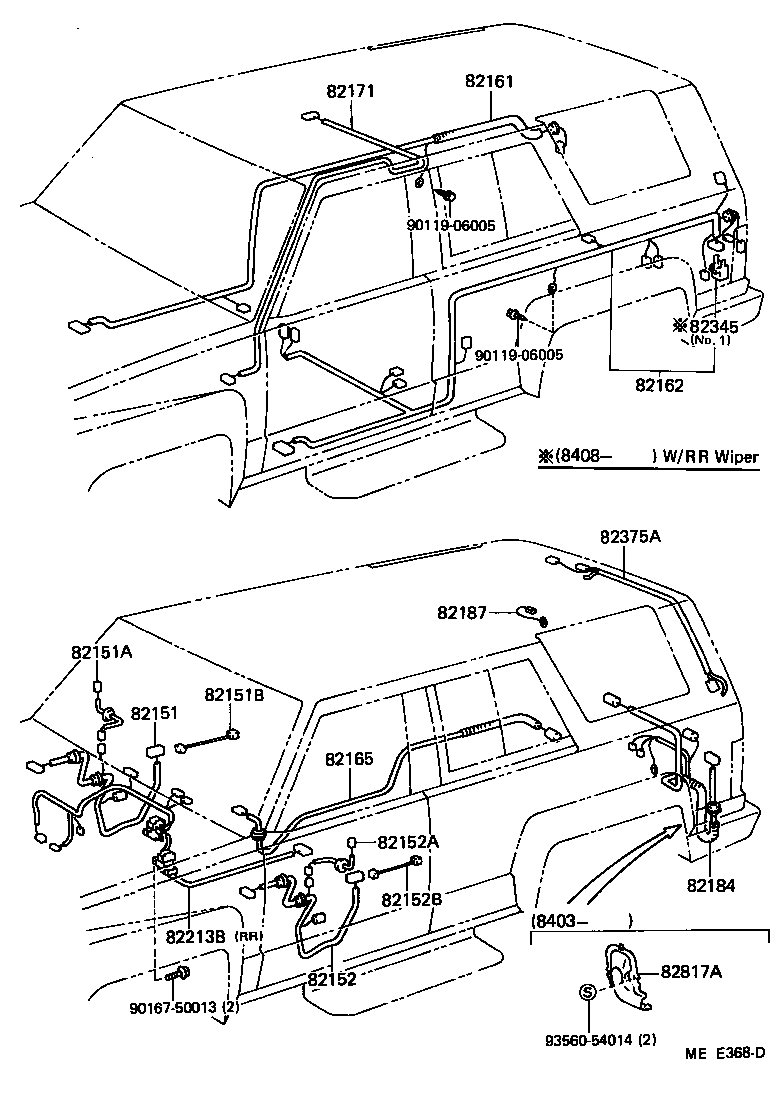

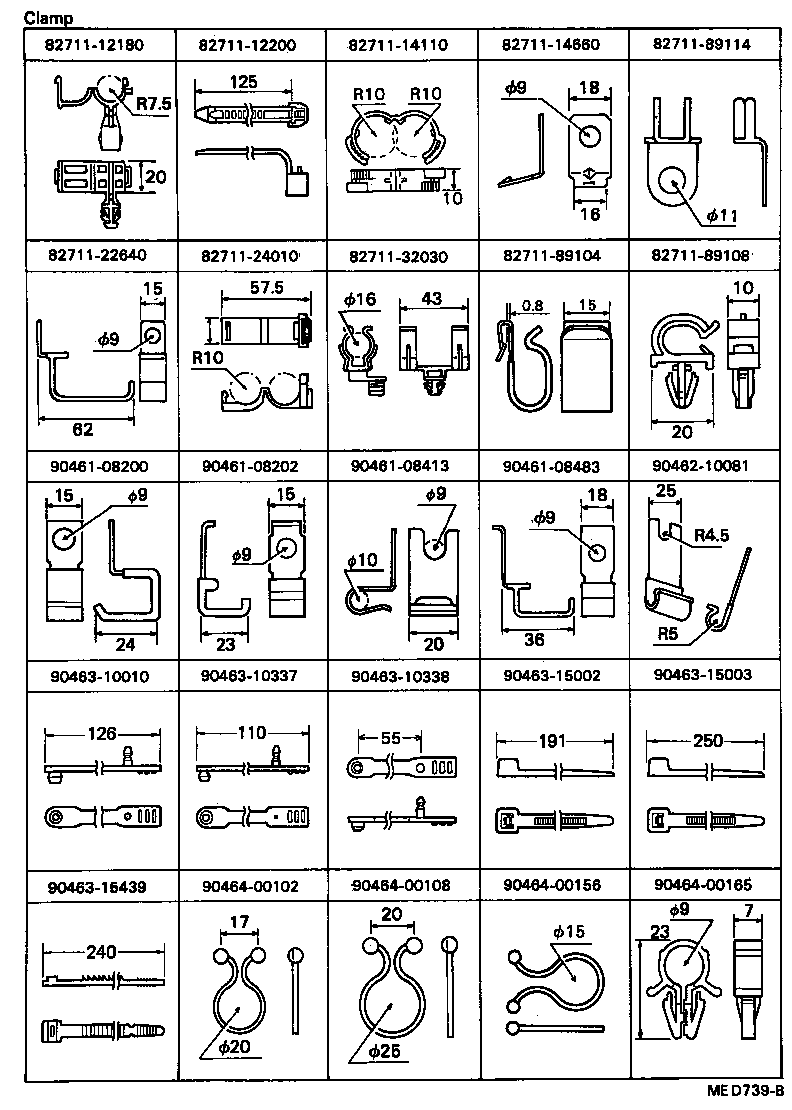

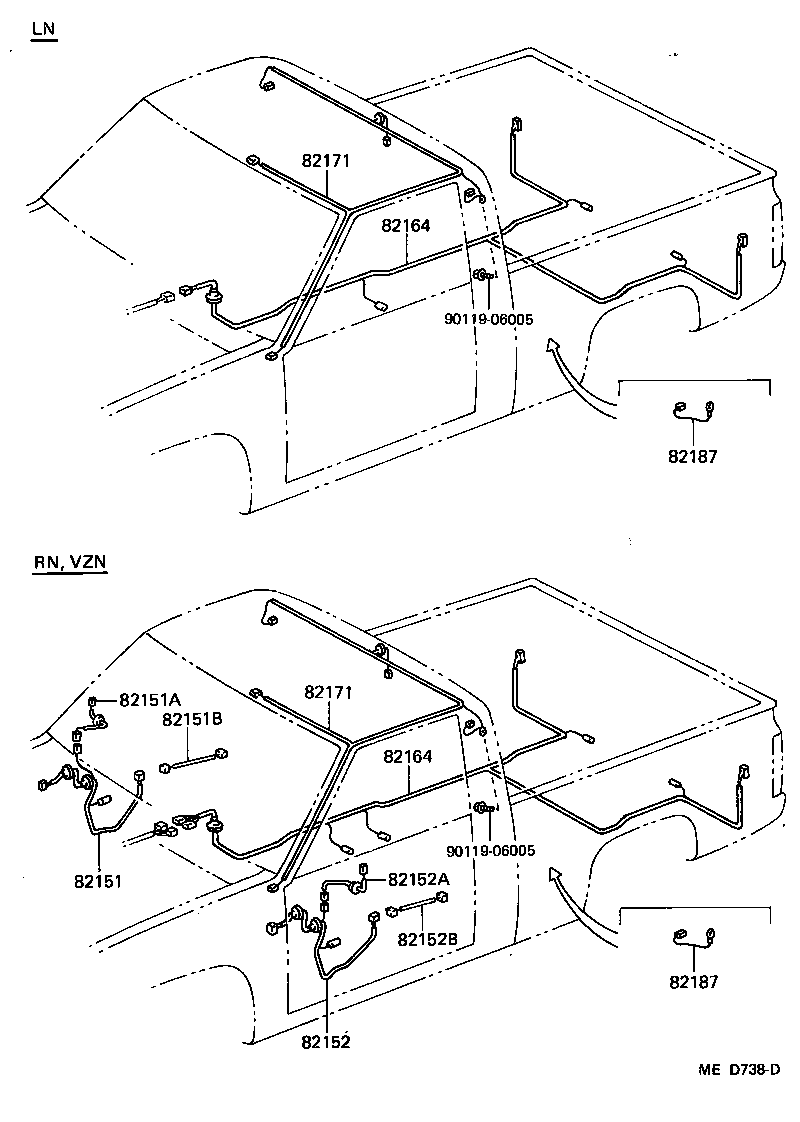

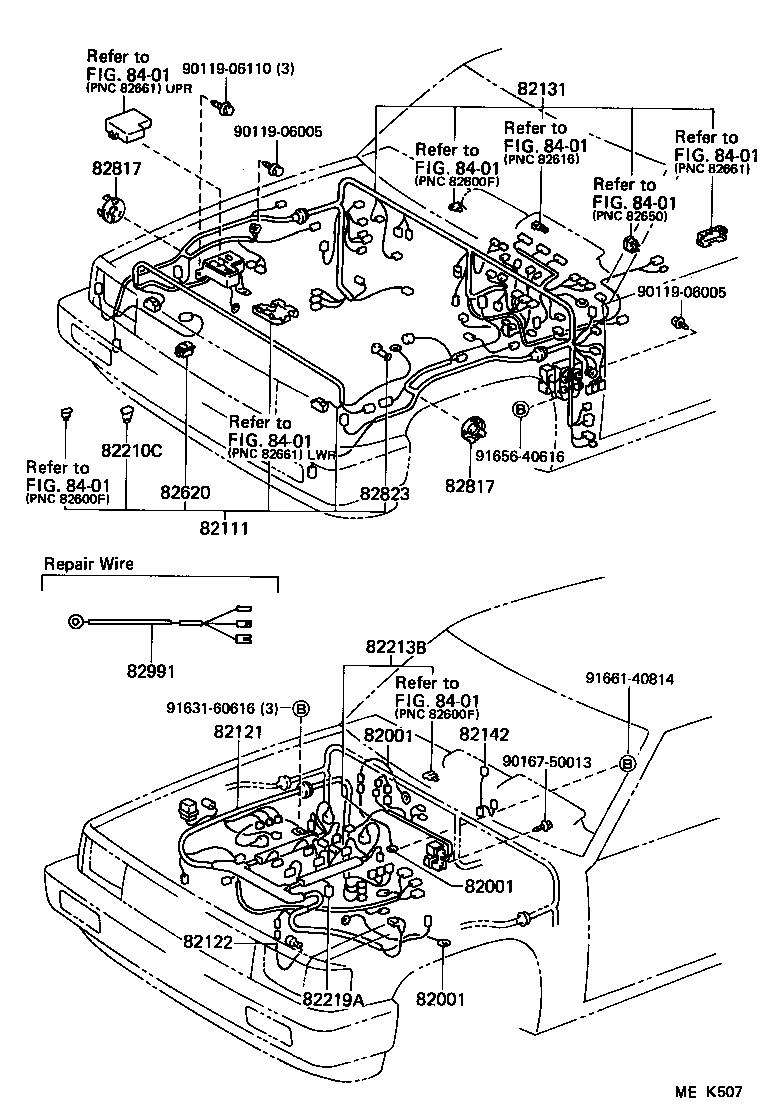

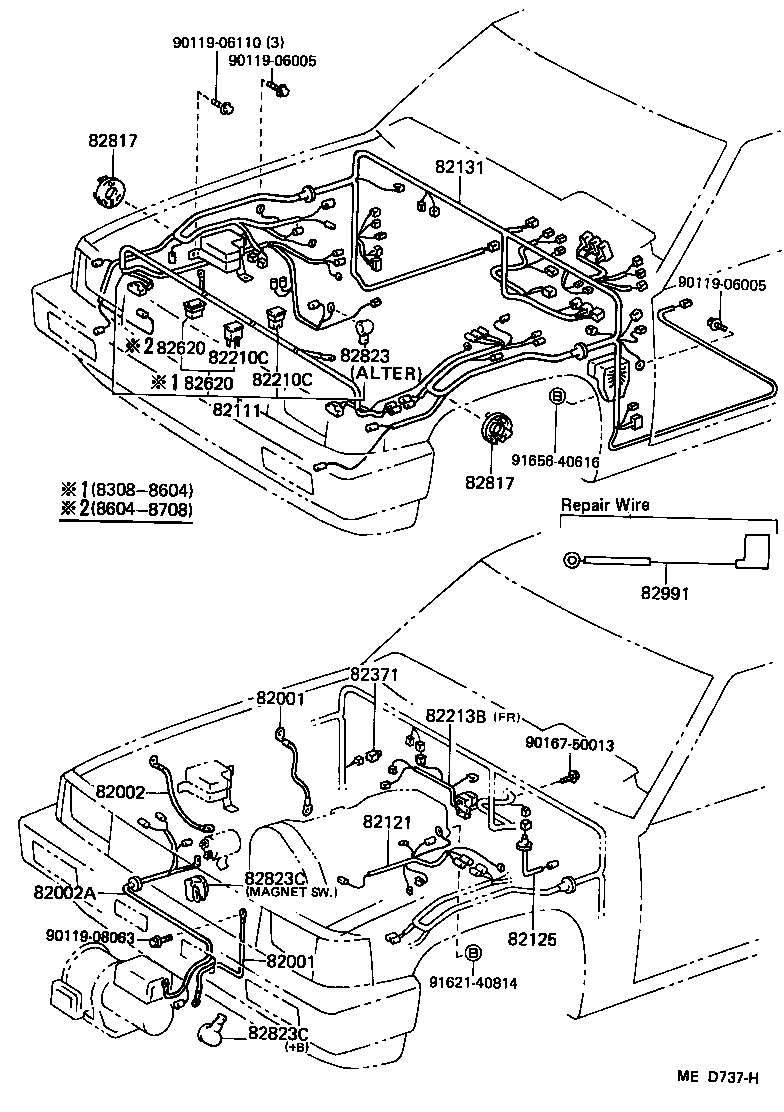

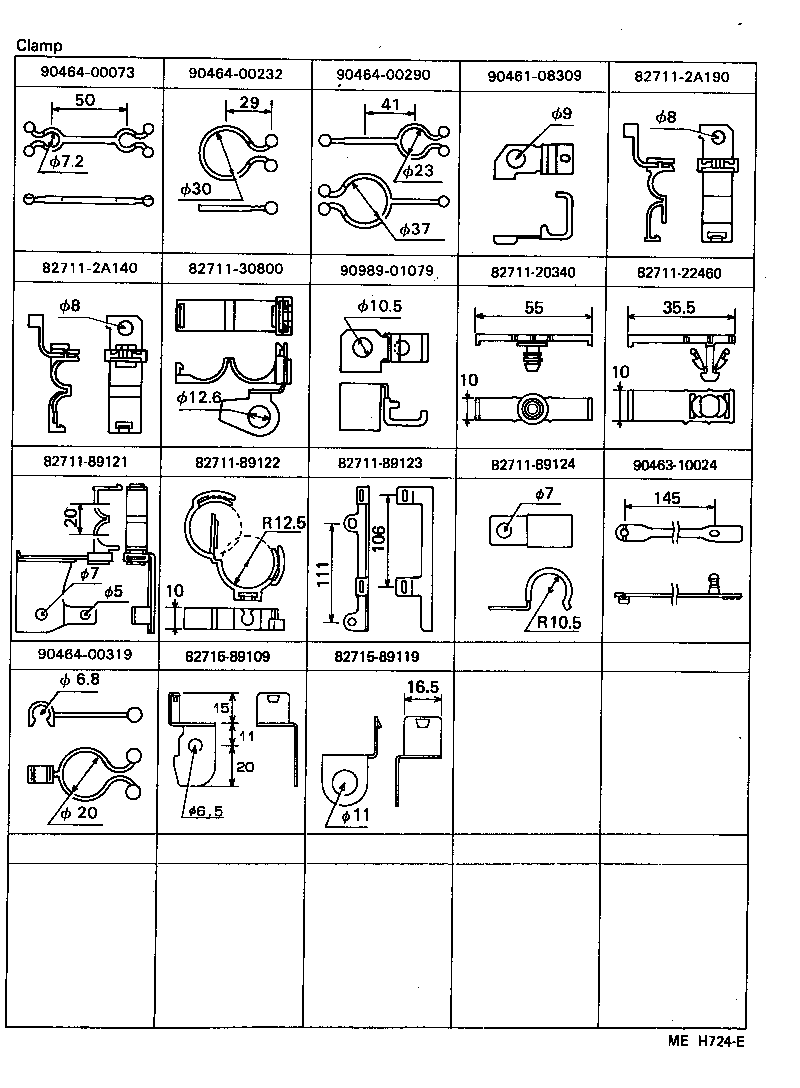

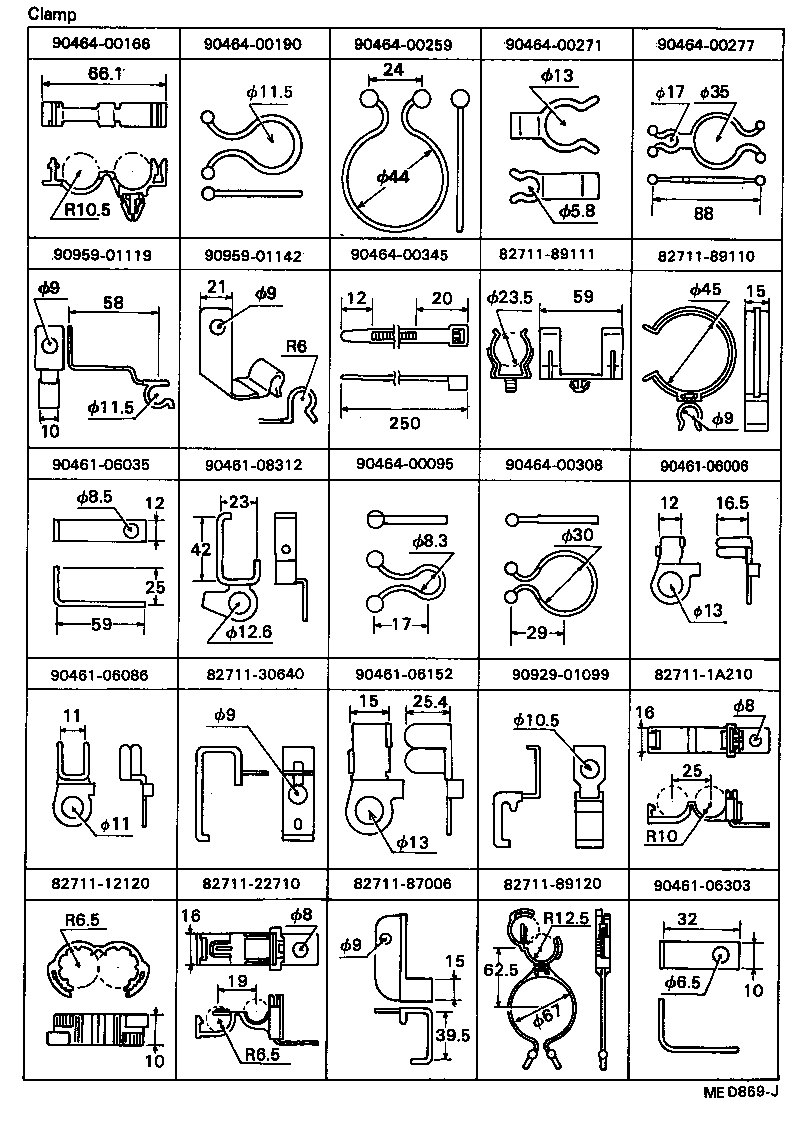

Figure MED736I MED736I 1983-08 → — Figure MED737H MED737H 1983-08 → — Figure MEK507 MEK507 1987-11 → — Figure MED738D MED738D 1983-08 → 1988-08 Figure MEE368D MEE368D 1984-03 → — Figure MED739B MED739B 1983-08 → — Figure MED869J MED869J 1983-08 → — Figure MEH724E MEH724E 1983-08 → —

Part groups

PNCDescription
82001 Cable, Bond, NO.1
82002 Cable, Battery TO Magnet Switch
82002A Cable, Magnet Switch TO Winch
82111 Wire, Engine Room Main
82121 Wire, Engine
82122 Wire, Engine, NO.2
82124 Wire, Engine, NO.4
82125 Wire, Transmission
82131 Wire, Cowl
82142 Wire, Instrument Panel, NO.2
82151 Wire, Front Door, RH
82151A Wire, Front Door, NO.2, RH
82151B Wire, Front Door, NO.3, RH
82152 Wire, Front Door, LH
82152A Wire, Front Door, NO.2, LH
82152B Wire, Front Door, NO.3, LH
82161 Wire, Floor
82162 Wire, Floor, NO.2
82164 Wire, Frame
82165 Wire, Frame, NO.2
82171 Wire, Roof, NO.1
82184 Wire, Back Door, NO.1
82187 Wire, Rear Window, NO.2
82210C Fusible Link
82213B Wire, Heater
82219A Wire, Sensor
82345 Diode
82371 Wire, Wiper Relay
82375A Wire, Wiper Motor
82620 Block Assy, Fusible Link
82670 Block Assy, Junction, NO.1
82817 Protector, Wiring Harness, NO.1
82817A Protector, Wiring Harness, NO.2
82823 Cap, Terminal, NO.1
82823B Cap, Terminal, NO.3
82823C Cap, Terminal, NO.4
82991 Wire, Fusible Link Repair
88648G Wire, Air Conditioner
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
