Toyota 4-Runner Truck
1983-08 → 1989-03 · chassis RN5#,6#,7#,VZN6#,LN5#,6# · catalogue 671440 · Europe
Discontinued model
Data version 1989-05
Electronic Fuel Injection System

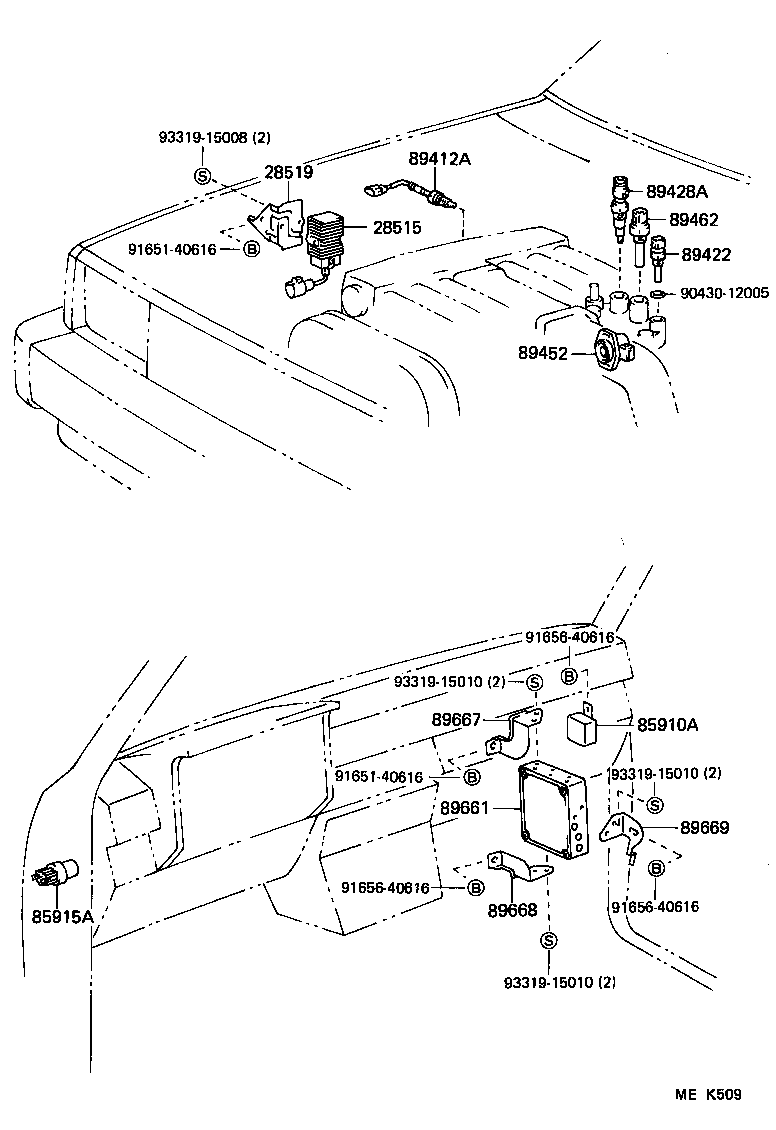

15 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 28515 | Resistor, Solenoid |
| 28519 | Bracket, Solenoid Resistor |
| 85910A | Relay Assy, Circuit Opening (FOR EFI) |
| 85915A | Relay, Main |
| 89412A | Sensor, E.G.R Gas Temperature |
| 89421A | Sensor, Turbo Pressure |
| 89422 | Sensor, Water Temperature (FOR E.F.I.) |
| 89428A | Switch, Water Temperature (FOR E.F.I) |
| 89452 | Sensor, Throttle Position (FOR E.F.I.) |
| 89462 | Switch, Start Injector Time |
| 89464A | Sensor, Altitude Compensation |
| 89661 | Computer, Engine Control |
| 89667 | Bracket, Engine Control Computer |
| 89668 | Bracket, Engine Control Computer, NO.2 |
| 89669 | Bracket, Engine Control Computer, NO.3 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
