Toyota 4-Runner Truck

1983-08 → 1989-03 · chassis RN5#,6#,7#,VZN6#,LN5#,6# · catalogue 671440 · Europe

Discontinued model Data version 1989-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Windshield Washer

15 part groups · 2 illustrations

Illustrations

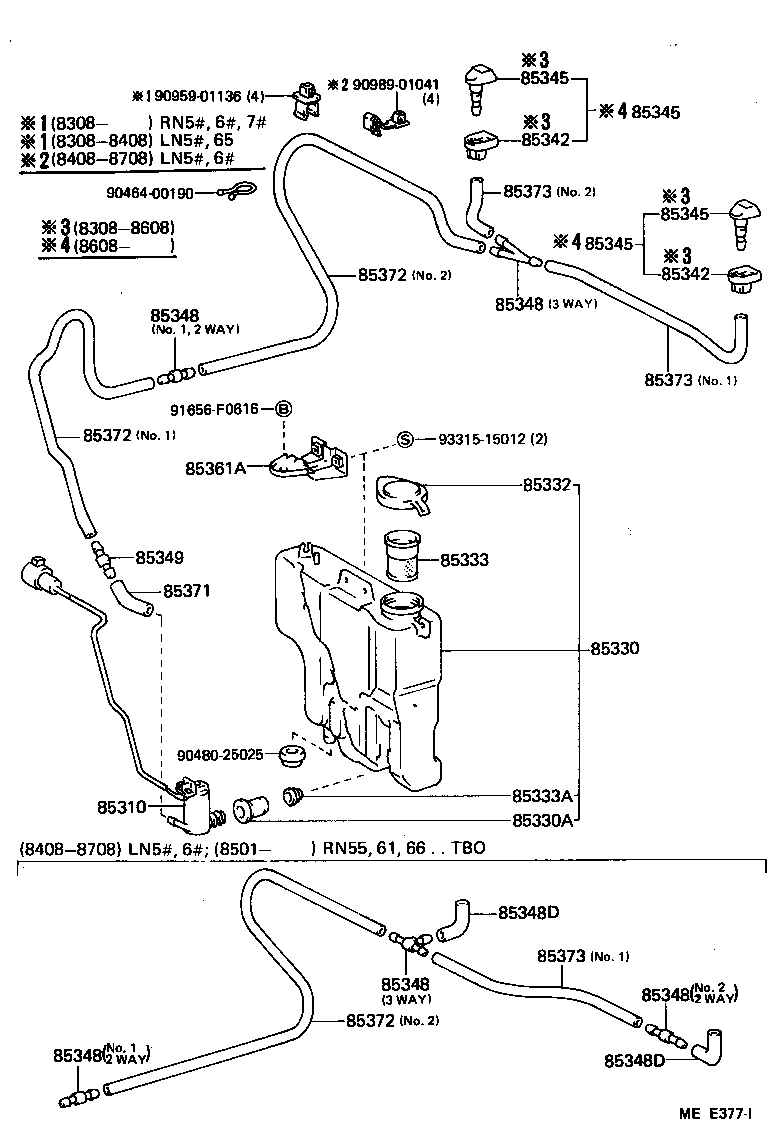

Figure MED753K MED753K 1983-08 → — Figure MEE377I MEE377I 1983-08 → —

Part groups

PNCDescription
85310 Motor And Pump Assy, Windshield Washer
85330 Jar Assy, Windshield Washer
85330A Bush, Windshield Washer Jar
85332 Cap, Windshield Washer Jar
85333 Filter, Windshield Washer Jar
85333A Filter, Windshield Washer Jar, NO.2
85342 Holder, Washer Nozzle
85345 Nozzle, Windshield Washer
85348 Joint, Windshield Washer Hose, NO.1
85348D Joint, Windshield Washer Elbow, NO.1
85349 Joint, Windshield Washer Hose, NO.1
85361A Bracket, Windshield Washer, NO.1
85371 Hose, Windshield Washer (FROM MOTOR TO JOINT)
85372 Hose, Windshield Washer (FROM JOINT TO JOINT), NO.1
85373 Hose, Windshield Washer (FROM JOINT TO NOZZLE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
