Toyota 4-Runner Truck
1983-08 → 1989-03 · chassis RN5#,6#,7#,VZN6#,LN5#,6# · catalogue 671440 · Europe
Discontinued model
Data version 1989-05
Heating & Air Conditioning - Control & Air Duct
21 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 55903 | Lever Sub-assy, Heater Control |
| 55905A | Knob, Heater Control |
| 55906A | Cable Sub-assy, Defroster Damper Control |
| 55907A | Cable Sub-assy, Water Valve Control |
| 55908A | Cable Sub-assy, Air Inlet Damper Control |
| 55909A | Cable Sub-assy, Airmix Damper Control |
| 55910 | Control Assy, Heater OR Boost Ventilator |
| 55931 | Clamp, Heater Control Wire |

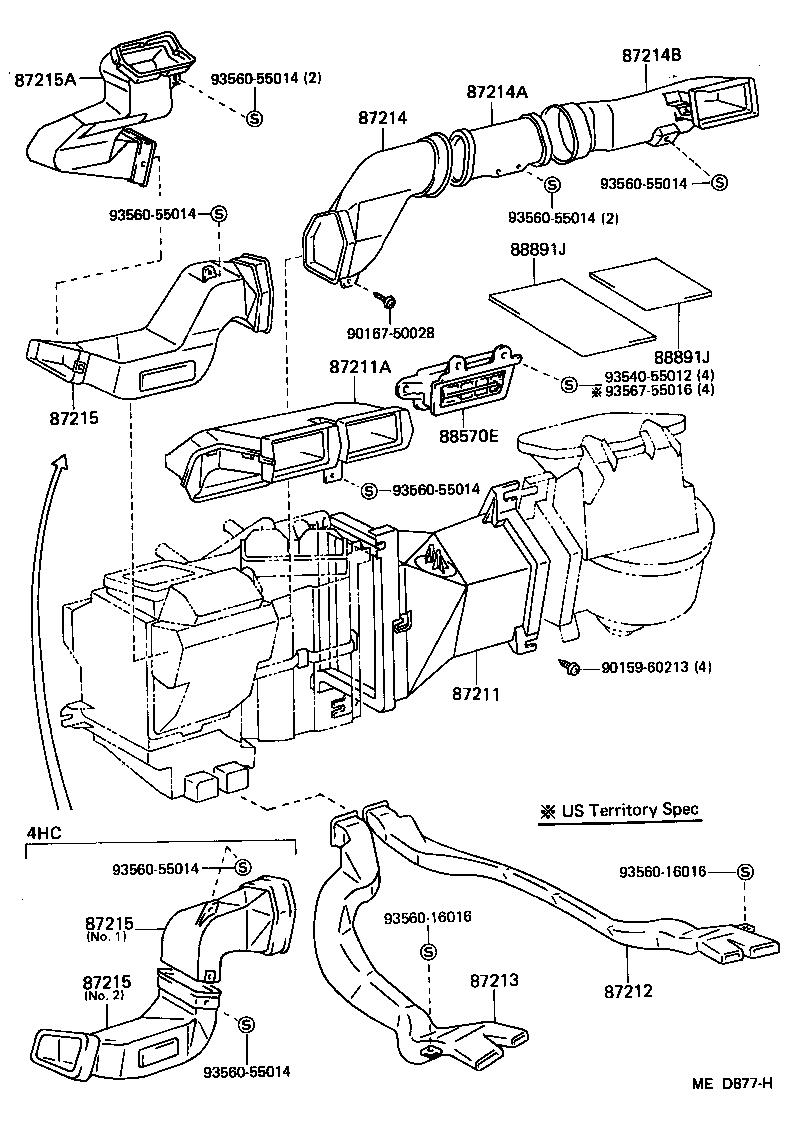

| 87211 | Duct, Air, NO.1 |
| 87211A | Duct, Air, NO.2 |
| 87212 | Duct, Air, Rear NO.1 |
| 87213 | Duct, Air, Rear NO.2 |
| 87214 | Duct, Air, Side NO.1 RH |
| 87214A | Duct, Air, Side NO.2 RH |
| 87214B | Duct, Air, Side NO.3 RH |
| 87215 | Duct, Air, Side NO.1 LH |
| 87215A | Duct, Air, Side NO.2 LH |
| 87284 | Resistor Sub-assy, Variable |
| 88570E | Grille Assy, Air Outlet |
| 88648A | Wiring, Cooler |
| 88891J | Packing |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
