Toyota 4-Runner Truck (JPP)

1988-08 → 1995-11 · chassis RN10#,110,13#,VZN10#,110,13# · catalogue 671450 · Europe

Discontinued model Data version 1996-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

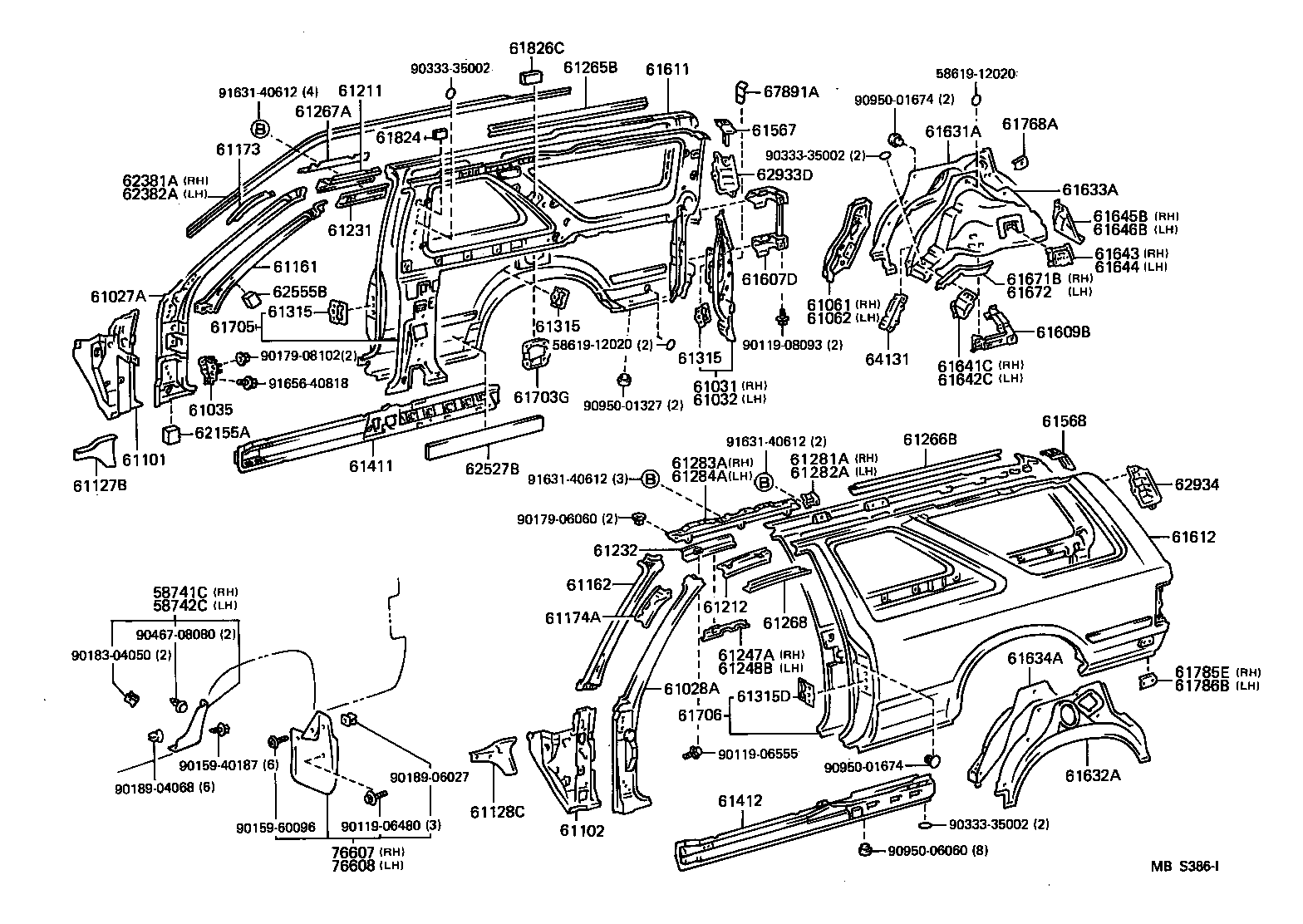

Exploded illustration MBS386I 61826C — PAD, NOISE SHUTTER, NO.3 (1 parts) 61265B — CHANNEL, ROOF DRIP SIDE REAR CORNER, RH (2 parts) 61611 — PANEL, QUARTER, RH (14 parts) 9033335002 — not listed in this catalogue 5861912020 — not listed in this catalogue 61211 — RAIL, ROOF SIDE, OUTER RH (2 parts) 67891A — SEAL, BACK DOOR (1 parts) 9163140612 — not listed in this catalogue 9095001674 — not listed in this catalogue 61267A — CHANNEL, ROOF DRIP SIDE, REAR RH (2 parts) 61768A — REINFORCEMENT, SEAT BELT ANCHOR, NO.2 RH (1 parts) 61567 — PLATE, QUARTER PANEL END, RH (1 parts) 61631A — PANEL, QUARTER WHEEL HOUSE, OUTER RH (1 parts) 61824 — PLATE, NOISE CONTROL, NO.1 (2 parts) 61173 — REINFORCEMENT, FRONT BODY PILLAR, UPPER INNER (5 parts) 9033335002 — not listed in this catalogue 62933D — DUCT, QUARTER VENT, UPPER (2 parts) 62381A — WEATHERSTRIP, ROOF SIDE RAIL, RH (2 parts) 61633A — PANEL, QUARTER WHEEL HOUSE, INNER RH (1 parts) 62382A — WEATHERSTRIP, ROOF SIDE RAIL, LH (2 parts) 61645B — GUSSET, QUARTER WHEEL HOUSE, REAR RH (1 parts) 61231 — RAIL, ROOF SIDE, INNER RH (2 parts) 61646B — GUSSET, QUARTER WHEEL HOUSE, REAR LH (1 parts) 61643 — GUSSET, QUARTER WHEEL HOUSE CENTER, RH (1 parts) 61161 — PILLAR, FRONT BODY, UPPER INNER RH (3 parts) 61644 — GUSSET, QUARTER WHEEL HOUSE, CENTER LH (1 parts) 61607D — RETAINER SUB-ASSY, SPARE WHEEL CARRIER HINGE (1 parts) 61671B — REINFORCEMENT, QUARTER WHEEL HOUSE, RH (1 parts) 62555B — PAD, PILLAR, NO.5 (1 parts) 61672 — BRACKET, REAR SEATBACK HINGE, LH (1 parts) 61027A — PILLAR SUB-ASSY, FRONT BODY, OUTER RH (4 parts) 61061 — REINFORCEMENT SUB-ASSY, WHEEL HOUSE, RH (1 parts) 61315 — RETAINER, DOOR LOCK STRIKER PLATE (2 parts) 61062 — REINFORCEMENT SUB-ASSY, WHEEL HOUSE, LH (1 parts) 61315 — RETAINER, DOOR LOCK STRIKER PLATE (2 parts) 61705 — PANEL SUB-ASSY, ROOF SIDE, INNER RH (2 parts) 61609B — BRACE SUB-ASSY, QUARTER PANEL (1 parts) 5861912020 — not listed in this catalogue 9011908093 — not listed in this catalogue 9017908102 — not listed in this catalogue 61315 — RETAINER, DOOR LOCK STRIKER PLATE (2 parts) 64131 — PANEL, QUARTER OUTER UNDER, RH (1 parts) 61641C — GUSSET, QUARTER WHEEL HOUSE, FRONT RH (1 parts) 61642C — GUSSET, QUARTER WHEEL HOUSE, FRONT LH (1 parts) 9165640818 — not listed in this catalogue 61031 — EXTENSION SUB-ASSY, QUARTER PANEL, REAR LOWER RH (3 parts) 61703G — PANEL SUB-ASSY, QUARTER, INNER RH (1 parts) 61032 — EXTENSION SUB-ASSY, QUARTER PANEL, REAR LOWER LH (1 parts) 9095001327 — not listed in this catalogue 61035 — BRACKET SUB-ASSY, INSTRUMENT PANEL TO COWL SIDE, RH (1 parts) 61568 — PLATE, QUARTER PANEL END, LH (1 parts) 62155A — PAD, COWL SIDE LOWER SILENCER (6 parts) 61266B — CHANNEL, ROOF DRIP SIDE REAR CORNER, LH (2 parts) 9163140612 — not listed in this catalogue 61281A — BRACKET, SLIDING ROOF HOUSING SIDE MOUNTING, NO.1 (1 parts) 61101 — PANEL SUB-ASSY, COWL SIDE, RH (2 parts) 61283A — BRACKET, SLIDING ROOF HOUSING SIDE MOUNTING, NO.3 RH (1 parts) 61411 — PANEL, ROCKER, OUTER RH (4 parts) 62527B — PAD, QUARTER TRIM (1 parts) 61282A — BRACKET, SLIDING ROOF HOUSING SIDE MOUNTING, NO.2 (1 parts) 61284A — BRACKET, SLIDING ROOF HOUSING SIDE MOUNTING, NO.3 LH (1 parts) 9163140612 — not listed in this catalogue 62934 — GROMMET, ROOF SIDE VENT HOSE (2 parts) 61127B — REINFORCEMENT, COWL SIDE PANEL, NO.2 RH (1 parts) 9017906060 — not listed in this catalogue 61612 — PANEL, QUARTER, LH (15 parts) 61232 — RAIL, ROOF SIDE, INNER LH (2 parts) 61162 — PILLAR, FRONT BODY, UPPER INNER LH (2 parts) 58741C — PROTECTOR, QUARTER PANEL, RH (46 parts) 58742C — PROTECTOR, QUARTER PANEL, LH (44 parts) 61212 — RAIL, ROOF SIDE, OUTER LH (2 parts) 61174A — REINFORCEMENT, FRONT BODY PILLAR, UPPER INNER LH (3 parts) 61268 — CHANNEL, ROOF DRIP SIDE, REAR LH (2 parts) 9046708080 — not listed in this catalogue 61247A — REINFORCEMENT, ROOF SIDE RAIL, INNER (1 parts) 9018304050 — not listed in this catalogue 61634A — PANEL, QUARTER WHEEL HOUSE, INNER LH (1 parts) 61248B — REINFORCEMENT, ROOF SIDE RAIL, INNER LH (1 parts) 61785E — BRACKET, REAR BUMPER SIDE, RH (1 parts) 61786B — BRACKET, REAR BUMPER SIDE, LH (1 parts) 61028A — PILLAR SUB-ASSY, FRONT BODY, OUTER LH (2 parts) 61315D — RETAINER, DOOR LOCK STRIKER, LH (2 parts) 61706 — PANEL SUB-ASSY, ROOF SIDE, INNER LH (2 parts) 9011906555 — not listed in this catalogue 9015940187 — not listed in this catalogue 9095001674 — not listed in this catalogue 61632A — PANEL, QUARTER WHEEL HOUSE, OUTER LH (1 parts) 9018906027 — not listed in this catalogue 9018904068 — not listed in this catalogue 61412 — PANEL, ROCKER, OUTER LH (4 parts) 61128C — REINFORCEMENT, COWL SIDE PANEL, NO.2 LH (1 parts) 9033335002 — not listed in this catalogue 9011906480 — not listed in this catalogue 9015960096 — not listed in this catalogue 61102 — PANEL SUB-ASSY, COWL SIDE, LH (2 parts) 9095006060 — not listed in this catalogue 76607 — MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH (2 parts) 76608 — MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH (2 parts)
MBS386I · 74 callouts, 24 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
234 parts on this figure
Part number Description Fitment Price
58741C — Protector, Quarter Panel, RH
58741-89101-01 note Protector, Quarter Panel, RH
1989-04 → 1990-08 ended
RN13#,VZN13# 4D —
58741-89101-01 note Protector, Quarter Panel, RH
1990-08 → 1991-08 ended
RN13#,VZN13# 4D —
58741-89101-02 note Protector, Quarter Panel, RH
1989-04 → 1991-08 ended
RN13#,VZN13# 4D —
58741-89101-03 note Protector, Quarter Panel, RH
1989-04 → 1991-08 ended
RN13#,VZN13# 4D —
58741-89101-04 note Protector, Quarter Panel, RH
1989-04 → 1991-08 ended
RN13#,VZN13# 4D —
58741-89101-06 note Protector, Quarter Panel, RH
1989-04 → 1990-08 ended
RN13#,VZN13# 4D —
58741-89101-06 note Protector, Quarter Panel, RH
1990-08 → 1991-08 ended
RN13#,VZN13# 4D —
58741-89101-08 note Protector, Quarter Panel, RH
1989-04 → 1991-08 ended
RN13#,VZN13# 4D —
58741-89101-12 note Protector, Quarter Panel, RH
1989-04 → 1991-08 ended
RN13#,VZN13# 4D —
58741-89101-14 note Protector, Quarter Panel, RH
1989-04 → 1991-08 ended
RN13#,VZN13# 4D —
58741-89101-20 note Protector, Quarter Panel, RH
1993-08 → 1995-11 ended
RN131,VZN131 —
58741-89101-20 note Protector, Quarter Panel, RH
1993-08 → 1995-11 ended
RN130,VZN130 —
58741-89101-20 note Protector, Quarter Panel, RH
1992-08 → 1993-08 ended
RN130,VZN130 4D —
58741-89101-20 note Protector, Quarter Panel, RH
1992-08 → 1993-08 ended
RN131,VZN131 4D —
58741-89101-20 note Protector, Quarter Panel, RH
1991-08 → 1992-08 ended
RN130 G;VZN130 4D;RN130 4FC —
58741-89101-20 note Protector, Quarter Panel, RH
1991-08 → 1992-08 ended
RN130 W;RN131,VZN131 4D —
58741-89101-37 note Protector, Quarter Panel, RH
1991-08 → 1995-11 ended
RN13#,VZN13# 4D —
58741-89101-A0 note Protector, Quarter Panel, RH
1993-08 → 1995-11 ended
RN13#,VZN13# —
58741-89101-A0 note Protector, Quarter Panel, RH
1991-08 → 1992-08 ended
RN13#,VZN13# 4D —
58741-89101-D0 note Protector, Quarter Panel, RH
1991-08 → 1995-11 ended
RN13#,VZN13# 4D —
58741-89101-E0 note Protector, Quarter Panel, RH
1993-08 → 1995-11 ended
RN13#,VZN13# —
58741-89101-H0 note Protector, Quarter Panel, RH
1991-08 → 1992-08 ended
RN131,VZN131 4D —
58741-89101-H0 note Protector, Quarter Panel, RH
1991-08 → 1992-08 ended
RN130,VZN130 4D —
58741-89101-H0 note Protector, Quarter Panel, RH
1992-08 → 1993-08 ended
RN131,VZN131 4D —
58741-89101-J0 note Protector, Quarter Panel, RH
1991-08 → 1995-11 ended
RN13#,VZN13# 4D —
58741-89101-J1 note Protector, Quarter Panel, RH
1993-08 → 1995-11 ended
RN13#,VZN13# —
58741-89102-01 note Protector, Quarter Panel, RH
1990-08 → 1991-08 ended
RN13#,VZN13# 2D —
58741-89102-01 note Protector, Quarter Panel, RH
1989-04 → 1990-08 ended
RN13#,VZN13# 2D —
58741-89102-02 note Protector, Quarter Panel, RH
1989-04 → 1991-08 ended
RN13#,VZN13# 2D —
58741-89102-03 note Protector, Quarter Panel, RH
1989-04 → 1991-08 ended
RN13#,VZN13# 2D —
58741-89102-04 note Protector, Quarter Panel, RH
1989-04 → 1991-08 ended
RN13#,VZN13# 2D —
58741-89102-06 note Protector, Quarter Panel, RH
1990-08 → 1991-08 ended
RN13#,VZN13# 2D —
58741-89102-06 note Protector, Quarter Panel, RH
1989-04 → 1990-08 ended
RN13#,VZN13# 2D —
58741-89102-08 note Protector, Quarter Panel, RH
1989-04 → 1991-08 ended
RN13#,VZN13# 2D —
58741-89102-12 note Protector, Quarter Panel, RH
1989-04 → 1991-08 ended
RN13#,VZN13# 2D —
58741-89102-14 note Protector, Quarter Panel, RH
1989-04 → 1991-08 ended
RN13#,VZN13# 2D —
58741-89102-20 note Protector, Quarter Panel, RH
1992-08 → 1993-08 ended
VZN130 2D —
58741-89102-20 note Protector, Quarter Panel, RH
1992-08 → 1993-08 ended
RN131,VZN131 2D —
58741-89102-20 note Protector, Quarter Panel, RH
1991-08 → 1992-08 ended
RN131,VZN131 2D —
58741-89102-20 note Protector, Quarter Panel, RH
1991-08 → 1992-08 ended
VZN130 2D —
58741-89102-37 note Protector, Quarter Panel, RH
1991-08 → 1993-08 ended
RN131,VZN13# 2D —
58741-89102-D0 note Protector, Quarter Panel, RH
1991-08 → 1993-08 ended
RN131,VZN13# 2D —
58741-89102-H0 note Protector, Quarter Panel, RH
1992-08 → 1993-08 ended
RN131,VZN131 2D —
58741-89102-H0 note Protector, Quarter Panel, RH
1991-08 → 1992-08 ended
RN131,VZN131 2D —
58741-89102-H0 note Protector, Quarter Panel, RH
1991-08 → 1992-08 ended
VZN130 2D —
58741-89102-J0 note Protector, Quarter Panel, RH
1991-08 → 1993-08 ended
RN131,VZN13# 2D —
58742C — Protector, Quarter Panel, LH
58742-89101-01 note Protector, Quarter Panel, LH
1990-08 → 1991-08 ended
RN13#,VZN13# 4D —
58742-89101-01 note Protector, Quarter Panel, LH
1989-04 → 1990-08 ended
RN13#,VZN13# 4D —
58742-89101-02 note Protector, Quarter Panel, LH
1989-04 → 1991-08 ended
RN13#,VZN13# 4D —
58742-89101-03 note Protector, Quarter Panel, LH
1989-04 → 1991-08 ended
RN13#,VZN13# 4D —
58742-89101-04 note Protector, Quarter Panel, LH
1989-04 → 1991-08 ended
RN13#,VZN13# 4D —
58742-89101-06 note Protector, Quarter Panel, LH
1989-04 → 1990-08 ended
RN13#,VZN13# 4D —
58742-89101-06 note Protector, Quarter Panel, LH
1990-08 → 1991-08 ended
RN13#,VZN13# 4D —
58742-89101-08 note Protector, Quarter Panel, LH
1989-04 → 1991-08 ended
RN13#,VZN13# 4D —
58742-89101-12 note Protector, Quarter Panel, LH
1989-04 → 1991-08 ended
RN13#,VZN13# 4D —
58742-89101-14 note Protector, Quarter Panel, LH
1989-04 → 1991-08 ended
RN13#,VZN13# 4D —
58742-89101-20 note Protector, Quarter Panel, LH
1992-08 → 1993-08 ended
RN130,VZN130 4D —
58742-89101-20 note Protector, Quarter Panel, LH
1992-08 → 1993-08 ended
RN131,VZN131 4D —
58742-89101-20 note Protector, Quarter Panel, LH
1993-08 → 1995-11 ended
RN130,VZN130 —
58742-89101-20 note Protector, Quarter Panel, LH
1993-08 → 1995-11 ended
RN131,VZN131 —
58742-89101-20 note Protector, Quarter Panel, LH
1991-08 → 1992-08 ended
RN130 G;VZN130 4D;RN130 4FC —
58742-89101-20 note Protector, Quarter Panel, LH
1991-08 → 1992-08 ended
RN130 W;RN131,VZN131 4D —
58742-89101-37 note Protector, Quarter Panel, LH
1991-08 → 1995-11 ended
RN13#,VZN13# 4D —
58742-89101-A0 note Protector, Quarter Panel, LH
1991-08 → 1992-08 ended
RN13#,VZN13# 4D —
58742-89101-A0 note Protector, Quarter Panel, LH
1993-08 → 1995-11 ended
RN13#,VZN13# —
58742-89101-D0 note Protector, Quarter Panel, LH
1991-08 → 1995-11 ended
RN13#,VZN13# 4D —
58742-89101-E0 note Protector, Quarter Panel, LH
1993-08 → 1995-11 ended
RN13#,VZN13# —
58742-89101-H0 note Protector, Quarter Panel, LH
1992-08 → 1993-08 ended
RN131,VZN131 4D —
58742-89101-H0 note Protector, Quarter Panel, LH
1991-08 → 1992-08 ended
RN131,VZN131 4D —
58742-89101-H0 note Protector, Quarter Panel, LH
1991-08 → 1992-08 ended
RN130,VZN130 4D —
58742-89101-J0 note Protector, Quarter Panel, LH
1991-08 → 1995-11 ended
RN13#,VZN13# 4D —
58742-89101-J1 note Protector, Quarter Panel, LH
1993-08 → 1995-11 ended
RN13#,VZN13# —
58742-89102-01 note Protector, Quarter Panel, LH
1990-08 → 1991-08 ended
RN13#,VZN13# 2D —
58742-89102-01 note Protector, Quarter Panel, LH
1989-04 → 1990-08 ended
RN13#,VZN13# 2D —
58742-89102-02 note Protector, Quarter Panel, LH
1989-04 → 1991-08 ended
RN13#,VZN13# 2D —
58742-89102-03 note Protector, Quarter Panel, LH
1989-04 → 1991-08 ended
RN13#,VZN13# 2D —
58742-89102-04 note Protector, Quarter Panel, LH
1989-04 → 1991-08 ended
RN13#,VZN13# 2D —
58742-89102-06 note Protector, Quarter Panel, LH
1990-08 → 1991-08 ended
RN13#,VZN13# 2D —
58742-89102-06 note Protector, Quarter Panel, LH
1989-04 → 1990-08 ended
RN13#,VZN13# 2D —
58742-89102-08 note Protector, Quarter Panel, LH
1989-04 → 1991-08 ended
RN13#,VZN13# 2D —
58742-89102-12 note Protector, Quarter Panel, LH
1989-04 → 1991-08 ended
RN13#,VZN13# 2D —
58742-89102-14 note Protector, Quarter Panel, LH
1989-04 → 1991-08 ended
RN13#,VZN13# 2D —
58742-89102-20 note Protector, Quarter Panel, LH
1992-08 → 1993-08 ended
VZN130 2D —
58742-89102-20 note Protector, Quarter Panel, LH
1992-08 → 1993-08 ended
RN131,VZN131 2D —
58742-89102-20 note Protector, Quarter Panel, LH
1991-08 → 1992-08 ended
VZN130 2D —
58742-89102-20 note Protector, Quarter Panel, LH
1991-08 → 1992-08 ended
RN131,VZN131 2D —
58742-89102-37 note Protector, Quarter Panel, LH
1991-08 → 1993-08 ended
RN131,VZN13# 2D —
58742-89102-D0 note Protector, Quarter Panel, LH
1991-08 → 1993-08 ended
RN131,VZN13# 2D —
58742-89102-H0 note Protector, Quarter Panel, LH
1991-08 → 1993-08 ended
RN131,VZN131 2D —
58742-89102-J0 note Protector, Quarter Panel, LH
1991-08 → 1993-08 ended
RN131,VZN13# 2D —
61027A — Pillar Sub-assy, Front Body, Outer RH
61027-89115 Pillar Sub-assy, Front Body, Outer RH
1988-08 → 1990-08 ended
RN10#,110,VZN10#,110 —
61027-89115 Pillar Sub-assy, Front Body, Outer RH
1990-08 → 1991-08 ended
VZN110 4FC;VZN110 R SR5;RN10#,110,VZN10#;VZN110 +3 —
61027-89115 Pillar Sub-assy, Front Body, Outer RH
1991-08 → 1995-01 ended
RN10#,110,VZN10#,110 —
61027-89901 Pillar Sub-assy, Front Body, Outer RH
1989-04 → 1995-11 ended
RN13#,VZN13# —
61028A — Pillar Sub-assy, Front Body, Outer LH
61028-89115 Pillar Sub-assy, Front Body, Outer LH
1988-08 → 1995-01 ended
RN10#,110,VZN10#,110 —
61028-89901 Pillar Sub-assy, Front Body, Outer LH
1989-04 → 1995-11 ended
RN13#,VZN13# —
61031 — Extension Sub-assy, Quarter Panel, Rear Lower RH
61031-89101 Extension Sub-assy, Quarter Panel, Rear Lower RH
1989-04 → 1995-11 ended
RN13#,VZN13# —
61031-89102 note Extension Sub-assy, Quarter Panel, Rear Lower RH
1989-04 → 1989-08 ended
VZN13# —
61031-89102 note Extension Sub-assy, Quarter Panel, Rear Lower RH
1989-08 → 1991-08 ended
VZN13# —
61032 — Extension Sub-assy, Quarter Panel, Rear Lower LH
61032-89101 Extension Sub-assy, Quarter Panel, Rear Lower LH
1989-04 → 1995-11 ended
RN13#,VZN13# —
61035 — Bracket Sub-assy, Instrument Panel TO Cowl Side, RH
61035-89101 Bracket Sub-assy, Instrument Panel TO Cowl Side, RH
1988-08 → 1995-11 ended
RN10#,110,13#,VZN10#,110,13# —
61061 — Reinforcement Sub-assy, Wheel House, RH
61061-89102 Reinforcement Sub-assy, Wheel House, RH
1989-04 → 1995-11 ended
RN13#,VZN13# —
61062 — Reinforcement Sub-assy, Wheel House, LH
61062-89102 Reinforcement Sub-assy, Wheel House, LH
1989-04 → 1995-11 ended
RN13#,VZN13# —
61101 — Panel Sub-assy, Cowl Side, RH
61101-89137 Panel Sub-assy, Cowl Side, RH
1988-08 → 1995-01 ended
RN10#,110,VZN10#,110 —
61101-89902 Panel Sub-assy, Cowl Side, RH
1989-04 → 1995-11 ended
RN13#,VZN13# —
61102 — Panel Sub-assy, Cowl Side, LH
61102-89132 Panel Sub-assy, Cowl Side, LH
1988-08 → 1995-01 ended
RN10#,110,VZN10#,110 —
61102-89902 Panel Sub-assy, Cowl Side, LH
1989-04 → 1995-11 ended
RN13#,VZN13# —
61127B — Reinforcement, Cowl Side Panel, NO.2 RH
61127-89102 Reinforcement, Cowl Side Panel, NO.2 RH
1989-04 → 1995-11 ended
RN13#,VZN13# —
61128C — Reinforcement, Cowl Side Panel, NO.2 LH
61128-89101 Reinforcement, Cowl Side Panel, NO.2 LH
1989-04 → 1995-11 ended
RN13#,VZN13# —
61161 — Pillar, Front Body, Upper Inner RH
61023-35020 Pillar, Front Body, Upper Inner RH
1991-08 → 1995-11 ended
RN10#,110,13#,VZN10#,110,13# —
61161-89108 Pillar, Front Body, Upper Inner RH
1988-08 → 1990-08 ended
RN10#,110,13#,VZN10#,110,13# —
61161-89108 Pillar, Front Body, Upper Inner RH
1990-08 → 1991-08 ended
VZN110 4FC;VZN110 R SR5;VZN110 +3 —
61162 — Pillar, Front Body, Upper Inner LH
61024-35020 Pillar, Front Body, Upper Inner LH
1991-08 → 1995-11 ended
RN10#,110,13#,VZN10#,110,13# —
61162-89108 Pillar, Front Body, Upper Inner LH
1988-08 → 1991-08 ended
RN10#,110,13#,VZN10#,110,13# —
61173 — Reinforcement, Front Body Pillar, Upper Inner
61173-35020 Reinforcement, Front Body Pillar, Upper Inner
1991-08 → 1995-11 ended
RN13#,VZN13# —
61173-89103 Reinforcement, Front Body Pillar, Upper Inner
1991-08 → 1995-01 ended
RN10#,110,VZN10#,110 —
61173-89103 Reinforcement, Front Body Pillar, Upper Inner
1990-08 → 1991-08 ended
VZN110 4FC;VZN110 R SR5;RN10#,110,VZN10#;VZN110 +3 —
61173-89103 Reinforcement, Front Body Pillar, Upper Inner
1988-08 → 1990-08 ended
RN10#,110,VZN10#,110 —
61173-89104 Reinforcement, Front Body Pillar, Upper Inner
1989-04 → 1991-08 ended
RN13#,VZN13# —
61174A — Reinforcement, Front Body Pillar, Upper Inner LH
61174-35020 Reinforcement, Front Body Pillar, Upper Inner LH
1991-08 → 1995-11 ended
RN13#,VZN13# —
61174-89102 Reinforcement, Front Body Pillar, Upper Inner LH
1988-08 → 1995-01 ended
RN10#,110,VZN10#,110 —
61174-89103 Reinforcement, Front Body Pillar, Upper Inner LH
1989-04 → 1991-08 ended
RN13#,VZN13# —
61211 — Rail, Roof Side, Outer RH
61211-89107 Rail, Roof Side, Outer RH
1988-08 → 1995-01 ended
RN10#,110,13#,VZN10#,110,13# 2D,T1 —
61211-89109 Rail, Roof Side, Outer RH
1989-04 → 1995-11 ended
RN13#,VZN13# 4D —
61212 — Rail, Roof Side, Outer LH
61212-89107 Rail, Roof Side, Outer LH
1988-08 → 1995-01 ended
RN10#,110,13#,VZN10#,110,13# 2D,T1 —
61212-89109 Rail, Roof Side, Outer LH
1989-04 → 1995-11 ended
RN13#,VZN13# 4D —
61231 — Rail, Roof Side, Inner RH
61231-89113 Rail, Roof Side, Inner RH
1988-08 → 1995-01 ended
RN10#,110,13#,VZN10#,110,13# 2D,T1 —
61231-89117 Rail, Roof Side, Inner RH
1989-04 → 1995-11 ended
RN13#,VZN13# 4D —
61232 — Rail, Roof Side, Inner LH
61232-89113 Rail, Roof Side, Inner LH
1988-08 → 1995-01 ended
RN10#,110,13#,VZN10#,110,13# 2D,T1 —
61232-89117 Rail, Roof Side, Inner LH
1989-04 → 1995-11 ended
RN13#,VZN13# 4D —
61247A — Reinforcement, Roof Side Rail, Inner
61247-89101 Reinforcement, Roof Side Rail, Inner
1989-04 → 1993-08 ended
RN13#,VZN13# 2D —
61248B — Reinforcement, Roof Side Rail, Inner LH
61248-89101 Reinforcement, Roof Side Rail, Inner LH
1989-04 → 1993-08 ended
RN13#,VZN13# 2D —
61265B — Channel, Roof Drip Side Rear Corner, RH
61265-89102 Channel, Roof Drip Side Rear Corner, RH
1989-04 → 1995-11 ended
RN13#,VZN13# 4D —
61265-89103 Channel, Roof Drip Side Rear Corner, RH
1989-04 → 1993-08 ended
RN13#,VZN13# 2D —
61266B — Channel, Roof Drip Side Rear Corner, LH
61265-89102 Channel, Roof Drip Side Rear Corner, LH
1989-04 → 1995-11 ended
RN13#,VZN13# 4D —
61266-89101 Channel, Roof Drip Side Rear Corner, LH
1989-04 → 1993-08 ended
RN13#,VZN13# 2D —
61267A — Channel, Roof Drip Side, Rear RH
61267-89101 Channel, Roof Drip Side, Rear RH
1988-08 → 1995-01 ended
RN10#,110,13#,VZN10#,110,13# 2D,T1 —
61267-89103 Channel, Roof Drip Side, Rear RH
1989-04 → 1995-11 ended
RN13#,VZN13# 4D —
61268 — Channel, Roof Drip Side, Rear LH
61268-89101 Channel, Roof Drip Side, Rear LH
1988-08 → 1995-01 ended
RN10#,110,13#,VZN10#,110,13# 2D,T1 —
61268-89103 Channel, Roof Drip Side, Rear LH
1989-04 → 1995-11 ended
RN13#,VZN13# 4D —
61281A — Bracket, Sliding Roof Housing Side Mounting, NO.1
61281-89101 Bracket, Sliding Roof Housing Side Mounting, NO.1
1989-04 → 1995-11 ended
RN13#,VZN13# —
61282A — Bracket, Sliding Roof Housing Side Mounting, NO.2
61281-89101 Bracket, Sliding Roof Housing Side Mounting, NO.2
1991-08 → 1995-11 ended
RN13#,VZN13# —
61283A — Bracket, Sliding Roof Housing Side Mounting, NO.3 RH
61283-89101 Bracket, Sliding Roof Housing Side Mounting, NO.3 RH
1989-04 → 1995-11 ended
RN13#,VZN13# —
61284A — Bracket, Sliding Roof Housing Side Mounting, NO.3 LH
61284-89101 Bracket, Sliding Roof Housing Side Mounting, NO.3 LH
1989-04 → 1995-11 ended
RN13#,VZN13# —
61315 — Retainer, Door Lock Striker Plate
61315-22020 Retainer, Door Lock Striker Plate
1988-08 → 1991-08 ended
RN10#,13#,VZN10#,13# —
61315-22020 Retainer, Door Lock Striker Plate
1991-08 → 1995-11 ended
RN13#,VZN13# 4D —
61315D — Retainer, Door Lock Striker, LH
61315-22020 Retainer, Door Lock Striker, LH
1988-08 → 1991-08 ended
RN10#,13#,VZN10#,13# —
61315-22020 Retainer, Door Lock Striker, LH
1991-08 → 1995-11 ended
RN13#,VZN13# 4D —
61411 — Panel, Rocker, Outer RH
61401-89103 Panel, Rocker, Outer RH
1989-04 → 1995-11 ended
RN13#,VZN13# 4D —
61401-89104 Panel, Rocker, Outer RH
1989-04 → 1993-08 ended
RN13#,VZN13# 2D —
61411-35010 Panel, Rocker, Outer RH
1990-08 → 1995-01 ended
RN10#,110,VZN10#,110 —
61411-89109 Panel, Rocker, Outer RH
1988-08 → 1990-08 ended
RN10#,110,VZN10#,110 —
61412 — Panel, Rocker, Outer LH
61402-89103 Panel, Rocker, Outer LH
1989-04 → 1995-11 ended
RN13#,VZN13# 4D —
61402-89104 Panel, Rocker, Outer LH
1989-04 → 1993-08 ended
RN13#,VZN13# 2D —
61412-35010 Panel, Rocker, Outer LH
1990-08 → 1995-01 ended
RN10#,110,VZN10#,110 —
61412-89109 Panel, Rocker, Outer LH
1988-08 → 1990-08 ended
RN10#,110,VZN10#,110 —
61567 — Plate, Quarter Panel End, RH
61567-89101 Plate, Quarter Panel End, RH
1989-04 → 1995-11 ended
RN13#,VZN13# —
61568 — Plate, Quarter Panel End, LH
61568-89101 Plate, Quarter Panel End, LH
1989-04 → 1995-11 ended
RN13#,VZN13# —
61607D — Retainer Sub-assy, Spare Wheel Carrier Hinge
61607-89101 Retainer Sub-assy, Spare Wheel Carrier Hinge
1989-04 → 1991-08 ended
VZN13# —
61609B — Brace Sub-assy, Quarter Panel
61609-89101 Brace Sub-assy, Quarter Panel
1989-04 → 1995-11 ended
RN13#,VZN13# —
61611 — Panel, Quarter, RH
61611-35030 note Panel, Quarter, RH
1991-08 → 1995-11 ended
VZN131 4D —
61611-89110 Panel, Quarter, RH
1988-08 → 1995-01 ended
RN110,VZN110 —
61611-89111 note Panel, Quarter, RH
1989-04 → 1991-08 ended
RN13#,VZN13# 4D —
61611-89111 note Panel, Quarter, RH
1991-08 → 1995-11 ended
RN13# 4D —
61611-89111 note Panel, Quarter, RH
1991-08 → 1995-11 ended
VZN13# 4D —
61611-89112 note Panel, Quarter, RH
1989-08 → 1991-08 ended
VZN13# 4D —
61611-89112 note Panel, Quarter, RH
1989-04 → 1989-08 ended
VZN13# 4D —
61611-89113 Panel, Quarter, RH
1989-04 → 1995-11 ended
RN13#,VZN13# 4D —
61611-89114 note Panel, Quarter, RH
1991-08 → 1993-08 ended
RN131 2D —
61611-89114 note Panel, Quarter, RH
1991-08 → 1993-08 ended
VZN13# 2D —
61611-89114 note Panel, Quarter, RH
1989-04 → 1991-08 ended
RN13#,VZN13# 2D —
61611-89115 note Panel, Quarter, RH
1989-08 → 1991-08 ended
VZN13# 2D —
61611-89115 note Panel, Quarter, RH
1989-04 → 1989-08 ended
VZN13# 2D —
61611-89116 Panel, Quarter, RH
1989-04 → 1993-08 ended
RN13#,VZN13# 2D —
61612 — Panel, Quarter, LH
61612-35010 note Panel, Quarter, LH
1993-08 → 1995-11 ended
VZN131 —
61612-35010 note Panel, Quarter, LH
1991-08 → 1993-08 ended
VZN131 4D —
61612-89114 Panel, Quarter, LH
1988-08 → 1995-01 ended
RN110,VZN110 —
61612-89115 note Panel, Quarter, LH
1989-04 → 1989-08 ended
VZN13# 4D —
61612-89115 note Panel, Quarter, LH
1989-08 → 1991-08 ended
VZN13# 4D —
61612-89115 note Panel, Quarter, LH
1993-08 → 1995-11 ended
VZN13# —
61612-89115 note Panel, Quarter, LH
1991-08 → 1993-08 ended
VZN131 4D —
61612-89115 note Panel, Quarter, LH
1991-08 → 1993-08 ended
VZN130 4D —
61612-89115 note Panel, Quarter, LH
1989-04 → 1995-11 ended
RN13# 4D —
61612-89116 Panel, Quarter, LH
1989-04 → 1995-11 ended
RN13#,VZN13# 4D —
61612-89117 note Panel, Quarter, LH
1989-04 → 1989-08 ended
VZN13# 2D —
61612-89117 note Panel, Quarter, LH
1991-08 → 1993-08 ended
VZN13# 2D —
61612-89117 note Panel, Quarter, LH
1989-04 → 1993-08 ended
RN13# 2D —
61612-89117 note Panel, Quarter, LH
1989-08 → 1991-08 ended
VZN13# 2D —
61612-89118 Panel, Quarter, LH
1989-04 → 1993-08 ended
RN13#,VZN13# 2D —
61631A — Panel, Quarter Wheel House, Outer RH
61631-89102 Panel, Quarter Wheel House, Outer RH
1989-04 → 1995-11 ended
RN13#,VZN13# —
61632A — Panel, Quarter Wheel House, Outer LH
61632-89102 Panel, Quarter Wheel House, Outer LH
1989-04 → 1995-11 ended
RN13#,VZN13# —
61633A — Panel, Quarter Wheel House, Inner RH
61633-89102 Panel, Quarter Wheel House, Inner RH
1989-04 → 1995-11 ended
RN13#,VZN13# —
61634A — Panel, Quarter Wheel House, Inner LH
61634-89102 Panel, Quarter Wheel House, Inner LH
1989-04 → 1995-11 ended
RN13#,VZN13# —
61641C — Gusset, Quarter Wheel House, Front RH
61641-89101 Gusset, Quarter Wheel House, Front RH
1989-04 → 1995-11 ended
RN13#,VZN13# —
61642C — Gusset, Quarter Wheel House, Front LH
61642-89101 Gusset, Quarter Wheel House, Front LH
1989-04 → 1995-11 ended
RN13#,VZN13# —
61643 — Gusset, Quarter Wheel House Center, RH
61643-89102 Gusset, Quarter Wheel House Center, RH
1989-04 → 1995-11 ended
RN13#,VZN13# —
61644 — Gusset, Quarter Wheel House, Center LH
61644-89102 Gusset, Quarter Wheel House, Center LH
1989-04 → 1995-11 ended
RN13#,VZN13# —
61645B — Gusset, Quarter Wheel House, Rear RH
61645-89102 Gusset, Quarter Wheel House, Rear RH
1989-04 → 1995-11 ended
RN13#,VZN13# —
61646B — Gusset, Quarter Wheel House, Rear LH
61646-89101 Gusset, Quarter Wheel House, Rear LH
1989-04 → 1995-11 ended
RN13#,VZN13# —
61671B — Reinforcement, Quarter Wheel House, RH
61671-89101 Reinforcement, Quarter Wheel House, RH
1989-04 → 1995-11 ended
RN13#,VZN13# —
61672 — Bracket, Rear Seatback Hinge, LH
61672-89101 Bracket, Rear Seatback Hinge, LH
1989-04 → 1995-11 ended
RN13#,VZN13# —
61703G — Panel Sub-assy, Quarter, Inner RH
61703-89110 Panel Sub-assy, Quarter, Inner RH
1989-04 → 1995-11 ended
RN13#,VZN13# —
61705 — Panel Sub-assy, Roof Side, Inner RH
61705-89104 Panel Sub-assy, Roof Side, Inner RH
1989-04 → 1995-11 ended
RN13#,VZN13# 4D —
61705-89108 Panel Sub-assy, Roof Side, Inner RH
1989-04 → 1993-08 ended
RN13#,VZN13# 2D —
61706 — Panel Sub-assy, Roof Side, Inner LH
61706-89104 Panel Sub-assy, Roof Side, Inner LH
1989-04 → 1995-11 ended
RN13#,VZN13# 4D —
61706-89108 Panel Sub-assy, Roof Side, Inner LH
1989-04 → 1993-08 ended
RN13#,VZN13# 2D —
61768A — Reinforcement, Seat Belt Anchor, NO.2 RH
61768-89103 Reinforcement, Seat Belt Anchor, NO.2 RH
1989-04 → 1995-11 ended
RN13#,VZN13# —
61785E — Bracket, Rear Bumper Side, RH
61786-89101 Bracket, Rear Bumper Side, RH
1989-04 → 1995-11 ended
RN13#,VZN13# —
61786B — Bracket, Rear Bumper Side, LH
61786-89101 Bracket, Rear Bumper Side, LH
1989-04 → 1995-11 ended
RN13#,VZN13# —
61824 — Plate, Noise Control, NO.1
61824-89106 Plate, Noise Control, NO.1
1989-04 → 1991-07 ended
RN13#,VZN13# 2D —
61825-20100 Plate, Noise Control, NO.1
1991-07 → 1993-08 ended
RN13#,VZN13# 2D —
61826C — Pad, Noise Shutter, NO.3
61826-89102 Pad, Noise Shutter, NO.3
1989-04 → 1995-11 ended
RN13#,VZN13# —
62155A — Pad, Cowl Side Lower Silencer
62155-89101 note Pad, Cowl Side Lower Silencer
1989-12 → 1990-08 ended
RN101,110,13#,VZN100,110,13# SR5 —
62155-89101 Pad, Cowl Side Lower Silencer
1989-09 → 1993-08 ended
RN10#,110,13#,VZN10#,110,13# —
62155-89101 note Pad, Cowl Side Lower Silencer
1990-08 → 1993-08 ended
RN131,VZN110,131 SR5 CND;RN10#,110,130,VZN10#,110,130 USA —
62155-89101 Pad, Cowl Side Lower Silencer
1993-08 → 1995-11 ended
VZN131 —
62155-89101 note Pad, Cowl Side Lower Silencer
1993-08 → 1995-11 ended
RN131,VZN110 SR5 CND;RN101,110,130,VZN100,110,130 USA —
62155-89101 Pad, Cowl Side Lower Silencer
1993-08 → 1995-11 ended
RN10#,110,13#,VZN100,110,130 —
62381A — Weatherstrip, Roof Side Rail, RH
62381-89101 Weatherstrip, Roof Side Rail, RH
1988-08 → 1995-01 ended
RN10#,110,13#,VZN10#,110,13# 2D,T1 —
62381-89103 Weatherstrip, Roof Side Rail, RH
1989-04 → 1995-11 ended
RN13#,VZN13# 4D —
62382A — Weatherstrip, Roof Side Rail, LH
62382-89101 Weatherstrip, Roof Side Rail, LH
1988-08 → 1995-01 ended
RN10#,110,13#,VZN10#,110,13# 2D,T1 —
62382-89103 Weatherstrip, Roof Side Rail, LH
1989-04 → 1995-11 ended
RN13#,VZN13# 4D —
62527B — Pad, Quarter Trim
62527-89104 Pad, Quarter Trim
1989-04 → 1989-11 ended
RN13#,VZN13# 2D —
62555B — Pad, Pillar, NO.5
62555-89101 Pad, Pillar, NO.5
1989-09 → 1995-11 ended
RN10#,110,13#,VZN10#,110,13# —
62933D — Duct, Quarter Vent, Upper
62903-89103 Duct, Quarter Vent, Upper
1989-04 → 1995-11 ended
RN13#,VZN13# 4D —
62903-89104 Duct, Quarter Vent, Upper
1989-04 → 1993-08 ended
RN13#,VZN13# 2D —
62934 — Grommet, Roof Side Vent Hose
62904-89101 Grommet, Roof Side Vent Hose
1989-04 → 1995-11 ended
RN13#,VZN13# 4D —
62904-89102 Grommet, Roof Side Vent Hose
1989-04 → 1993-08 ended
RN13#,VZN13# 2D —
64131 — Panel, Quarter Outer Under, RH
64131-89101 Panel, Quarter Outer Under, RH
1989-04 → 1995-11 ended
RN13#,VZN13# —
67891A — Seal, Back Door
67891-35010 Seal, Back Door
1990-10 → 1991-08 ended
VZN13# —
76607 — Mudguard Sub-assy, Quarter Panel, Rear RH
76607-39025 Mudguard Sub-assy, Quarter Panel, Rear RH
1989-04 → 1995-11 ended
RN13#,VZN13# —
76607-39045 note Mudguard Sub-assy, Quarter Panel, Rear RH
1991-08 → 1995-11 ended
VZN131 4D —
76608 — Mudguard Sub-assy, Quarter Panel, Rear LH
76608-39025 Mudguard Sub-assy, Quarter Panel, Rear LH
1989-04 → 1995-11 ended
RN13#,VZN13# —
76608-39045 note Mudguard Sub-assy, Quarter Panel, Rear LH
1991-08 → 1995-11 ended
VZN131 4D —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
