Toyota 4-Runner Truck (JPP)

1988-08 → 1995-11 · chassis RN10#,110,13#,VZN10#,110,13# · catalogue 671450 · Europe

Discontinued model Data version 1996-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

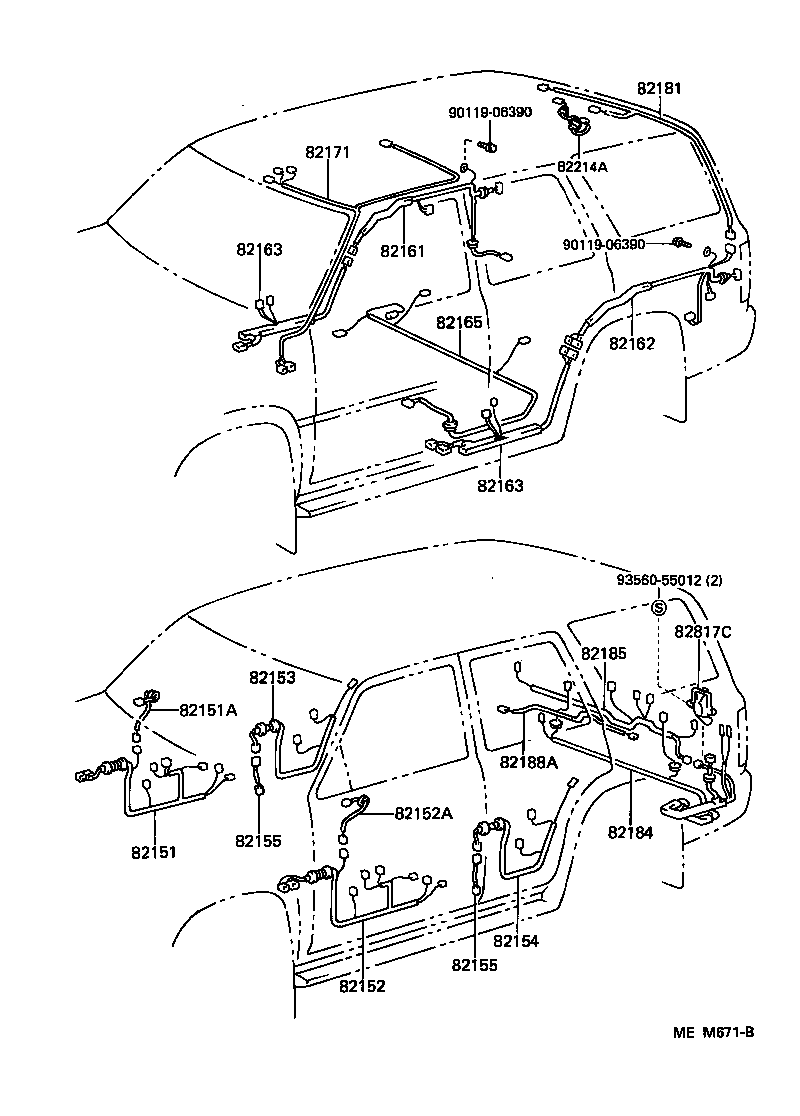

Exploded illustration MEM671B 82181 — WIRE, LUGGAGE ROOM, NO.1 (5 parts) 9011906390 — not listed in this catalogue 82171 — WIRE, ROOF, NO.1 (35 parts) 82214A — WIRE, LAMP (1 parts) 9011906390 — not listed in this catalogue 82163 — WIRE, FLOOR, NO.3 (21 parts) 82161 — WIRE, FLOOR (7 parts) 82165 — WIRE, FRAME, NO.2 (11 parts) 82162 — WIRE, FLOOR, NO.2 (8 parts) 82163 — WIRE, FLOOR, NO.3 (21 parts) 9356055012 — not listed in this catalogue 82817C — PROTECTOR, WIRING HARNESS, NO.4 (1 parts) 82185 — WIRE, BACK DOOR, NO.2 (2 parts) 82153 — WIRE, REAR DOOR, NO.1 (2 parts) 82151A — WIRE, FRONT DOOR, NO.2, RH (3 parts) 82188A — WIRE, BACK DOOR, NO.3 (1 parts) 82152A — WIRE, FRONT DOOR, NO.2, LH (3 parts) 82184 — WIRE, BACK DOOR, NO.1 (13 parts) 82155 — WIRE, CENTER PILLER, NO.1 (1 parts) 82151 — WIRE, FRONT DOOR, RH (9 parts) 82154 — WIRE, REAR DOOR, NO.2 (2 parts) 82155 — WIRE, CENTER PILLER, NO.1 (1 parts) 82152 — WIRE, FRONT DOOR, LH (9 parts)
MEM671B · 20 callouts, 3 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
134 parts on this figure
Part number Description Fitment Price
82151 — Wire, Front Door, RH
82151-35040 Wire, Front Door, RH
1991-08 → 1995-01 ended
RN131,VZN110,13# (2D,T1) SR5 —
82151-35060 Wire, Front Door, RH
1991-08 → 1995-11 ended
RN13#,VZN13# 4D —
82151-89116 note Wire, Front Door, RH
1988-08 → 1989-08 ended
RN101,110,13#,VZN100,110,13# SR5 —
82151-89117 note Wire, Front Door, RH
1988-08 → 1989-08 ended
RN101,110,130,VZN100,110,130 (2D,T1) SR5 USA —
82151-89117 note Wire, Front Door, RH
1988-08 → 1989-08 ended
RN131,VZN110,131 (2D,T1) SR5 CND —
82151-89117 Wire, Front Door, RH
1989-08 → 1991-08 ended
RN101,110,13#,VZN100,110,13# (2D,T1) SR5 —
82151-89121 note Wire, Front Door, RH
1989-04 → 1989-08 ended
RN130,VZN130 4D —
82151-89121 note Wire, Front Door, RH
1989-04 → 1989-08 ended
RN131,VZN131 4D —
82151-89121 Wire, Front Door, RH
1989-08 → 1991-08 ended
RN13#,VZN13# 4D —
82151A — Wire, Front Door, NO.2, RH
82151-35070 Wire, Front Door, NO.2, RH
1991-08 → 1991-11 ended
VZN110 SR5 USA —
82151-35071 Wire, Front Door, NO.2, RH
1991-11 → 1995-01 ended
VZN110 SR5 USA —
82151-89118 Wire, Front Door, NO.2, RH
1988-08 → 1991-08 ended
RN101,110,130,VZN100,110,130 SR5 USA —
82152 — Wire, Front Door, LH
82152-35040 Wire, Front Door, LH
1991-08 → 1995-01 ended
RN131,VZN110,13# (2D,T1) SR5 —
82152-35070 Wire, Front Door, LH
1991-08 → 1995-11 ended
RN13#,VZN13# 4D —
82152-89110 note Wire, Front Door, LH
1988-08 → 1989-08 ended
RN101,110,13#,VZN100,110,13# SR5 —
82152-89111 Wire, Front Door, LH
1989-08 → 1991-08 ended
RN101,110,13#,VZN100,110,13# (2D,T1) SR5 —
82152-89111 note Wire, Front Door, LH
1988-08 → 1989-08 ended
RN101,110,130,VZN100,110,130 (2D,T1) SR5 USA —
82152-89111 note Wire, Front Door, LH
1988-08 → 1989-08 ended
RN131,VZN110,131 (2D,T1) SR5 CND —
82152-89114 note Wire, Front Door, LH
1989-04 → 1989-08 ended
RN130,VZN130 4D —
82152-89114 note Wire, Front Door, LH
1989-04 → 1989-08 ended
RN131,VZN131 4D —
82152-89114 Wire, Front Door, LH
1989-08 → 1991-08 ended
RN13#,VZN13# 4D —
82152A — Wire, Front Door, NO.2, LH
82151-35070 Wire, Front Door, NO.2, LH
1991-08 → 1991-11 ended
VZN110 SR5 USA —
82151-35071 Wire, Front Door, NO.2, LH
1991-11 → 1995-01 ended
VZN110 SR5 USA —
82151-89118 Wire, Front Door, NO.2, LH
1988-08 → 1991-08 ended
RN101,110,130,VZN100,110,130 SR5 USA —
82153 — Wire, Rear Door, NO.1
82153-35010 Wire, Rear Door, NO.1
1991-08 → 1995-11 ended
RN13#,VZN13# 4D —
82153-89101 Wire, Rear Door, NO.1
1989-04 → 1991-08 ended
RN13#,VZN13# 4D —
82154 — Wire, Rear Door, NO.2
82154-35010 Wire, Rear Door, NO.2
1991-08 → 1995-11 ended
RN13#,VZN13# 4D —
82154-89101 Wire, Rear Door, NO.2
1989-04 → 1991-08 ended
RN13#,VZN13# 4D —
82155 — Wire, Center Piller, NO.1
82155-89101 Wire, Center Piller, NO.1
1989-04 → 1994-12 ended
RN13#,VZN13# 4D —
82161 — Wire, Floor
82161-35020 Wire, Floor
1991-08 → 1992-08 ended
RN13#,VZN13# —
82161-35021 Wire, Floor
1992-08 → 1995-11 ended
RN13#,VZN13# —
82161-89109 Wire, Floor
1989-04 → 1990-08 ended
RN13#,VZN13# —
82161-89110 note Wire, Floor
1989-04 → 1989-08 ended
VZN13# —
82161-89110 note Wire, Floor
1989-08 → 1990-08 ended
VZN13# —
82161-89111 Wire, Floor
1990-08 → 1991-08 ended
RN13#,VZN13# —
82161-89112 note Wire, Floor
1990-08 → 1991-08 ended
VZN13# —
82162 — Wire, Floor, NO.2
82162-35030 Wire, Floor, NO.2
1991-08 → 1992-08 ended
RN131,VZN13# 2D —
82162-35031 Wire, Floor, NO.2
1992-08 → 1993-08 ended
RN131,VZN13# 2D —
82162-35050 Wire, Floor, NO.2
1991-08 → 1992-08 ended
RN13#,VZN13# 4D —
82162-35051 Wire, Floor, NO.2
1992-08 → 1995-11 ended
RN13#,VZN13# 4D —
82162-89117 Wire, Floor, NO.2
1989-04 → 1990-08 ended
RN13#,VZN13# 2D —
82162-89118 Wire, Floor, NO.2
1989-04 → 1990-08 ended
RN13#,VZN13# 4D —
82162-89119 Wire, Floor, NO.2
1990-08 → 1991-08 ended
RN13#,VZN13# 2D —
82162-89120 Wire, Floor, NO.2
1990-08 → 1991-08 ended
RN13#,VZN13# 4D —
82163 — Wire, Floor, NO.3
82163-35010 note Wire, Floor, NO.3
1992-08 → 1994-12 ended
RN13#,VZN13# —
82163-35010 note Wire, Floor, NO.3
1991-08 → 1992-08 ended
RN13#,VZN13# —
82163-35020 note Wire, Floor, NO.3
1992-08 → 1995-11 ended
RN13#,VZN13# 4D —
82163-35020 note Wire, Floor, NO.3
1991-08 → 1992-08 ended
RN13#,VZN13# 4D —
82163-35030 note Wire, Floor, NO.3
1991-08 → 1992-08 ended
RN13#,VZN13# —
82163-35030 note Wire, Floor, NO.3
1992-08 → 1994-12 ended
RN13#,VZN13# —
82163-35040 note Wire, Floor, NO.3
1991-08 → 1992-08 ended
RN13#,VZN13# 4D —
82163-35040 note Wire, Floor, NO.3
1992-08 → 1993-08 ended
RN13#,VZN13# 4D —
82163-35041 note Wire, Floor, NO.3
1993-08 → 1995-11 ended
RN13#,VZN13# —
82163-35050 note Wire, Floor, NO.3
1994-12 → 1995-11 ended
RN13#,VZN13# —
82163-35060 note Wire, Floor, NO.3
1994-12 → 1995-11 ended
RN13#,VZN13# —
82163-89103 note Wire, Floor, NO.3
1989-04 → 1990-08 ended
RN13#,VZN13# —
82163-89105 note Wire, Floor, NO.3
1989-04 → 1990-08 ended
RN13#,VZN13# 4D —
82163-89106 note Wire, Floor, NO.3
1989-04 → 1990-08 ended
RN13#,VZN13# —
82163-89107 note Wire, Floor, NO.3
1989-04 → 1990-08 ended
RN13#,VZN13# —
82163-89109 note Wire, Floor, NO.3
1989-04 → 1990-08 ended
RN13#,VZN13# 4D —
82163-89111 note Wire, Floor, NO.3
1990-08 → 1991-08 ended
RN13#,VZN13# —
82163-89112 note Wire, Floor, NO.3
1990-08 → 1991-08 ended
RN13#,VZN13# 4D —
82163-89113 note Wire, Floor, NO.3
1990-08 → 1991-08 ended
RN13#,VZN13# —
82163-89114 note Wire, Floor, NO.3
1990-08 → 1991-08 ended
RN13#,VZN13# —
82163-89115 note Wire, Floor, NO.3
1990-08 → 1991-08 ended
RN13#,VZN13# 4D —
82165 — Wire, Frame, NO.2
82165-35010 Wire, Frame, NO.2
1991-08 → 1995-11 ended
RN13# —
82165-35020 note Wire, Frame, NO.2
1991-08 → 1995-11 ended
RN13# —
82165-35020 Wire, Frame, NO.2
1991-08 → 1995-11 ended
VZN13# —
82165-35060 note Wire, Frame, NO.2
1993-08 → 1995-11 ended
VZN13# —
82165-89112 Wire, Frame, NO.2
1989-04 → 1989-08 ended
RN13#,VZN13# —
82165-89112 Wire, Frame, NO.2
1989-08 → 1990-08 ended
RN13# —
82165-89120 Wire, Frame, NO.2
1989-08 → 1990-08 ended
VZN13# —
82165-89120 note Wire, Frame, NO.2
1989-08 → 1990-08 ended
RN13# —
82165-89121 Wire, Frame, NO.2
1990-08 → 1991-08 ended
RN13# —
82165-89123 Wire, Frame, NO.2
1990-08 → 1991-08 ended
VZN13# —
82165-89123 note Wire, Frame, NO.2
1990-08 → 1991-08 ended
RN13# —
82171 — Wire, Roof, NO.1
82171-35010 Wire, Roof, NO.1
1991-08 → 1993-08 ended
RN10#,VZN10# —
82171-35020 Wire, Roof, NO.1
1991-08 → 1993-08 ended
RN110,VZN110 DLX —
82171-35030 Wire, Roof, NO.1
1991-08 → 1993-08 ended
VZN110 SR5 —
82171-35031 Wire, Roof, NO.1
1993-08 → 1995-01 ended
VZN110 SR5 —
82171-35130 note Wire, Roof, NO.1
1991-08 → 1995-11 ended
RN13# 4D —
82171-35130 Wire, Roof, NO.1
1991-08 → 1995-11 ended
VZN13# 4D —
82171-35140 note Wire, Roof, NO.1
1991-08 → 1995-11 ended
RN13# —
82171-35140 note Wire, Roof, NO.1
1991-08 → 1995-11 ended
VZN13# —
82171-35160 Wire, Roof, NO.1
1991-08 → 1995-11 ended
RN13# 4D —
82171-35180 note Wire, Roof, NO.1
1991-08 → 1993-08 ended
RN131 2D —
82171-35180 Wire, Roof, NO.1
1991-08 → 1993-08 ended
VZN13# 2D —
82171-35190 Wire, Roof, NO.1
1991-08 → 1993-08 ended
RN131 2D —
82171-35200 Wire, Roof, NO.1
1993-08 → 1995-01 ended
RN10#,VZN100 —
82171-35210 Wire, Roof, NO.1
1993-08 → 1995-01 ended
RN110,VZN110 DLX —
82171-89117 Wire, Roof, NO.1
1988-08 → 1991-08 ended
RN10#,VZN10# —
82171-89118 Wire, Roof, NO.1
1988-08 → 1991-08 ended
RN110;VZN110 DLX —
82171-89119 note Wire, Roof, NO.1
1988-08 → 1990-08 ended
RN110 SR5 —
82171-89119 Wire, Roof, NO.1
1988-08 → 1991-08 ended
VZN110 SR5 —
82171-89120 note Wire, Roof, NO.1
1988-08 → 1989-08 ended
RN110;VZN110 DLX —
82171-89121 note Wire, Roof, NO.1
1988-08 → 1989-08 ended
RN110 SR5 —
82171-89121 note Wire, Roof, NO.1
1988-08 → 1989-08 ended
VZN110 SR5 —
82171-89124 note Wire, Roof, NO.1
1989-04 → 1989-06 ended
RN13# 2D —
82171-89124 Wire, Roof, NO.1
1989-04 → 1989-06 ended
VZN13# 2D —
82171-89126 note Wire, Roof, NO.1
1989-04 → 1991-08 ended
RN13# 4D —
82171-89126 Wire, Roof, NO.1
1989-04 → 1991-08 ended
VZN13# 4D —
82171-89127 note Wire, Roof, NO.1
1989-04 → 1990-08 ended
RN13# —
82171-89127 note Wire, Roof, NO.1
1989-04 → 1990-08 ended
VZN13# —
82171-89128 note Wire, Roof, NO.1
1989-04 → 1989-08 ended
RN13# —
82171-89129 Wire, Roof, NO.1
1989-04 → 1991-08 ended
RN13# 4D —
82171-89130 Wire, Roof, NO.1
1989-04 → 1989-06 ended
RN13# 2D —
82171-89132 note Wire, Roof, NO.1
1989-06 → 1991-08 ended
RN13# 2D —
82171-89132 Wire, Roof, NO.1
1989-06 → 1991-08 ended
VZN13# 2D —
82171-89133 Wire, Roof, NO.1
1989-06 → 1991-08 ended
RN13# 2D —
82171-89135 note Wire, Roof, NO.1
1990-08 → 1991-08 ended
VZN13# —
82171-89135 note Wire, Roof, NO.1
1990-08 → 1991-08 ended
RN13# —
82181 — Wire, Luggage Room, NO.1
82181-35010 Wire, Luggage Room, NO.1
1991-08 → 1995-11 ended
RN13#,VZN13# —
82181-89101 note Wire, Luggage Room, NO.1
1989-04 → 1990-08 ended
RN13#,VZN13# —
82181-89102 Wire, Luggage Room, NO.1
1989-04 → 1990-08 ended
RN13#,VZN13# —
82181-89103 note Wire, Luggage Room, NO.1
1990-08 → 1991-08 ended
RN13#,VZN13# —
82181-89104 Wire, Luggage Room, NO.1
1990-08 → 1991-08 ended
RN13#,VZN13# —
82184 — Wire, Back Door, NO.1
82184-35010 Wire, Back Door, NO.1
1991-08 → 1995-11 ended
RN130 —
82184-35020 note Wire, Back Door, NO.1
1991-08 → 1995-11 ended
RN130 —
82184-35020 Wire, Back Door, NO.1
1991-08 → 1995-11 ended
RN131,VZN13# —
82184-89104 Wire, Back Door, NO.1
1989-04 → 1990-08 ended
RN130 —
82184-89105 note Wire, Back Door, NO.1
1989-04 → 1989-08 ended
RN130 —
82184-89105 Wire, Back Door, NO.1
1989-04 → 1990-08 ended
RN131,VZN13# —
82184-89105 note Wire, Back Door, NO.1
1989-08 → 1990-08 ended
RN130 —
82184-89107 note Wire, Back Door, NO.1
1989-04 → 1989-08 ended
VZN13# —
82184-89107 note Wire, Back Door, NO.1
1989-08 → 1990-08 ended
VZN13# —
82184-89114 Wire, Back Door, NO.1
1990-08 → 1991-08 ended
RN130 —
82184-89115 Wire, Back Door, NO.1
1990-08 → 1991-08 ended
RN131,VZN13# —
82184-89115 note Wire, Back Door, NO.1
1990-08 → 1991-08 ended
RN130 —
82184-89116 note Wire, Back Door, NO.1
1990-08 → 1991-08 ended
VZN13# —
82185 — Wire, Back Door, NO.2
82185-35010 Wire, Back Door, NO.2
1991-08 → 1995-11 ended
RN13#,VZN13# —
82185-89101 Wire, Back Door, NO.2
1989-04 → 1991-08 ended
RN13#,VZN13# —
82188A — Wire, Back Door, NO.3
82188-89101 Wire, Back Door, NO.3
1989-04 → 1991-08 ended
VZN13# —
82214A — Wire, Lamp
82214-35010 Wire, Lamp
1991-08 → 1995-11 ended
VZN131 4D —
82817C — Protector, Wiring Harness, NO.4
82817-89141 Protector, Wiring Harness, NO.4
1989-04 → 1995-11 ended
RN13#,VZN13# —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
