Toyota 4-Runner Truck (JPP)

1988-08 → 1995-11 · chassis RN10#,110,13#,VZN10#,110,13# · catalogue 671450 · Europe

Discontinued model Data version 1996-08

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Spring & Shock Absorber

52 part groups · 4 illustrations

Illustrations

MCN564A 1988-08 → 1995-11

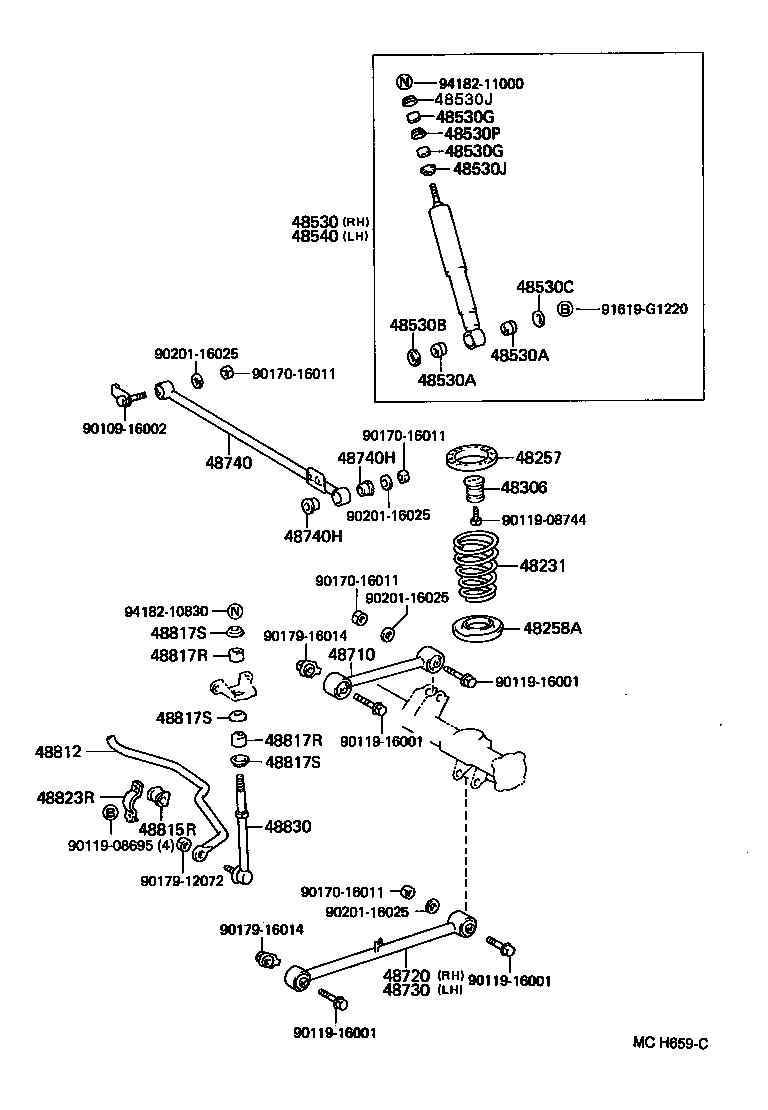

MCH659C 1989-04 → 1995-11

MCG537E 1988-08 → 1995-11

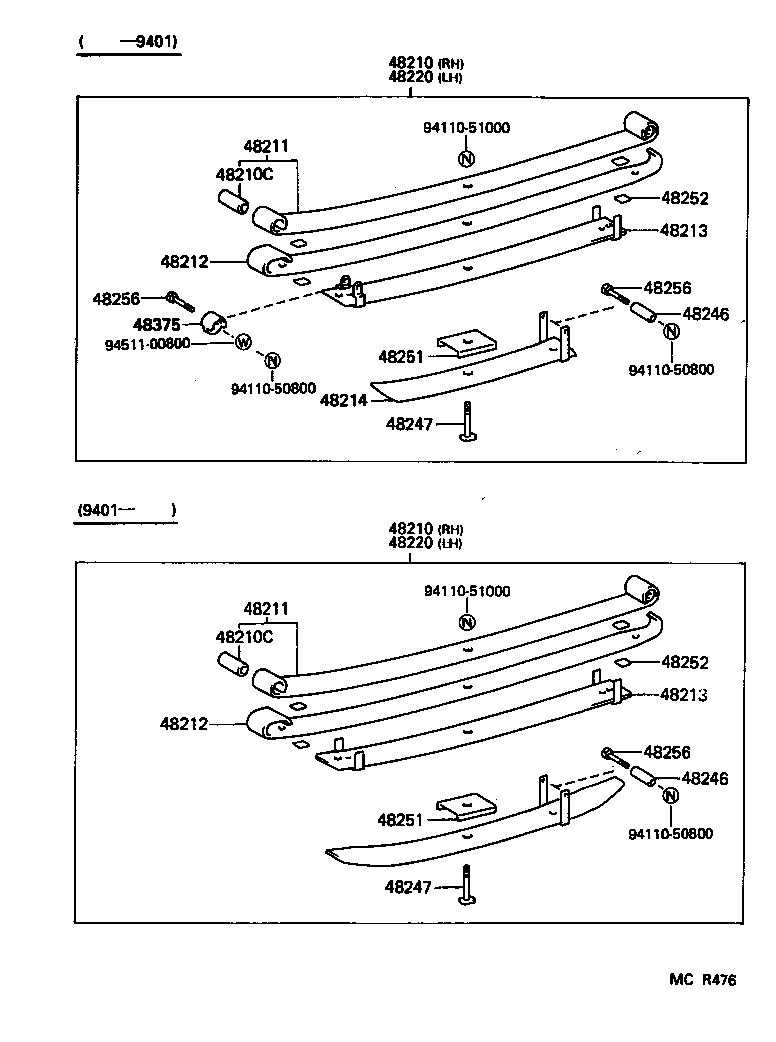

MCR476 1988-08 → 1995-11

Part groups

PNC	Description
04483	Shackle Kit, Rear Spring
48037	Spacer Sub-assy, Rear Spring
48046	Seat Sub-assy, Spring U Bolt, RH
48046A	Bolt, U(FOR REAR SPRING)
48047	Seat Sub-assy, Spring U Bolt, LH
48210	Spring Assy, Rear RH
48210A	Bush(FOR REAR SPRING SHACKLE UPPER)
48210C	Bush(FOR REAR SPRING LEAF)
48211	Leaf, Rear Spring, NO.1
48212	Leaf, Rear Spring, NO.2
48213	Leaf, Rear Spring, NO.3
48214	Leaf, Rear Spring, NO.4
48220	Spring Assy, Rear LH
48231	Spring, Coil, Rear
48246	Case, Rear Spring Clip Bolt
48247	Bolt, Rear Spring, Center
48251	Spacer, Rear Spring Leaf
48252	Silencer, Rear Spring
48256	Bolt, Hexagon(FOR REAR SPRING CLIP SET)
48257	Insulator, Rear Coil Spring
48258A	Insulator, Rear Coil Spring, Lower
48306	Bumper Sub-assy, Rear Spring
48344	Stopper, Bumper, Rear
48371	Retainer, Rear Spring Pad
48372	Pad, Rear Spring
48375	Damper, Leaf Spring Dynamic
48414B	Bracket, Spring, NO.3 RH
48415B	Bracket, Spring, NO.3 LH
48416	Bracket, Spring, NO.4
48516	Bracket, Rear Shock Absorber, Upper RH
48517	Bracket, Rear Shock Absorber, Upper LH
48530	Absorber Assy, Shock, Rear RH
48530A	Bush(FOR REAR SHOCK ABSORBER)
48530B	Washer, Rear Shock Absorber Cushion, NO.1
48530C	Washer, Rear Shock Absorber Cushion, NO.2
48530D	Washer, Rear Shock Absorber Cushion, NO.3
48530E	Washer, Rear Shock Absorber Cushion, NO.4
48530G	Cushion, Rear Shock Absorber, NO.1
48530J	Retainer, Cushion, NO.1(FOR REAR SHOCK ABSORBER)
48530P	Retainer, Cushion, NO.2(FOR REAR SHOCK ABSORBER)
48540	Absorber Assy, Shock, Rear LH
48710	Arm Assy, Upper Control
48720	Arm Assy, Lower Control, RH
48730	Arm Assy, Lower Control, LH
48740	Rod Assy, Rear Lateral Control
48740H	Bush, NO.1(FOR REAR LATERAL CONTROL ROD)
48812	Bar, Stabilizer, Rear
48815R	Bush, Stabilizer(FOR REAR)
48817R	Cushion, Stabilizer(FOR REAR)
48817S	Retainer, Cushion, NO.1(FOR STABILIZER REAR BAR)
48823R	Cover, Stabilizer Link(FOR REAR)
48830	Link Assy, Rear Stabilizer

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
