Toyota 4-Runner Truck (JPP)

1988-08 → 1995-11 · chassis RN10#,110,13#,VZN10#,110,13# · catalogue 671450 · Europe

Discontinued model Data version 1996-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Cab Mounting & Body Mounting

9 part groups · 2 illustrations

Illustrations

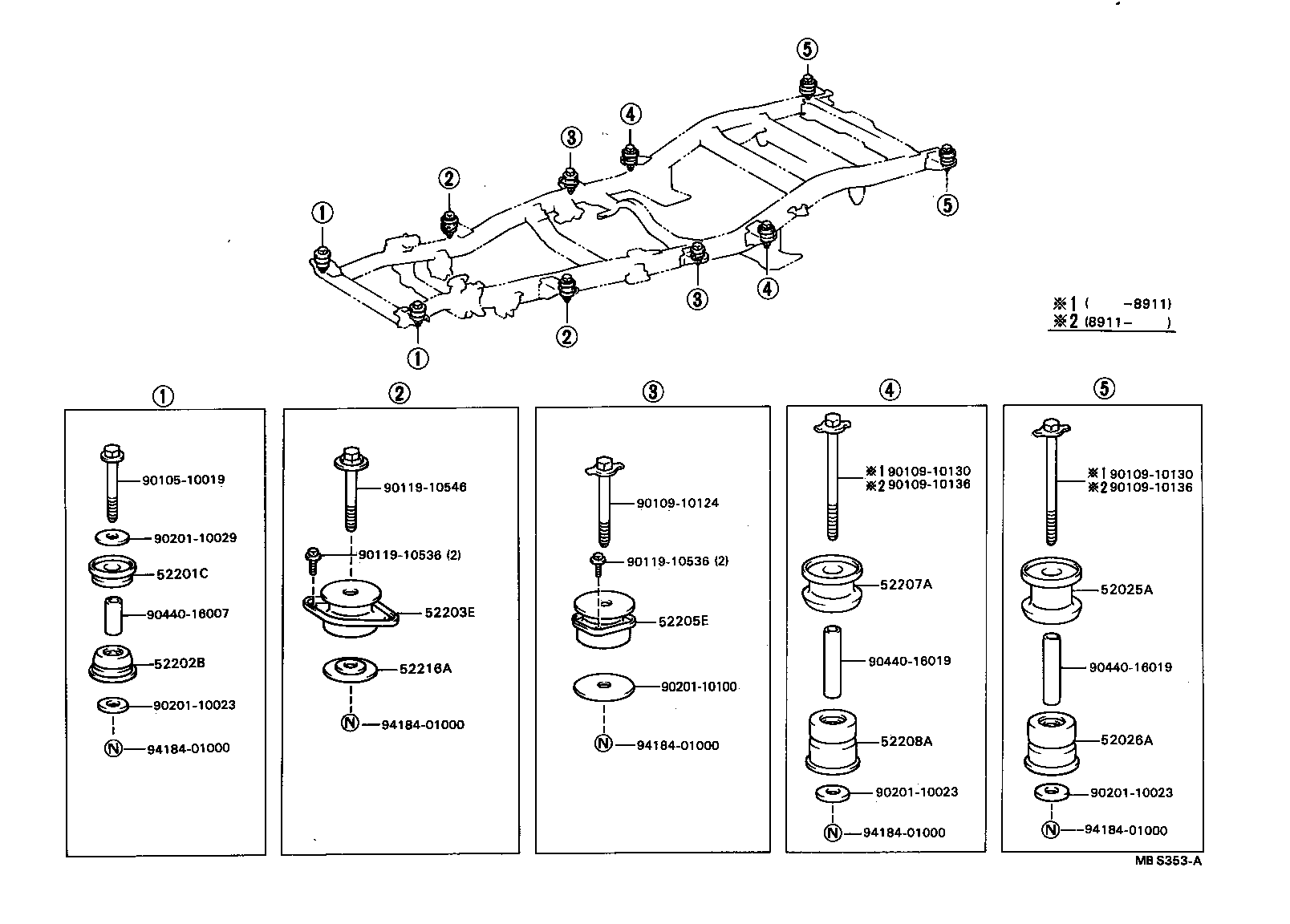

Figure MBP314C MBP314C 1988-08 → — Figure MBS353A MBS353A 1989-04 → —

Part groups

PNCDescription
52025A Cushion Sub-assy, Cab Mounting End, Upper
52026A Cushion Sub-assy, Cab Mounting End, Lower
52201C Cushiion Sub-assy, Cab Mounting, NO.1 Upper
52202B Cushiion Sub-assy, Cab Mounting, NO.1 Lower
52203E Cushion Sub-assy, Cab Mounting, NO.2
52205E Cushion Sub-assy, Cab Mounting, NO.3
52207A Cushion Sub-assy, Cab Mounting, NO.4 Upper
52208A Cushion Sub-assy, Cab Mounting, NO.4 Lower
52216A Stopper, Cab Mounting Cushion
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
