Factory parts data · Europe

Toyota 4-Runner Truck (JPP)

1988-08 → 1995-11 · chassis RN10#,110,13#,VZN10#,110,13# · catalogue 671450 · Europe

Discontinued model Data version 1996-08

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radiator Grille

6 part groups · 5 illustrations

Illustrations

Figure MBP323A

MBP323A 1988-08 → 1991-08

Figure MBV853

MBV853 1991-08 → —

Figure MBS389

MBS389 1989-04 → 1991-08

Figure MBV854

MBV854 1991-08 → —

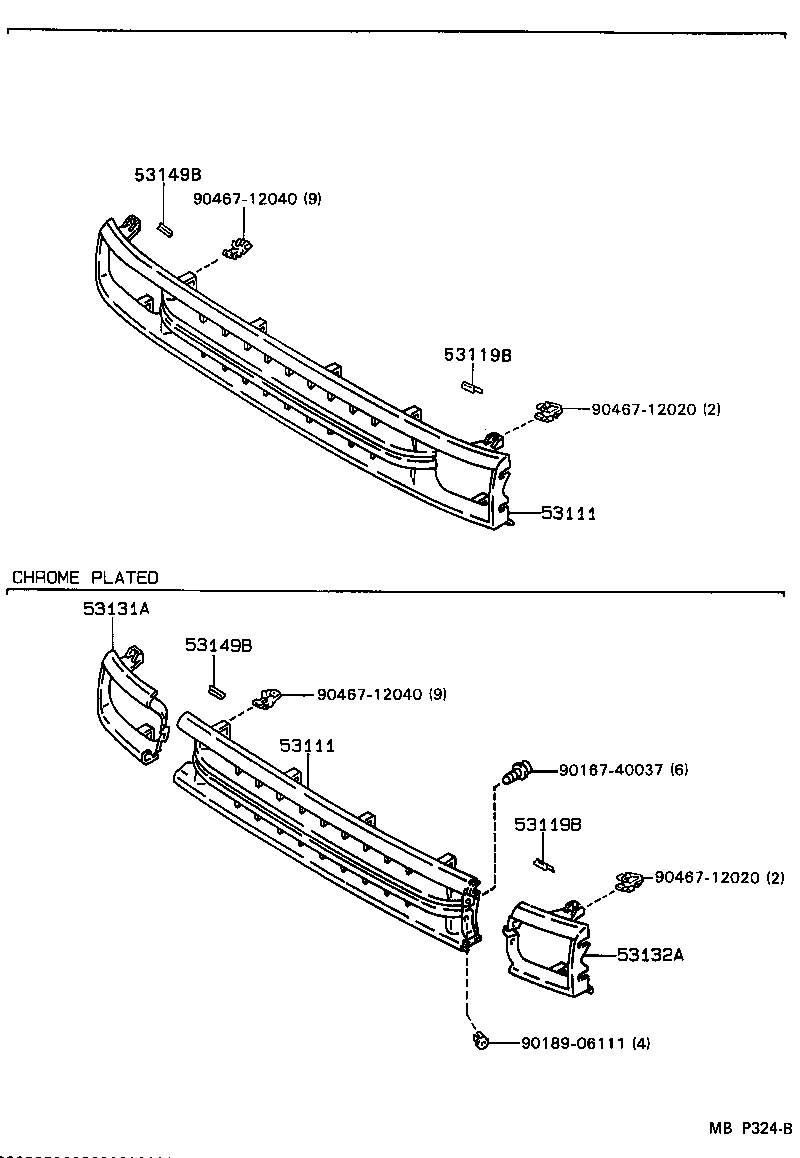

Figure MBP324B

MBP324B 1990-08 → 1991-08

Part groups

PNC	Description
53111	Grille, Radiator
53115B	Bracket, Radiator Grille
53119B	Protector, Radiator Grille
53131A	Door, Headlamp, RH
53132A	Door, Headlamp, LH
53149B	Protector, Headlamp Door, NO.3

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
