Toyota 4-Runner Truck (JPP)
1988-08 → 1995-11 · chassis RN10#,110,13#,VZN10#,110,13# · catalogue 671450 · Europe
Discontinued model
Data version 1996-08
Roof Panel & Back Panel
81 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 61824D | Plate, Noise Control, NO.1 |
| 63102A | Panel Sub-assy, Windshield Header |
| 63103A | Reinforcement Sub-assy, Roof Panel |
| 63105A | Frame Sub-assy, Back Door Opening |
| 63105D | Frame Sub-assy, Back Window, Upper |

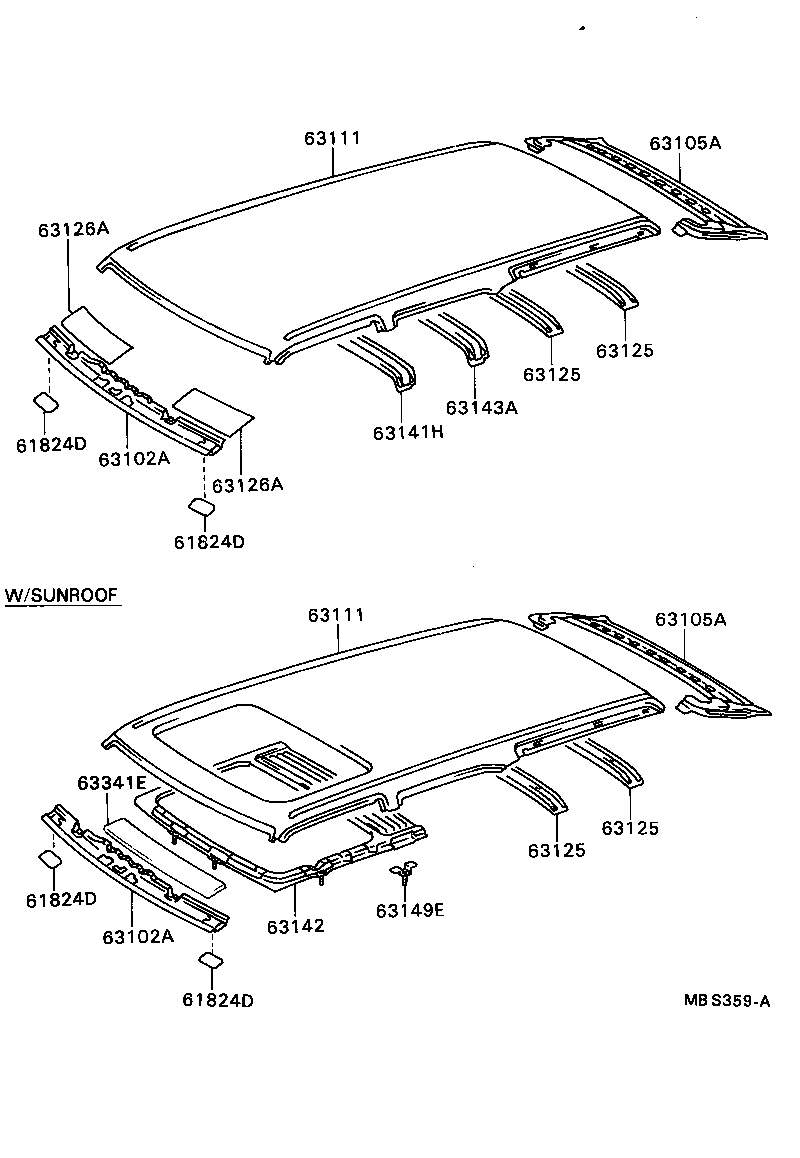

| 63111 | Panel, Roof |
| 63125 | Reinforcement, Roof Panel, NO.2 |
| 63126A | Damper, Windshield Header Panel |
| 63135B | Panel, Back Window, Upper Inner |
| 63141H | Reinforcement, Roof Panel, Center |
| 63142 | Reinforcement, Roof Panel, NO.2 |
| 63143A | Reinforcement, Roof Panel |
| 63149E | Bracket, Roof Panel Reinforcement, NO.2 |

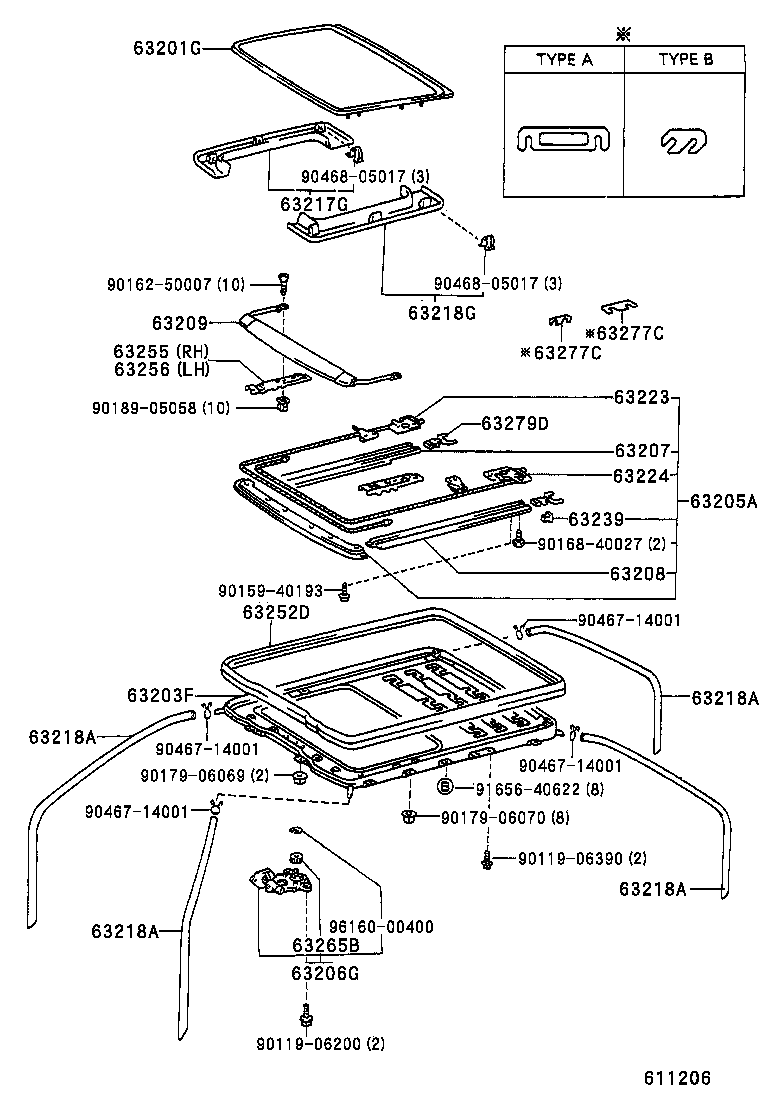

| 63201G | Glass Sub-assy, Sliding Roof |
| 63201L | Glass Sub-assy, Removable Roof |
| 63203F | Housing Sub-assy, Sliding Roof |
| 63203H | Housing Sub-assy, Removable Roof |
| 63205A | Cable Sub-assy, Sliding Roof Drive |
| 63206G | Gear Sub-assy, Sliding Roof Drive |
| 63207 | Rail Sub-assy, Sliding Roof Guide, RH |
| 63208 | Rail Sub-assy, Sliding Roof Guide, LH |
| 63209 | Panel Sub-assy, Roof Wind Deflector |
| 63217G | Garnish, Sliding Roof Side, RH |
| 63218A | Hose(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN) |
| 63218G | Garnish, Sliding Roof Side, LH |
| 63223 | Cable, Sliding Roof Drive, RH |
| 63224 | Cable, Sliding Roof Drive, LH |
| 63230A | Bolt Assy, Removable Roof |
| 63239 | Stopper, Sliding Roof Panel |
| 63243B | Bracket, Removable Roof Housing Side Mounting, RH |
| 63244B | Bracket, Removable Roof Housing Side Mounting, LH |
| 63250 | Base Assy, Removable Roof Lock |
| 63252B | Weatherstrip, Removable Roof, Rear |
| 63252D | Weatherstrip, Sliding Roof Housing |
| 63254 | Holder, Removable Roof Glass, Inner Rear |
| 63255 | Cover, Sliding Roof Guide Rail, RH |
| 63256 | Cover, Sliding Roof Guide Rail, LH |
| 63260 | Handle Assy, Removable Roof Lock |
| 63265B | Gear, Sliding Roof Drive |
| 63271 | Garnish, Removable Roof Lock |
| 63273 | Case, Removable Roof Hinge, RH |
| 63274 | Case, Removable Roof Hinge, LH |
| 63275 | Holder, Removable Roof Hinge, RH |
| 63276 | Holder, Removable Roof Hinge, LH |
| 63277B | Spacer, Removable Roof Lock Base |
| 63277C | Shim, Sliding Roof Panel |
| 63277D | Spacer, Removable Roof Hinge |
| 63278 | Seal, Removable Roof Hinge Case |
| 63279D | Stopper, Sliding Roof Guide Rail |
| 63280 | Catch Assy, Removable Roof Auxiliary, LH |
| 63285 | Hinge, Removable Roof, RH |
| 63286 | Hinge, Removable Roof, LH |
| 63297C | Bolt, Removable Roof Hinge Case |
| 63341E | Silencer, Roof, RH |
| 63343D | Pad, Roof Silencer, NO.3 |

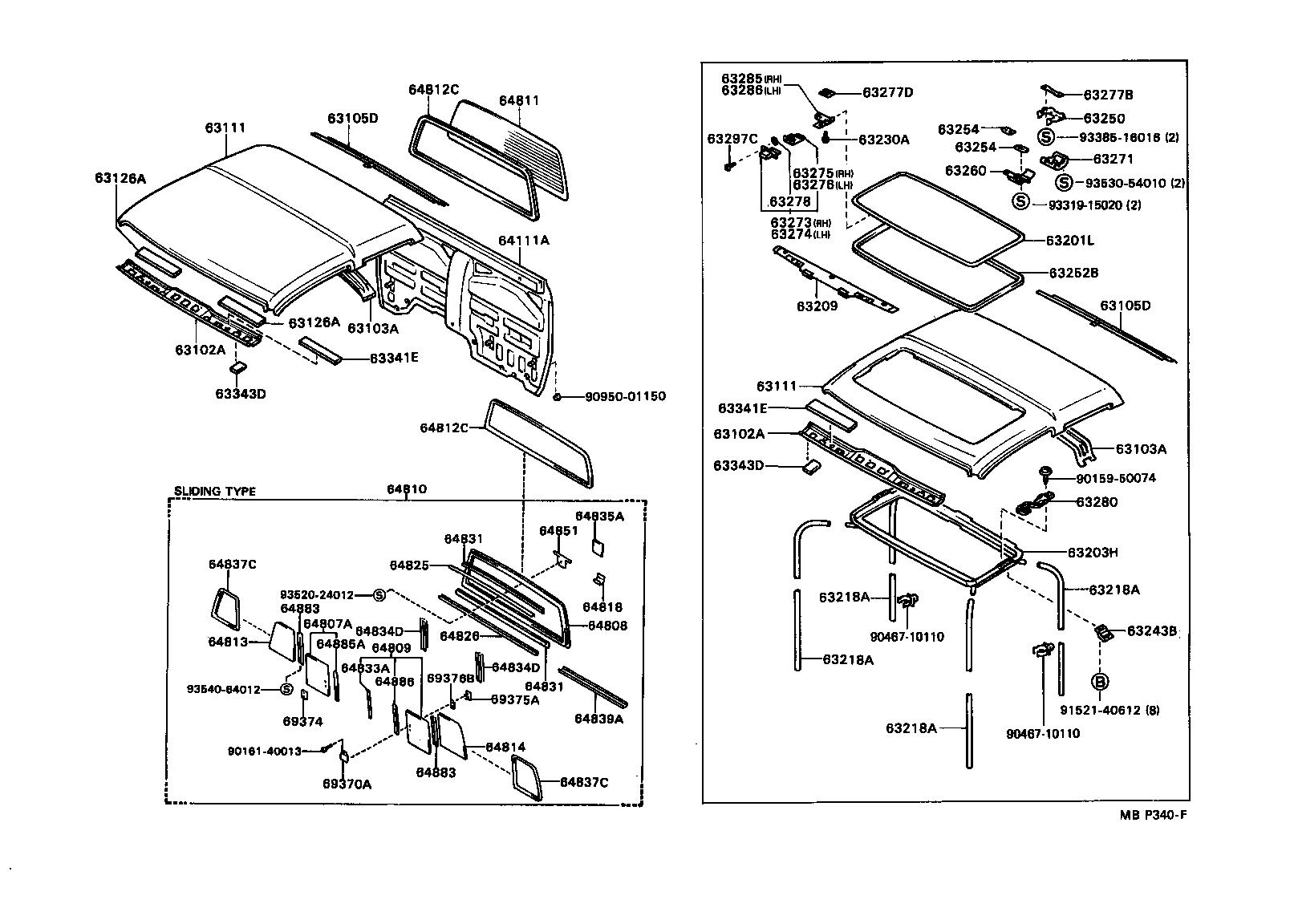

| 64111A | Panel, Back |
| 64807A | Glass Sub-assy, Back Window Slide, RH |
| 64808 | Channel Sub-assy, Back Window Slide Glass |
| 64809 | Glass Sub-assy, Back Window Slide, LH |
| 64810 | Window Assy, Back |
| 64811 | Glass, Back Window |
| 64812C | Weatherstrip, Back Window Glass |
| 64813 | Glass, Back Window Corner, RH |
| 64814 | Glass, Back Window Corner, LH |
| 64818 | Spacer, Back Window Glass |
| 64825 | Run, Back Window Channel, Upper |
| 64826 | Run, Back Window Channel, Lower |
| 64831 | Weatherstrip, Back Window Glass |
| 64833A | Weatherstrip, Back Window Center Channel |
| 64834D | Weatherstrip, Back Window Slide Glass |
| 64835A | Weatherstrip, Back Window Glass, Center |
| 64837C | Weatherstrip, Back Window Corner Glass |
| 64839A | Packing, Back Window |
| 64851 | Stop, Back Window Slide Glass |
| 64883 | Frame, Back Window |
| 64885A | Channel, Back Window Glass, RH |
| 64886 | Channel, Back Window Glass, LH |
| 69370A | Lock Assy, Back Window |
| 69374 | Catch, Back Window Lock |
| 69375A | Retainer, Back Window Lock |
| 69376B | Packing, Back Window Lock |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
