Toyota 4-Runner Truck (JPP)

1988-08 → 1995-11 · chassis RN10#,110,13#,VZN10#,110,13# · catalogue 671450 · Europe

Discontinued model Data version 1996-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Emblem & Name Plate

9 part groups · 2 illustrations

Illustrations

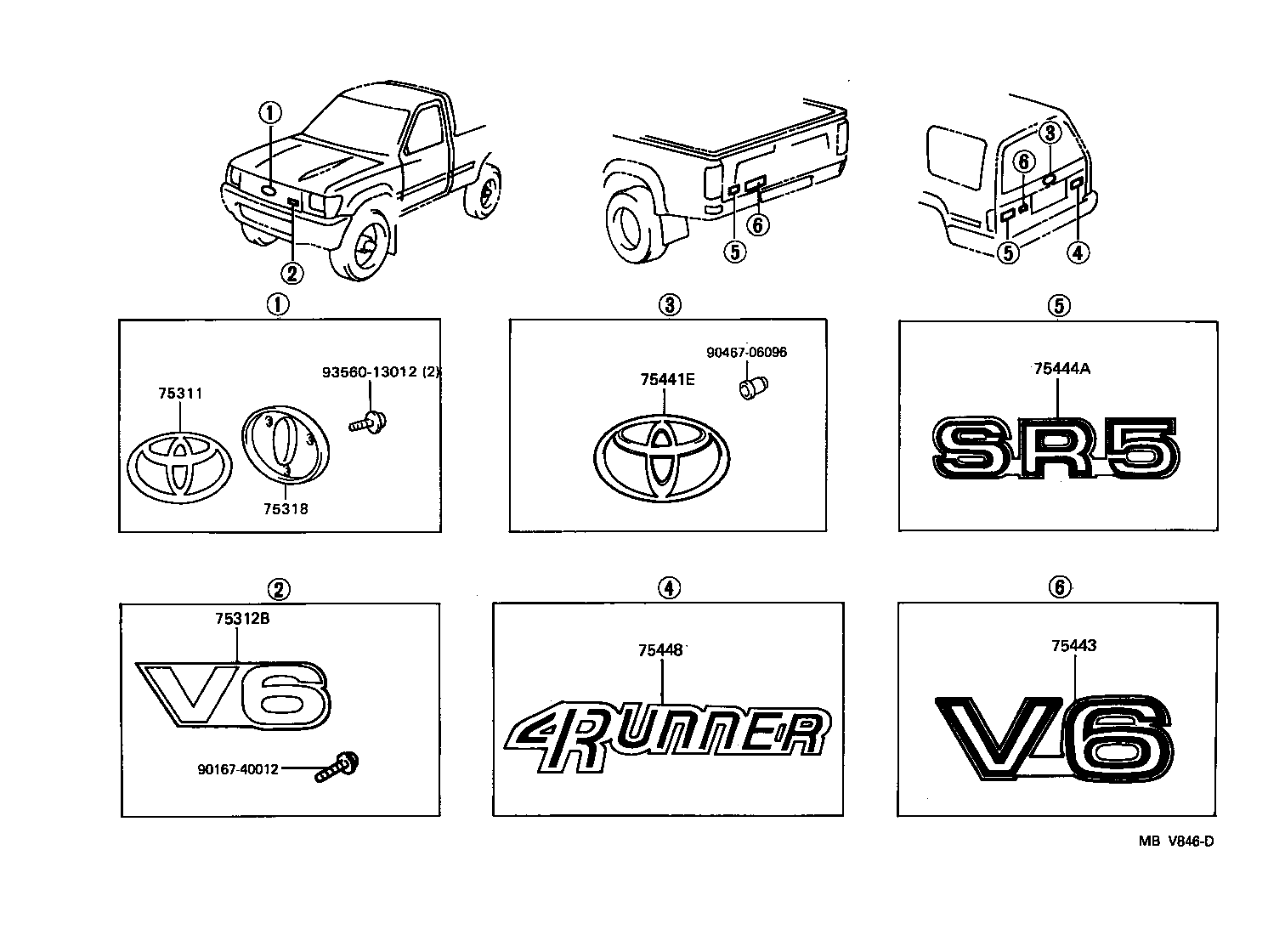

Figure MBP645E MBP645E 1988-08 → — Figure MBV846D MBV846D 1991-08 → 1995-11

Part groups

PNCDescription
75311 Emblem, Radiator Grille (OR FRONT PANEL)
75312B Emblem, Radiator Grille, NO.2
75318 Retainer, Radiator Grille Emblem
75441E Plate, Back Door Name, NO.1
75443 Plate, Back Door Name, NO.3
75444A Plate, Back Door Name, NO.4
75448 Plate, Back Door Name, NO.8
75472A Plate, Rear Body Name, NO.2
75473B Plate, Rear Body Name, NO.3
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
