Toyota 4-Runner Truck (JPP)

1988-08 → 1995-11 · chassis RN10#,110,13#,VZN10#,110,13# · catalogue 671450 · Europe

Discontinued model Data version 1996-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Moulding

22 part groups · 2 illustrations

Illustrations

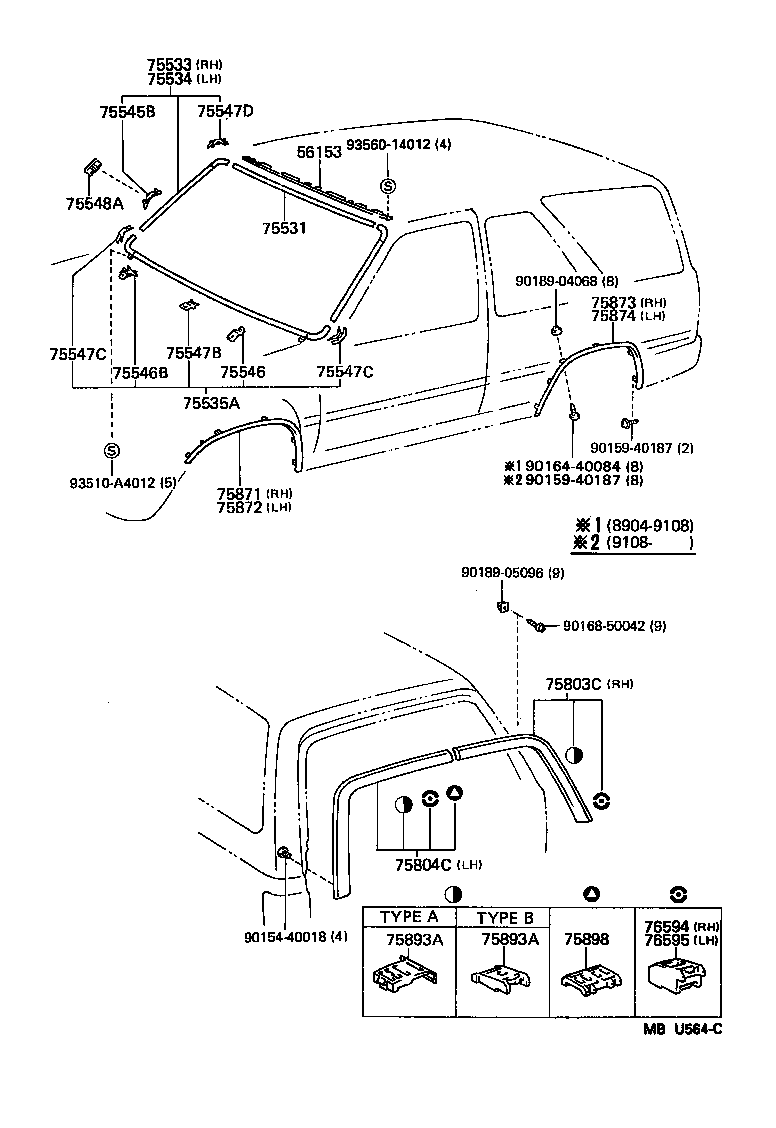

Figure MBU563F MBU563F 1988-08 → — Figure MBU564C MBU564C 1989-04 → 1995-11

Part groups

PNCDescription
56153 Moulding, Front Window, Inner Center
75531 Moulding, Windshield, Outer Upper
75533 Moulding, Windshield, Outside RH
75534 Moulding, Windshield, Outside LH
75535A Moulding, Windshield, Outside Lower
75545B Clip, Windshield Outside Moulding, NO.1
75546 Clip, Windshield Outside Moulding
75546B Clip, Windshield Outside Moulding, NO.2
75547B Clip, Windshield Outside Moulding, NO.3
75547C Clip, Windshield Outside Moulding, NO.3
75547D Clip, Windshield Outside Moulding, NO.3
75548A Fastener, Windshield Outside Moulding, NO.1
75803C Moulding Sub-assy, Back Door, Outside RH
75804C Moulding Sub-assy, Back Door, Outside LH
75871 Moulding, Front Fender Wheel Opening, RH
75872 Moulding, Front Fender Wheel Opening, LH
75873 Moulding, Quarter Panel Wheel Opening, RH
75874 Moulding, Quarter Panel Wheel Opening, LH
75893A Retainer, Back Door Moulding
75898 Clip, Back Door Outside Moulding
76594 Retainer, Back Door Lower Moulding, NO.1
76595 Retainer, Back Door Lower Moulding, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
