Toyota 4-Runner Truck (JPP)

1988-08 → 1995-11 · chassis RN10#,110,13#,VZN10#,110,13# · catalogue 671450 · Europe

Discontinued model Data version 1996-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Body Stripe

26 part groups · 8 illustrations

Illustrations

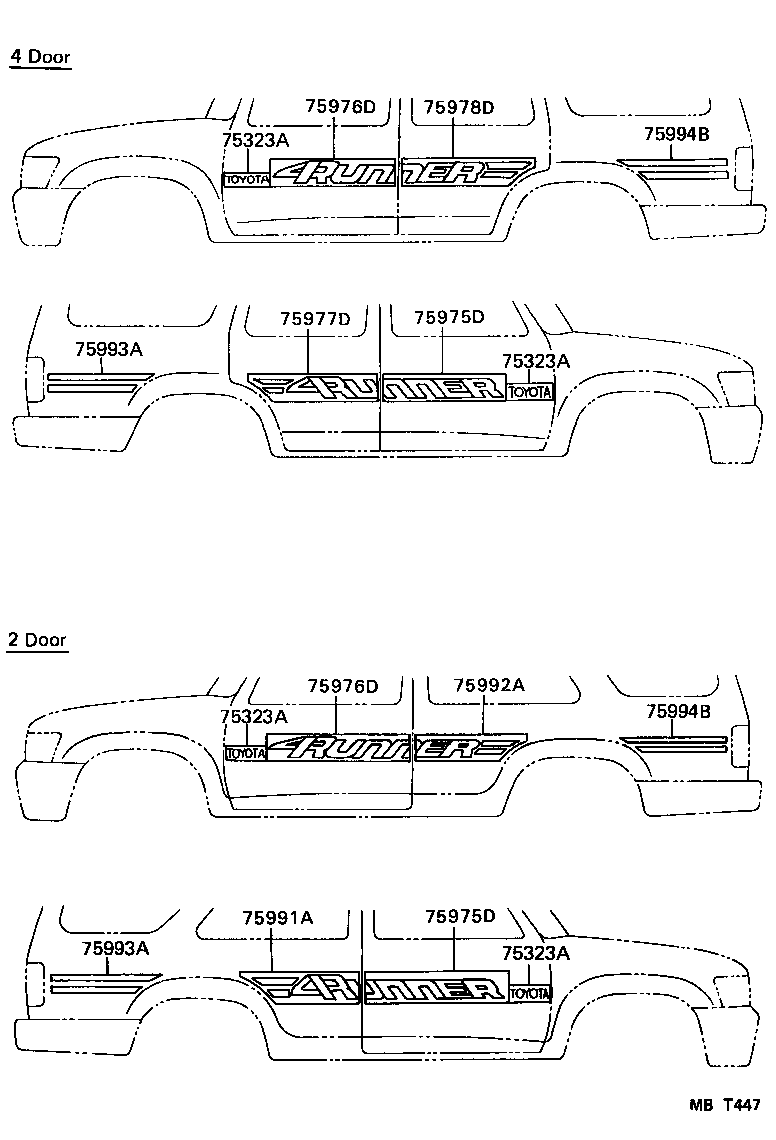

Figure MBS704 MBS704 1988-08 → 1991-08 Figure MBP737A MBP737A 1988-08 → 1991-08 Figure MBV677C MBV677C 1991-08 → — Figure MBV678B MBV678B 1991-08 → — Figure MBT447 MBT447 1989-04 → 1991-08 Figure MBW438 MBW438 1991-08 → 1993-08 Figure MBX669A MBX669A 1993-08 → — Figure MBS480 MBS480 1989-04 → —

Part groups

PNCDescription
75323A Mark, Front Door
75459 Mark, Tail Gate
75975D Stripe, Front Door Outside, Front RH
75975F Stripe, Front Door Outside, Lower RH
75976D Stripe, Front Door Outside, Front LH
75976F Stripe, Front Door Outside, Lower LH
75977D Stripe, Rear Door, RH
75978D Stripe, Rear Door, LH
75981 Stripe, Front Fender, RH NO.1
75982 Stripe, Front Fender, LH NO.1
75983B Stripe, Front Fender, Rear RH
75984B Stripe, Front Fender, Rear LH
75985 Stripe, Front Door, RH
75986 Stripe, Front Door, LH
75988B Stripe, Rear Deck, Front RH
75989 Stripe, Rear Deck, Front LH
75991A Stripe, Quarter, RH
75992A Stripe, Quarter, LH
75993A Stripe, Quarter, Rear RH
75994B Strip, Quarter, Rear LH
75996C Stripe, Rear Body, RH
75996D Stripe, Rear Body, RH
75997C Stripe, Rear Body, LH
75997E Stripe, Rear Body, LH
75998C Stripe, Rear Deck, Rear RH
75999C Stripe, Rear Deck, Rear LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
