Factory parts data · Europe

Toyota 4-Runner Truck (JPP)

1988-08 → 1995-11 · chassis RN10#,110,13#,VZN10#,110,13# · catalogue 671450 · Europe

Discontinued model Data version 1996-08

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Abs & Vsc

9 part groups · 3 illustrations

Illustrations

Figure 849391A

849391A 1988-08 → 1993-08

Figure 849391A

849391A 1993-08 → —

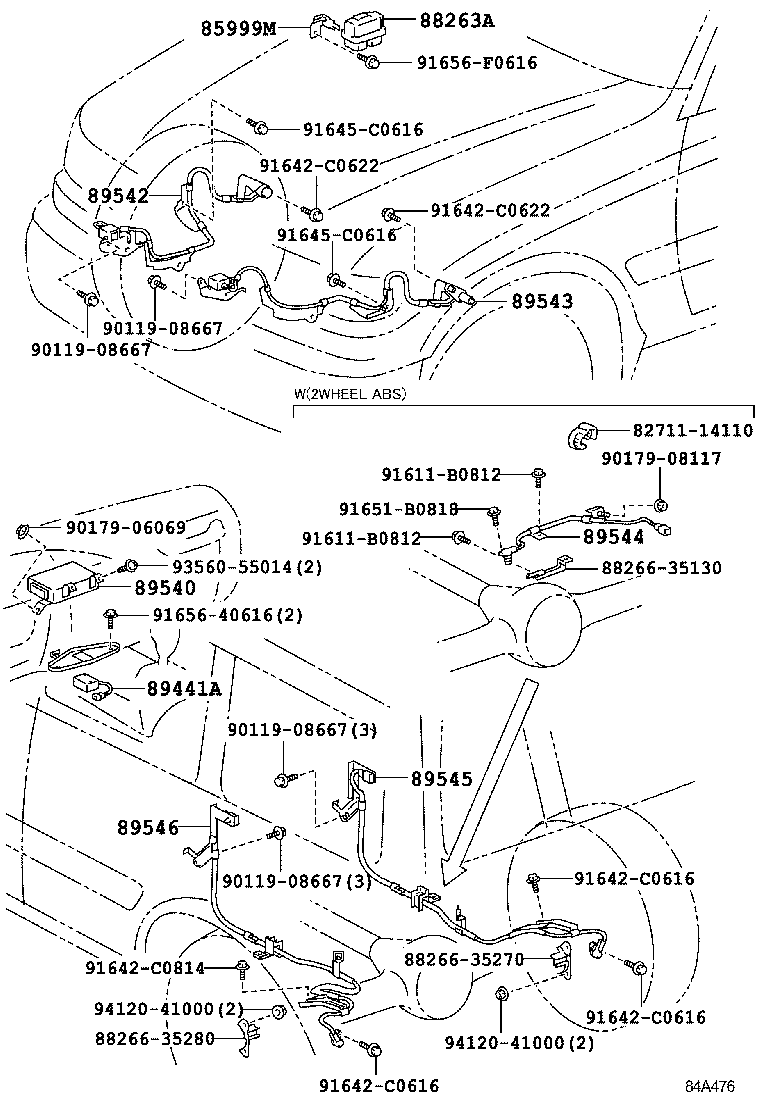

Figure 84A476

84A476 1993-08 → —

Part groups

PNC	Description
85999M	Bracket, Relay
88263A	Relay, Skid Control
89441A	Sensor, Deceleration
89540	Computer Assy, Skid Control
89542	Sensor, Speed, Front RH
89543	Sensor, Speed, Front LH
89544	Sensor, Skid Control
89545	Sensor, Speed, Rear RH
89546	Sensor, Speed, Rear LH

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
