Toyota 4-Runner Truck (JPP)

1988-08 → 1995-11 · chassis RN10#,110,13#,VZN10#,110,13# · catalogue 671450 · Europe

Discontinued model Data version 1996-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Washer

9 part groups · 2 illustrations

Illustrations

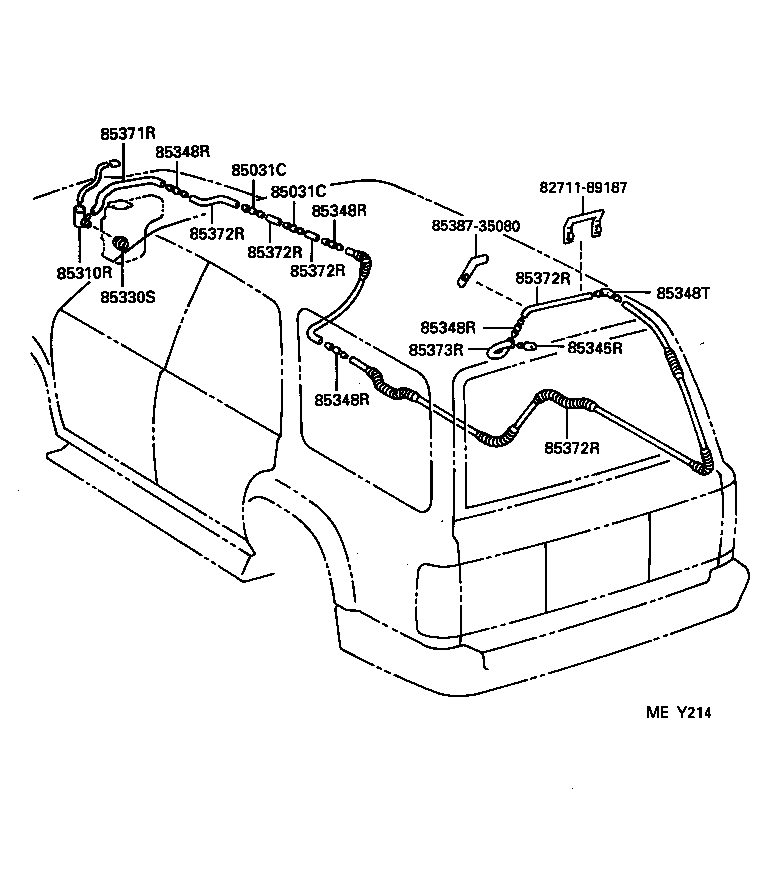

Figure MEM542B MEM542B 1989-04 → 1991-08 Figure MEY214 MEY214 1991-08 → —

Part groups

PNCDescription
85031C Valve Sub-assy, Washer
85310R Motor Assy, Rear Washer
85330S Bush, Rear Washer Jar
85345R Nozzle, Rear Washer
85348R Joint, Rear Washer Hose, NO.1
85348T Joint, Rear Washer Hose, NO.2
85371R Hose, Rear Washer (FROM MOTOR TO JOINT)
85372R Hose, Rear Washer (FROM JOINT TO JOINT OR NOZZLE)
85373R Hose, Rear Washer (FROM JOINT TO NOZZLE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
