Factory parts data · Europe

Toyota 4-Runner Truck (JPP)

1988-08 → 1995-11 · chassis RN10#,110,13#,VZN10#,110,13# · catalogue 671450 · Europe

Discontinued model Data version 1996-08

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Speaker

5 part groups · 4 illustrations

Illustrations

Figure NE0986A

NE0986A 1988-08 → —

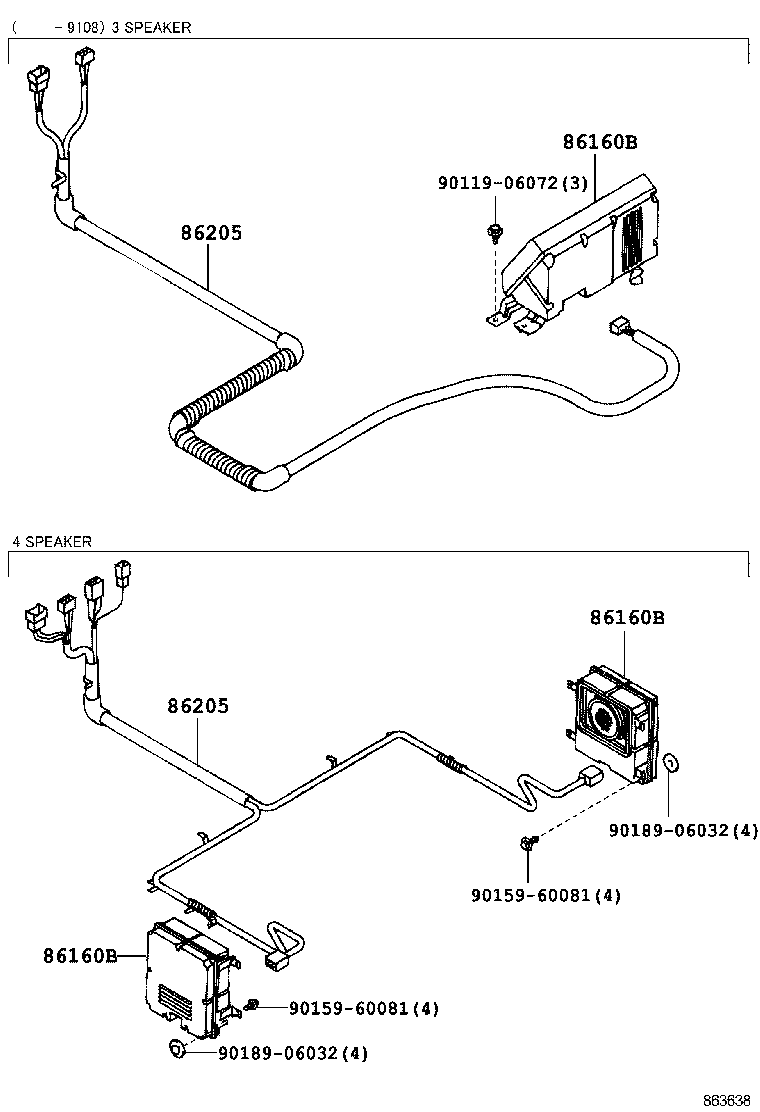

863638 1988-08 → —

863638 1991-08 → —

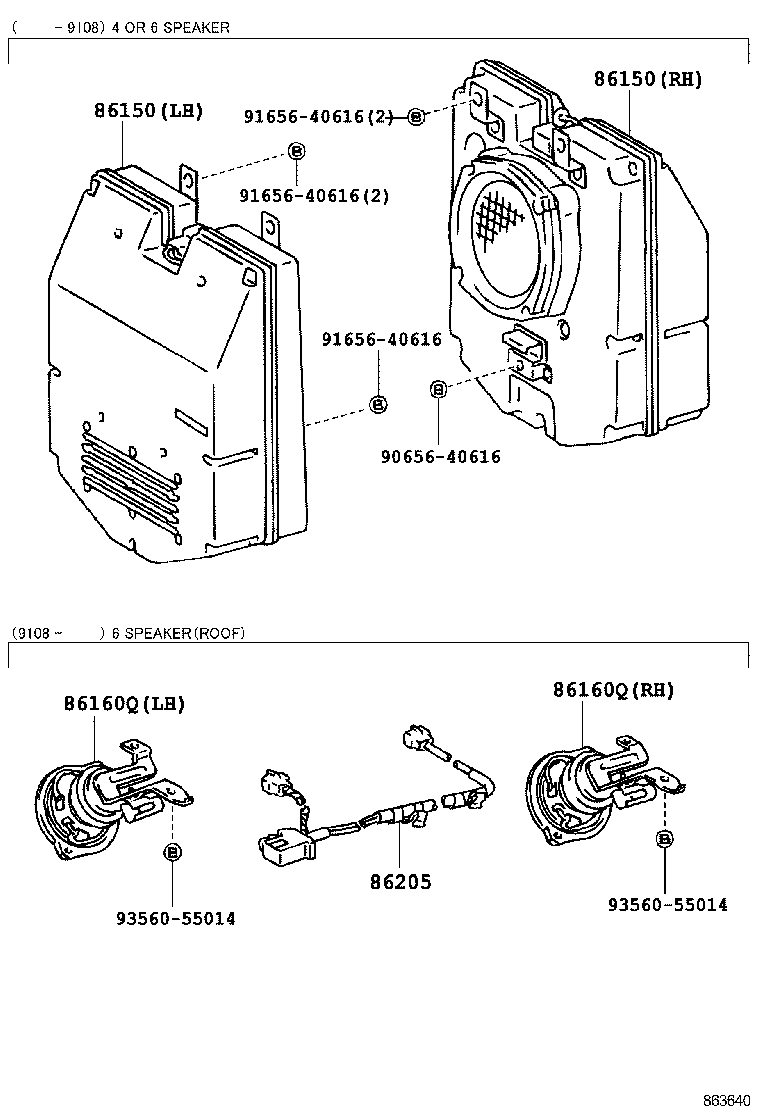

863640 1989-04 → —

Part groups

PNC	Description
86150	Speaker Assy, W/Box, NO.1
86160	Speaker Assy, Front NO.1
86160B	Speaker Assy, Rear
86160Q	Speaker Assy, Roof
86205	Wiring Sub-assy, Speaker, RR

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
