Toyota 4-Runner Truck (JPP)

1988-08 → 1995-11 · chassis RN10#,110,13#,VZN10#,110,13# · catalogue 671450 · Europe

Discontinued model Data version 1996-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mirror

12 part groups · 2 illustrations

Illustrations

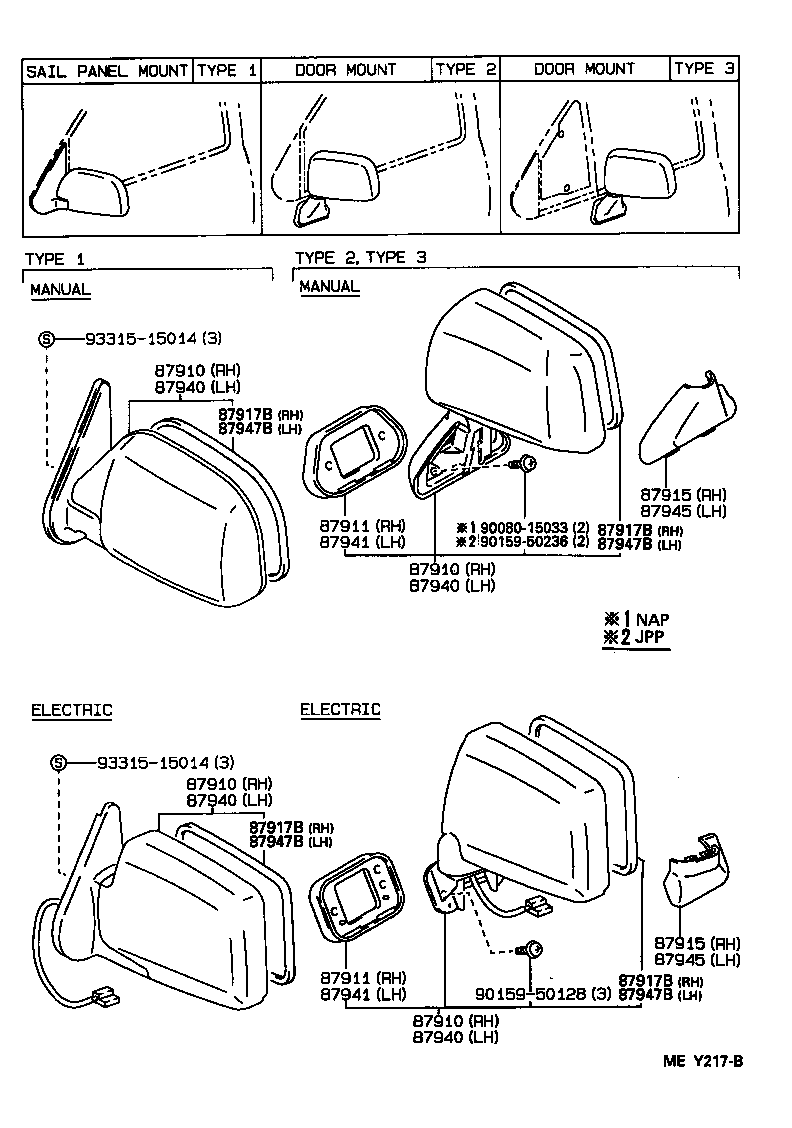

Figure NE1021A NE1021A 1988-08 → — Figure MEY217B MEY217B 1988-08 → —

Part groups

PNCDescription
81261A Lens And Cover, Map Lamp
87810 Mirror Assy, Inner Rear View
87810B Bulb, Inner Rear View Mirror Lamp
87834 Cover, Inner Rear View Mirror Stay Holder
87910 Mirror Assy, Outer Rear View, RH
87911 Gasket, Outer Rear View Mirror, RH
87915 Cover, Outer Mirror, RH
87917B Mirror, Outer Rear View, RH
87940 Mirror Assy, Outer Rear View, LH
87941 Gasket, Outer Rear View Mirror, LH
87945 Cover, Outer Mirror, LH
87947B Mirror, Outer Rear View, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
