Toyota 4Runner

1995-11 → 2002-08 · chassis RZN18#,VZN18# · catalogue 671460 · Europe

Discontinued model Data version 2003-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Overhaul Gasket Kit

2 part groups · 12 illustrations

Illustrations

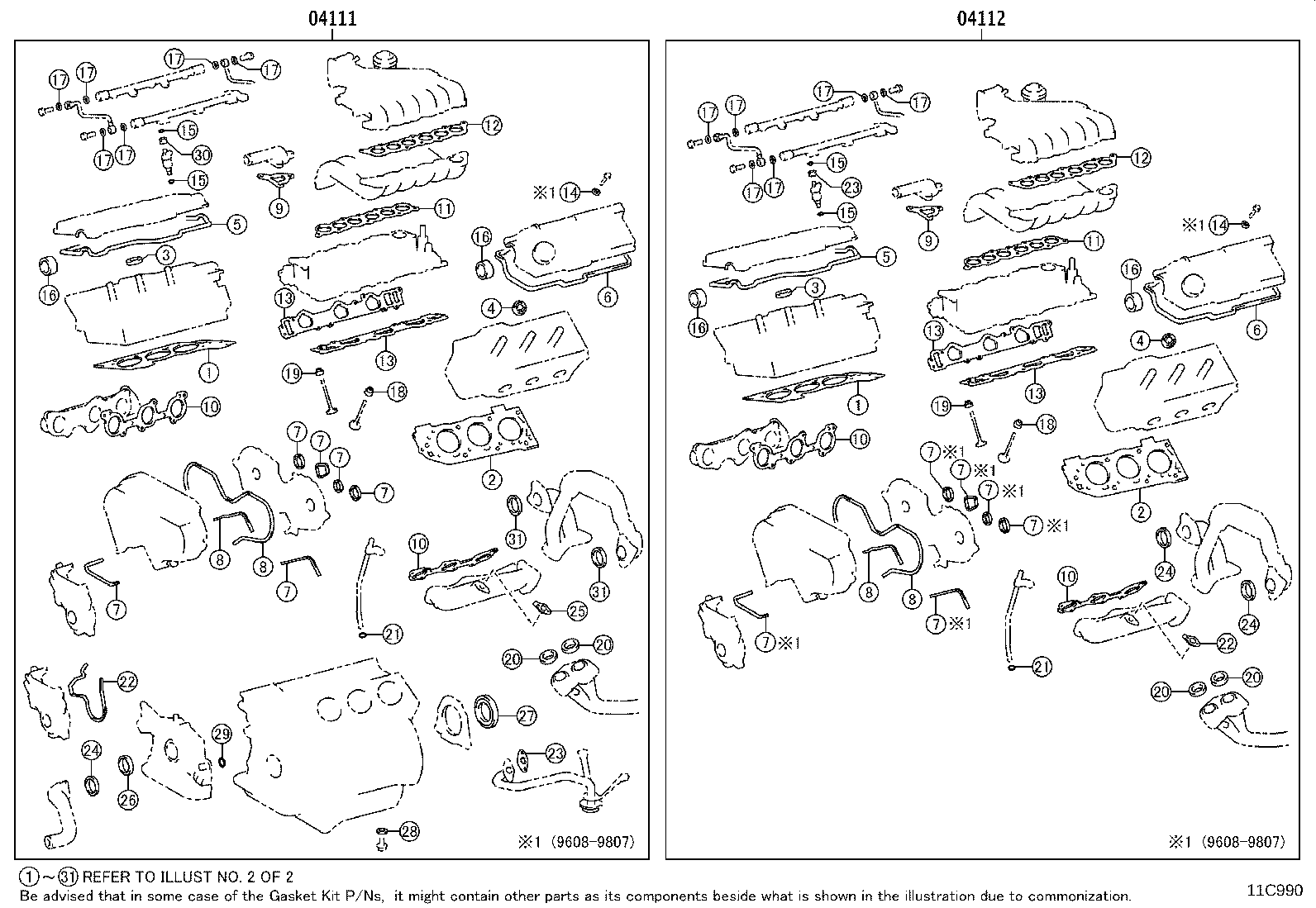

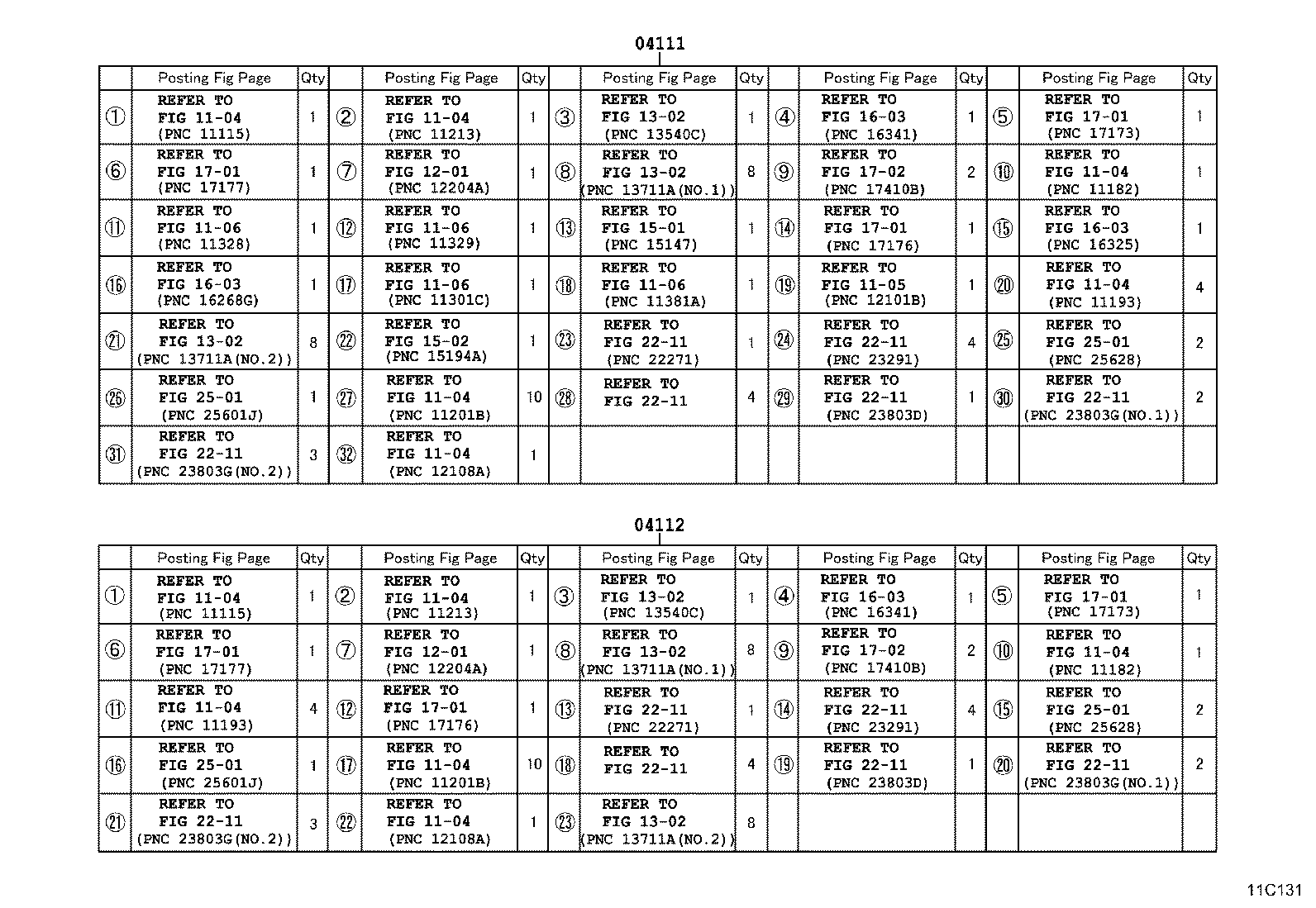

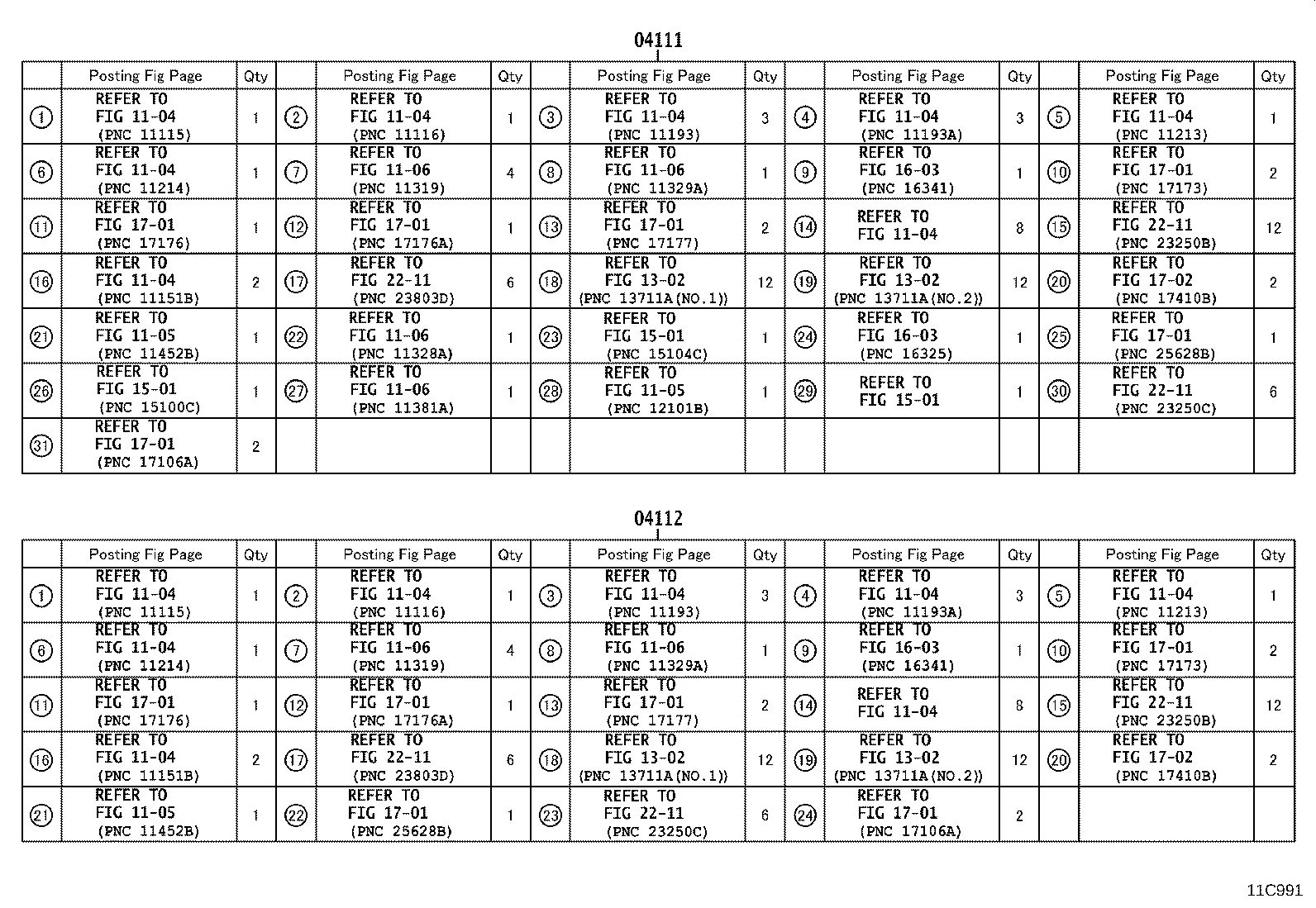

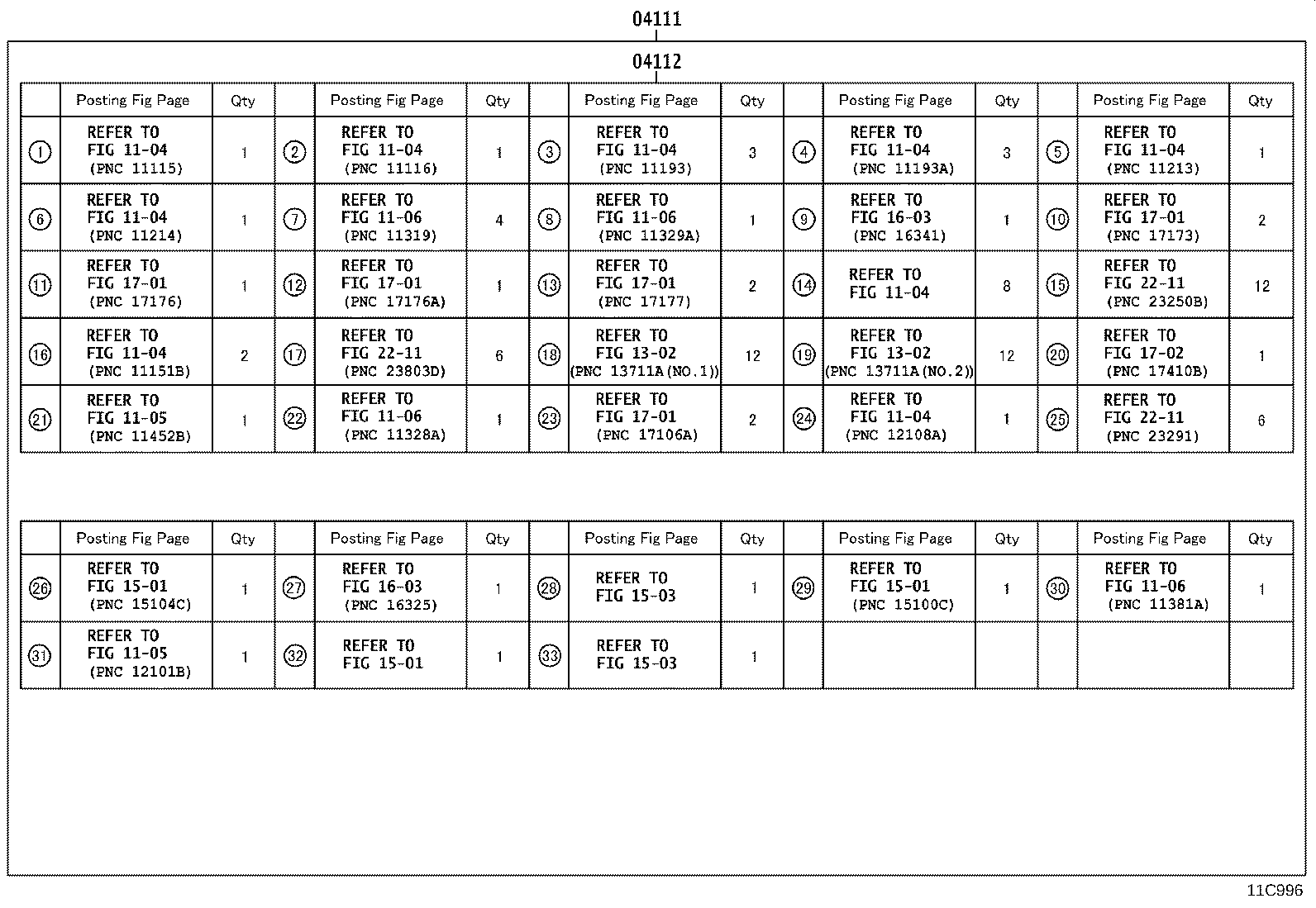

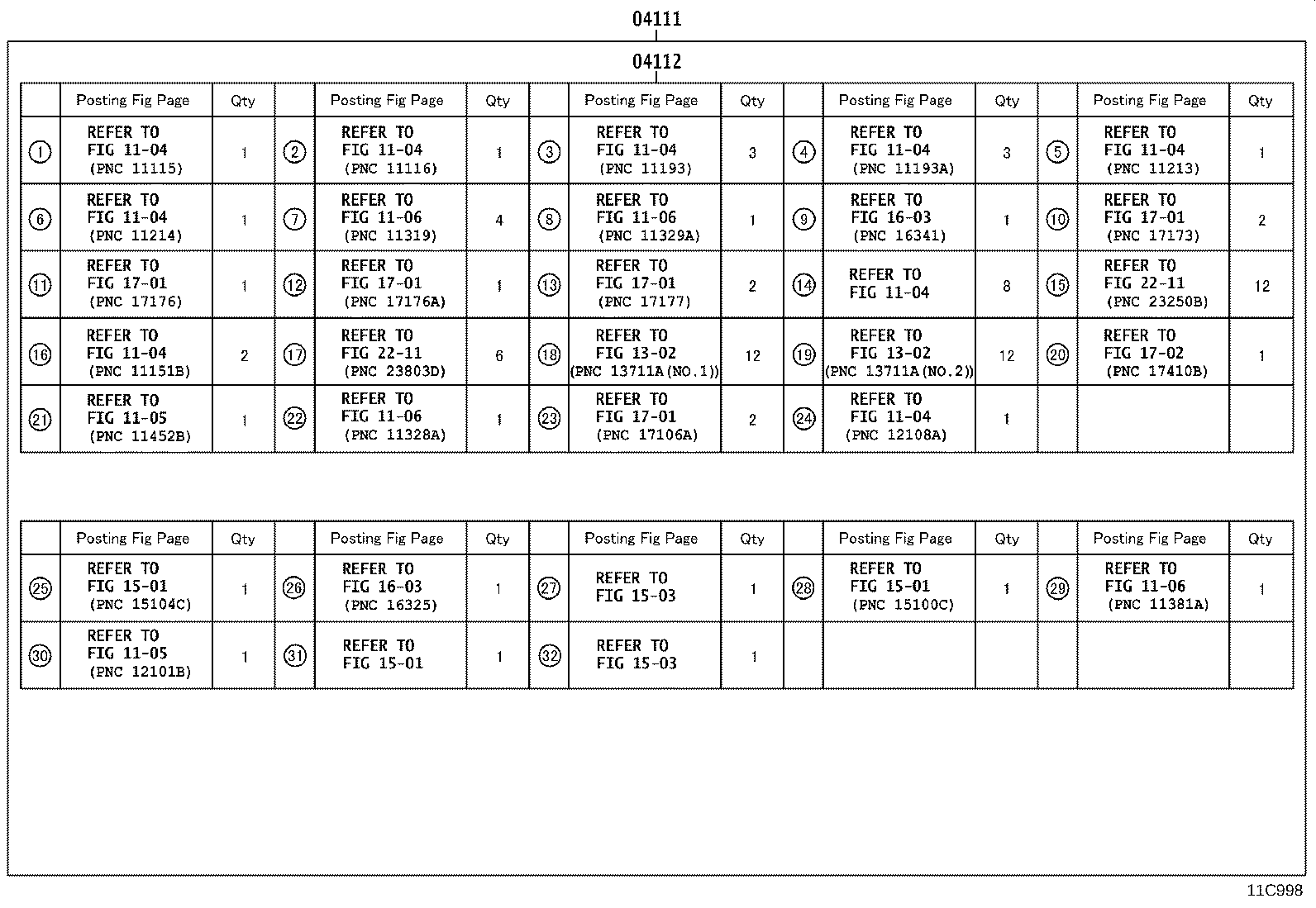

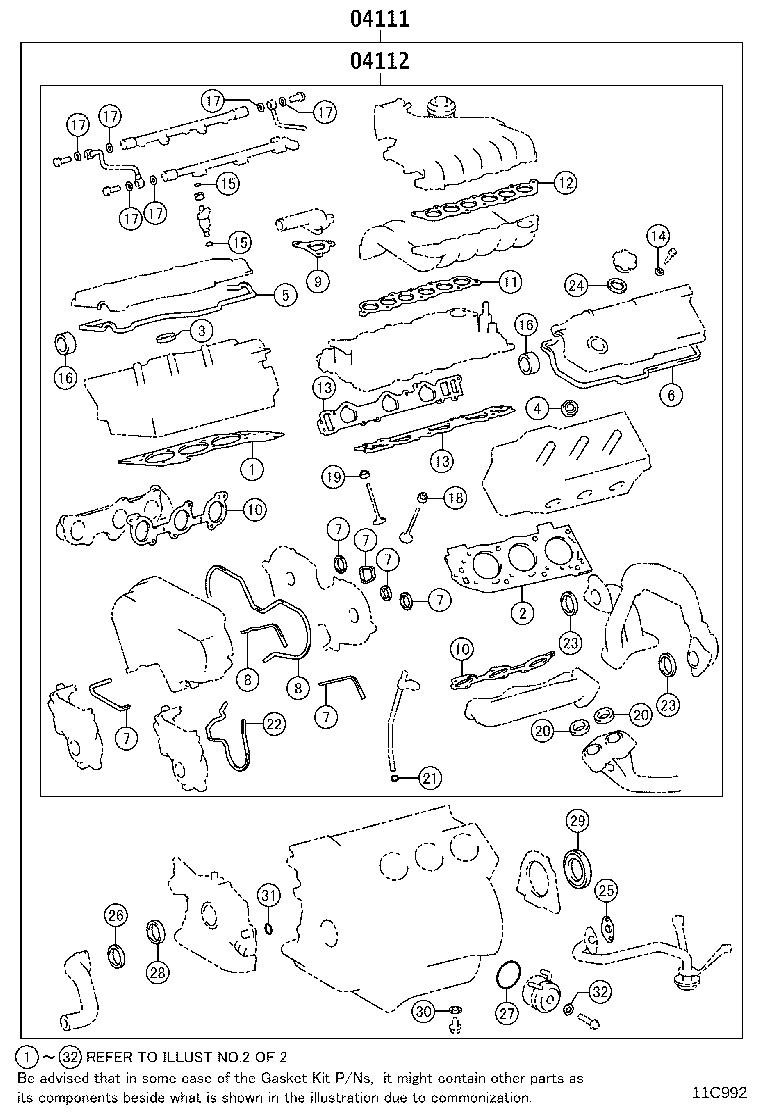

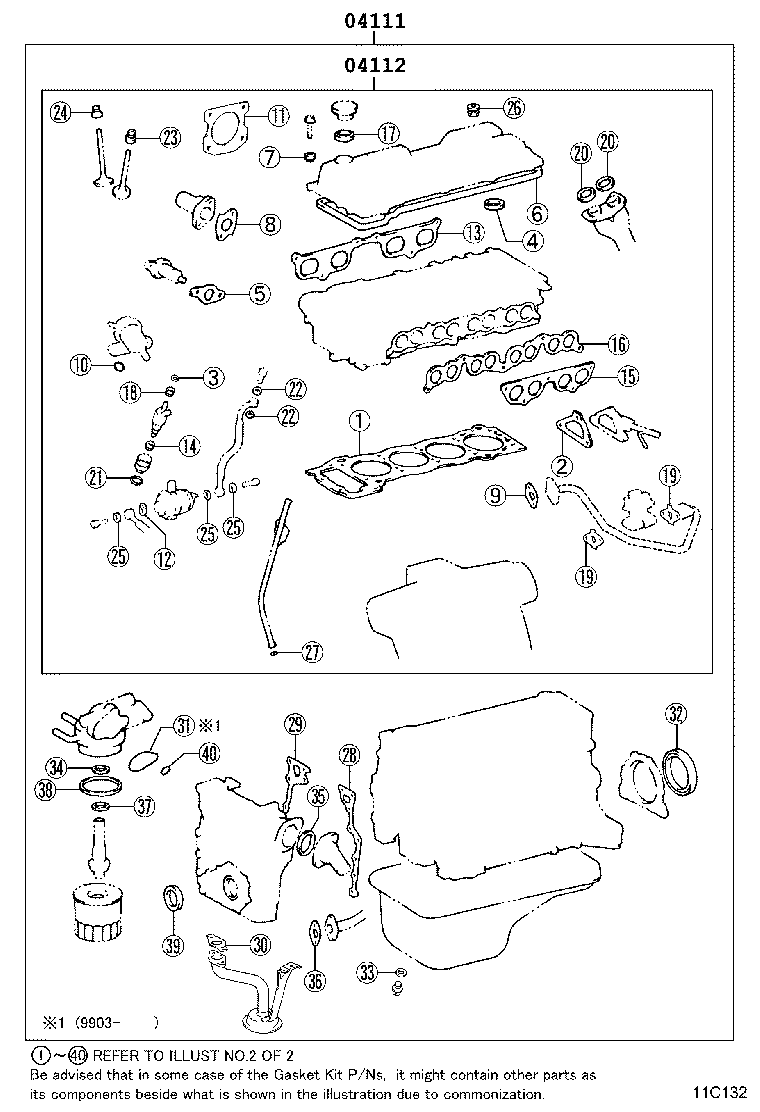

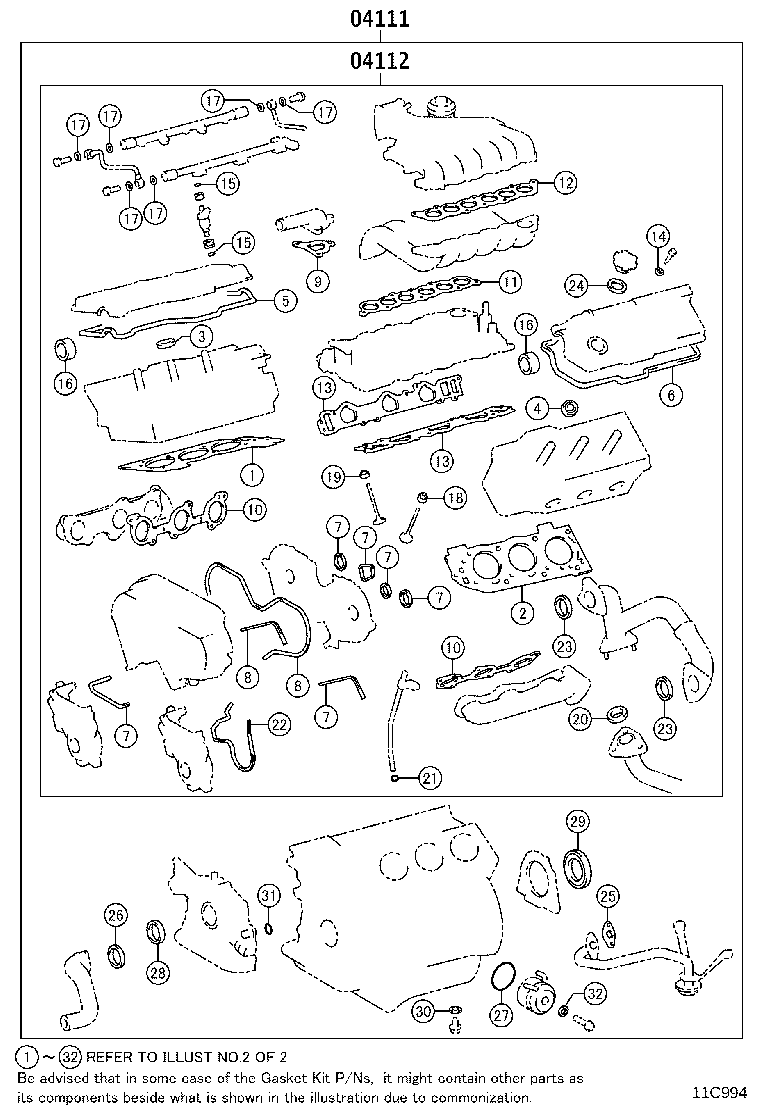

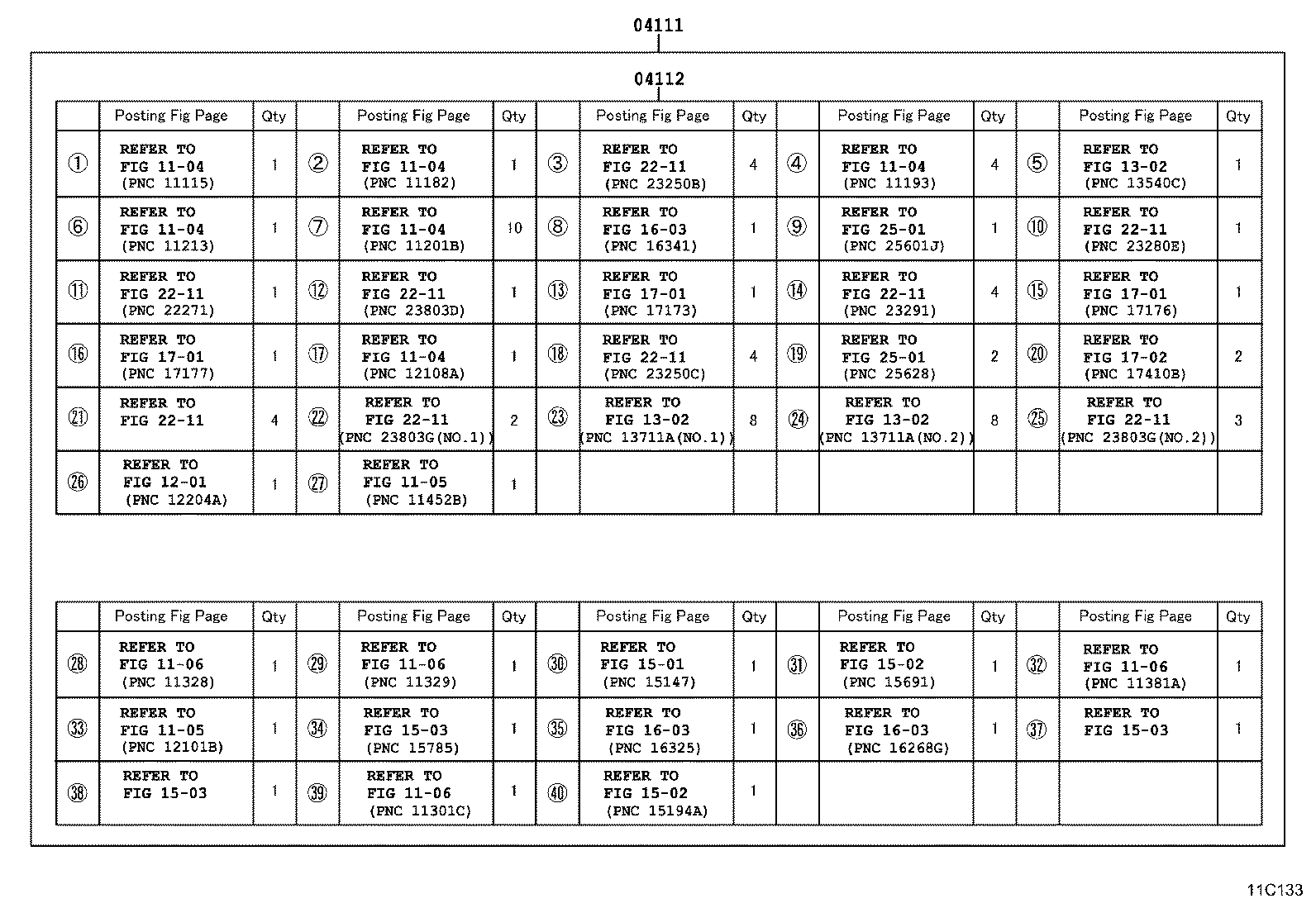

Figure 11C130 11C130 1995-11 → 1998-07 Figure 11C131 11C131 1995-11 → 1998-07 Figure 11C132 11C132 1998-07 → 2000-08 Figure 11C133 11C133 1998-07 → 2000-08 Figure 11C990 11C990 1995-11 → 1998-07 Figure 11C991 11C991 1995-11 → 1998-07 Figure 11C992 11C992 1998-07 → 2000-08 Figure 11C993A 11C993A 1998-07 → 2000-08 Figure 11C994 11C994 1998-07 → 2000-08 Figure 11C998 11C998 1998-07 → 2000-08 Figure 11C995 11C995 2000-08 → — Figure 11C996 11C996 2000-08 → —

Part groups

PNCDescription
04111 Gasket Kit, Engine Overhaul
04112 Gasket Kit, Engine Valve Grind
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
