Toyota 4Runner

1995-11 → 2002-08 · chassis RZN18#,VZN18# · catalogue 671460 · Europe

Discontinued model Data version 2003-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Timing Gear Cover & Rear End Plate

18 part groups · 2 illustrations

Illustrations

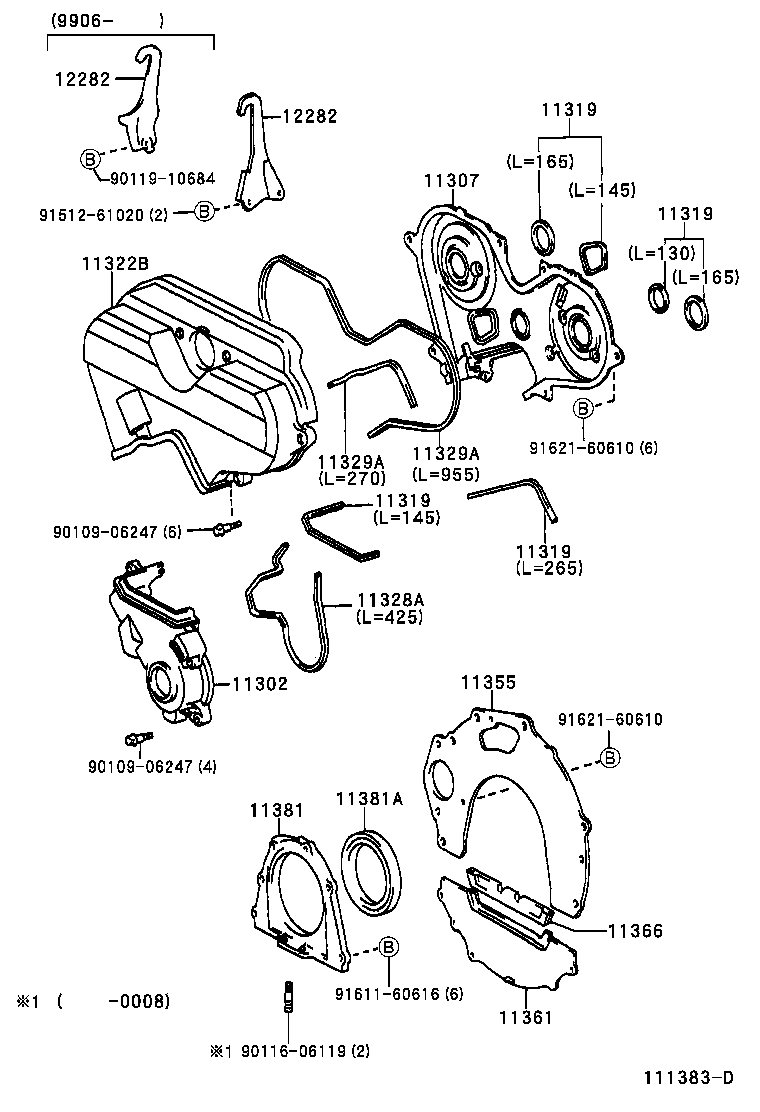

Figure 110329A 110329A 1995-11 → — Figure 111383D 111383D 1995-11 → —

Part groups

PNCDescription
11301 Case Sub-assy, Timing Gear
11301C Seal, Oil(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)
11301K Sensor, Crank Position
11302 Cover Sub-assy, Timing Chain OR Belt
11307 Cover, Sub-assy, Timing Belt, NO.3
11319 Gasket, Timing Belt Cover, NO.3
11322B Cover, Timing Belt, NO.2
11328 Gasket, Timing Gear OR Chain Cover
11328A Gasket, Timing Belt Cover, NO.1
11329 Gasket, Timing Gear Rear Cover
11329A Gasket, Timing Belt OR Chain Cover, NO.2
11354 Seal, Flywheel Housing Dust
11355 Plate, Rear End
11361 Cover, Flywheel Housing Under
11366 Seal, Flywheel Housing Under Cover Dust
11381 Retainer, Engine Rear Oil Seal
11381A Seal, Engine Rear Oil
12282 Hanger, Engine, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
