Toyota 4Runner
1995-11 → 2002-08 · chassis RZN18#,VZN18# · catalogue 671460 · Europe
Discontinued model
Data version 2003-02

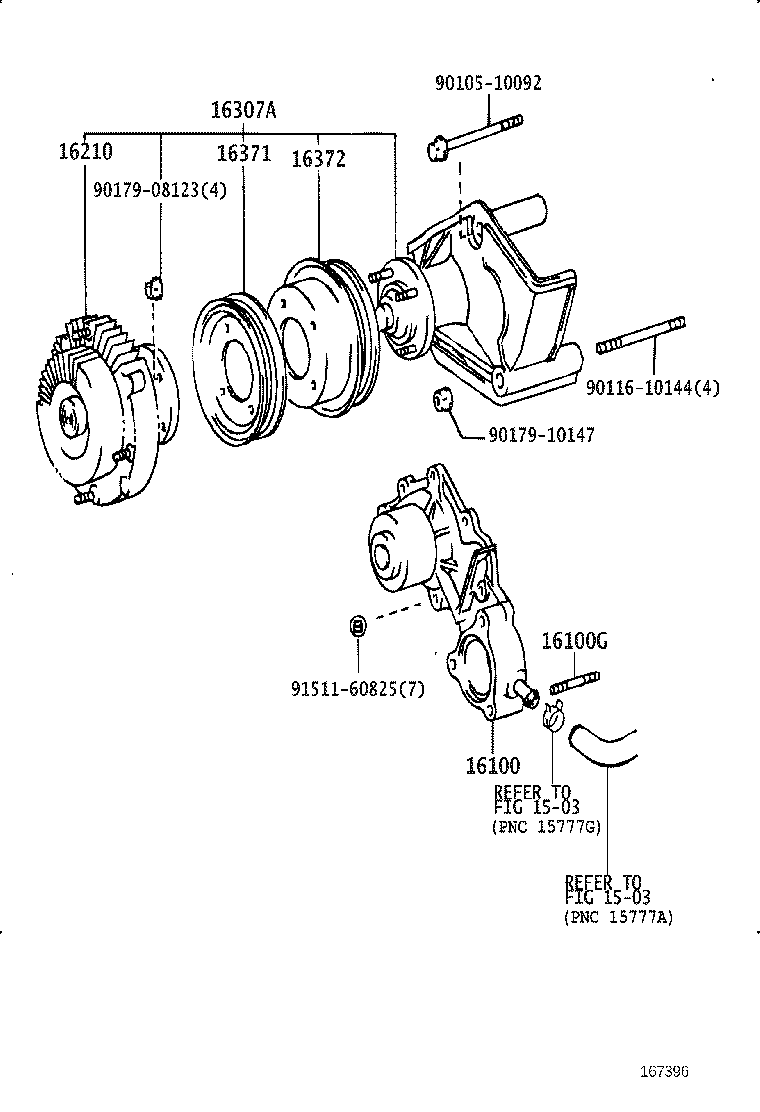

Water Pump
8 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 16100 | Pump Assy, Engine Water |
| 16100G | Bolt, Stud(FOR WATER PUMP SET) |
| 16124 | Gasket, Water Pump Cover |
| 16198 | Bolt, Stud(FOR WATER PUMP PULLEY SEAT) |
| 16210 | Coupling Assy, Fluid |
| 16307A | Bracket Sub-assy, Fan |
| 16371 | Pulley, Fan |
| 16372 | Pulley, Fan, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
