Toyota 4Runner
1995-11 → 2002-08 · chassis RZN18#,VZN18# · catalogue 671460 · Europe
Discontinued model
Data version 2003-02

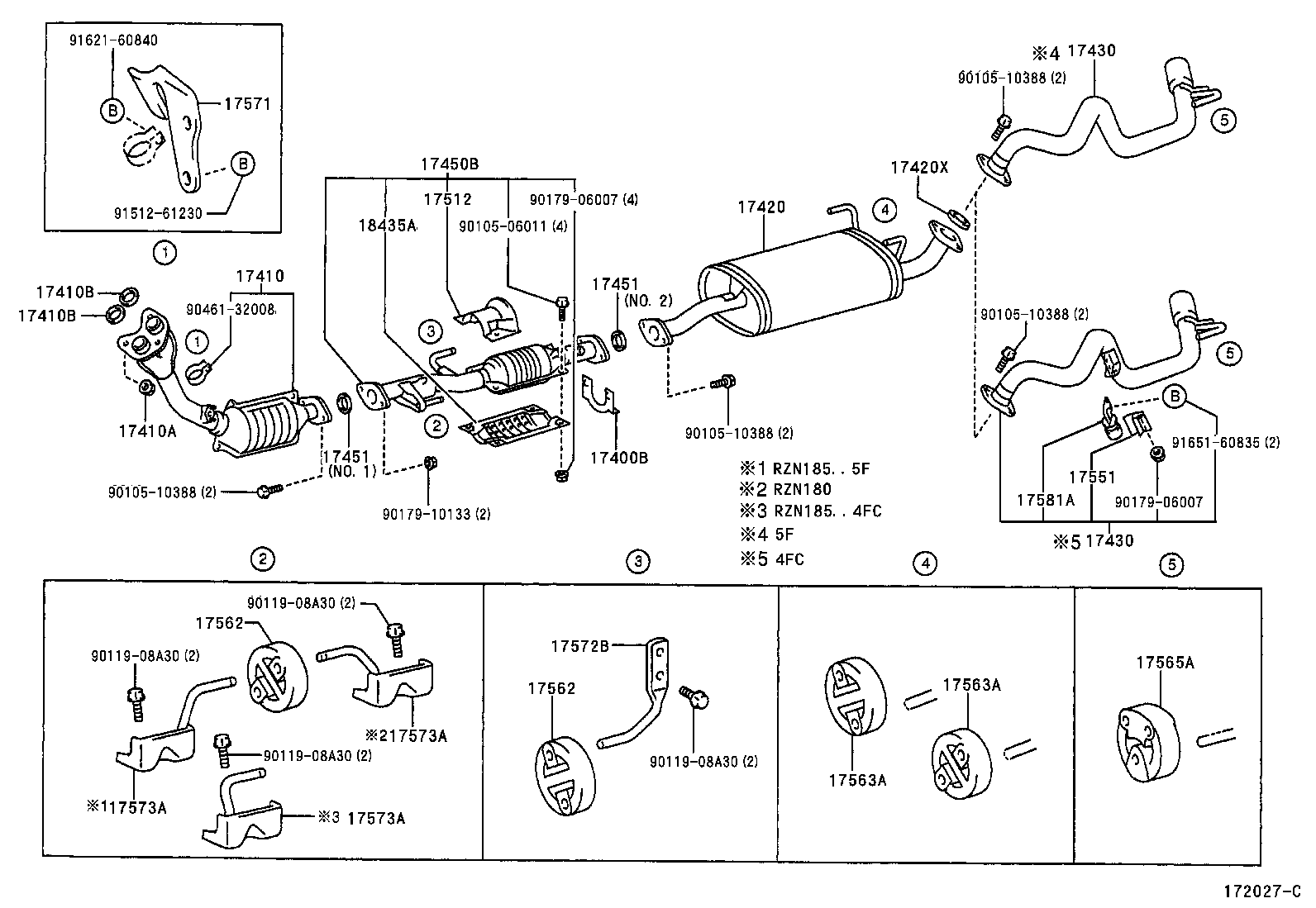

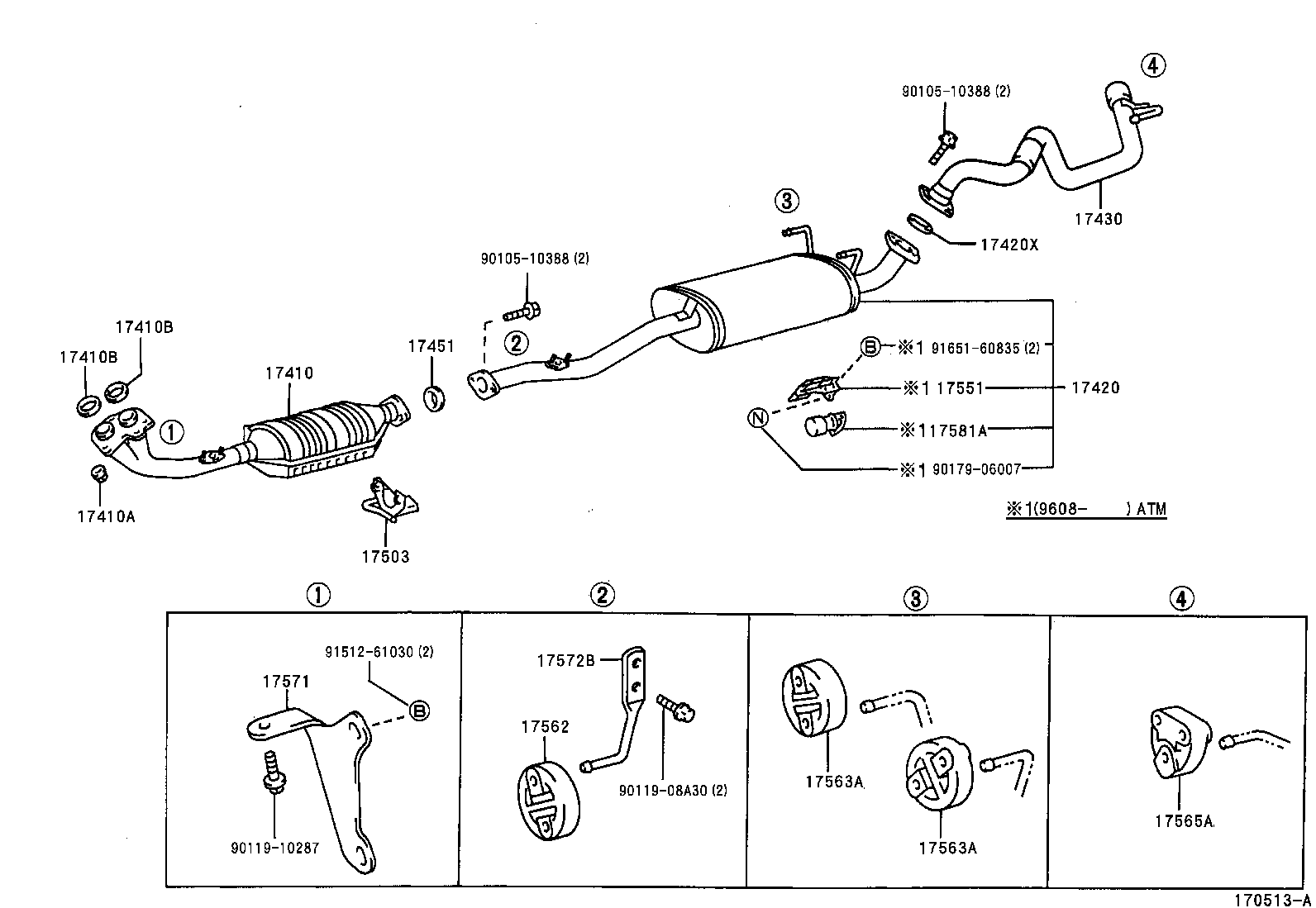

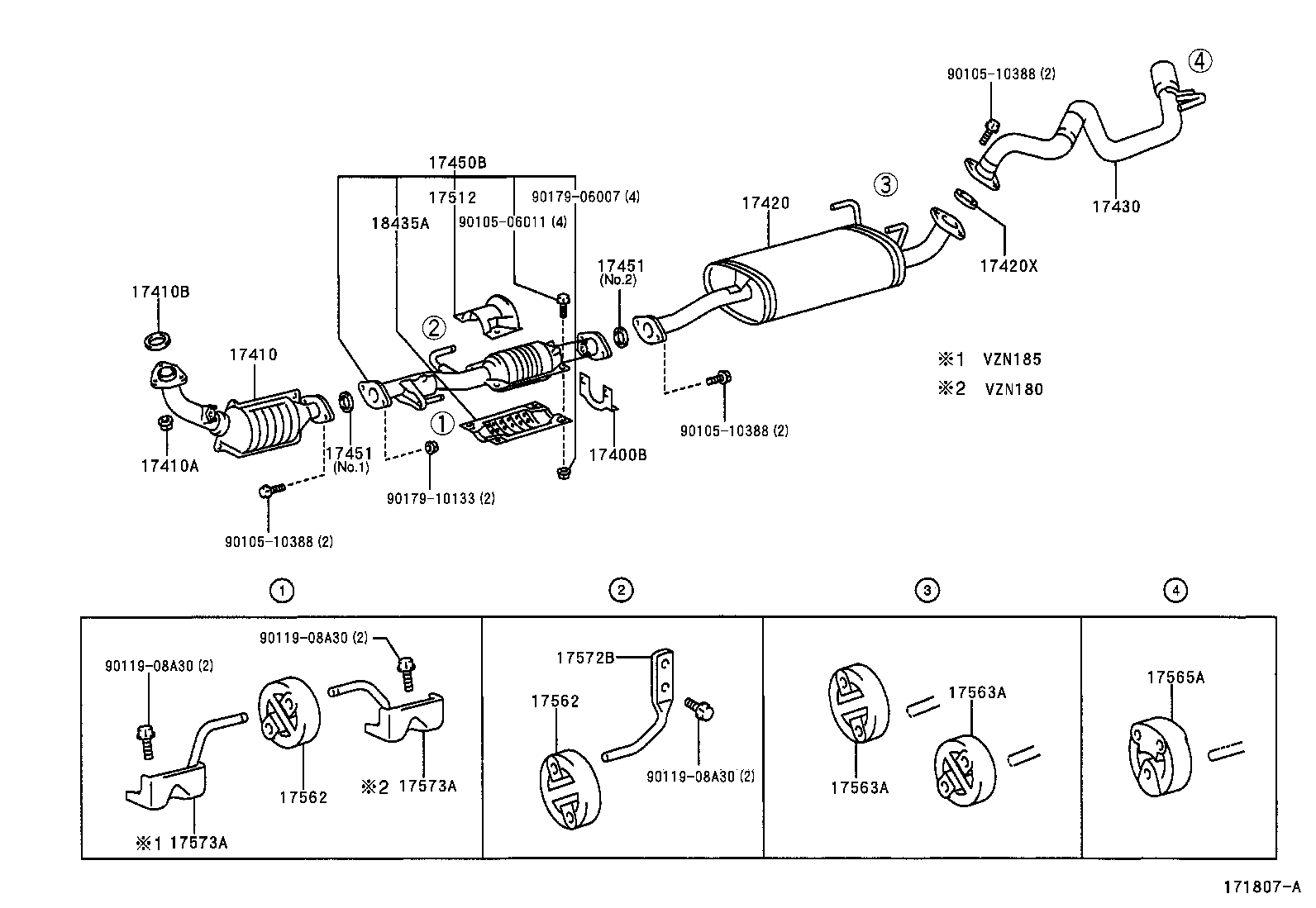

Exhaust Pipe
20 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 17400B | Retainer, Exhaust Pipe |
| 17410 | Pipe Assy, Exhaust, Front |
| 17410A | Nut, Exhaust Pipe Set Stud Bolt |
| 17410B | Gasket, Exhaust Pipe |
| 17420 | Pipe Assy, Exhaust, Center |
| 17420X | Gasket, Exhaust Pipe, Center |
| 17430 | Pipe Assy, Exhaust, Tail |
| 17450B | Pipe Assy, Exhaust, Front NO.2 |
| 17451 | Gasket, Exhaust Pipe |
| 17503 | Bracket Sub-assy, Catalytic Converter, Rear |
| 17512 | Insulator, Exhaust Pipe, Upper NO.2 |
| 17551 | Insulator, Exhaust Pipe Heat, NO.1 |
| 17562 | Support, Exhaust Pipe, NO.2 |
| 17563A | Support, Exhaust Pipe, NO.3 |
| 17565A | Support, Exhaust Pipe, NO.4 |
| 17571 | Bracket, Exhaust Pipe Support, NO.1 |
| 17572B | Bracket, Exhaust Pipe Support, NO.2 |
| 17573A | Bracket, Exhaust Pipe Support, NO.3 |
| 17581A | Damper, Exhaust Pipe |
| 18435A | Protector, Monolithic Converter |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
