Toyota 4Runner

1995-11 → 2002-08 · chassis RZN18#,VZN18# · catalogue 671460 · Europe

Discontinued model Data version 2003-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Cleaner

30 part groups · 3 illustrations

Illustrations

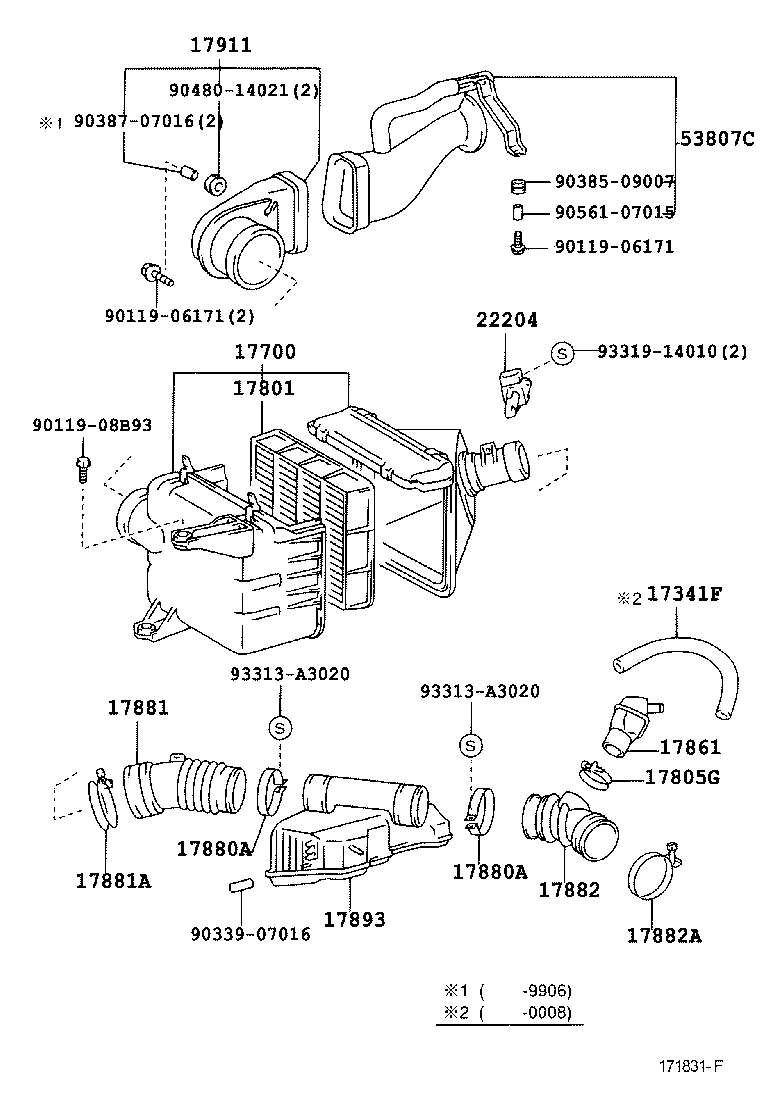

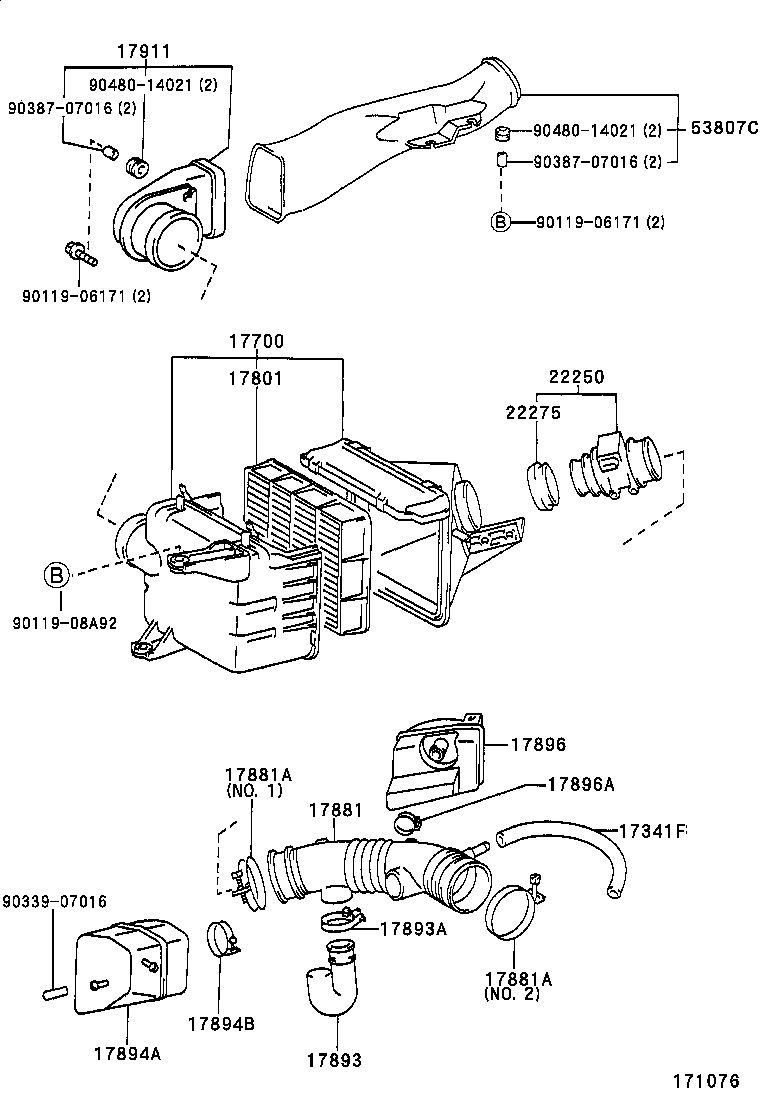

Figure 170532E 170532E 1995-11 → — Figure 171076 171076 1995-11 → 1998-07 Figure 171831F 171831F 1998-07 → —

Part groups

PNCDescription
17341F Hose, Air, NO.1
17343D Hose, Air, NO.3
17343E Clamp, Hose(FOR AIR HOSE, NO.3)
17361J Tube, Air, NO.1
17700 Cleaner Assy, Air
17705 Cap Sub-assy, Air Cleaner
17801 Element Sub-assy, Air Cleaner Filter
17805 Connector Sub-assy, Intake Air
17805G Clamp, Hose(FOR AIR CONNECTOR)
17853 Insulator, Air Cleaner Bracket
17861 Connector, Intake Air
17871 Stay, Air Connector
17880 Hose Assy, Air Cleaner
17880A Clamp, Hose
17881 Hose, Air Cleaner, NO.1
17881A Clamp(FOR AIR CLEANER HOSE, NO.1)
17882 Hose, Air Cleaner, NO.2
17882A Clamp(FOR AIR CLEANER HOSE, NO.2)
17882D Hose, Cool Air Intake
17893 Resonator, Intake Air
17893A Clamp, Hose
17894A Resonator, Intake Air, NO.2
17894B Clamp, Hose(FOR INTAKE AIR RESONATOR, NO.2)
17896 Resonator, Intake Air, NO.3
17896A Clamp, Hose(FOR INTAKE AIR RESONATOR, NO.3)
17911 Duct, Cool Air Intake, NO.1
22204 Meter Sub-assy, Intake Air Flow
22250 Meter Assy, Intake Air Flow
22275 Gasket, Air Flow Meter
53807C Duct Sub-assy, Front Fender Air, RH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
