Toyota 4Runner

1995-11 → 2002-08 · chassis RZN18#,VZN18# · catalogue 671460 · Europe

Discontinued model Data version 2003-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Ignition Coil & Spark Plug / Glow Plug

15 part groups · 3 illustrations

Illustrations

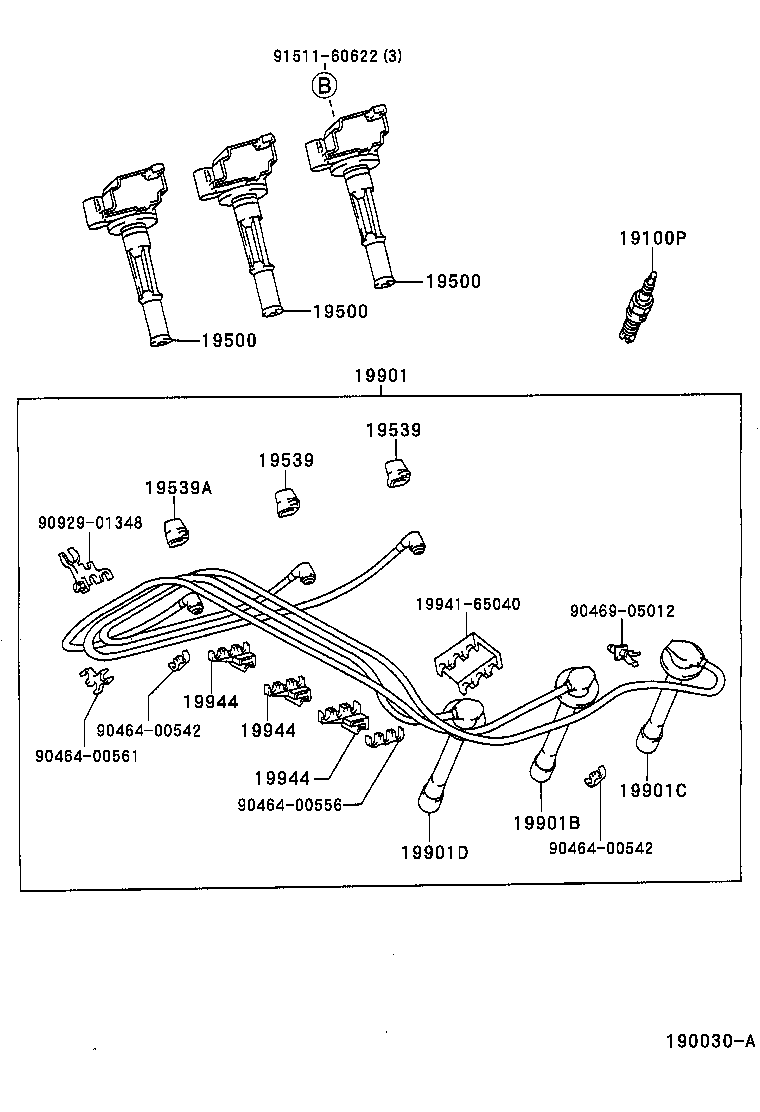

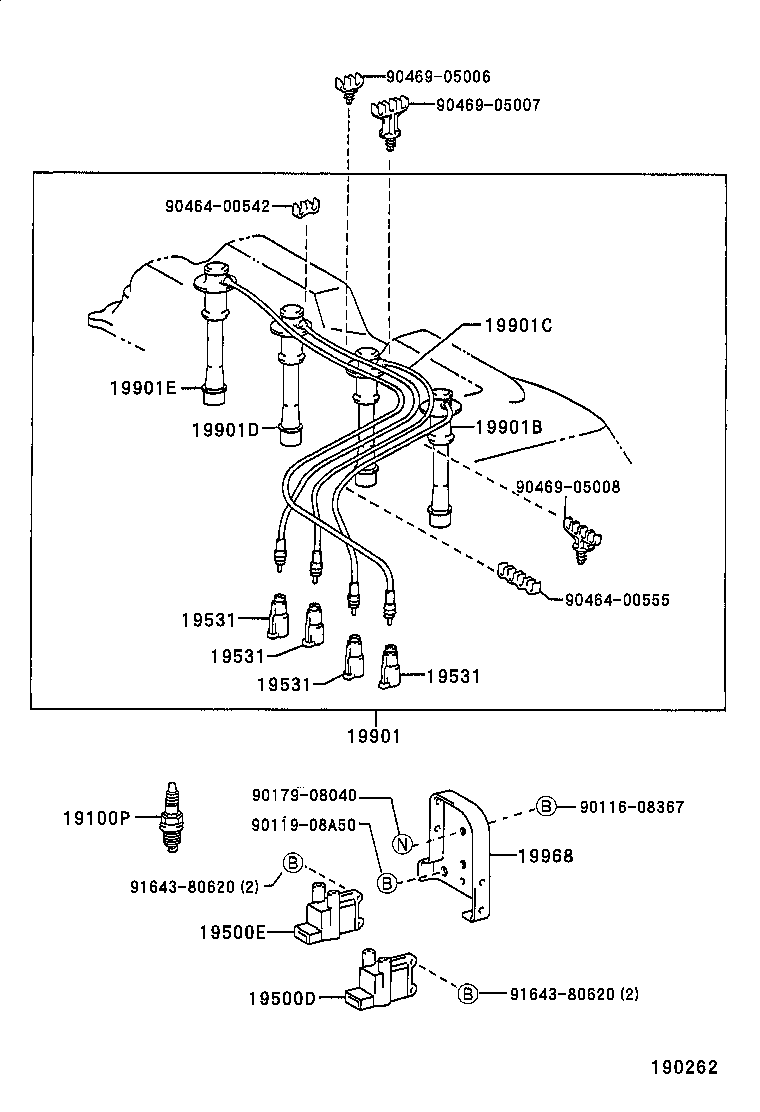

Figure 190024 190024 1995-11 → 1996-08 Figure 190262 190262 1996-08 → — Figure 190030A 190030A 1995-11 → —

Part groups

PNCDescription
19100P Plug, Spark
19500 Coil Assy, Ignition
19500D Coil, Ignition, NO.1
19500E Coil, Ignition, NO.2
19531 Holder, Resistive Cord, NO.1
19532 Holder, Resistive Code, NO.2
19539 Holder, Resistive Code, NO.4
19539A Holder, Resistive Code, NO.5
19901 Cord Set, Coil & Spark, W/Resistive
19901B Cord, Spark Plug Resistive, NO.1
19901C Cord, Spark Plug Resistive, NO.2
19901D Cord, Spark Plug Resistive, NO.3
19901E Cord, Spark Plug Resistive, NO.4
19944 Plate, Resistive Cord Clamp Support, NO.2
19968 Bracket, Ignition Coil
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
