Toyota 4Runner
1995-11 → 2002-08 · chassis RZN18#,VZN18# · catalogue 671460 · Europe
Discontinued model
Data version 2003-02

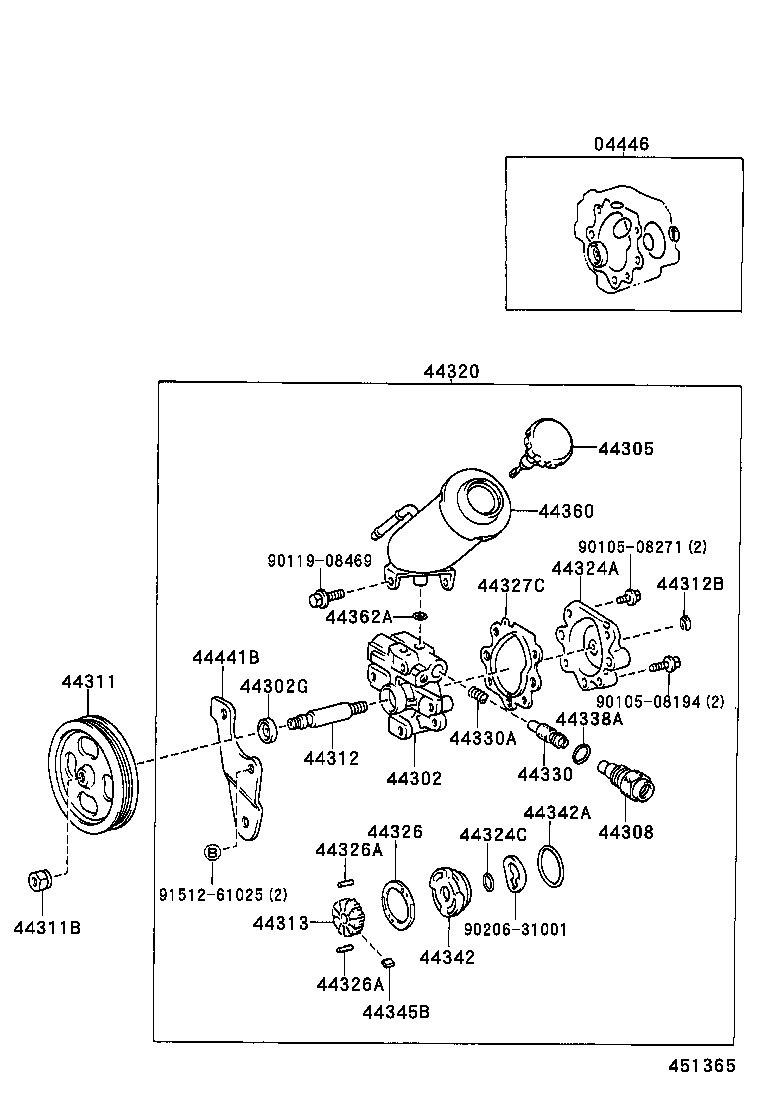

Vane Pump & Reservoir (POWER STEERING)
27 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 04446 | Gasket Kit, Power Steering Pump |
| 44302 | Housing Sub-assy, Vane Pump, Front |
| 44302G | Seal, Oil, NO.2(FOR VANE PUMP HOUSING) |
| 44305 | Cap Sub-assy, Vane Pump Oil Reservoir |
| 44308 | Union Sub-assy, Pressure Port |
| 44311 | Pulley, Vane Pump |
| 44311B | Nut(FOR VANE PUMP PULLEY) |
| 44312 | Shaft, Vane Pump |
| 44312A | Bearing(FOR VANE PUMP SHAFT) |
| 44312B | Ring, Snap, NO.1(FOR VANE PUMP SHAFT) |
| 44312G | Ring, Snap, NO.2(FOR VANE PUMP SHAFT BEARING) |
| 44313 | Rotor, Vane Pump |
| 44320 | Pump Assy, Vane |
| 44324A | Housing, Pump, Rear |
| 44324C | Ring, O(FOR PUMP HOUSING REAR) |
| 44326 | Ring, Cam(FOR VANE PUMP) |
| 44326A | Pin, Straight(FOR VANE PUMP CAM RING) |
| 44327C | Gasket, Vane Pump Housing |
| 44330 | Valve Assy, Flow Control |
| 44330A | Spring, Compression(FOR FLOW CONTROL VALVE) |
| 44338A | Ring, O(FOR PRESSURE PORT UNION) |
| 44342 | Plate, Vane Pump Side, Rear |
| 44342A | Ring, O(FOR VANE PUMP SIDE PLATE REAR) |
| 44345B | Plate, Vane Pump |
| 44360 | Reservoir Assy, Vane Pump Oil |
| 44362A | Ring, O(FOR VANE PUMP OIL RESERVOIR) |
| 44441B | Bracket, Pump, Front |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
