Toyota 4Runner
1995-11 → 2002-08 · chassis RZN18#,VZN18# · catalogue 671460 · Europe
Discontinued model
Data version 2003-02

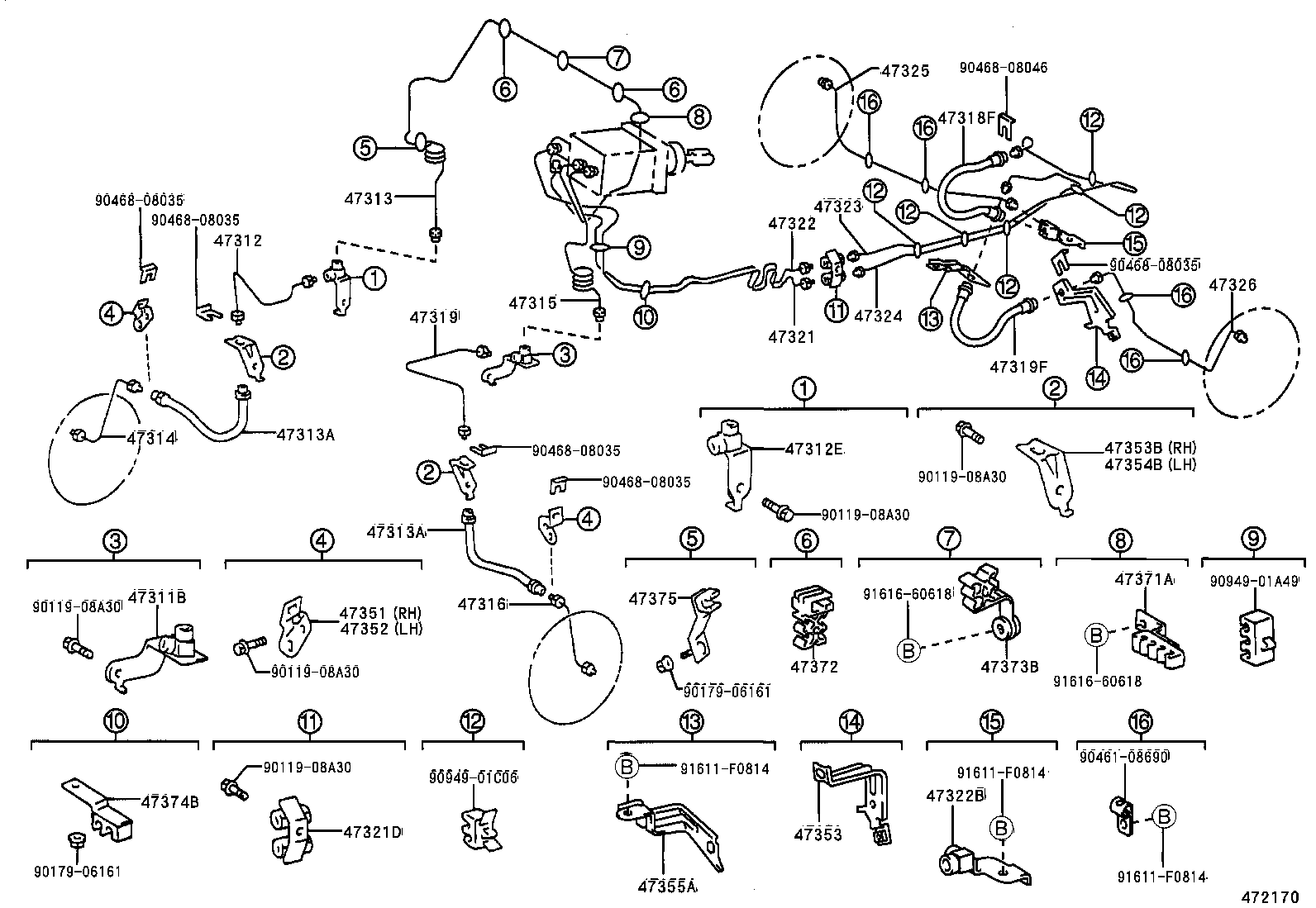

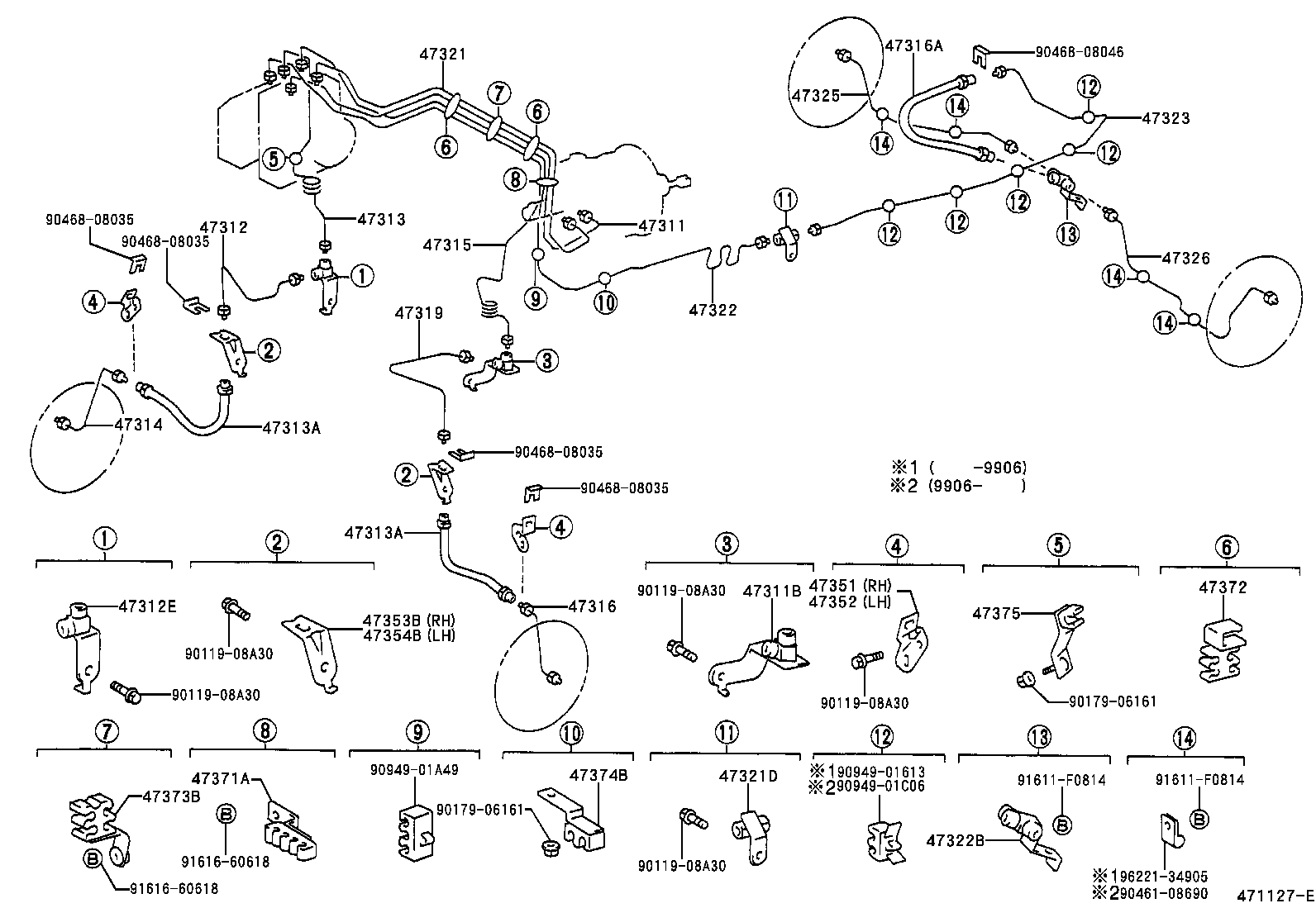

Brake Tube & Clamp
41 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 31478D | Cap, Bleeder Plug(FOR LSPV) |
| 44510 | Actuator Assy, Brake |
| 44545D | Holder, Brake Actuator Bolt |
| 44546A | Cushion, Brake Actuator Bolt |
| 44590 | Bracket Assy, Brake Actuator |
| 47311 | Tube, Front Brake, NO.1 |
| 47311A | Way(FOR FRONT BRAKE TUBE) |
| 47311B | Way, NO.1(FOR FRONT BRAKE TUBE) |
| 47312 | Tube, Front Brake, NO.2 |
| 47312E | Way, NO.2(FOR FRONT BRAKE TUBE) |
| 47313 | Tube, Front Brake, NO.3 |
| 47313A | Hose, Flexible, NO.1(FOR FRONT) |
| 47314 | Tube, Front Brake, NO.4 |
| 47315 | Tube, Front Brake, NO.5 |
| 47316 | Tube, Front Brake, NO.6 |
| 47316A | Hose, Flexible(FOR REAR BRAKE TUBE) |
| 47317 | Tube, Front Brake, NO.7 |
| 47318 | Tube, Front Brake, NO.8 |
| 47318F | Hose, Flexible(FOR REAR RH) |
| 47319 | Tube, Front Brake, NO.9 |
| 47319F | Hose, Flexible(FOR REAR LH) |
| 47321 | Tube, Rear Brake, NO.1 |
| 47321D | Way, NO.1(FOR REAR BRAKE TUBE) |
| 47322 | Tube, Rear Brake, NO.2 |
| 47322B | Way, NO.2(FOR REAR BRAKE TUBE) |
| 47323 | Tube, Rear Brake, NO.3 |
| 47324 | Tube, Rear Brake, NO.4 |
| 47325 | Tube, Rear Brake, NO.5 |
| 47326 | Tube, Rear Brake, NO.6 |
| 47351 | Bracket, Flexible Hose(FOR FRONT RH) |
| 47352 | Bracket, Flexible Hose(FOR FRONT LH) |
| 47353 | Bracket, Flexible Hose(FOR REAR) |
| 47353B | Bracket, Flexible Hose, NO.3 |
| 47354B | Bracket, Flexible Hose, NO.4 |
| 47355A | Bracket, Flexible Hose, NO.5 |
| 47371A | Clamp, Brake Tube, NO.1 |
| 47372 | Clamp, Brake Tube, NO.2 |
| 47373B | Clamp, Brake Tube, NO.3 |
| 47374B | Clamp, Brake Tube, NO.4 |
| 47375 | Clamp, Brake Tube, NO.5 |
| 47900 | Valve Assy, Load Sensing W/Spring |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
