Toyota 4Runner

1995-11 → 2002-08 · chassis RZN18#,VZN18# · catalogue 671460 · Europe

Discontinued model Data version 2003-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

18 part groups · 3 illustrations

Illustrations

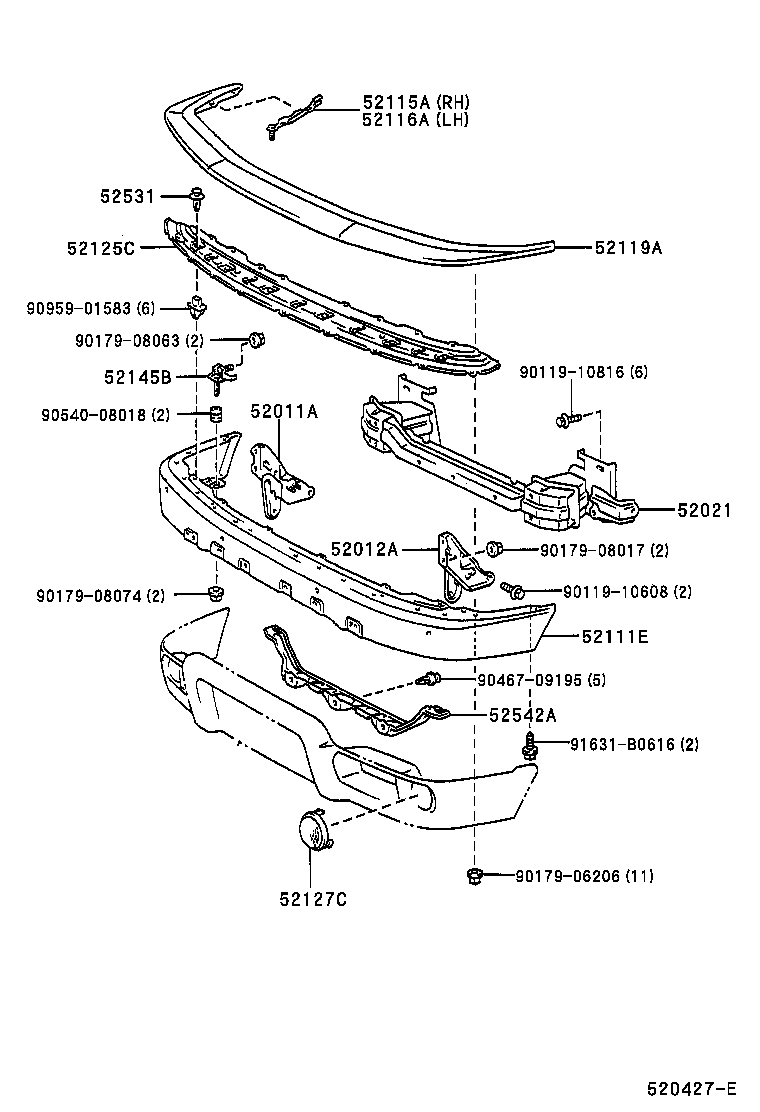

Figure 520121 520121 1995-11 → 1998-07 Figure 520373A 520373A 1997-11 → 1998-07 Figure 520427E 520427E 1998-07 → —

Part groups

PNCDescription
52011A Arm Sub-assy, Front Bumper, RH
52012A Arm Sub-assy, Front Bumper, LH
52021 Reinforcement Sub-assy, Front Bumper
52111E Bar, Front Bumper
52115A Support, Front Bumper Side, RH
52116A Support, Front Bumper Side, LH
52119A Cover, Front Bumper
52125C Extension, Front Bumper Reinforcement
52127C Cover, Front Bumper Hole
52145B Bracket, Front Bumper Side Mounting
52403A Pad Sub-assy, Front Bumper Guard
52411 Guard, Front Bumper
52441 Base, Front Bumper Guard, NO.1 RH
52442 Base, Front Bumper Guard, NO.1 LH
52492 Bolt, Bumper Pad, NO.2
52492A Bolt, Bumper Pad, NO.3
52531 Retainer, Bumper Filler
52542A Protector, Front Bumper, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
