Toyota 4Runner
1995-11 → 2002-08 · chassis RZN18#,VZN18# · catalogue 671460 · Europe
Discontinued model
Data version 2003-02

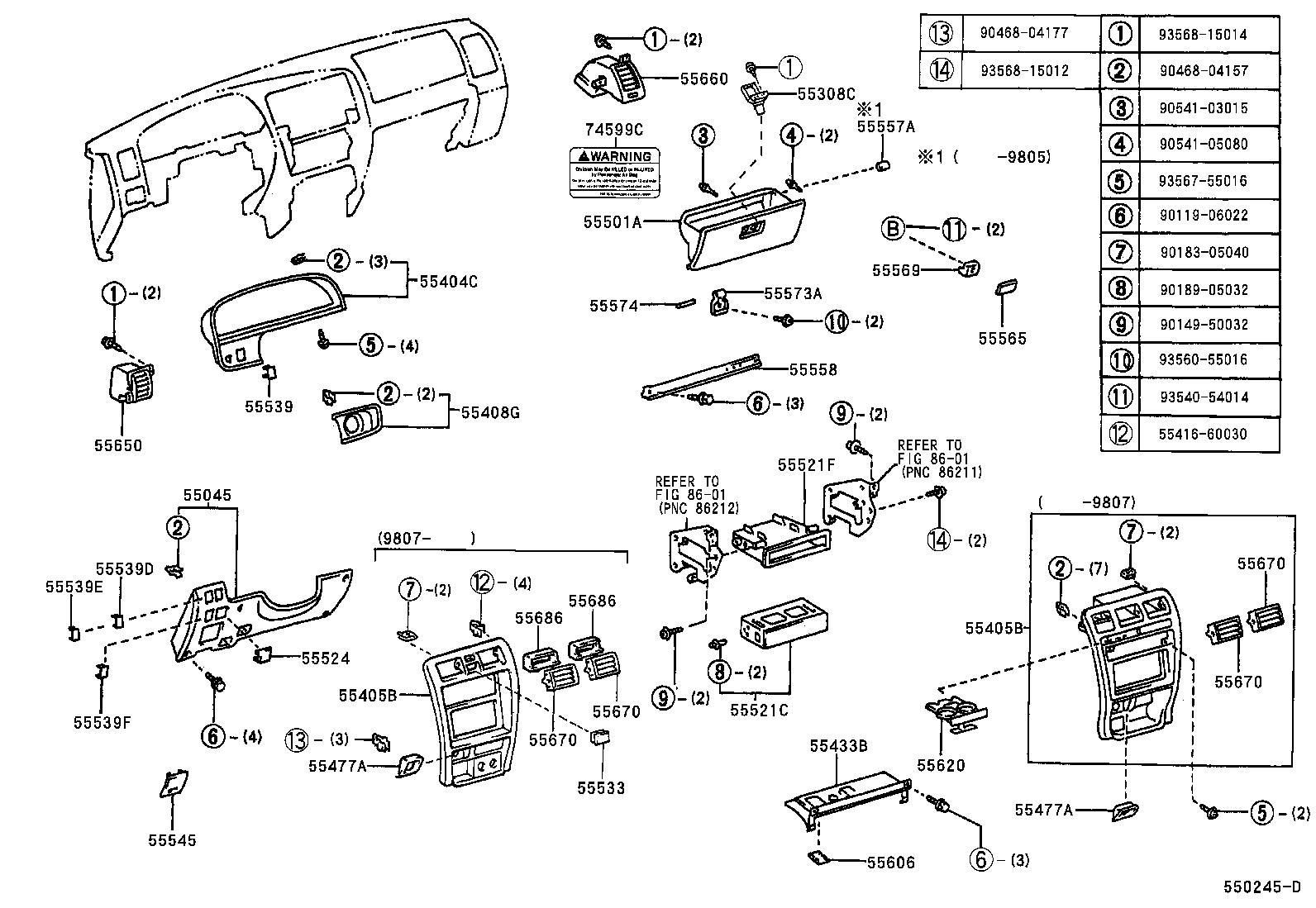

Instrument Panel & Glove Compartment
44 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 50540 | DO0R Assy, Airbag Passenger |
| 55045 | Panel Sub-assy, Instrument Panel Finish, Lower |
| 55301 | Panel Sub-assy, Instrument |
| 55303A | Stay Sub-assy, Instrument Panel |
| 55306A | Brace Sub-assy, Instrument Panel, NO.1 |
| 55307C | Brace Sub-assy, Instrument Panel, NO.2 |
| 55308C | Bracket Sub-assy, Instrument Panel, Center |
| 55312B | Panel, Instrument, Lower RH |
| 55313 | Panel, Instrument, Lower LH |
| 55331 | Reinforcement, Instrument Panel |
| 55349A | Cushion, Instrument Panel |
| 55401E | Pad Sub-assy, Instrument Panel Safety |
| 55404C | Panel Sub-assy, Instrument Cluster Finish, NO.2 |
| 55405B | Panel Sub-assy, Instrument Cluster Finish, Center |
| 55408G | Bezel Sub-assy, Starter Switch |
| 55433B | Panel, Instrument Panel Finish, Lower NO.2 |
| 55477A | Bezel, Cigarette Lighter Hole |
| 55501A | Door Sub-assy, Glove Compartment |
| 55521C | Cover, Stereo Opening |
| 55521F | Cover, Stereo Opening, NO.2 |
| 55524 | Cover, Switch Bace Hole |
| 55533 | Cover, Auto Clock Hole |
| 55539 | Cover, Spare Switch Hole |
| 55539D | Cover, Spare Switch Hole |
| 55539E | Cover, Spare Switch Hole |
| 55539F | Cover, Spare Switch Hole |
| 55545 | Cover, Fuse Box Opening |
| 55557A | Cushion, Glove Compartment Door Check |
| 55558 | Reinforcement, Glove Compartment Door |
| 55565 | Handle, Glove Compartment Door Lock |
| 55569 | Cover, Glove Compartment Door Lock |
| 55573A | Hinge, Glove Compartment Door |
| 55574 | Shaft, Glove Compartment Door Hinge |
| 55606 | Cover Sub-assy, Instrument Panel Under, NO.1 |
| 55620 | Holder Assy, Instrument Panel Cup |
| 55650 | Register Assy, Instrument Panel, NO.1 |
| 55660 | Register Assy, Instrument Panel, NO.2 |
| 55670 | Register Assy, Instrument Panel, NO.3 |
| 55686 | Retainer, Register Blade |
| 55950 | Nozzle Assy, Defroster |
| 61181 | Bracket, Instrument Panel Side |
| 73960A | Airbag Assy, Instrument Panel Passenger W/O Door |
| 74598B | Label, Passenger Airbag Caution |
| 74599C | Label, Driver & Passenger Airbag Information |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
