Toyota 4Runner

1995-11 → 2002-08 · chassis RZN18#,VZN18# · catalogue 671460 · Europe

Discontinued model Data version 2003-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Console Box & Bracket

25 part groups · 3 illustrations

Illustrations

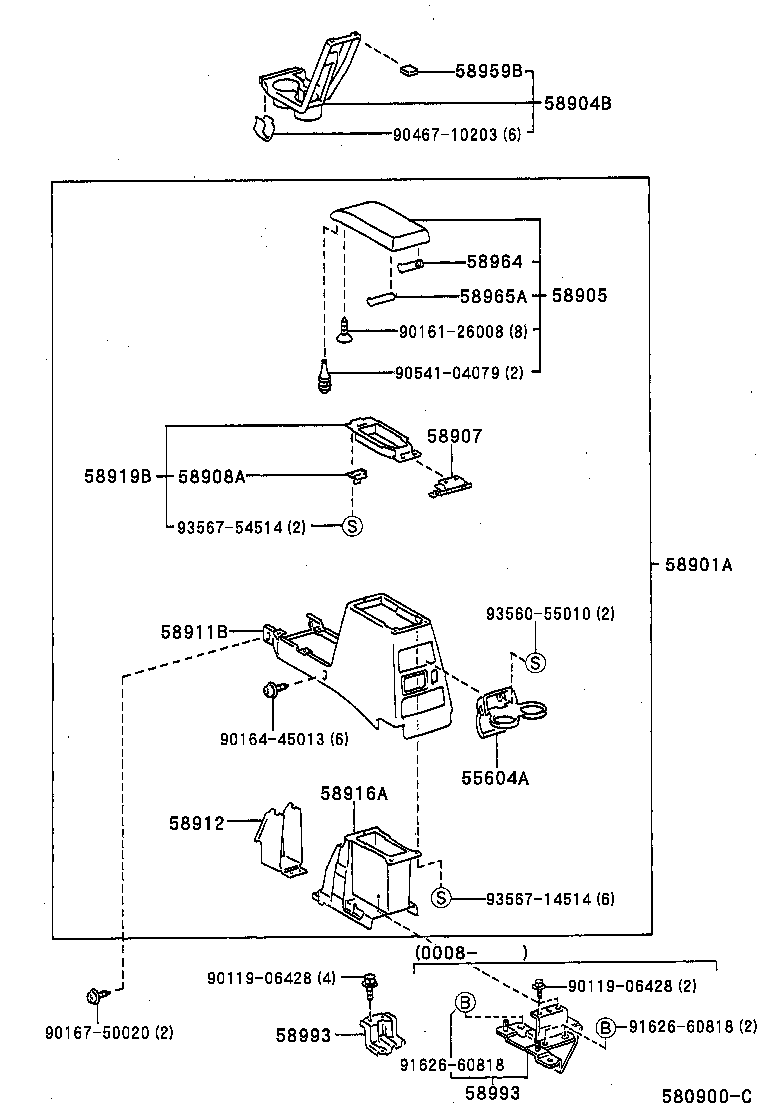

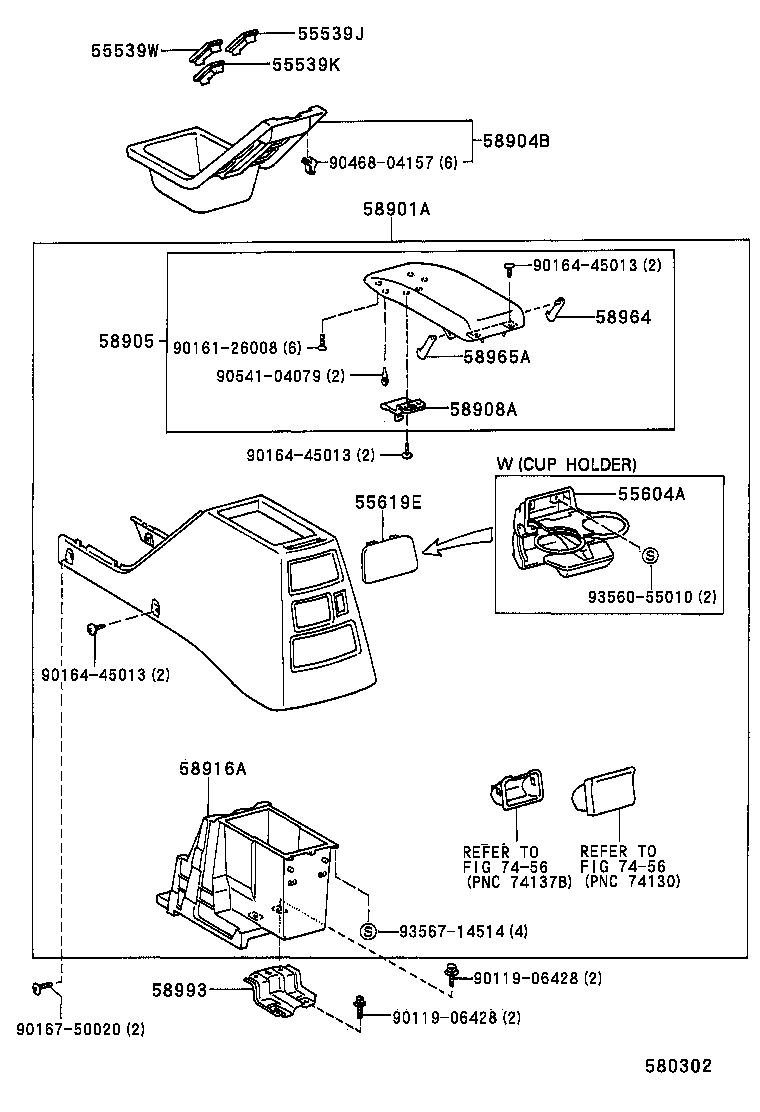

Figure 580301 580301 1995-11 → — Figure 580302 580302 1995-11 → 1998-07 Figure 580900C 580900C 1998-07 → —

Part groups

PNCDescription
55539J Cover, Spare Switch Hole
55539K Cover, Spare Switch Hole
55539W Cover, Spare Switch Hole
55604A Holder Sub-assy, Instrument Panel Cup
55619E Cover, Cup Holder Hole
58804A Panel Sub-assy, Console, Upper
58808 Cover Sub-assy, Shifting Hole
58811D Clip(FOR CONSOLE BOX)
58833B Garnish, Console Upper Panel, NO.1
58834B Garnish, Console Upper Panel, NO.2
58841A Cover, Shifting Hole
58901A Box Sub-assy, Console, Rear
58904B Cover Sub-assy, Parking Brake Hole
58905 Door Sub-assy, Console Compartment
58907 Hinge Sub-assy, Console Compartment Door
58908A Lock Sub-assy, Console Compartment Door
58911B Panel, Box, NO.1
58912 Box, Rear Console, NO.2
58916A Insert, Console Box, Rear
58919B Plate, Console Box
58959B Cushion, Console Compartment Door
58964 Stopper, Console Compartment Door, NO.1
58965A Stopper, Console Compartment Door, NO.2
58991 Bracket, Console Box Mounting, Upper
58993 Bracket, Console Box Mounting, Rear
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
