Toyota 4Runner
1995-11 → 2002-08 · chassis RZN18#,VZN18# · catalogue 671460 · Europe
Discontinued model
Data version 2003-02

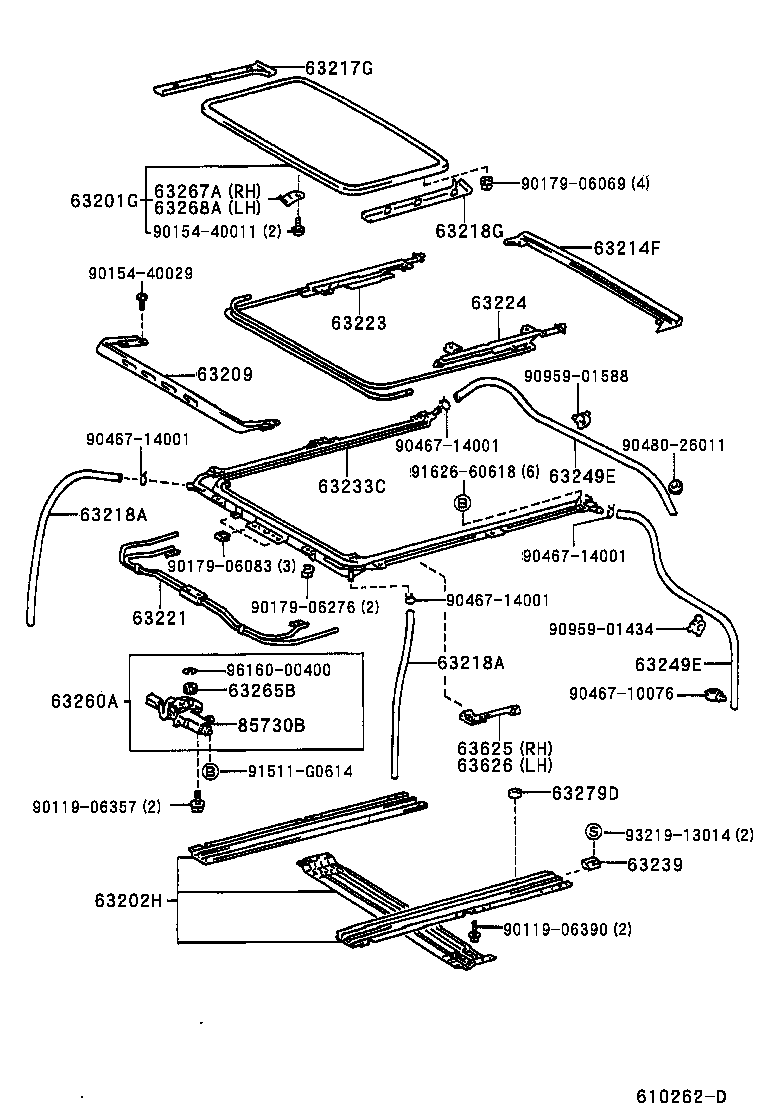

Roof Panel & Back Panel
33 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 62759B | Clip, Roof Rack |
| 62789C | Clip, Roof Rack |
| 63102A | Panel Sub-assy, Windshield Header |
| 63105A | Frame Sub-assy, Back Door Opening |
| 63111 | Panel, Roof |
| 63125 | Reinforcement, Roof Panel, NO.2 |
| 63126B | Reinforcement, Roof Panel, Rear NO.2 |
| 63141G | Reinforcement, Roof Panel, NO.1 |
| 63142 | Reinforcement, Roof Panel, NO.2 |
| 63143A | Reinforcement, Roof Panel |
| 63201G | Glass Sub-assy, Sliding Roof |
| 63202H | Rail Sub-assy, Slide Roof |
| 63209 | Panel Sub-assy, Roof Wind Deflector |
| 63214F | Channel, Roof Drip, Rear |
| 63217G | Garnish, Sliding Roof Side, RH |
| 63218A | Hose(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN) |
| 63218G | Garnish, Sliding Roof Side, LH |
| 63221 | Casing, Sliding Roof Cable Guide |
| 63223 | Cable, Sliding Roof Drive, RH |
| 63224 | Cable, Sliding Roof Drive, LH |
| 63233C | Panel, Sliding Roof Housing |
| 63239 | Stopper, Sliding Roof Panel |
| 63249E | Hose, Sliding Roof Drain |
| 63260A | Gear Sub-assy, Sliding Roof Drive |
| 63265B | Gear, Sliding Roof Drive |
| 63267A | Protector, Sliding Roof Weatherstrip, RH |
| 63268A | Protector, Sliding Roof Weatherstrip, LH |
| 63279D | Stopper, Sliding Roof Guide Rail |
| 63477A | Support, Roof Rack, Center RH |
| 63478 | Support, Roof Rack, Center LH |
| 63625 | Block, Sliding Roof Guide, RH |
| 63626 | Block, Sliding Roof Guide, LH |
| 85730B | Motor Assy, Slide Roof |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
