Toyota 4Runner

1995-11 → 2002-08 · chassis RZN18#,VZN18# · catalogue 671460 · Europe

Discontinued model Data version 2003-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Back Door Panel & Glass

19 part groups · 2 illustrations

Illustrations

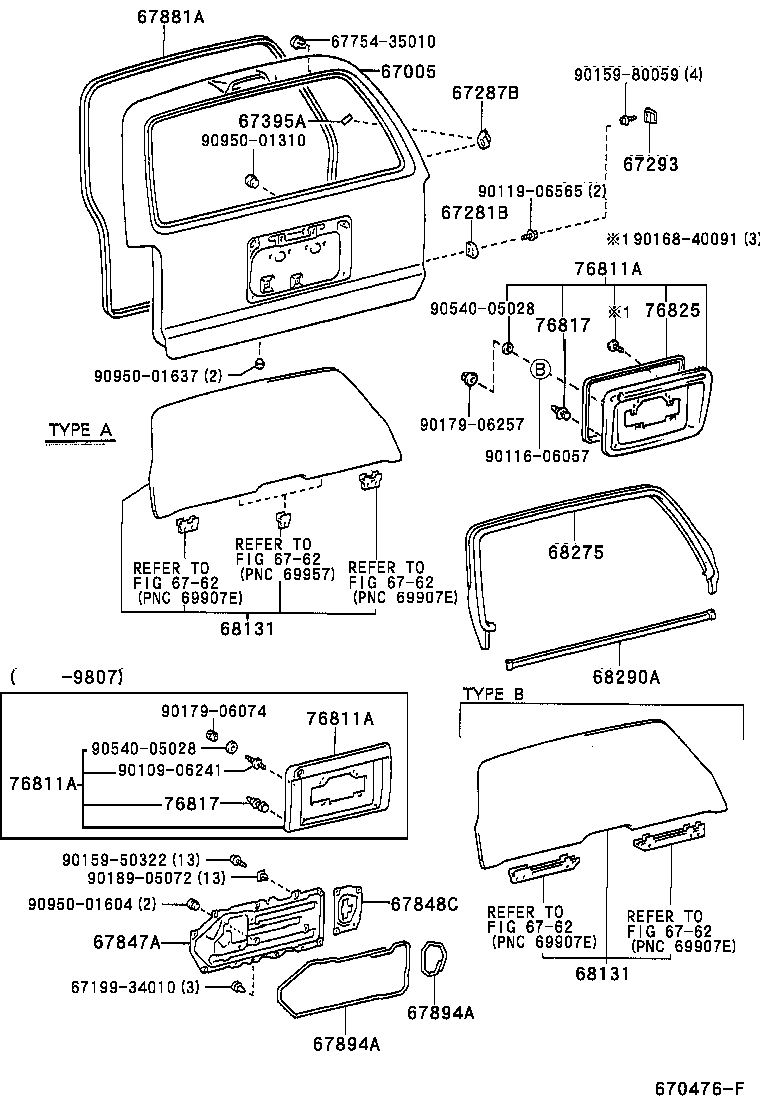

Figure 670456B 670456B 1995-11 → — Figure 670476F 670476F 1995-11 → —

Part groups

PNCDescription
64780A Panel Assy, Back Door Trim
67005 Panel Sub-assy, Back Door
67281B Stopper, Back Door, Lower
67287B Block, Back Door Stopper Slide
67293 Cushion, Back Door Lower Stopper
67395A Protector, Back Door, Lower
67847A Cover, Back Door Service Hole
67848C Cover, Back Door Service Hole, NO.2
67881A Weatherstrip, Back Door
67894A Protector, Back Door Panel, NO.1
68131 Glass, Back Door
68275 Run, Back Door Glass
68290A Weatherstrip Assy, Back Door Glass, Outer
68291 Weatherstrip, Back Door Glass
74629A Cover, Assist Strap Hole
74650A Strap Assy, Assist
76811A Garnish, Back Door, Outside
76817 Clip, Back Door Outside Garnish
76825 Protector, Back Door Outside Garnish
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
