Toyota 4Runner

1995-11 → 2002-08 · chassis RZN18#,VZN18# · catalogue 671460 · Europe

Discontinued model Data version 2003-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat & Seat Track

125 part groups · 5 illustrations

Illustrations

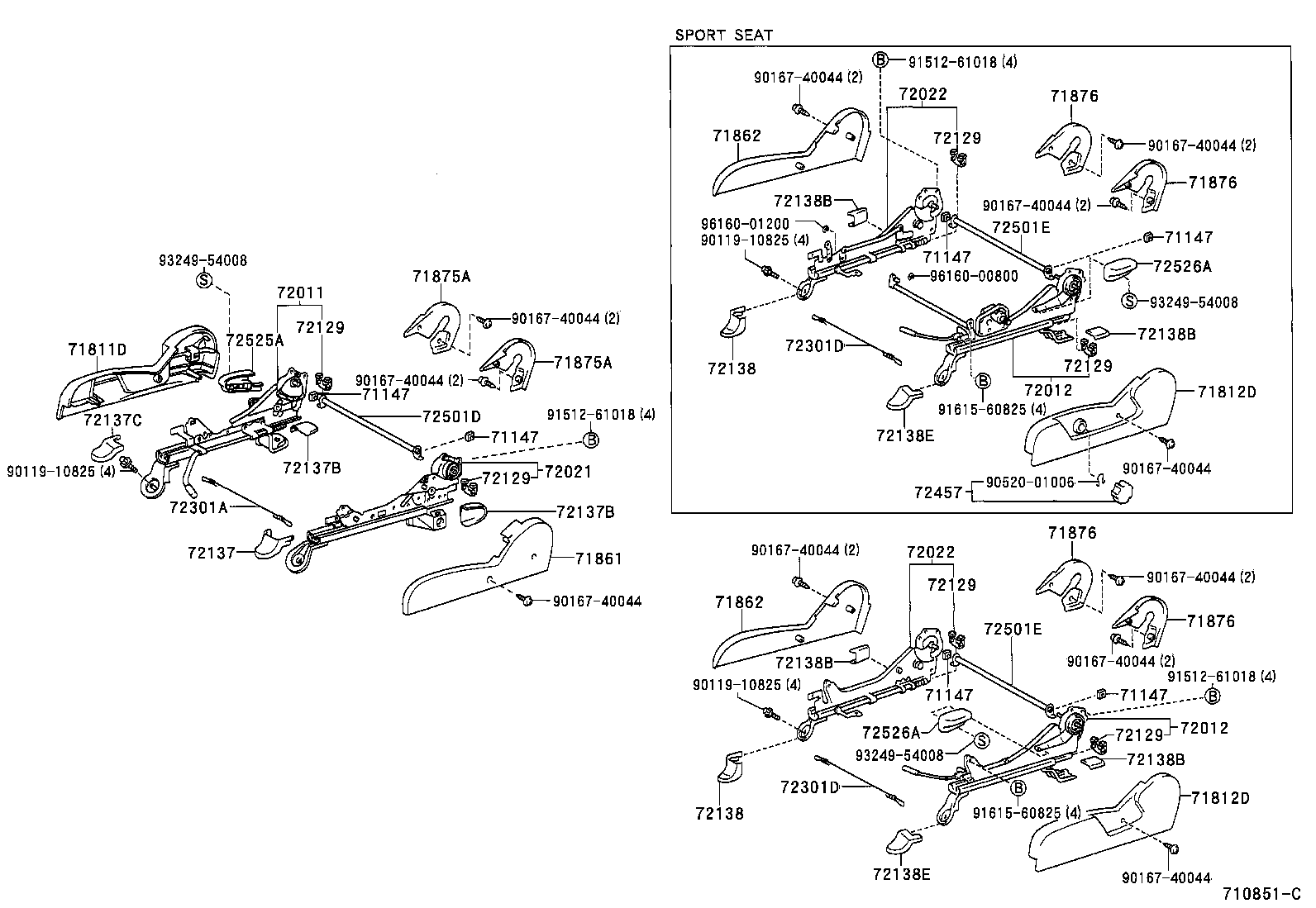

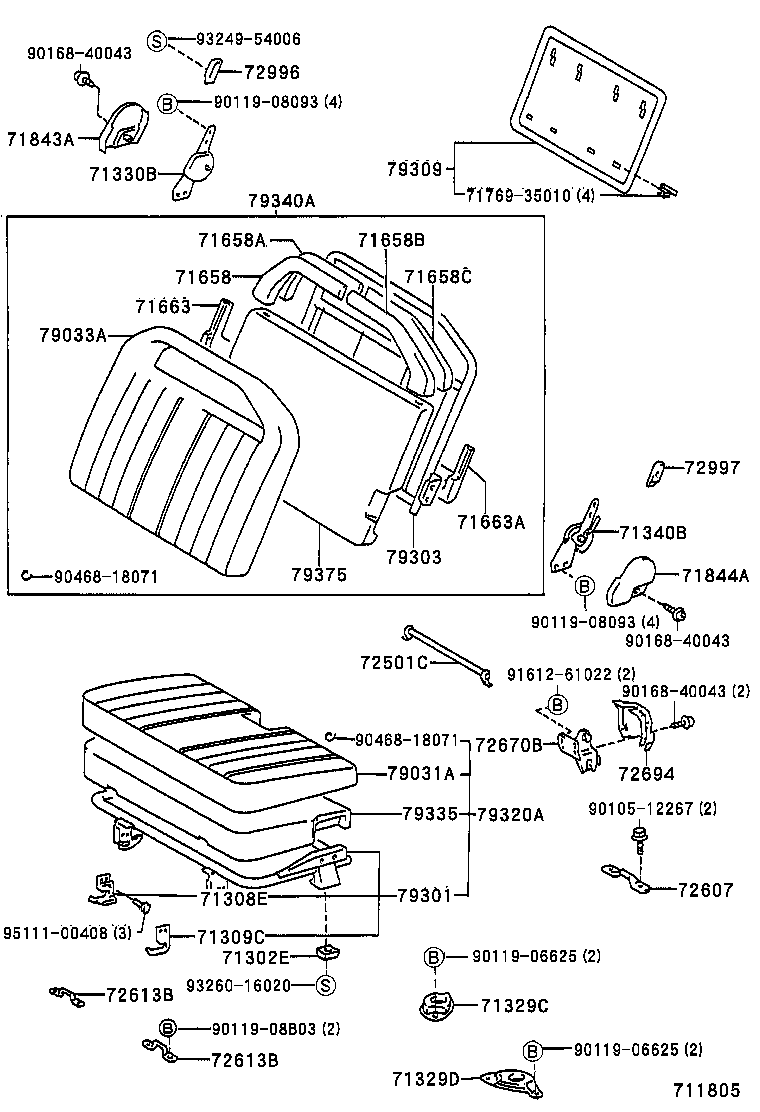

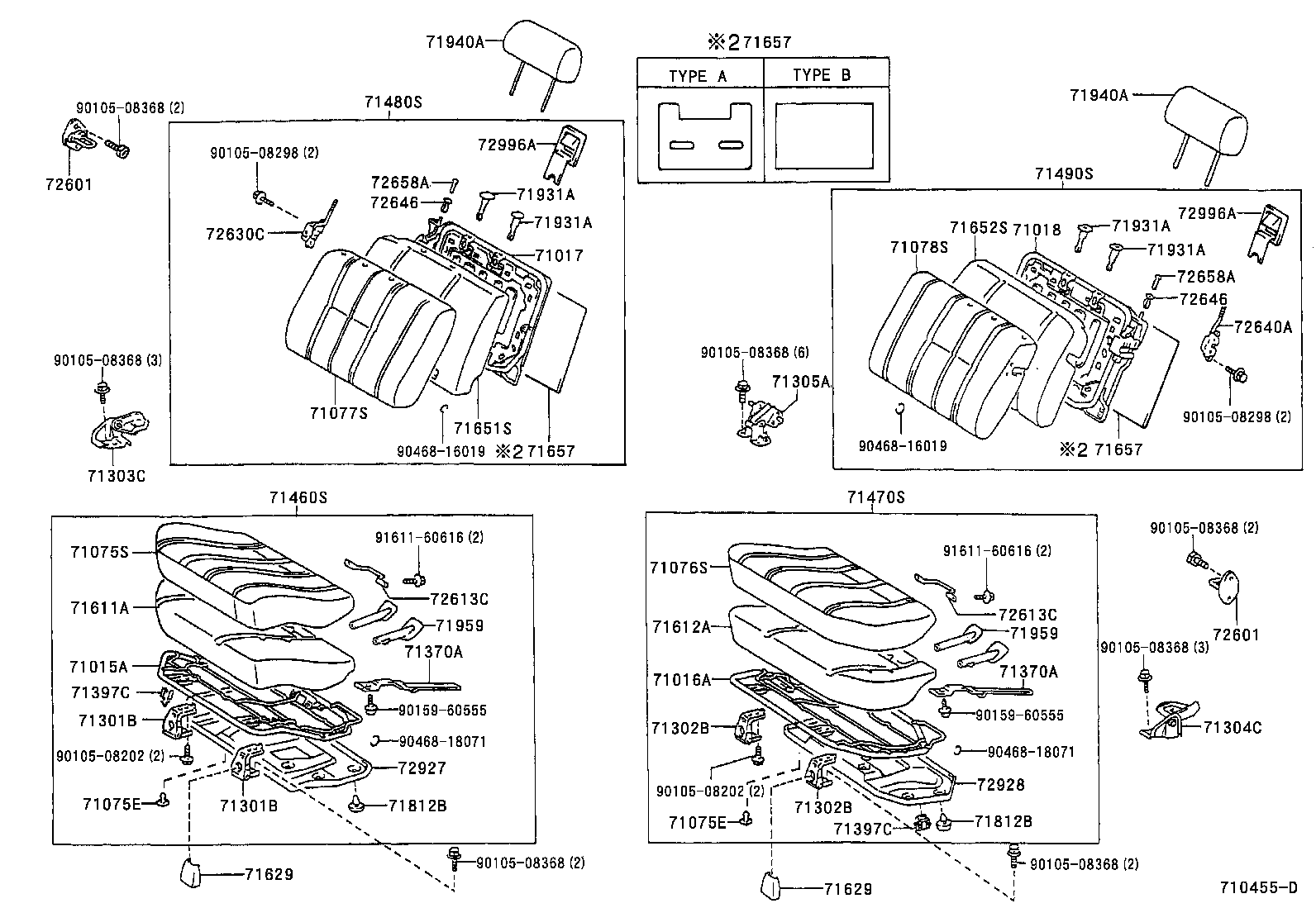

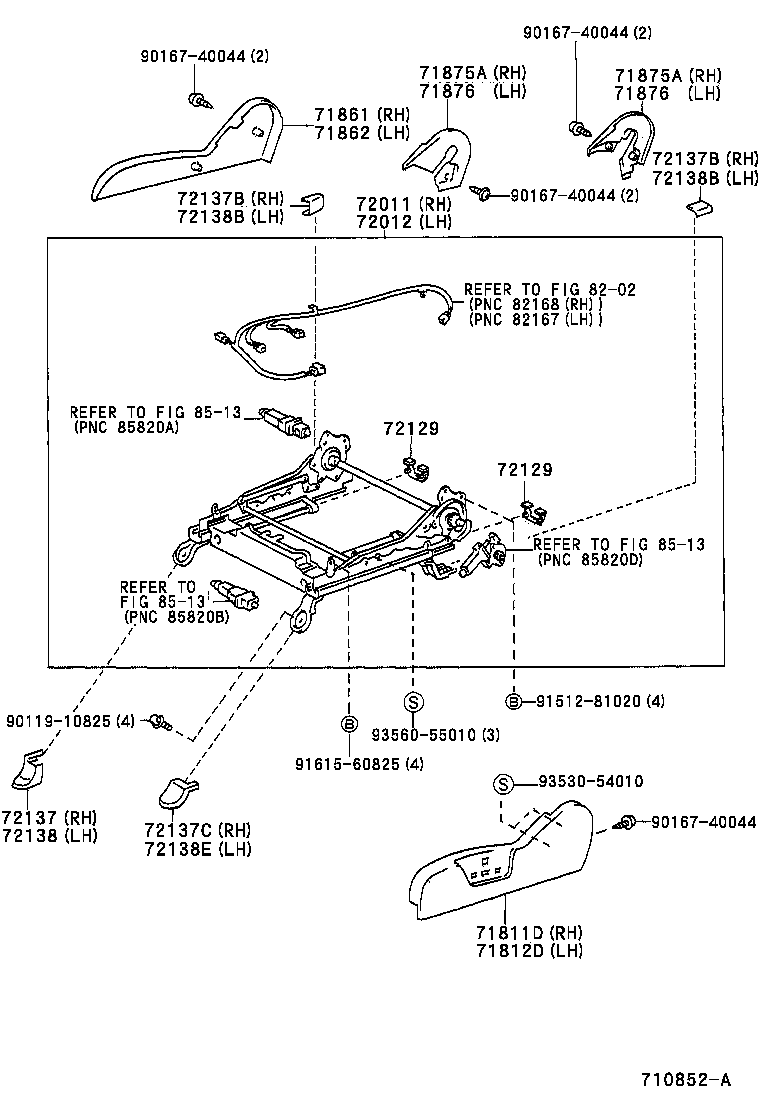

Figure 710456D 710456D 1995-11 → — Figure 710851C 710851C 1995-11 → — Figure 710852B 710852B 1995-11 → — Figure 710455D 710455D 1995-11 → — Figure 711805 711805 1995-11 → —

Part groups

PNCDescription
71015A Frame Sub-assy, Rear Seat Cushion, RH
71016A Frame Sub-assy, Rear Seat Cushion, LH
71017 Frame Sub-assy, Rear Seatback, RH
71018 Frame Sub-assy, Rear Seatback, LH
71071S Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71072S Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71073S Cover, Front Seatback, RH(FOR SEPARATE TYPE)
71074S Cover, Front Seatback, LH(FOR SEPARATE TYPE)
71075E Clip(FOR REAR SEAT)
71075S Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE)
71076S Cover, Rear Seat Cushion, LH (FOR SEPARATE TYPE)
71077S Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
71078S Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
71147 Silencer, Seat Spring
71301B Hinge Sub-assy, Rear NO.1 Seat, RH
71302B Hinge Sub-assy, Rear NO.1 Seat, LH
71302E Stopper Sub-assy, Rear Seat Leg
71303C Hinge Sub-assy, Rear Seatback, RH
71304C Hinge Sub-assy, Rear Seatback, LH
71305A Hinge Sub-assy, Rear Seatback, Center
71308E Leg Sub-assy, Rear Seat, RH
71309C Leg Sub-assy, Rear Seat, Rear LH
71329C Reinforcement, Rear Seat Leg Bracket, RH
71329D Reinforcement, Rear Seat Leg Bracket, LH
71330B Hinge Assy, Rear NO.2 Seat, RH
71340B Hinge Assy, Rear NO.2 Seat, LH
71370A Holder Assy, Rear Seat Cushion
71397C Stopper, Rear Seat
71410S Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE)
71420S Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
71430S Back Assy, Front Seat, RH(FOR SEPARATE TYPE)
71440S Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
71460S Cushion Assy, Rear Seat, RH(FOR SEPARATE TYPE)
71470S Cushion Assy, Rear Seat, LH (FOR SEPARATE TYPE)
71480S Back Assy, Rear Seat, RH (FOR SEPARATE TYPE)
71490S Back Assy, Rear Seat, LH (FOR SEPARATE TYPE)
71511S Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71512S Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
71517 Cloth, Front Seat Cushion Under
71537A Protector, Front Seat Cushion
71551S Pad, Front Seatback, RH(FOR SEPARATE TYPE)
71552S Pad, Front Seatback, LH(FOR SEPARATE TYPE)
71561B Pad, Front Seatback, Upper
71587 Protector, Front Seatback Edge
71588 Protector, Front Seatback Edge, NO.2
71610S Spring Assy, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71611A Pad, Rear Seat Cushion, RH
71612A Pad, Rear Seat Cushion, LH
71620S Spring Assy, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71629 Cover, Rear Seat Cushion Hinge
71630S Spring Assy, Front Seatback, RH(FOR SEPARATE TYPE)
71640S Spring Assy, Front Seatback, LH(FOR SEPARATE TYPE)
71651S Pad, Rear Seatback, RH(FOR SEPARATE TYPE)
71652S Pad, Rear Seatback, LH(FOR SEPARATE TYPE)
71657 Cloth, Rear Seatback Under
71658 Pad, Rear NO.2 Seatback Safety, Front RH
71658A Pad, Rear NO.2 Seatback Safety, Rear RH
71658B Pad, Rear NO.2 Seatback Safety, Front LH
71658C Pad, Rear NO.2 Seatback Safety, Rear LH
71663 Pad, Rear Seatback, Lower
71663A Pad, Rear Seatback, Lower A
71811D Shield, Front Seat Cushion, RH
71812B Clip(FOR REAR SEAT CUSHION COVER)
71812D Shield, Front Seat Cushion, LH
71831D Cover, Front Seat Hinge, RH
71832D Cover, Front Seat Hinge, LH
71843A Cover, Rear Seat Reclining, NO.2 RH
71844A Cover, Rear Seat Reclining, NO.2 LH
71861 Shield, Front Seat Cushion, Inner RH
71862 Shield, Front Seat Cushion, Inner LH
71875A Cover, Reclining Adjuster Inside, RH
71876 Cover, Reclining Adjuster Inside, LH
71910A Headrest Assy, Front Seat
71931 Support, Front Seat Headrest
71931A Support, Rear Seat Headrest
71940A Headrest Assy, Rear Seat
71959 Holder, Rear Seat Headrest
72011 Adjuster Sub-assy, Front Seat, Outer RH
72012 Adjuster Sub-assy, Front Seat, Outer LH
72021 Adjuster Sub-assy, Front Seat, Inner RH
72022 Adjuster Sub-assy, Front Seat, Inner LH
72129 Protector, Seat Track Lower Rail, NO.1
72137 Cover, Seat Track, Outer RH
72137B Cover, Seat Track, RH
72137C Cover, Seat Track Inner, RH
72138 Cover, Seat Track, Outer LH
72138B Cover, Seat Track, LH
72138E Cover, Seat Track, Inner LH
72301A Wire Sub-assy, Seat Track Equalizing, RH
72301D Wire Sub-assy, Seat Track Equalizing, LH
72457 Knob, Vertical Seat Adjuster
72501C Pipe Sub-assy, Reclining Connecting
72501D Pipe Sub-assy, Reclining Connecting, RH
72501E Pipe Sub-assy, Reclining Connecting, LH
72525A Handle, Reclining Adjuster Release, RH
72526A Handle, Reclining Adjuster Release, LH
72601 Striker Sub-assy, Rear Seat Lock
72607 Striker Sub-assy, Rear Seat Cushion Lock
72613B Striker, Rear Seat Lock
72613C Striker, Rear Seat Lock
72630C Lock Assy, Rear Seatback, RH
72640A Lock Assy, Rear Seatback, LH
72646 Grommet, Rear Seatback Stop Button
72658A Knob, Rear Seatback Locking
72670B Lock Assy, Rear Seat Cushion, RH
72694 Cover, Rear Seat Cushion Lock
72760D Adjuster Assy, Lumbar Support, LH
72791 Lever, Lumbar Support
72797 Spacer, Lumbar Support
72927 Cover, Rear Seat Cushion Under, RH
72928 Cover, Rear Seat Cushion Under, LH
72996 Cover, Rear Seatback, RH
72996A Cover, Rear Seatback
72997 Cover, Rear Seatback, LH
79031A Cover Sub-assy, NO.3 Seat Cushion
79033A Cover Sub-assy, NO.3 Seatback
79301 Frame Sub-assy, NO.3 Seat Cushion
79303 Frame Sub-assy, NO.3 Seatback
79309 Board Sub-assy, NO.3 Seatback
79320A Cushion Assy, NO.3 Seat
79335 Pad, NO.3 Seat Cushion
79340A Back Assy, NO.3 Seat
79375 Pad, NO.3 Seatback
87510K Heater Assy, Front Seat Cushion, RH
87510L Heater Assy, Front Seat Cushion, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
