Toyota 4Runner

1995-11 → 2002-08 · chassis RZN18#,VZN18# · catalogue 671460 · Europe

Discontinued model Data version 2003-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Combination Lamp

7 part groups · 2 illustrations

Illustrations

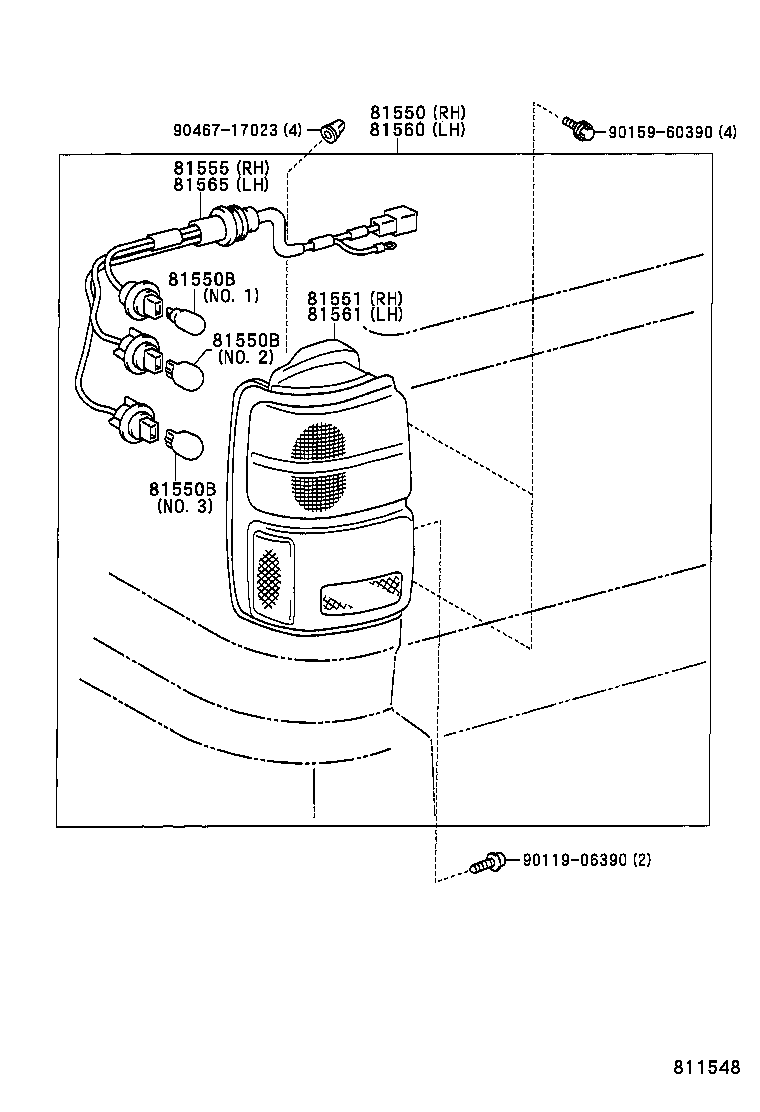

Figure 811422B 811422B 1995-11 → 2000-08 Figure 811548 811548 2000-08 → —

Part groups

PNCDescription
81550 Lamp Assy, Rear Combination, RH
81550B Bulb(FOR REAR COMBINATION LAMP)
81551 Lens, Rear Combination Lamp, RH
81555 Socket & Wire Sub-assy, Rear Combination Lamp, RH
81560 Lamp Assy, Rear Combination, LH
81561 Lens, Rear Combination Lamp, LH
81565 Socket & Wire Sub-assy, Rear Combination Lamp, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
