Toyota 4Runner

1995-11 → 2002-08 · chassis RZN18#,VZN18# · catalogue 671460 · Europe

Discontinued model Data version 2003-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Cruise Control (AUTO DRIVE)

8 part groups · 4 illustrations

Illustrations

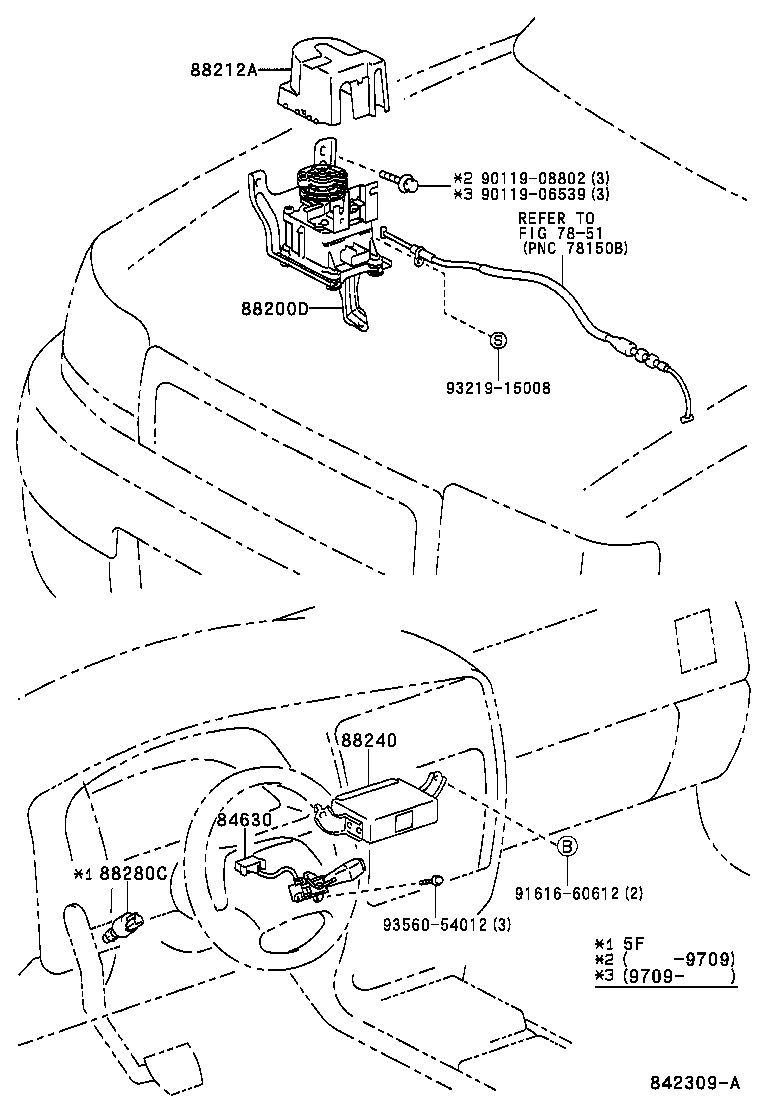

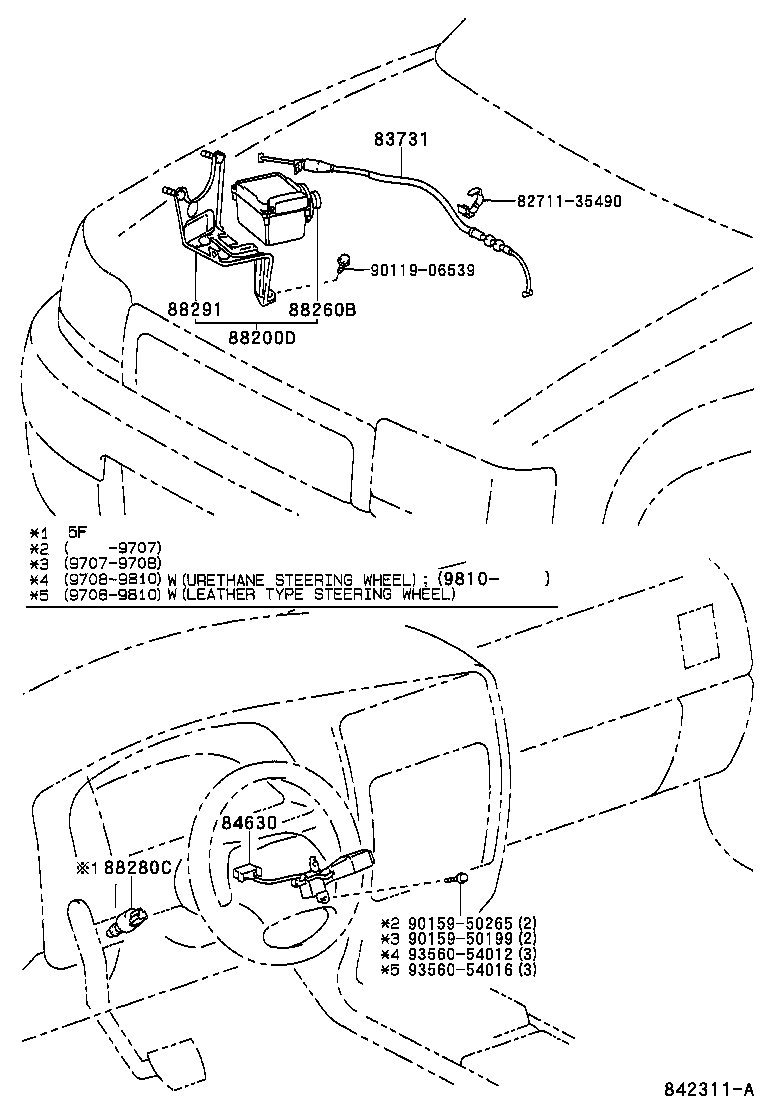

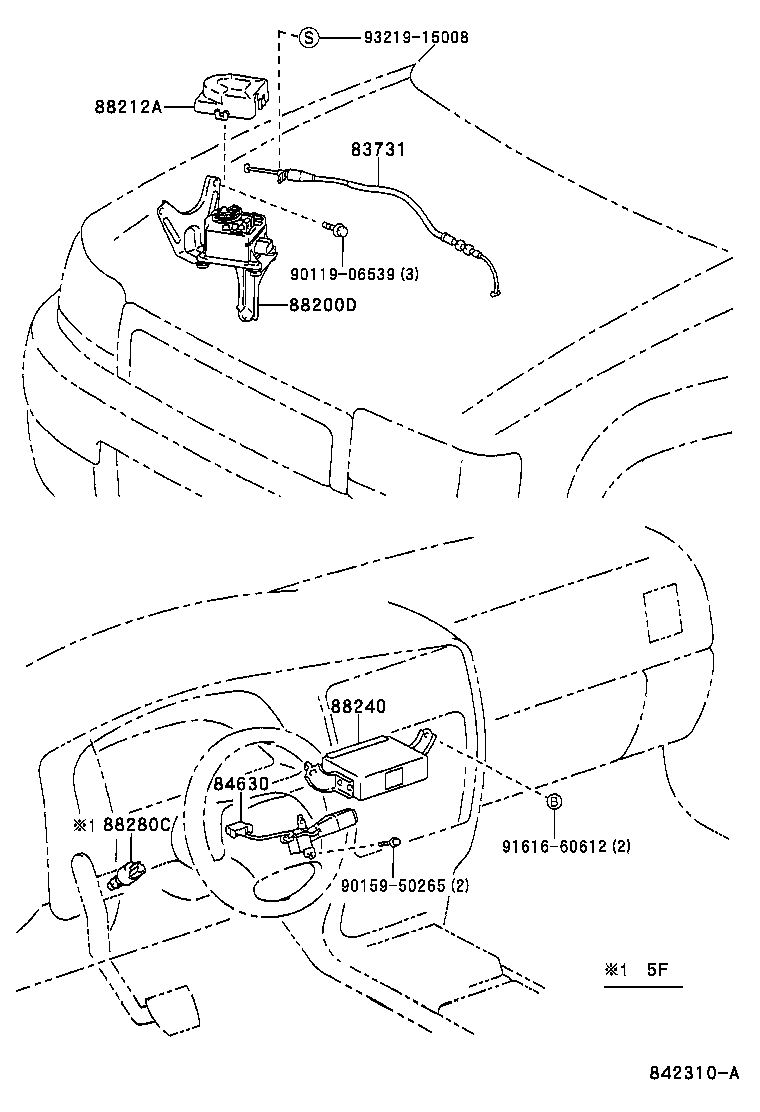

Figure 842308A 842308A 1995-11 → 1997-08 Figure 842309A 842309A 1997-08 → 2000-08 Figure 842310A 842310A 1995-11 → 1996-08 Figure 842311A 842311A 1996-08 → —

Part groups

PNCDescription
83731 Cable, Cruise Control
84630 Switch Assy, Cruise Control Main
88200D Actuator Assy, Cruise Control
88212A Cover, Cruise Control Actuator
88240 Computer Assy, Cruise Control
88260B Actuator Assy, Cruise Control W/Computer
88280C Switch Assy, Clutch
88291 Bracket, Cruise Control(AUTO DRIVE), NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
