Toyota 4Runner

1995-11 → 2002-08 · chassis RZN18#,VZN18# · catalogue 671460 · Europe

Discontinued model Data version 2003-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Overdrive & Electronic Controlled Transmission

13 part groups · 2 illustrations

Illustrations

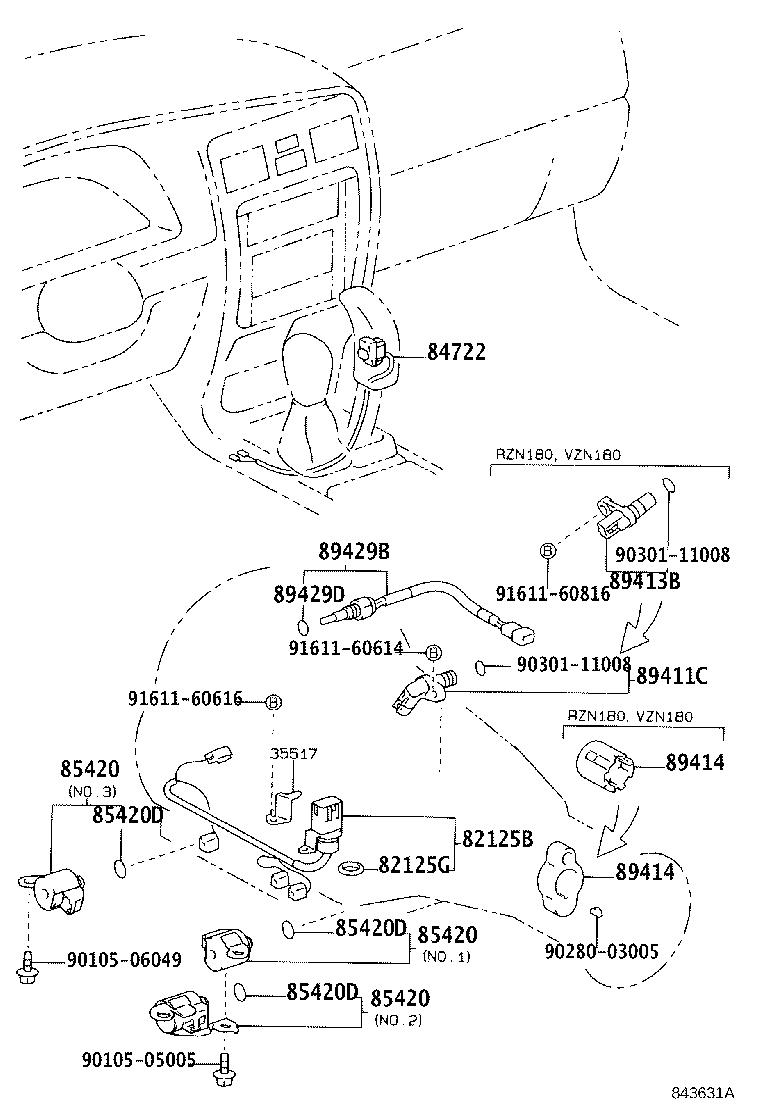

Figure 842314C 842314C 1995-11 → 2000-08 Figure 843631A 843631A 2000-08 → —

Part groups

PNCDescription
35517 Plate, Transmission Wire Lock
82125B Wire, Transmission
82125G Ring, O(FOR TRANSMISSION WIRE)
84720 Switch Assy, Pattern Select
84722 Switch, Transmission Control
85420 Solenoid Assy, Transmission
85420D Ring, O (FOR TRANSMISSION SOLENOID)
89411C Sensor, Speed
89413B Sensor, Transmission Revolution
89414 Rotor, Sensor
89429B Sensor, Temperature NO.2
89429D Ring, O(FOR TEMPERATURE SENSOR)
89531 Relay, Transmission Control
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
