Toyota 4Runner
1995-11 → 2002-08 · chassis RZN18#,VZN18# · catalogue 671460 · Europe
Discontinued model
Data version 2003-02

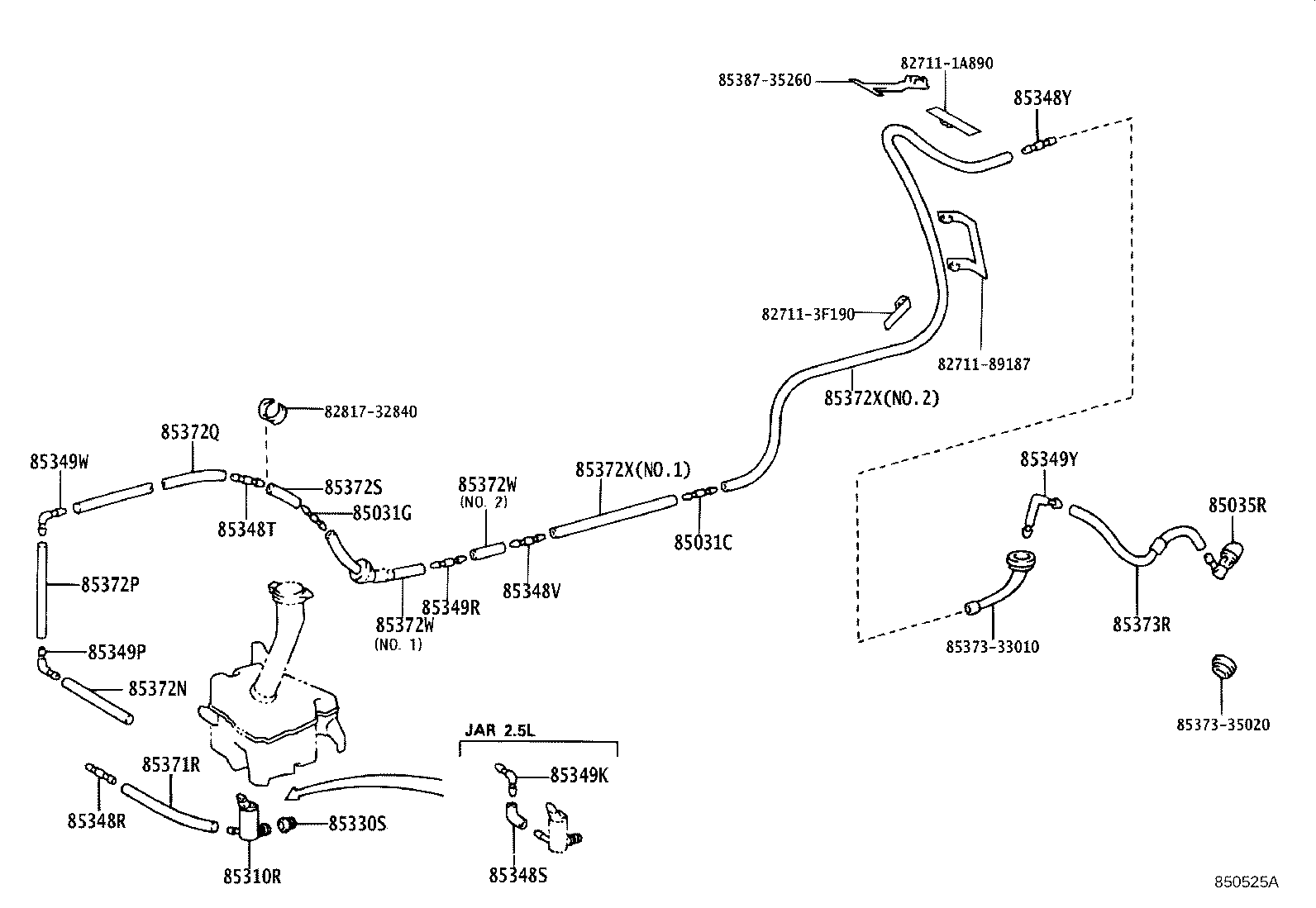

Rear Washer
23 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 85031C | Valve Sub-assy, Washer |
| 85031G | Valve, Rear Washer, NO.3 |
| 85035R | Nozzle Sub-assy, Rear Washer |
| 85310R | Motor Assy, Rear Washer |
| 85330S | Bush, Rear Washer Jar |
| 85348R | Joint, Rear Washer Hose, NO.1 |
| 85348S | Joint, Rear Washer Elbow, NO.1 |
| 85348T | Joint, Rear Washer Hose, NO.2 |
| 85348V | Joint, Rear Washer Hose, NO.4 |
| 85348Y | Joint, Rear Washer Hose, NO.5 |
| 85349K | Joint, Rear Washer Elbow, NO.2 |
| 85349P | Joint, Rear Washer Elbow, NO.3 |
| 85349R | Joint, Rear Washer Hose, NO.5 |
| 85349W | Joint, Rear Washer Elbow, NO.4 |
| 85349Y | Joint, Rear Washer Elbow, NO.5 |
| 85371R | Hose, Rear Washer (FROM MOTOR TO JOINT) |
| 85372N | Hose, Rear Washer (FROM JOINT TO JOINT), NO.1 |
| 85372P | Hose, Rear Washer (FROM JOINT TO JOINT), NO.2 |
| 85372Q | Hose, Rear Washer (FROM JOINT TO JOINT), NO.3 |
| 85372S | Hose, Rear Washer (FROM JOINT TO JOINT), NO.4 |
| 85372W | Hose, Rear Washer (FROM JOINT TO JOINT), NO.5 |
| 85372X | Hose, Rear Washer (FROM JOINT TO JOINT), NO.6 |
| 85373R | Hose, Rear Washer (FROM JOINT TO NOZZLE) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
