Toyota 4Runner

1995-11 → 2002-08 · chassis RZN18#,VZN18# · catalogue 671460 · Europe

Discontinued model Data version 2003-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Heater Unit & Blower

26 part groups · 8 illustrations

Illustrations

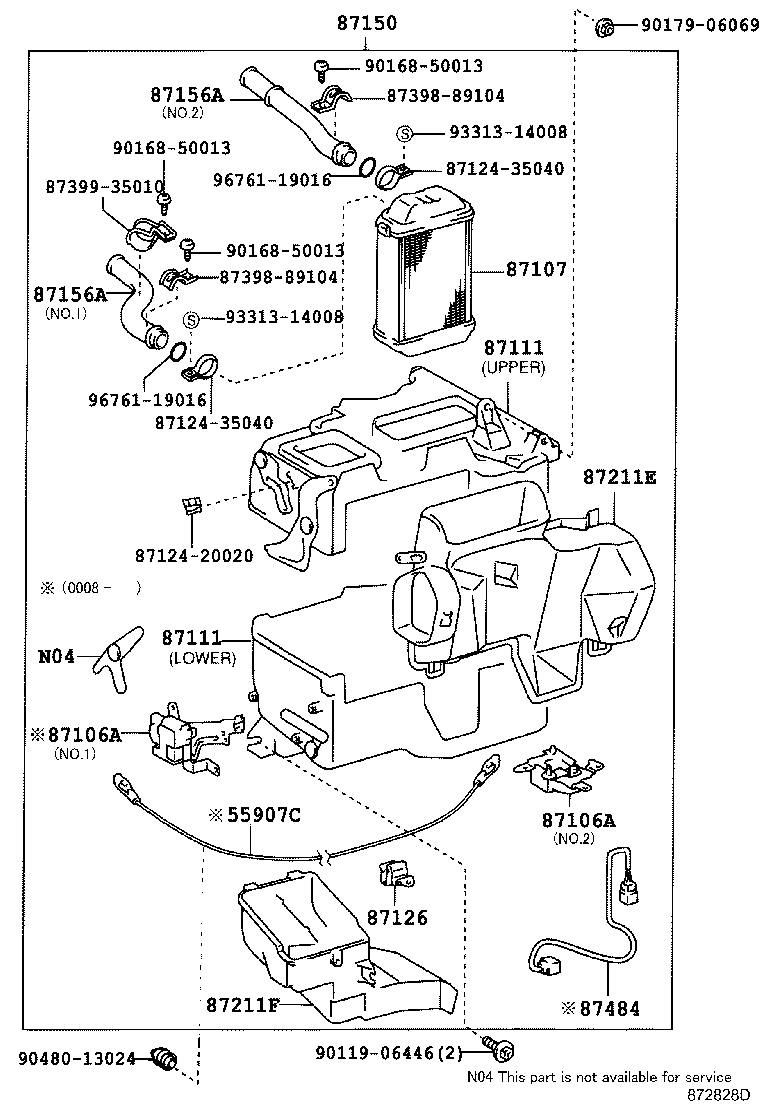

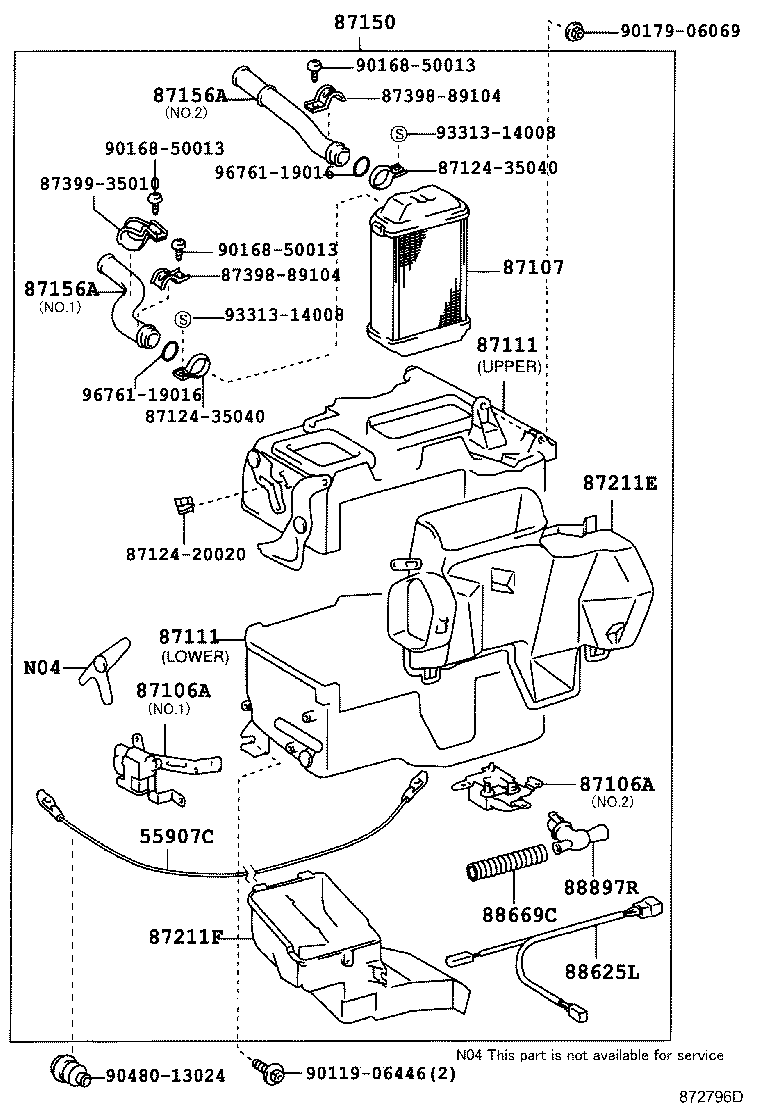

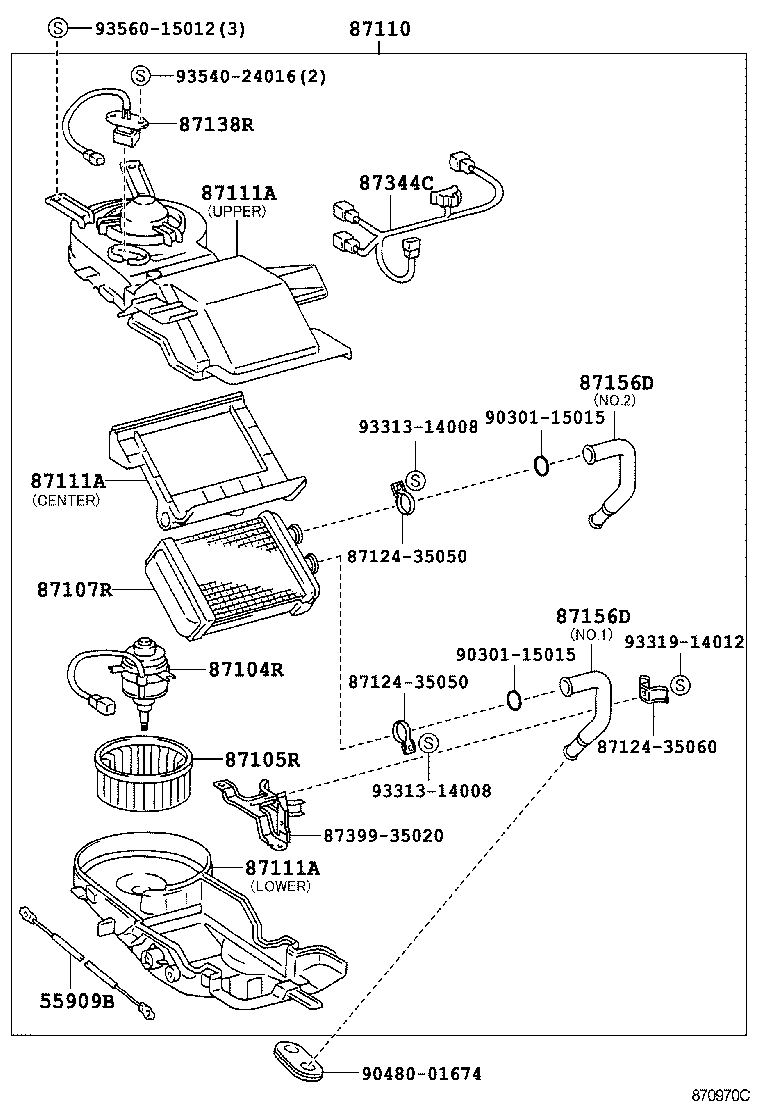

Figure 874035A 874035A 1995-11 → 1998-07 Figure 874035A 874035A 1998-07 → 2000-08 Figure 872800B 872800B 1998-07 → — Figure 874337A 874337A 2000-08 → — Figure 872828D 872828D 1995-11 → 1998-07 Figure 872828D 872828D 1998-07 → — Figure 872796D 872796D 1998-07 → — Figure 870970C 870970C 1995-11 → —

Part groups

PNCDescription
55907C Cable Sub-assy, Water Valve Control
55909B Cable Sub-assy, Airmix Damper Control
87103 Motor Sub-assy, Heater Blower, W/Fan
87104R Motor Sub-assy, Rear Heater Blower
87105R Fan Sub-assy, Rear Heater Blower
87106A Servo Sub-assy, Damper
87107 Unit Sub-assy, Heater Radiator
87107R Unit Sub-assy, Rear Heater
87110 Heater Assy
87111 Case, Heater
87111A Case, Heater
87126 Clamp, Heater Control
87130 Blower Assy, Heater, Front
87130C Relay, Heater Blower Motor
87138R Resistor, Rear Heater Blower
87150 Radiator Assy, Heater
87156A Connector, Heater Water Hose
87156D Connector, Heater Water Hose, NO.2
87187A Wire, Blower Motor Lead
87211E Duct, Air
87211F Duct, Air
87344C Wire, Heater
87484 Wire, Heater
88625L Thermistor, Cooler
88669C Hose, Air
88897R Aspirator
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
