Toyota 4Runner

1995-11 → 2002-08 · chassis RZN18#,VZN18# · catalogue 671460 · Europe

Discontinued model Data version 2003-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Unit

20 part groups · 3 illustrations

Illustrations

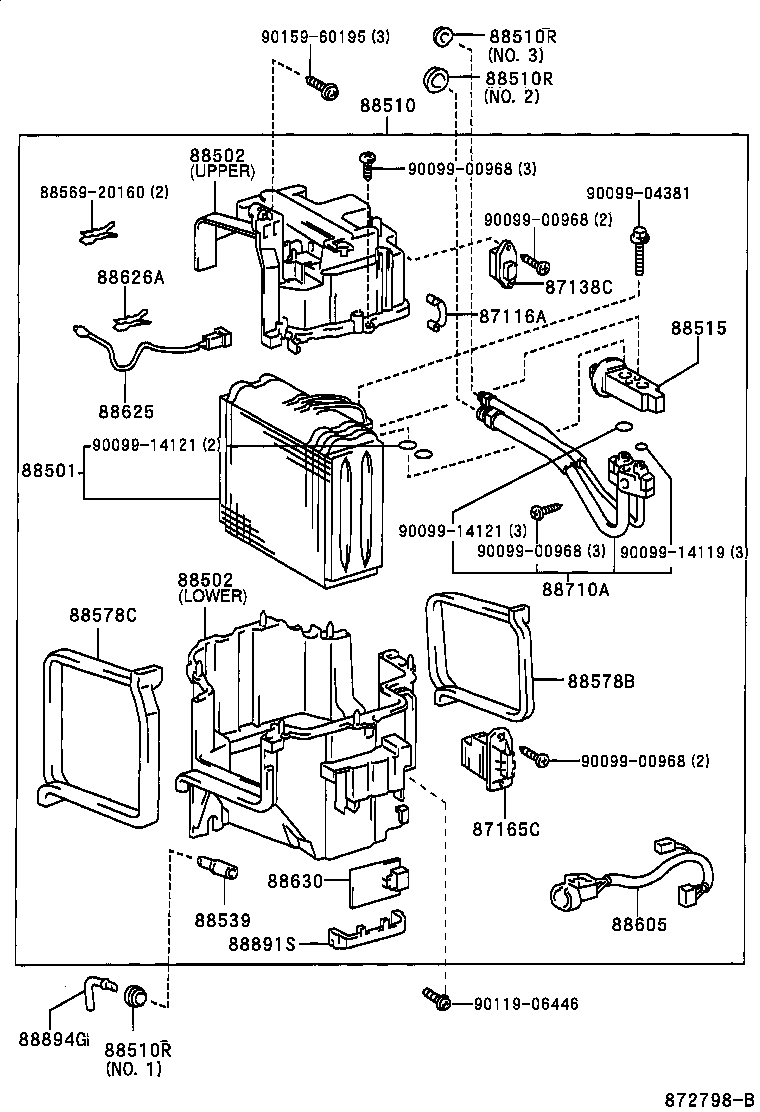

Figure 870963C 870963C 1995-11 → 1998-07 Figure 870963C 870963C 1998-07 → — Figure 872798B 872798B 1998-07 → —

Part groups

PNCDescription
87116A Spring, Holding (FOR COOLER UNIT CASE)
87138C Resistor, Blower
87165C Control, Blower Motor
88501 Evaporator Sub-assy, Cooler, NO.1
88502 Case Sub-assy, Cooling Unit
88510 Unit Assy, Cooler
88510R Grommet (FOR COOLER UNIT)
88515 Valve, Cooler Expansion
88539 Hose, Cooler Unit Drain, NO.1
88578B Packing, Cooling Unit, NO.1
88578C Packing, Cooling Unit, NO.2
88578V Packing, Cooling Unit, NO.3
88605 Harness Sub-assy, Cooler Wiring, NO.1
88625 Thermistor, Cooler, NO.1
88626A Holder, Thermistor
88630 Relay Assy, Cooler
88650 Amplifier Assy, Cooler Stabilizer
88710A Tube Assy, Air Conditioner
88891S Cover, Cooler, NO.1
88894G Connector, Drain Hose
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
