Toyota 4Runner

1995-11 → 2002-08 · chassis RZN18#,VZN18# · catalogue 671460 · Europe

Discontinued model Data version 2003-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Control & Air Duct

33 part groups · 8 illustrations

Illustrations

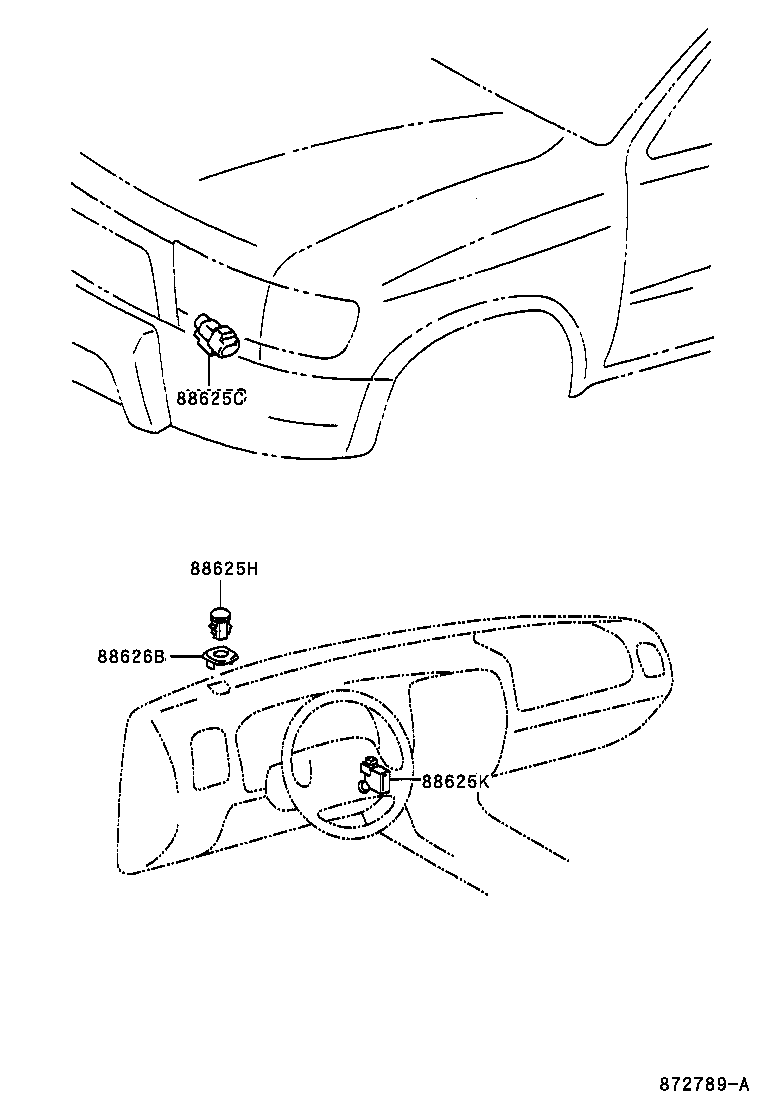

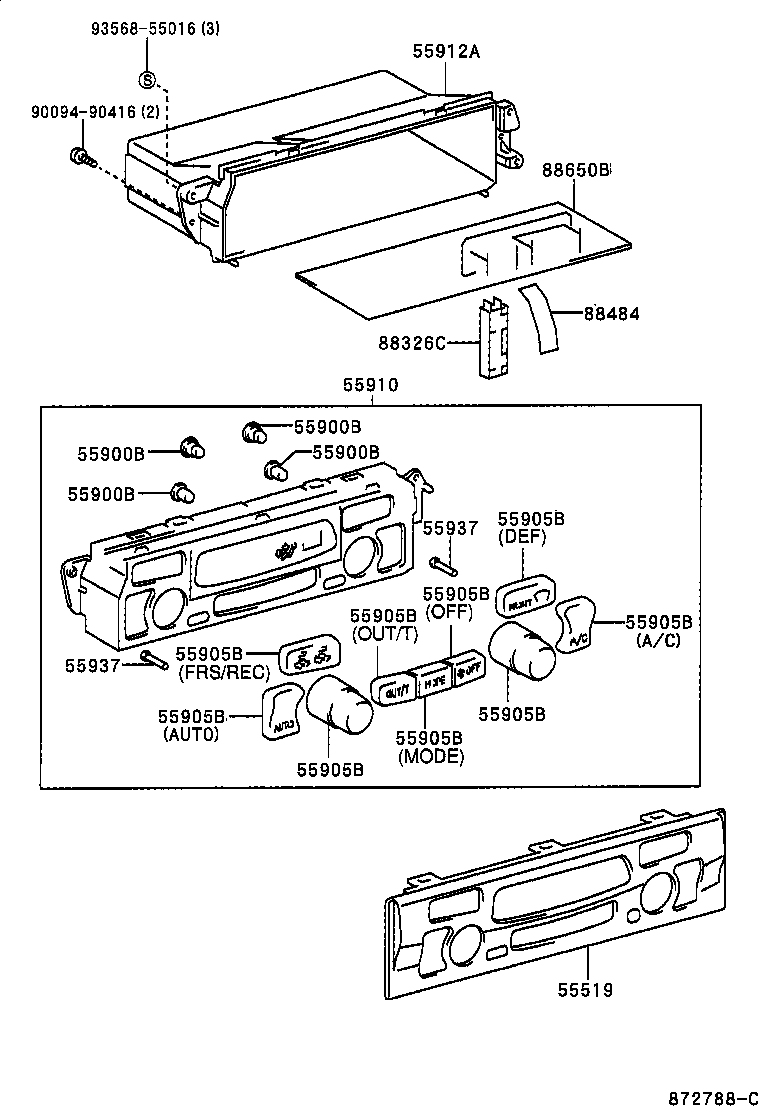

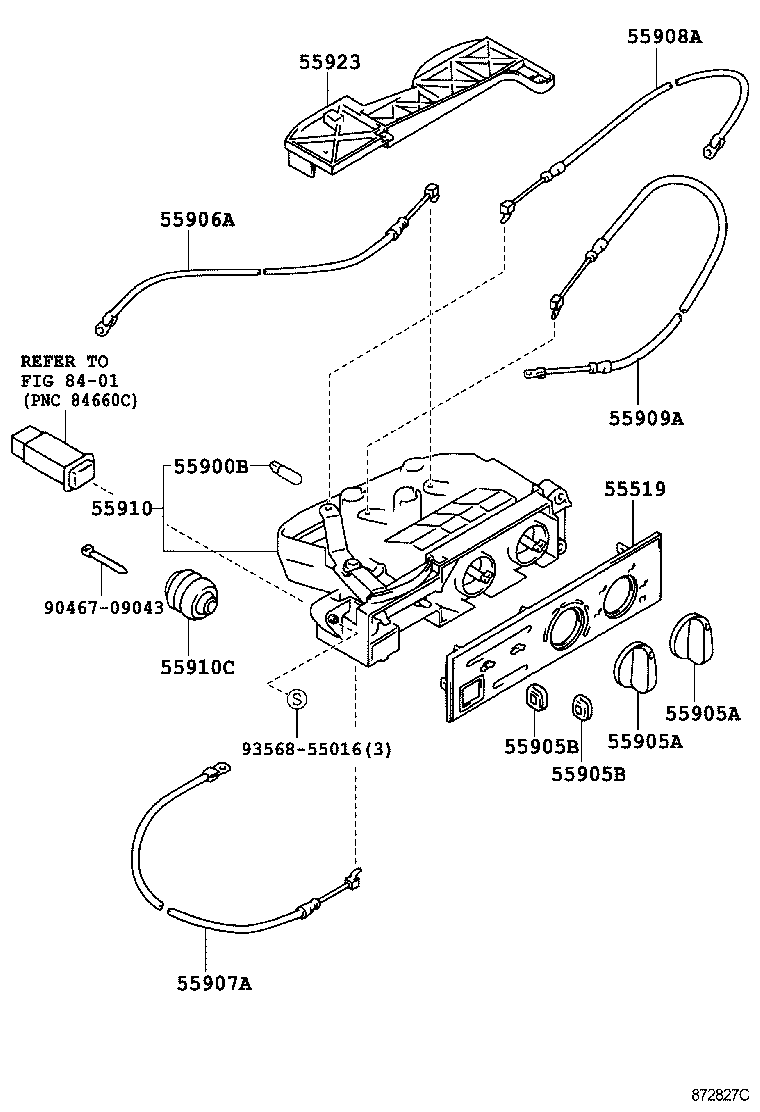

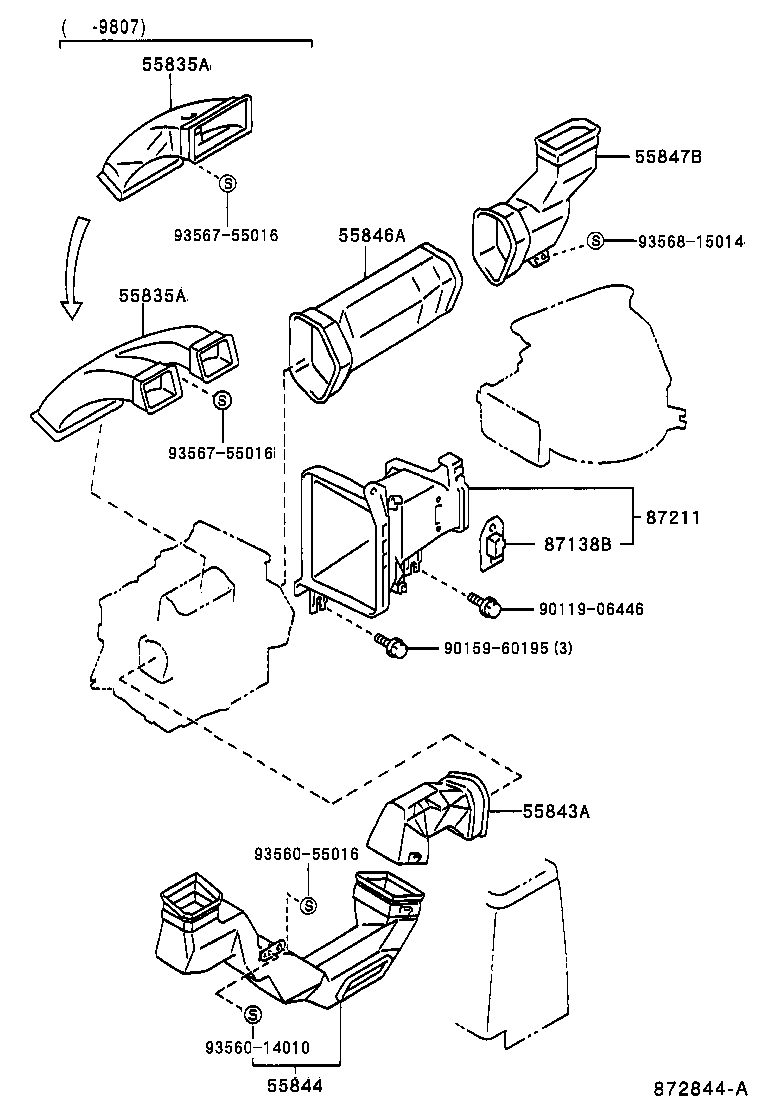

Figure 872787B 872787B 1995-11 → 1997-08 Figure 872827C 872827C 1997-08 → 1998-07 Figure 872827C 872827C 1998-07 → 2000-08 Figure 874324 874324 2000-08 → — Figure 872788C 872788C 1998-07 → — Figure 872844A 872844A 1995-11 → — Figure 870964C 870964C 1995-11 → — Figure 872789A 872789A 1998-07 → —

Part groups

PNCDescription
55519 Plate, Heater Control Name
55519R Plate, Heater Control Name
55835A Duct, Heater TO Register, Center
55843A Duct, Heater TO Register, NO.1
55844 Duct, Heater TO Register, NO.2
55846A Duct, Heater TO Register, NO.4
55847B Duct, Heater TO Register, NO.5
55900A Control & Accessory Assy, Heater
55900B Bulb, Air Conditioner Control
55905A Knob, Heater Control
55905B Knob, Heater Control, NO.2
55905C Knob, Heater Control, NO.3
55906A Cable Sub-assy, Defroster Damper Control
55907A Cable Sub-assy, Water Valve Control
55908A Cable Sub-assy, Air Inlet Damper Control
55909A Cable Sub-assy, Airmix Damper Control
55910 Control Assy, Heater OR Boost Ventilator
55910C Grommet(FOR HEATER CONTROL CABLE)
55912A Housing, Heater Control
55923 Retainer, Heater Control, Upper
55937 Knob, Heater Control Lever
84661A Knob, Cooler Control Switch
87138B Resistor, Heater Blower
87211 Duct, Air, NO.1
87211A Duct, Air, NO.2
88326C Plate, Cover
88484 Wire, Cooler, NO.1
88610C Switch Assy, Cooler Control
88625C Thermistor, Cooler
88625H Thermistor, Cooler (SOLAR SENSOR)
88625K Thermistor, Cooler
88626B Holder, Thermistor
88650B Amplifier Assy, Airconditioner
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
