Toyota 4Runner
1995-11 → 2002-08 · chassis RZN18#,VZN18# · catalogue 671460 · Europe
Discontinued model
Data version 2003-02

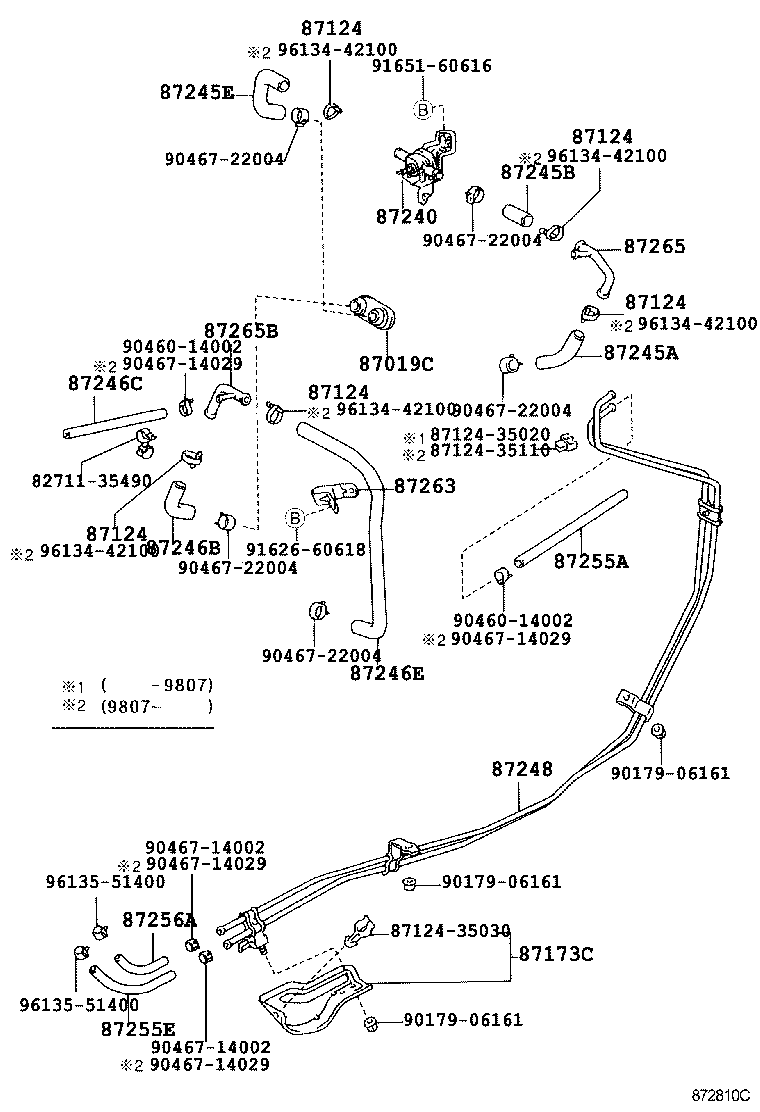

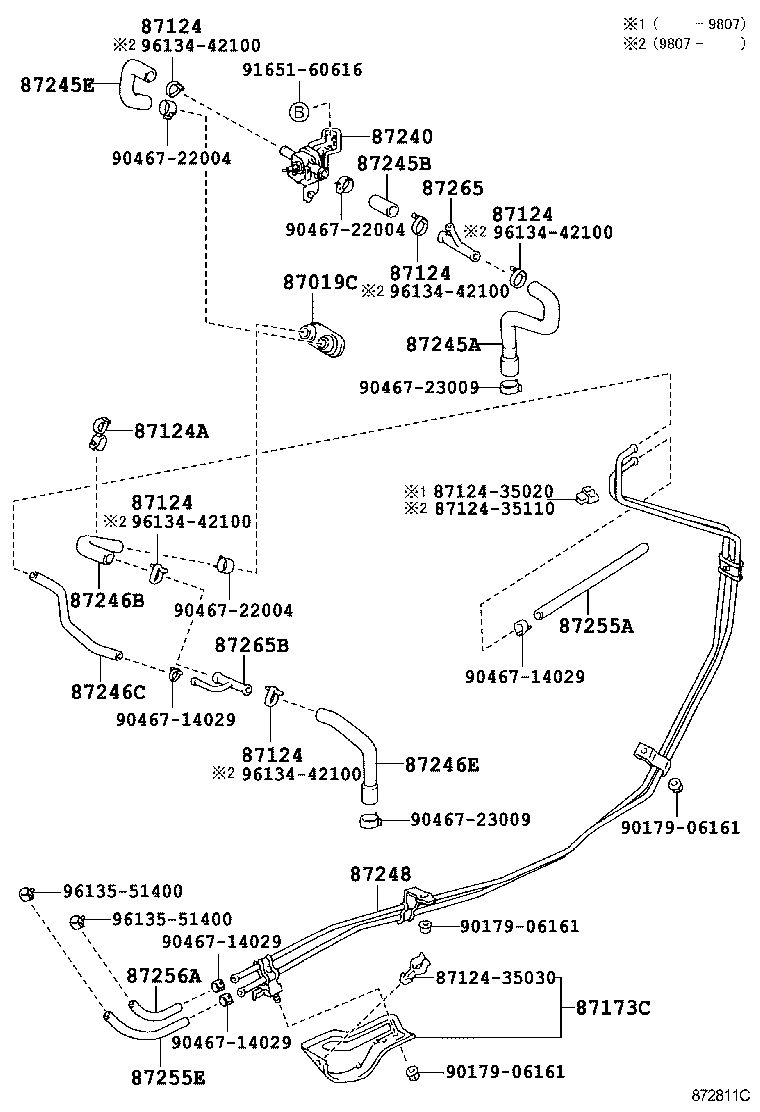

Heating & Air Conditioning - Water Piping
19 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 87019C | Grommet, Heater Hose |
| 87124 | Clamp, Heater |
| 87124A | Clamp, Heater |
| 87173C | Protector, Heater |
| 87240 | Valve Assy, Heater Water |
| 87245A | Hose, Heater Water, Inlet A |
| 87245B | Hose, Heater Water, Inlet B |
| 87245E | Hose, Heater Water, Inlet E |
| 87246A | Hose, Heater Water, Outlet A |
| 87246B | Hose, Heater Water, Outlet B |
| 87246C | Hose, Heater Water, Outlet C |
| 87246E | Hose, Heater Water, Outlet E |
| 87248 | Pipe Sub-assy, Water |
| 87255A | Hose, Rear Heater Water Inlet, A(FROM ENGINE) |
| 87255E | Hose, Rear Heater Water Inlet, E(TO HEATER UNIT) |
| 87256A | Hose, Rear Heater Water Outlet, A (FROM HEATER UNIT) |
| 87263 | Bracket, Heater Water Pipe, NO.1 |
| 87265 | Connector, Heater Water Hose |
| 87265B | Connector, Heater Water Hose, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
