Toyota Hilux (JPP)

1988-08 → 1997-08 · chassis RN1##,YN85,90,1##,LN85,90,1##,VZN130,KZN130 · catalogue 671550 · Europe

Discontinued model Data version 1998-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

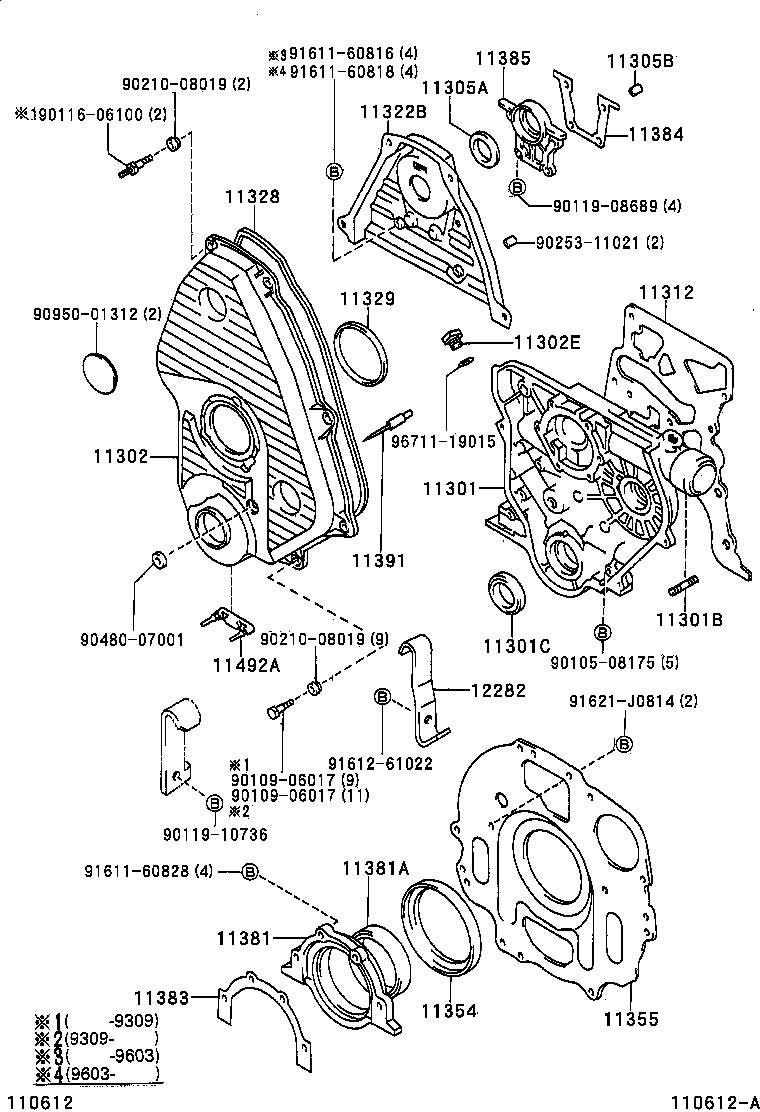

Exploded illustration 110612A 9161160816 — not listed in this catalogue 11385 — RETAINER, CAMSHAFT OIL SEAL (2 parts) 11305B — PIN, RING(FOR OIL SEAL RETAINER, NO.2) (2 parts) 9161160818 — not listed in this catalogue 9021008019 — not listed in this catalogue 11305A — SEAL, OIL(FOR OIL SEAL RETAINER, NO.2) (4 parts) 11322B — COVER, TIMING BELT, NO.2 (2 parts) 9011606100 — not listed in this catalogue 11384 — GASKET, OIL SEAL RETAINER, NO.2 (2 parts) 11328 — GASKET, TIMING GEAR OR CHAIN COVER (7 parts) 9011908689 — not listed in this catalogue 9025311021 — not listed in this catalogue 11312 — GASKET, FRONT END PLATE (2 parts) 11329 — GASKET, TIMING GEAR REAR COVER (2 parts) 9095001312 — not listed in this catalogue 11302E — PLUG, STRAIGHT(FOR TIMING GEAR COVER) (2 parts) 9671119015 — not listed in this catalogue 11302 — COVER SUB-ASSY, TIMING CHAIN OR BELT (5 parts) 11301 — CASE SUB-ASSY, TIMING GEAR (4 parts) 11391 — POINTER, TIMING (2 parts) 11301B — BOLT,STUD(FOR TIMING GEAR CASE) (1 parts) 9021008019 — not listed in this catalogue 9048007001 — not listed in this catalogue 11301C — SEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE) (5 parts) 9010508175 — not listed in this catalogue 11492A — PLATE, WATER SEAL (1 parts) 12282 — HANGER, ENGINE, NO.2 (1 parts) 91621J0814 — not listed in this catalogue 9161261022 — not listed in this catalogue 9010906017 — not listed in this catalogue 9010906017 — not listed in this catalogue 9011910736 — not listed in this catalogue 11381A — SEAL, ENGINE REAR OIL (12 parts) 9161160828 — not listed in this catalogue 11381 — RETAINER, ENGINE REAR OIL SEAL (5 parts) 11383 — GASKET, ENGINE REAR OIL SEAL RETAINER (5 parts) 11354 — SEAL, FLYWHEEL HOUSING DUST (2 parts) 11355 — PLATE, REAR END (7 parts)
110612A · 21 callouts, 17 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
75 parts on this figure
Part number Description Fitment Price
11301 — Case Sub-assy, Timing Gear
11301-71010 Case Sub-assy, Timing Gear
1988-08 → 1994-08 ended
2Y,4Y YN106,110,85,90 JPP —
11311-54050 Case Sub-assy, Timing Gear
1988-08 → 1991-08 ended
2L# LN105,110,130,85,90 JPP —
11311-54051 Case Sub-assy, Timing Gear
1991-08 → 1995-05 ended
2L# LN10#,110,130,85,90 JPP —
11311-54052 Case Sub-assy, Timing Gear
1995-05 → —
2L# LN10#,110,130,85,90 JPP —
11301B — Bolt,Stud(FOR TIMING GEAR CASE)
92132-60828 Bolt,Stud(FOR TIMING GEAR CASE)
1988-08 → —
2L# LN10#,110,130,85,90 JPP —
11301C — Seal, Oil(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)
90311-42012 Seal, Oil(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)
1988-08 → 1991-02 ended
2L# LN105,110,130,85,90 JPP —
90311-42026 Seal, Oil(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)
1991-02 → 1994-01 ended
2L# LN10#,110,130,85,90 JPP —
90311-42030 Seal, Oil(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)
1994-01 → 1996-05 ended
2L# LN10#,110,130,85,90 JPP —
90311-42031 Seal, Oil(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)
1996-05 → —
2L LN10#,110,85,90 JPP —
90311-50017 Seal, Oil(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)
1993-08 → 1995-11 ended
1KZT KZN130 JPP —
11302 — Cover Sub-assy, Timing Chain OR Belt
11302-35010 Cover Sub-assy, Timing Chain OR Belt
1988-08 → —
22RE RN106,110 JPP —
11302-65010 Cover Sub-assy, Timing Chain OR Belt
1989-08 → 1995-11 ended
3VZE VZN130 JPP —
11302-67010 Cover Sub-assy, Timing Chain OR Belt
1993-08 → 1995-11 ended
1KZT KZN130 JPP —
11321-54020 Cover Sub-assy, Timing Chain OR Belt
1988-08 → —
2L# LN10#,110,130,85,90 JPP —
11321-71010 Cover Sub-assy, Timing Chain OR Belt
1988-08 → 1994-08 ended
2Y,4Y YN106,110,85,90 JPP —
11302E — Plug, Straight(FOR TIMING GEAR COVER)
90341-18004 Plug, Straight(FOR TIMING GEAR COVER)
1988-08 → —
2L# LN10#,110,130,85,90 JPP —
90341-22004 Plug, Straight(FOR TIMING GEAR COVER)
1993-08 → 1994-05 ended
1KZT KZN130 JPP —
11305A — Seal, Oil(FOR OIL SEAL RETAINER, NO.2)
90311-32001 Seal, Oil(FOR OIL SEAL RETAINER, NO.2)
1988-08 → 1991-02 ended
2L# LN105,110,130,85,90 JPP —
90311-32017 Seal, Oil(FOR OIL SEAL RETAINER, NO.2)
1991-02 → 1997-03 ended
2L# LN10#,110,130,85,90 JPP —
90311-32017 Seal, Oil(FOR OIL SEAL RETAINER, NO.2)
1993-08 → 1995-11 ended
1KZT KZN130 JPP —
90311-32019 Seal, Oil(FOR OIL SEAL RETAINER, NO.2)
1997-03 → —
2L LN10#,110,85,90 JPP —
11305B — Pin, Ring(FOR OIL SEAL RETAINER, NO.2)
16159-71010 Pin, Ring(FOR OIL SEAL RETAINER, NO.2)
1988-08 → 1994-08 ended
2Y,4Y YN106,110,85,90 JPP —
90253-11021 Pin, Ring(FOR OIL SEAL RETAINER, NO.2)
1988-08 → —
2L# LN10#,110,130,85,90 JPP —
11312 — Gasket, Front End Plate
11312-54021 Gasket, Front End Plate
1988-08 → —
2L# LN10#,110,130,85,90 JPP —
11312-65010 Gasket, Front End Plate
1992-08 → 1995-11 ended
3VZE VZN130 JPP —
11322B — Cover, Timing Belt, NO.2
11322-54020 Cover, Timing Belt, NO.2
1988-08 → 1997-08 ended
2L LN10#,110,85,90 JPP —
11322-54030 Cover, Timing Belt, NO.2
1990-01 → 1995-11 ended
2LT LN130 JPP —
11328 — Gasket, Timing Gear OR Chain Cover
11328-35020 Gasket, Timing Gear OR Chain Cover
1988-08 → 1990-03 ended
22RE RN106,110 JPP —
11328-35030 Gasket, Timing Gear OR Chain Cover
1990-03 → —
22RE RN106,110 JPP —
11328-54020 Gasket, Timing Gear OR Chain Cover
1988-08 → 1989-04 ended
2L LN105,110,85,90 JPP —
11328-54021 Gasket, Timing Gear OR Chain Cover
1989-04 → —
2L# LN10#,110,130,85,90 JPP —
11328-67020 Gasket, Timing Gear OR Chain Cover
1993-08 → 1995-11 ended
1KZT KZN130 JPP —
11328-71011 Gasket, Timing Gear OR Chain Cover
1988-08 → 1989-12 ended
2Y,4Y YN106,110,85,90 JPP —
11328-71012 Gasket, Timing Gear OR Chain Cover
1989-12 → 1994-08 ended
2Y,4Y YN106,110,85,90 JPP —
11329 — Gasket, Timing Gear Rear Cover
11329-54020 Gasket, Timing Gear Rear Cover
1988-08 → 1989-04 ended
2L LN105,110,85,90 JPP —
11329-54021 Gasket, Timing Gear Rear Cover
1989-04 → —
2L# LN10#,110,130,85,90 JPP —
11354 — Seal, Flywheel Housing Dust
11354-54010 Seal, Flywheel Housing Dust
1988-08 → —
2L# LN10#,110,130,85,90 JPP —
11354-71010 Seal, Flywheel Housing Dust
1988-08 → 1994-08 ended
2Y,4Y YN106,110,85,90 JPP —
11355 — Plate, Rear End
11355-35010 Plate, Rear End
1988-08 → —
22RE RN106,110 JPP —
11355-54030 Plate, Rear End
1988-08 → —
2L LN85,90 JPP —
11355-54070 Plate, Rear End
1988-08 → —
2L# LN10#,110,130 JPP —
11355-65010 Plate, Rear End
1989-08 → 1994-05 ended
3VZE VZN130 JPP —
11355-65011 Plate, Rear End
1994-05 → 1995-11 ended
3VZE VZN130 JPP —
11355-67010 Plate, Rear End
1993-08 → 1995-11 ended
1KZT KZN130 JPP —
11355-71010 Plate, Rear End
1988-08 → 1994-08 ended
2Y,4Y YN106,110,85,90 JPP —
11381 — Retainer, Engine Rear Oil Seal
11381-38010 Retainer, Engine Rear Oil Seal
1988-08 → —
22RE RN106,110 JPP —
11381-54020 Retainer, Engine Rear Oil Seal
1988-08 → —
2L# LN10#,110,130,85,90 JPP —
11381-62010 Retainer, Engine Rear Oil Seal
1989-08 → 1995-11 ended
3VZE VZN130 JPP —
11381-67020 Retainer, Engine Rear Oil Seal
1993-08 → 1995-11 ended
1KZT KZN130 JPP —
11381-71010 Retainer, Engine Rear Oil Seal
1988-08 → 1994-08 ended
2Y,4Y YN106,110,85,90 JPP —
11381A — Seal, Engine Rear Oil
90311-80003 Seal, Engine Rear Oil
1988-08 → 1990-04 ended
2Y,4Y YN106,110,85,90 JPP —
90311-80004 Seal, Engine Rear Oil
1988-08 → 1990-06 ended
22RE RN106,110 JPP —
90311-80009 Seal, Engine Rear Oil
1990-04 → 1994-08 ended
2Y,4Y YN106,110,85,90 JPP —
90311-80010 Seal, Engine Rear Oil
1990-06 → —
22RE RN106,110 JPP —
90311-85004 Seal, Engine Rear Oil
1988-08 → 1991-02 ended
2L# LN105,110,130,85,90 JPP —
90311-85006 Seal, Engine Rear Oil
1991-02 → 1992-08 ended
2L# LN10#,110,130,85,90 JPP —
90311-85007 Seal, Engine Rear Oil
1992-09 → 1997-03 ended
2L# LN10#,110,130,85,90 JPP —
90311-85008 Seal, Engine Rear Oil
1997-03 → —
2L LN10#,110,85,90 JPP —
90311-92003 Seal, Engine Rear Oil
1989-08 → 1989-11 ended
3VZE VZN130 JPP —
90311-92004 Seal, Engine Rear Oil
1989-11 → 1991-04 ended
3VZE VZN130 JPP —
90311-92006 Seal, Engine Rear Oil
1991-04 → 1995-11 ended
3VZE VZN130 JPP —
90311-95008 Seal, Engine Rear Oil
1993-08 → 1995-11 ended
1KZT KZN130 JPP —
11383 — Gasket, Engine Rear Oil Seal Retainer
11383-25010 Gasket, Engine Rear Oil Seal Retainer
1988-08 → 1989-12 ended
2Y,4Y YN106,110,85,90 JPP —
11383-35020 Gasket, Engine Rear Oil Seal Retainer
1988-08 → —
22RE RN106,110 JPP —
11383-54020 Gasket, Engine Rear Oil Seal Retainer
1988-08 → 1991-07 ended
2L# LN105,110,130,85,90 JPP —
11383-54030 Gasket, Engine Rear Oil Seal Retainer
1991-07 → —
2L# LN10#,110,130,85,90 JPP —
11383-71010 Gasket, Engine Rear Oil Seal Retainer
1989-12 → 1994-08 ended
2Y,4Y YN106,110,85,90 JPP —
11384 — Gasket, Oil Seal Retainer, NO.2
11384-54020 Gasket, Oil Seal Retainer, NO.2
1988-08 → 1991-07 ended
2L# LN105,110,130,85,90 JPP —
11384-54030 Gasket, Oil Seal Retainer, NO.2
1991-07 → —
2L# LN10#,110,130,85,90 JPP —
11385 — Retainer, Camshaft Oil Seal
11382-54020 Retainer, Camshaft Oil Seal
1988-08 → —
2L# LN10#,110,130,85,90 JPP —
11382-67010 Retainer, Camshaft Oil Seal
1993-08 → 1995-11 ended
1KZT KZN130 JPP —
11391 — Pointer, Timing
11391-54020 Pointer, Timing
1988-08 → —
2L# LN10#,110,130,85,90 JPP —
11391-67010 Pointer, Timing
1993-08 → 1995-11 ended
1KZT KZN130 JPP —
11492A — Plate, Water Seal
11492-54010 Plate, Water Seal
1988-08 → 1989-04 ended
2L LN105,110,85,90 JPP —
12282 — Hanger, Engine, NO.2
12282-54060 Hanger, Engine, NO.2
1996-06 → —
2L LN10#,110,85,90 JPP —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
