Toyota Hilux (JPP)
1988-08 → 1997-08 · chassis RN1##,YN85,90,1##,LN85,90,1##,VZN130,KZN130 · catalogue 671550 · Europe
Discontinued model
Data version 1998-04

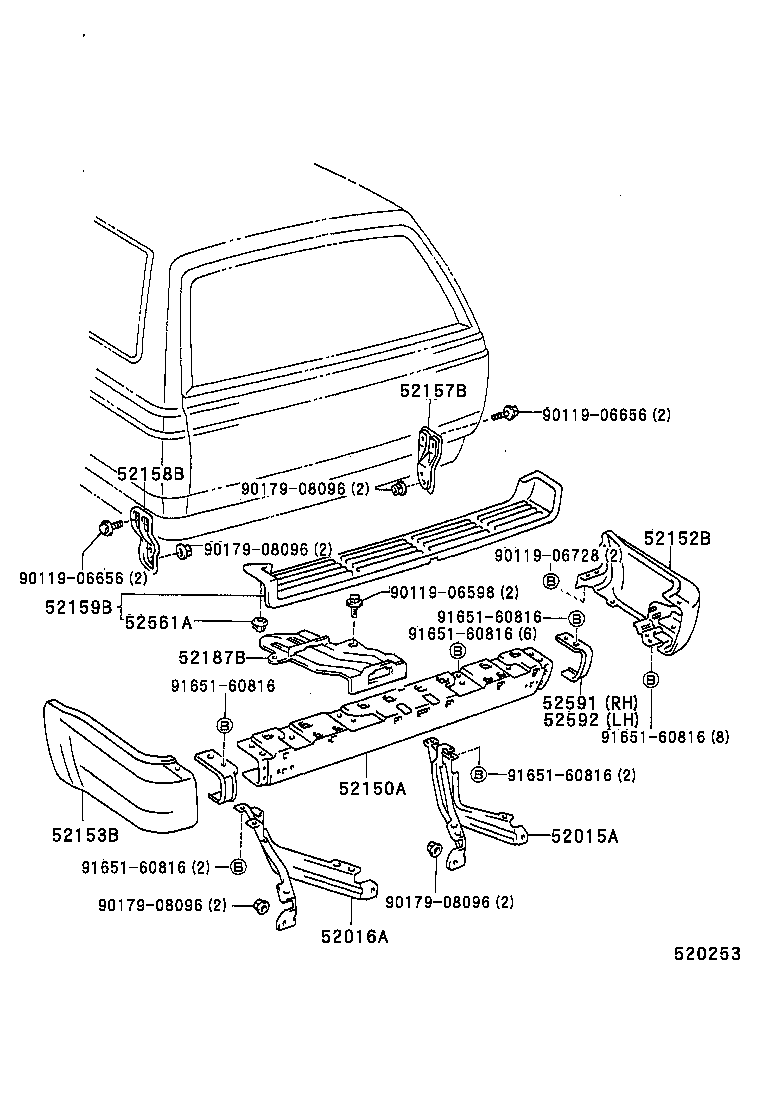

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 52015A — Arm Sub-assy, Rear Bumper, RH | ||||
| 52015-89109 |
Arm Sub-assy, Rear Bumper, RH
1989-08 → 1995-11
ended
|
KZN130,LN130,VZN130 JPP | — | |
| 52016A — Arm Sub-assy, Rear Bumper, LH | ||||
| 52016-89109 |
Arm Sub-assy, Rear Bumper, LH
1989-08 → 1995-11
ended
|
KZN130,LN130,VZN130 JPP | — | |
| 52150A — Bumper Assy, Rear | ||||
| 52105-35040 note |
Bumper Assy, Rear
1991-08 → 1995-11
ended
|
KZN130,VZN130 JPP LHD | — | |
| 52105-35060-E0 note |
Bumper Assy, Rear
1991-08 → 1993-08
ended
|
VZN130 JPP | — | |
| 52105-35060-F0 note |
Bumper Assy, Rear
1993-08 → 1995-11
ended
|
KZN130,VZN130 JPP RHD | — | |
| 52105-35060-F0 note |
Bumper Assy, Rear
1991-08 → 1995-11
ended
|
KZN130,VZN130 JPP LHD | — | |
| 52105-35080-E0 note |
Bumper Assy, Rear
1995-02 → —
|
KZN130 JPP RHD | — | |
| 52105-35080-E0 note |
Bumper Assy, Rear
1991-08 → 1993-08
ended
|
LN130,VZN130 JPP | — | |
| 52105-35080-F0 note |
Bumper Assy, Rear
1991-08 → 1995-11
ended
|
KZN130,LN130,VZN130 JPP LHD | — | |
| 52105-35080-F0 note |
Bumper Assy, Rear
1995-02 → 1995-08
ended
|
KZN130 JPP RHD | — | |
| 52105-35100 |
Bumper Assy, Rear
1991-08 → 1995-11
ended
|
KZN130,LN130,VZN130 JPP LHD | — | |
| 52105-35110 note |
Bumper Assy, Rear
1991-08 → 1995-11
ended
|
KZN130,VZN130 JPP LHD | — | |
| 52105-35110 |
Bumper Assy, Rear
1993-08 → 1995-11
ended
|
KZN130,VZN130 JPP RHD | — | |
| 52105-35160 note |
Bumper Assy, Rear
1991-08 → 1993-08
ended
|
LN130,VZN130 JPP | — | |
| 52105-35160 note |
Bumper Assy, Rear
1993-08 → 1995-11
ended
|
KZN130,LN130,VZN130 JPP LHD | — | |
| 52105-89118 |
Bumper Assy, Rear
1989-08 → 1991-08
ended
|
LN130,VZN130 JPP | — | |
| 52105-89119 note |
Bumper Assy, Rear
1989-08 → 1991-08
ended
|
LN130,VZN130 JPP | — | |
| 52105-89121-03 note |
Bumper Assy, Rear
1989-08 → 1991-08
ended
|
LN130,VZN130 JPP | — | |
| 52105-89121-13 note |
Bumper Assy, Rear
1989-08 → 1991-08
ended
|
LN130,VZN130 JPP | — | |
| 52150-35010 |
Bumper Assy, Rear
1991-08 → —
|
LN10#,110,RN106,YN110 JPP CBU | — | |
| 52150-35010 note |
Bumper Assy, Rear
1991-08 → —
|
RN110 JPP | — | |
| 52150-89113 note |
Bumper Assy, Rear
1988-11 → 1991-08
ended
|
RN110 JPP | — | |
| 52150-89113 |
Bumper Assy, Rear
1988-11 → 1991-08
ended
|
LN105,110,RN106,YN110 JPP CBU | — | |
| 52150-89113 |
Bumper Assy, Rear
1988-08 → 1988-11
ended
|
LN105,110,RN110,YN110 JPP CBU | — | |
| 52152B — Extension, Rear Bumper, RH | ||||
| 52106-35020 |
Extension, Rear Bumper, RH
1991-08 → 1995-11
ended
|
KZN130,LN130,VZN130 JPP | — | |
| 52106-35030-E0 note |
Extension, Rear Bumper, RH
1991-08 → 1993-08
ended
|
LN130,VZN130 JPP | — | |
| 52106-35030-F0 note |
Extension, Rear Bumper, RH
1991-08 → 1995-11
ended
|
KZN130,LN130,VZN130 JPP | — | |
| 52106-89105 |
Extension, Rear Bumper, RH
1989-08 → 1991-08
ended
|
LN130,VZN130 JPP | — | |
| 52106-89106 note |
Extension, Rear Bumper, RH
1991-08 → 1995-11
ended
|
KZN130,LN130,VZN130 JPP LHD | — | |
| 52106-89106 note |
Extension, Rear Bumper, RH
1989-08 → 1991-08
ended
|
LN130,VZN130 JPP | — | |
| 52106-89107-03 note |
Extension, Rear Bumper, RH
1989-08 → 1991-08
ended
|
LN130,VZN130 JPP | — | |
| 52106-89107-13 note |
Extension, Rear Bumper, RH
1989-08 → 1991-08
ended
|
LN130,VZN130 JPP | — | |
| 52152-35010 |
Extension, Rear Bumper, RH
1991-08 → —
|
LN10#,110,RN106,YN110 JPP CBU | — | |
| 52152-35010 note |
Extension, Rear Bumper, RH
1991-08 → —
|
RN110 JPP | — | |
| 52152-89112 |
Extension, Rear Bumper, RH
1988-11 → 1991-08
ended
|
LN105,110,RN106,YN110 JPP CBU | — | |
| 52152-89112 |
Extension, Rear Bumper, RH
1988-08 → 1988-11
ended
|
LN105,110,RN110,YN110 JPP CBU | — | |
| 52152-89112 note |
Extension, Rear Bumper, RH
1988-11 → 1991-08
ended
|
RN110 JPP | — | |
| 52153B — Extension, Rear Bumper, LH | ||||
| 52107-35010 |
Extension, Rear Bumper, LH
1991-08 → 1995-11
ended
|
KZN130,LN130,VZN130 JPP | — | |
| 52107-35020-E0 note |
Extension, Rear Bumper, LH
1991-08 → 1993-08
ended
|
LN130,VZN130 JPP | — | |
| 52107-35020-F0 note |
Extension, Rear Bumper, LH
1991-08 → 1995-11
ended
|
KZN130,LN130,VZN130 JPP | — | |
| 52107-89103 |
Extension, Rear Bumper, LH
1989-08 → 1991-08
ended
|
LN130,VZN130 JPP | — | |
| 52107-89104 note |
Extension, Rear Bumper, LH
1989-08 → 1991-08
ended
|
LN130,VZN130 JPP | — | |
| 52107-89104 note |
Extension, Rear Bumper, LH
1991-08 → 1995-11
ended
|
KZN130,LN130,VZN130 JPP LHD | — | |
| 52107-89105-03 note |
Extension, Rear Bumper, LH
1989-08 → 1991-08
ended
|
LN130,VZN130 JPP | — | |
| 52107-89105-13 note |
Extension, Rear Bumper, LH
1989-08 → 1991-08
ended
|
LN130,VZN130 JPP | — | |
| 52153-35010 |
Extension, Rear Bumper, LH
1991-08 → —
|
LN10#,110,RN106,YN110 JPP CBU | — | |
| 52153-35010 note |
Extension, Rear Bumper, LH
1991-08 → —
|
RN110 JPP | — | |
| 52153-89112 note |
Extension, Rear Bumper, LH
1988-11 → 1991-08
ended
|
RN110 JPP | — | |
| 52153-89112 |
Extension, Rear Bumper, LH
1988-11 → 1991-08
ended
|
LN105,110,RN106,YN110 JPP CBU | — | |
| 52153-89112 |
Extension, Rear Bumper, LH
1988-08 → 1988-11
ended
|
LN105,110,RN110,YN110 JPP CBU | — | |
| 52157B — Stay, Rear Bumper Side, NO.2 RH | ||||
| 52157-89103 |
Stay, Rear Bumper Side, NO.2 RH
1989-08 → 1995-11
ended
|
KZN130,LN130,VZN130 JPP | — | |
| 52158B — Stay, Rear Bumper Side, NO.2 LH | ||||
| 52158-89101 |
Stay, Rear Bumper Side, NO.2 LH
1989-08 → 1995-11
ended
|
KZN130,LN130,VZN130 JPP | — | |
| 52159B — Plate, Rear Bumper | ||||
| 52159-89102 |
Plate, Rear Bumper
1988-08 → 1988-11
ended
|
LN105,110,RN110,YN110 JPP CBU | — | |
| 52159-89102 |
Plate, Rear Bumper
1988-11 → —
|
LN10#,110,RN106,YN110 JPP CBU | — | |
| 52159-89102 note |
Plate, Rear Bumper
1988-11 → —
|
RN110 JPP | — | |
| 52159-89106 |
Plate, Rear Bumper
1989-08 → 1995-11
ended
|
KZN130,LN130,VZN130 JPP | — | |
| 52187B — Guide, Rear Bumper Location | ||||
| 52187-35010 |
Guide, Rear Bumper Location
1991-08 → 1995-11
ended
|
KZN130,VZN130 JPP | — | |
| 52561A — Clip(FOR REAR BUMPER RETAINER) | ||||
| 90467-11059 |
Clip(FOR REAR BUMPER RETAINER)
1989-08 → 1995-11
ended
|
KZN130,LN130,VZN130 JPP | — | |
| 52591 — Seal, Rear Bumper Side, RH | ||||
| 52591-89101 |
Seal, Rear Bumper Side, RH
1989-08 → 1995-11
ended
|
KZN130,LN130,VZN130 JPP | — | |
| 52592 — Seal, Rear Bumper Side, LH | ||||
| 52592-89101 |
Seal, Rear Bumper Side, LH
1989-08 → 1995-11
ended
|
KZN130,LN130,VZN130 JPP | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
