Toyota Hilux (JPP)

1988-08 → 1997-08 · chassis RN1##,YN85,90,1##,LN85,90,1##,VZN130,KZN130 · catalogue 671550 · Europe

Discontinued model Data version 1998-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

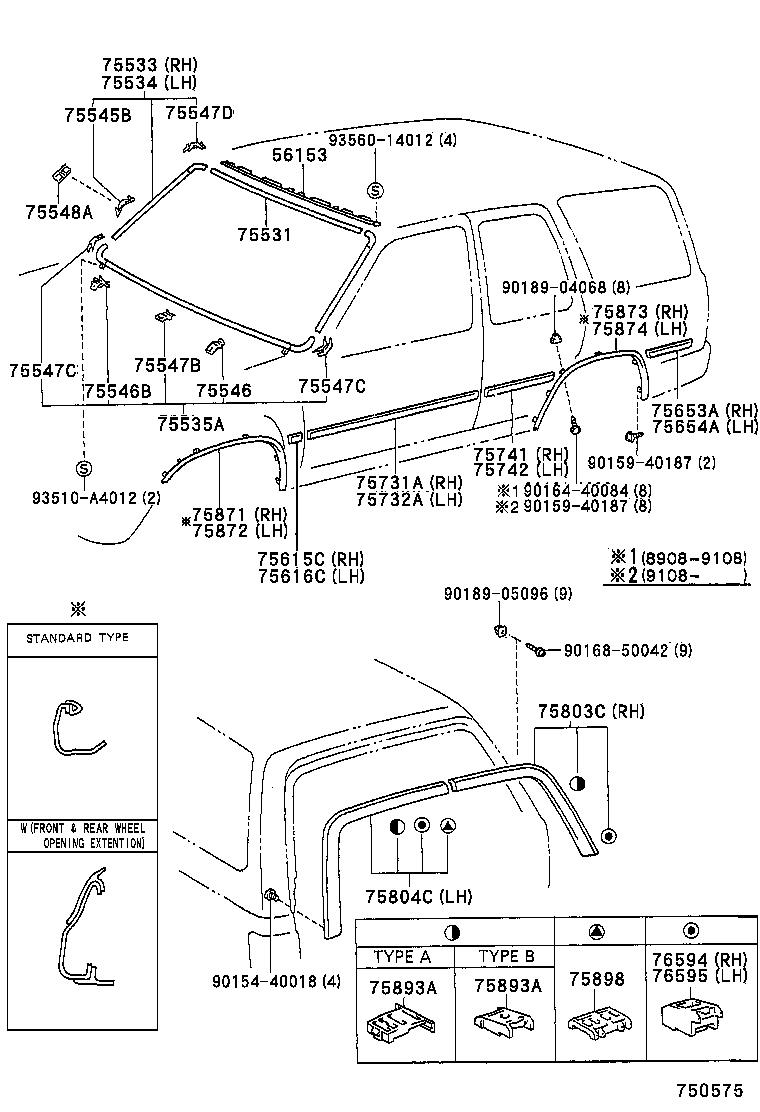

Exploded illustration 750575 75533 — MOULDING, WINDSHIELD, OUTSIDE RH (6 parts) 75534 — MOULDING, WINDSHIELD, OUTSIDE LH (6 parts) 75547D — CLIP, WINDSHIELD OUTSIDE MOULDING, NO.3 (6 parts) 75545B — CLIP, WINDSHIELD OUTSIDE MOULDING, NO.1 (5 parts) 9356014012 — not listed in this catalogue 56153 — MOULDING, FRONT WINDOW, INNER CENTER (4 parts) 75548A — FASTENER, WINDSHIELD OUTSIDE MOULDING, NO.1 (1 parts) 75531 — MOULDING, WINDSHIELD, OUTER UPPER (17 parts) 9018904068 — not listed in this catalogue 75873 — MOULDING, QUARTER PANEL WHEEL OPENING, RH (4 parts) 75874 — MOULDING, QUARTER PANEL WHEEL OPENING, LH (4 parts) 75547B — CLIP, WINDSHIELD OUTSIDE MOULDING, NO.3 (3 parts) 75547C — CLIP, WINDSHIELD OUTSIDE MOULDING, NO.3 (6 parts) 75547C — CLIP, WINDSHIELD OUTSIDE MOULDING, NO.3 (6 parts) 75546 — CLIP, WINDSHIELD OUTSIDE MOULDING (1 parts) 75546B — CLIP, WINDSHIELD OUTSIDE MOULDING, NO.2 (5 parts) 75653A — MOULDING, QUARTER, OUTSIDE REAR RH (3 parts) 75535A — MOULDING, WINDSHIELD, OUTSIDE LOWER (5 parts) 75654A — MOULDING, QUARTER, OUTSIDE REAR LH (3 parts) 75741 — MOULDING, REAR DOOR, OUTSIDE RH (5 parts) 9015940187 — not listed in this catalogue 75742 — MOULDING, REAR DOOR, OUTSIDE LH (5 parts) 75731A — MOULDING, FRONT DOOR, OUTSIDE RH (6 parts) 9016440084 — not listed in this catalogue 93510A4012 — not listed in this catalogue 75732A — MOULDING, FRONT DOOR, OUTSIDE LH (6 parts) 9015940187 — not listed in this catalogue 75871 — MOULDING, FRONT FENDER WHEEL OPENING, RH (5 parts) 75872 — MOULDING, FRONT FENDER WHEEL OPENING, LH (5 parts) 75615C — MOULDING, FRONT FENDER, REAR RH (6 parts) 75616C — MOULDING, FRONT FENDER, REAR LH (6 parts) 9018905096 — not listed in this catalogue 9016850042 — not listed in this catalogue 75803C — MOULDING SUB-ASSY, BACK DOOR, OUTSIDE RH (2 parts) 75804C — MOULDING SUB-ASSY, BACK DOOR, OUTSIDE LH (2 parts) 76594 — RETAINER, BACK DOOR LOWER MOULDING, NO.1 (1 parts) 76595 — RETAINER, BACK DOOR LOWER MOULDING, NO.2 (1 parts) 75898 — CLIP, BACK DOOR OUTSIDE MOULDING (1 parts) 9015440018 — not listed in this catalogue 75893A — RETAINER, BACK DOOR MOULDING (2 parts) 75893A — RETAINER, BACK DOOR MOULDING (2 parts)
750575 · 32 callouts, 9 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
132 parts on this figure
Part number Description Fitment Price
56153 — Moulding, Front Window, Inner Center
56153-35010 Moulding, Front Window, Inner Center
1991-05 → 1991-08 ended
LN130,VZN130 JPP —
56153-35010 Moulding, Front Window, Inner Center
1991-08 → 1995-11 ended
KZN130,LN130,VZN130 JPP —
56153-89102 Moulding, Front Window, Inner Center
1989-08 → 1989-09 ended
VZN130 JPP —
56153-89103 Moulding, Front Window, Inner Center
1989-09 → 1991-05 ended
LN130,VZN130 JPP —
75531 — Moulding, Windshield, Outer Upper
75531-35040 note Moulding, Windshield, Outer Upper
1992-11 → 1993-08 ended
LN130,VZN130 JPP —
75531-35041 note Moulding, Windshield, Outer Upper
1993-08 → 1995-01 ended
KZN130,LN130,VZN130 JPP —
75531-35042 note Moulding, Windshield, Outer Upper
1995-01 → 1995-11 ended
KZN130,LN130,VZN130 JPP —
75531-35070 note Moulding, Windshield, Outer Upper
1992-11 → 1993-08 ended
LN130,VZN130 JPP —
75531-35070 note Moulding, Windshield, Outer Upper
1992-08 → 1992-11 ended
LN130,VZN130 JPP —
75531-35071 note Moulding, Windshield, Outer Upper
1993-08 → 1995-11 ended
KZN130,LN130,VZN130 JPP —
75531-35071 note Moulding, Windshield, Outer Upper
1992-11 → 1995-11 ended
KZN130,LN130,VZN130 JPP —
75531-35100 note Moulding, Windshield, Outer Upper
1993-03 → 1993-08 ended
LN130,VZN130 JPP —
75531-35101 note Moulding, Windshield, Outer Upper
1993-08 → 1995-01 ended
KZN130,LN130,VZN130 JPP LHD —
75531-35102 note Moulding, Windshield, Outer Upper
1995-01 → —
RN106 JPP TW1 STD;KZN130,LN130,VZN130 +2 —
75531-89105 note Moulding, Windshield, Outer Upper
1991-08 → 1992-11 ended
LN130,VZN130 JPP —
75531-89105 note Moulding, Windshield, Outer Upper
1989-08 → 1991-08 ended
LN130,VZN130 JPP —
75531-89106 note Moulding, Windshield, Outer Upper
1989-08 → 1989-11 ended
VZN130 JPP —
75531-89109 note Moulding, Windshield, Outer Upper
1991-08 → 1992-11 ended
LN130,VZN130 JPP —
75531-89109 note Moulding, Windshield, Outer Upper
1989-08 → 1992-08 ended
LN130,VZN130 JPP —
75531-89109 note Moulding, Windshield, Outer Upper
1989-11 → 1991-08 ended
LN130,VZN130 JPP —
75531-89111 note Moulding, Windshield, Outer Upper
1989-11 → 1993-03 ended
LN130,VZN130 JPP —
75533 — Moulding, Windshield, Outside RH
75533-89108 note Moulding, Windshield, Outside RH
1988-08 → —
LN85 JPP TW1;LN10#,110,90,RN106,110,YN106,110,90 JPP —
76503-89103 note Moulding, Windshield, Outside RH
1989-08 → 1991-08 ended
LN130,VZN130 JPP —
76503-89103 note Moulding, Windshield, Outside RH
1991-08 → 1995-11 ended
KZN130,LN130,VZN130 JPP —
76503-89104 note Moulding, Windshield, Outside RH
1989-08 → 1995-11 ended
KZN130,LN130,VZN130 JPP LHD —
76503-89105 note Moulding, Windshield, Outside RH
1991-08 → 1995-11 ended
KZN130,LN130,VZN130 JPP —
76503-89105 note Moulding, Windshield, Outside RH
1989-08 → 1991-08 ended
LN130,VZN130 JPP —
75534 — Moulding, Windshield, Outside LH
75534-89106 note Moulding, Windshield, Outside LH
1988-08 → —
LN85 JPP TW1;LN10#,110,90,RN106,110,YN106,110,90 JPP —
76504-89103 note Moulding, Windshield, Outside LH
1989-08 → 1991-08 ended
LN130,VZN130 JPP —
76504-89103 note Moulding, Windshield, Outside LH
1991-08 → 1995-11 ended
KZN130,LN130,VZN130 JPP —
76504-89104 note Moulding, Windshield, Outside LH
1989-08 → 1995-11 ended
KZN130,LN130,VZN130 JPP LHD —
76504-89105 note Moulding, Windshield, Outside LH
1989-08 → 1991-08 ended
LN130,VZN130 JPP —
76504-89105 note Moulding, Windshield, Outside LH
1991-08 → 1995-11 ended
KZN130,LN130,VZN130 JPP —
75535A — Moulding, Windshield, Outside Lower
75504-89103 note Moulding, Windshield, Outside Lower
1989-08 → 1991-08 ended
LN130,VZN130 JPP —
75504-89103 note Moulding, Windshield, Outside Lower
1991-08 → 1995-11 ended
KZN130,LN130,VZN130 JPP —
75504-89104 note Moulding, Windshield, Outside Lower
1989-08 → 1995-11 ended
KZN130,LN130,VZN130 JPP LHD —
75504-89105 note Moulding, Windshield, Outside Lower
1991-08 → 1995-11 ended
KZN130,LN130,VZN130 JPP —
75504-89105 note Moulding, Windshield, Outside Lower
1989-08 → 1991-08 ended
LN130,VZN130 JPP —
75545B — Clip, Windshield Outside Moulding, NO.1
75545-89102 note Clip, Windshield Outside Moulding, NO.1
1989-08 → 1991-08 ended
LN130,VZN130 JPP —
75545-89102 note Clip, Windshield Outside Moulding, NO.1
1989-08 → 1995-11 ended
KZN130,LN130,VZN130 JPP LHD —
75545-89102 note Clip, Windshield Outside Moulding, NO.1
1991-08 → 1995-11 ended
KZN130,LN130,VZN130 JPP —
75545-89103 note Clip, Windshield Outside Moulding, NO.1
1989-08 → 1991-08 ended
LN130,VZN130 JPP —
75545-89103 note Clip, Windshield Outside Moulding, NO.1
1991-08 → 1995-11 ended
KZN130,LN130,VZN130 JPP —
75546 — Clip, Windshield Outside Moulding
75546-89106 Clip, Windshield Outside Moulding
1989-08 → 1995-11 ended
KZN130,LN130,VZN130 JPP —
75546B — Clip, Windshield Outside Moulding, NO.2
75546-89103 note Clip, Windshield Outside Moulding, NO.2
1989-08 → 1995-11 ended
KZN130,LN130,VZN130 JPP LHD —
75546-89103 note Clip, Windshield Outside Moulding, NO.2
1991-08 → 1995-11 ended
KZN130,LN130,VZN130 JPP —
75546-89103 note Clip, Windshield Outside Moulding, NO.2
1989-08 → 1991-08 ended
LN130,VZN130 JPP —
75546-89105 note Clip, Windshield Outside Moulding, NO.2
1989-08 → 1991-08 ended
LN130,VZN130 JPP —
75546-89105 note Clip, Windshield Outside Moulding, NO.2
1991-08 → 1995-11 ended
KZN130,LN130,VZN130 JPP —
75547B — Clip, Windshield Outside Moulding, NO.3
75547-89103 note Clip, Windshield Outside Moulding, NO.3
1989-08 → 1995-11 ended
KZN130,LN130,VZN130 JPP —
75547-89103 note Clip, Windshield Outside Moulding, NO.3
1989-08 → 1995-11 ended
KZN130,LN130,VZN130 JPP LHD —
75547-89108 note Clip, Windshield Outside Moulding, NO.3
1989-08 → 1995-11 ended
KZN130,LN130,VZN130 JPP —
75547C — Clip, Windshield Outside Moulding, NO.3
75547-89106 note Clip, Windshield Outside Moulding, NO.3
1989-08 → 1991-08 ended
LN130,VZN130 JPP —
75547-89106 note Clip, Windshield Outside Moulding, NO.3
1991-08 → 1995-11 ended
KZN130,LN130,VZN130 JPP —
75547-89107 note Clip, Windshield Outside Moulding, NO.3
1989-08 → 1991-08 ended
LN130,VZN130 JPP —
75547-89107 note Clip, Windshield Outside Moulding, NO.3
1991-08 → 1995-11 ended
KZN130,LN130,VZN130 JPP —
75547-89111 note Clip, Windshield Outside Moulding, NO.3
1989-08 → 1995-11 ended
KZN130,LN130,VZN130 JPP —
75547-89112 note Clip, Windshield Outside Moulding, NO.3
1989-08 → 1995-11 ended
KZN130,LN130,VZN130 JPP —
75547D — Clip, Windshield Outside Moulding, NO.3
75547-89104 note Clip, Windshield Outside Moulding, NO.3
1989-08 → 1991-08 ended
LN130,VZN130 JPP —
75547-89104 note Clip, Windshield Outside Moulding, NO.3
1991-08 → 1995-11 ended
KZN130,LN130,VZN130 JPP —
75547-89105 note Clip, Windshield Outside Moulding, NO.3
1989-08 → 1991-08 ended
LN130,VZN130 JPP —
75547-89105 note Clip, Windshield Outside Moulding, NO.3
1991-08 → 1995-11 ended
KZN130,LN130,VZN130 JPP —
75547-89109 note Clip, Windshield Outside Moulding, NO.3
1989-08 → 1995-11 ended
KZN130,LN130,VZN130 JPP —
75547-89110 note Clip, Windshield Outside Moulding, NO.3
1989-08 → 1995-11 ended
KZN130,LN130,VZN130 JPP —
75548A — Fastener, Windshield Outside Moulding, NO.1
75548-16030 Fastener, Windshield Outside Moulding, NO.1
1989-08 → 1995-11 ended
KZN130,LN130,VZN130 JPP —
75615C — Moulding, Front Fender, Rear RH
75615-35010 Moulding, Front Fender, Rear RH
1993-08 → 1995-11 ended
KZN130,LN130,VZN130 JPP —
75615-89108 Moulding, Front Fender, Rear RH
1991-08 → —
LN85,90,YN90 JPP (DCB,XTR) —
75615-89109 Moulding, Front Fender, Rear RH
1990-12 → 1993-08 ended
LN10#,110,130,RN106,110,VZN130,YN106,110 JPP CBU —
75615-89109 Moulding, Front Fender, Rear RH
1993-08 → —
LN10#,110,RN106,110,YN106,110 JPP CBU —
75615-89110 Moulding, Front Fender, Rear RH
1988-08 → 1990-12 ended
LN85,90,YN90 JPP (DCB,XTR) —
75615-89111 Moulding, Front Fender, Rear RH
1988-08 → 1990-12 ended
LN105,110,130,RN106,110,VZN130,YN106,110 JPP CBU —
75616C — Moulding, Front Fender, Rear LH
75616-35010 Moulding, Front Fender, Rear LH
1993-08 → 1995-11 ended
KZN130,LN130,VZN130 JPP —
75616-89108 Moulding, Front Fender, Rear LH
1990-12 → —
LN85,90,YN90 JPP (DCB,XTR) —
75616-89109 Moulding, Front Fender, Rear LH
1990-12 → 1993-08 ended
LN10#,110,130,RN106,110,VZN130,YN106,110 JPP CBU —
75616-89109 Moulding, Front Fender, Rear LH
1993-08 → —
LN10#,110,RN106,110,YN106,110 JPP CBU —
75616-89110 Moulding, Front Fender, Rear LH
1988-08 → 1990-12 ended
LN85,90,YN90 JPP (DCB,XTR) —
75616-89111 Moulding, Front Fender, Rear LH
1988-08 → 1990-12 ended
LN105,110,130,RN106,110,VZN130,YN106,110 JPP CBU —
75653A — Moulding, Quarter, Outside Rear RH
75653-35010 Moulding, Quarter, Outside Rear RH
1993-08 → 1995-11 ended
KZN130,LN130,VZN130 JPP —
75653-89134 Moulding, Quarter, Outside Rear RH
1990-12 → 1993-08 ended
LN130,VZN130 JPP —
75653-89135 Moulding, Quarter, Outside Rear RH
1989-08 → 1990-12 ended
LN130,VZN130 JPP —
75654A — Moulding, Quarter, Outside Rear LH
75654-35010 Moulding, Quarter, Outside Rear LH
1993-08 → 1995-11 ended
KZN130,LN130,VZN130 JPP —
75654-89132 Moulding, Quarter, Outside Rear LH
1990-12 → 1993-08 ended
LN130,VZN130 JPP —
75654-89133 Moulding, Quarter, Outside Rear LH
1989-08 → 1990-12 ended
LN130,VZN130 JPP —
75731A — Moulding, Front Door, Outside RH
75731-35010 Moulding, Front Door, Outside RH
1993-08 → 1995-11 ended
KZN130,LN130,VZN130 JPP —
75731-89107 note Moulding, Front Door, Outside RH
1990-12 → 1997-08 ended
LN105,110,90,RN106,110,YN106,110,90 JPP T1 CBU —
75731-89108 note Moulding, Front Door, Outside RH
1993-08 → 1997-08 ended
LN10#,85,RN106 JPP TW1 —
75731-89108 note Moulding, Front Door, Outside RH
1990-12 → 1993-08 ended
LN10#,130,85,RN106,VZN130 JPP (4D,TW1) —
75731-89109 Moulding, Front Door, Outside RH
1988-08 → 1990-12 ended
LN105,110,90,RN106,110,YN106,110,90 JPP T1 CBU —
75731-89110 Moulding, Front Door, Outside RH
1988-08 → 1990-12 ended
LN105,130,85,VZN130 JPP (4D,TW1) —
75732A — Moulding, Front Door, Outside LH
75732-35010 Moulding, Front Door, Outside LH
1993-08 → 1995-11 ended
KZN130,LN130,VZN130 JPP —
75732-89107 note Moulding, Front Door, Outside LH
1990-12 → 1997-08 ended
LN105,110,90,RN106,110,YN106,110,90 JPP T1 CBU —
75732-89108 note Moulding, Front Door, Outside LH
1990-12 → 1993-08 ended
LN10#,130,85,RN106,VZN130 JPP (4D,TW1) —
75732-89108 note Moulding, Front Door, Outside LH
1993-08 → 1997-08 ended
LN10#,85,RN106 JPP TW1 —
75732-89109 Moulding, Front Door, Outside LH
1988-08 → 1990-12 ended
LN105,110,90,RN106,110,YN106,110,90 JPP T1 CBU —
75732-89110 Moulding, Front Door, Outside LH
1988-08 → 1990-12 ended
LN105,130,85,VZN130 JPP (4D,TW1) —
75741 — Moulding, Rear Door, Outside RH
75741-35010 Moulding, Rear Door, Outside RH
1993-08 → 1995-11 ended
KZN130,LN130,VZN130 JPP —
75741-89107 note Moulding, Rear Door, Outside RH
1990-12 → 1997-08 ended
LN10#,85,RN106 JPP TW1 —
75741-89108 note Moulding, Rear Door, Outside RH
1988-08 → 1990-12 ended
LN105,85 JPP TW1 —
75741-89109 Moulding, Rear Door, Outside RH
1990-12 → 1993-08 ended
LN130,VZN130 JPP —
75741-89110 Moulding, Rear Door, Outside RH
1989-08 → 1990-12 ended
LN130,VZN130 JPP —
75742 — Moulding, Rear Door, Outside LH
75742-35010 Moulding, Rear Door, Outside LH
1993-08 → 1995-11 ended
KZN130,LN130,VZN130 JPP —
75742-89107 note Moulding, Rear Door, Outside LH
1990-12 → 1997-08 ended
LN10#,85,RN106 JPP TW1 —
75742-89108 Moulding, Rear Door, Outside LH
1988-08 → 1990-12 ended
LN105,85 JPP TW1 —
75742-89109 Moulding, Rear Door, Outside LH
1990-12 → 1993-08 ended
LN130,VZN130 JPP —
75742-89110 Moulding, Rear Door, Outside LH
1989-08 → 1990-12 ended
LN130,VZN130 JPP —
75803C — Moulding Sub-assy, Back Door, Outside RH
75803-89101 Moulding Sub-assy, Back Door, Outside RH
1989-08 → 1989-11 ended
VZN130 JPP —
75803-89103 Moulding Sub-assy, Back Door, Outside RH
1989-11 → 1995-11 ended
KZN130,LN130,VZN130 JPP —
75804C — Moulding Sub-assy, Back Door, Outside LH
75804-89101 Moulding Sub-assy, Back Door, Outside LH
1989-08 → 1989-11 ended
VZN130 JPP —
75804-89102 Moulding Sub-assy, Back Door, Outside LH
1989-11 → 1995-11 ended
KZN130,LN130,VZN130 JPP —
75871 — Moulding, Front Fender Wheel Opening, RH
75085-89103 Moulding, Front Fender Wheel Opening, RH
1988-08 → —
LN90,YN90 JPP —
75085-89104 Moulding, Front Fender Wheel Opening, RH
1988-08 → —
LN105,110,RN106,110,YN106,110 JPP T1 CBU —
75085-89106 note Moulding, Front Fender Wheel Opening, RH
1995-02 → 1995-08 ended
KZN130 JPP RHD —
75085-89106 Moulding, Front Fender Wheel Opening, RH
1989-08 → 1995-11 ended
KZN130,LN130,VZN130 JPP LHD —
75085-89107 note Moulding, Front Fender Wheel Opening, RH
1990-08 → 1995-11 ended
VZN130 JPP LHD —
75872 — Moulding, Front Fender Wheel Opening, LH
75086-89103 Moulding, Front Fender Wheel Opening, LH
1988-08 → —
LN90,YN90 JPP —
75086-89104 Moulding, Front Fender Wheel Opening, LH
1988-08 → —
LN105,110,RN106,110,YN106,110 JPP T1 CBU —
75086-89106 Moulding, Front Fender Wheel Opening, LH
1989-08 → 1995-11 ended
KZN130,LN130,VZN130 JPP LHD —
75086-89106 note Moulding, Front Fender Wheel Opening, LH
1995-02 → 1995-08 ended
KZN130 JPP RHD —
75086-89107 note Moulding, Front Fender Wheel Opening, LH
1990-08 → 1995-11 ended
VZN130 JPP LHD —
75873 — Moulding, Quarter Panel Wheel Opening, RH
75087-89105 note Moulding, Quarter Panel Wheel Opening, RH
1995-02 → 1995-08 ended
KZN130 JPP RHD —
75087-89105 Moulding, Quarter Panel Wheel Opening, RH
1989-08 → 1995-11 ended
KZN130,LN130,VZN130 JPP LHD —
75087-89106 note Moulding, Quarter Panel Wheel Opening, RH
1990-08 → 1995-11 ended
VZN130 JPP LHD —
75873-89106 Moulding, Quarter Panel Wheel Opening, RH
1988-08 → 1997-08 ended
LN105,110,90,RN106,110,YN106,110,90 JPP T1 CBU —
75874 — Moulding, Quarter Panel Wheel Opening, LH
75088-89105 note Moulding, Quarter Panel Wheel Opening, LH
1995-02 → 1995-08 ended
KZN130 JPP RHD —
75088-89105 Moulding, Quarter Panel Wheel Opening, LH
1989-08 → 1995-11 ended
KZN130,LN130,VZN130 JPP LHD —
75088-89106 note Moulding, Quarter Panel Wheel Opening, LH
1990-08 → 1995-11 ended
VZN130 JPP LHD —
75874-89106 Moulding, Quarter Panel Wheel Opening, LH
1988-08 → 1997-08 ended
LN105,110,90,RN106,110,YN106,110,90 JPP T1 CBU —
75893A — Retainer, Back Door Moulding
75893-89101 note Retainer, Back Door Moulding
1989-08 → 1995-11 ended
KZN130,LN130,VZN130 JPP —
75893-89102 note Retainer, Back Door Moulding
1989-08 → 1995-11 ended
KZN130,LN130,VZN130 JPP —
75898 — Clip, Back Door Outside Moulding
75898-89101 Clip, Back Door Outside Moulding
1989-08 → 1995-11 ended
KZN130,LN130,VZN130 JPP —
76594 — Retainer, Back Door Lower Moulding, NO.1
76594-89101 Retainer, Back Door Lower Moulding, NO.1
1989-08 → 1995-11 ended
KZN130,LN130,VZN130 JPP —
76595 — Retainer, Back Door Lower Moulding, NO.2
76595-89101 Retainer, Back Door Lower Moulding, NO.2
1989-08 → 1995-11 ended
KZN130,LN130,VZN130 JPP —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
