Toyota Hilux (JPP)
1988-08 → 1997-08 · chassis RN1##,YN85,90,1##,LN85,90,1##,VZN130,KZN130 · catalogue 671550 · Europe
Discontinued model
Data version 1998-04
Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.

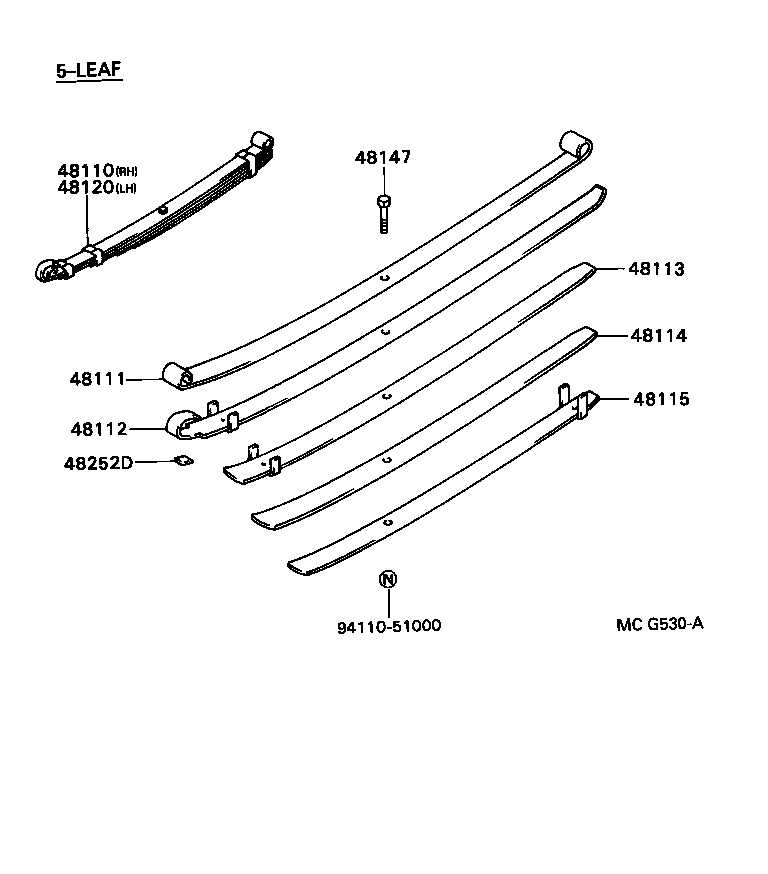

| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 48110 — Spring Assy, Front, RH | ||||
| 48110-35210 note |
Spring Assy, Front, RH
1988-08 → —
|
LN105 JPP LHD | — | |
| 48110-35230 note |
Spring Assy, Front, RH
1988-08 → —
|
LN105 JPP RHD | — | |
| 48110-35240 note |
Spring Assy, Front, RH
1988-08 → 1994-08
ended
|
YN106 JPP | — | |
| 48111 — Leaf, Front Spring, NO.1 | ||||
| 48111-35210 note |
Leaf, Front Spring, NO.1
1991-08 → 1994-08
ended
|
YN106 JPP | — | |
| 48111-35210 note |
Leaf, Front Spring, NO.1
1988-08 → —
|
LN105 JPP RHD | — | |
| 48111-35210 |
Leaf, Front Spring, NO.1
1988-08 → —
|
LN105 JPP LHD | — | |
| 48111-35220 |
Leaf, Front Spring, NO.1
1988-08 → 1991-08
ended
|
YN106 JPP | — | |
| 48111-35220 note |
Leaf, Front Spring, NO.1
1991-08 → 1994-08
ended
|
YN106 JPP | — | |
| 48111-35230 note |
Leaf, Front Spring, NO.1
1988-08 → —
|
LN105 JPP RHD | — | |
| 48112 — Leaf, Front Spring, NO.2 | ||||
| 48102-35210 note |
Leaf, Front Spring, NO.2
1988-08 → 1991-08
ended
|
LN105,YN106 JPP RHD | — | |
| 48102-35210 note |
Leaf, Front Spring, NO.2
1991-08 → —
|
LN105 JPP RHD | — | |
| 48102-35210 |
Leaf, Front Spring, NO.2
1988-08 → —
|
LN105 JPP LHD | — | |
| 48102-35210 note |
Leaf, Front Spring, NO.2
1991-08 → 1994-08
ended
|
YN106 JPP | — | |
| 48102-35220 note |
Leaf, Front Spring, NO.2
1991-08 → 1994-08
ended
|
YN106 JPP | — | |
| 48102-35220 note |
Leaf, Front Spring, NO.2
1988-08 → 1991-08
ended
|
YN106 JPP | — | |
| 48102-35230 note |
Leaf, Front Spring, NO.2
1988-08 → —
|
LN105 JPP RHD | — | |
| 48113 — Leaf, Front Spring, NO.3 | ||||
| 48103-35210 note |
Leaf, Front Spring, NO.3
1988-08 → —
|
YN106 JPP;LN105 JPP LHD | — | |
| 48103-35230 note |
Leaf, Front Spring, NO.3
1988-08 → —
|
LN105 JPP RHD | — | |
| 48105-35210 note |
Leaf, Front Spring, NO.3
1988-08 → —
|
LN105 JPP | — | |
| 48105-35220 note |
Leaf, Front Spring, NO.3
1988-08 → 1994-08
ended
|
YN106 JPP | — | |
| 48114 — Leaf, Front Spring, NO.4 | ||||
| 48114-35210 note |
Leaf, Front Spring, NO.4
1988-08 → 1994-08
ended
|
YN106 JPP | — | |
| 48114-35210 note |
Leaf, Front Spring, NO.4
1988-08 → —
|
LN105 JPP RHD | — | |
| 48114-35210 |
Leaf, Front Spring, NO.4
1988-08 → —
|
LN105 JPP LHD | — | |
| 48114-35220 note |
Leaf, Front Spring, NO.4
1988-08 → 1994-08
ended
|
YN106 JPP | — | |
| 48114-35230 note |
Leaf, Front Spring, NO.4
1988-08 → —
|
LN105 JPP RHD | — | |
| 48115 — Leaf, Front Spring, NO.5 | ||||
| 48104-35210 note |
Leaf, Front Spring, NO.5
1988-08 → 1991-08
ended
|
LN105,YN106 JPP RHD | — | |
| 48104-35210 note |
Leaf, Front Spring, NO.5
1991-08 → —
|
LN105 JPP RHD | — | |
| 48104-35210 note |
Leaf, Front Spring, NO.5
1991-08 → 1994-08
ended
|
YN106 JPP | — | |
| 48104-35210 |
Leaf, Front Spring, NO.5
1988-08 → —
|
LN105 JPP LHD | — | |
| 48104-35220 note |
Leaf, Front Spring, NO.5
1988-08 → 1994-08
ended
|
YN106 JPP | — | |
| 48104-35230 note |
Leaf, Front Spring, NO.5
1988-08 → 1991-08
ended
|
LN105 JPP RHD | — | |
| 48104-35230 note |
Leaf, Front Spring, NO.5
1991-08 → —
|
LN105 JPP RHD | — | |
| 48120 — Spring Assy, Front, LH | ||||
| 48120-35120 note |
Spring Assy, Front, LH
1988-08 → —
|
LN105 JPP | — | |
| 48120-35130 note |
Spring Assy, Front, LH
1988-08 → 1994-08
ended
|
YN106 JPP | — | |
| 48147 — Bolt, Front Spring, Center | ||||
| 48247-35440 |
Bolt, Front Spring, Center
1988-08 → —
|
LN105,YN106 JPP | — | |
| 48252D — Silencer | ||||
| 48252-26070 |
Silencer
1988-08 → —
|
LN105,YN106 JPP | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
