Toyota Hilux (JPP)

1988-08 → 1997-08 · chassis RN1##,YN85,90,1##,LN85,90,1##,VZN130,KZN130 · catalogue 671550 · Europe

Discontinued model Data version 1998-04

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

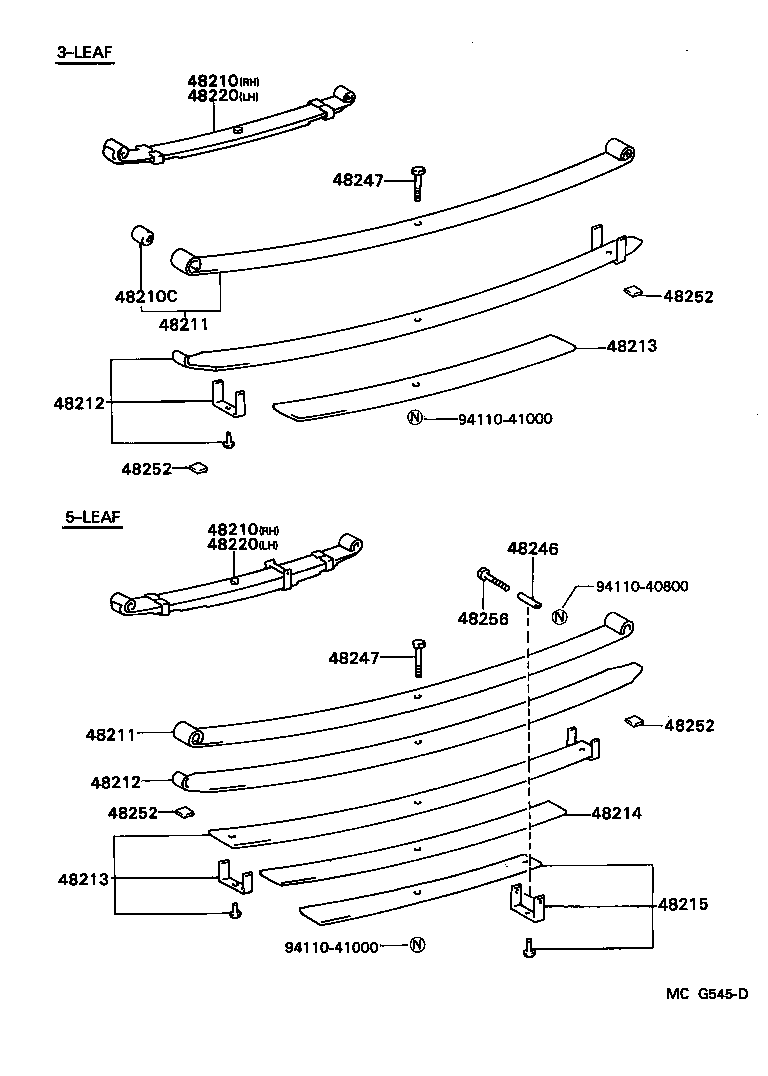

71 parts on this figure

Part number	Description	Fitment	Price
48210 — Spring Assy, Rear RH
48210-35620 note	Spring Assy, Rear RH 1988-08 → —	LN90,YN90 JPP	—
48210-35640 note	Spring Assy, Rear RH 1988-08 → 1991-08 ended	LN85,YN85 JPP T1	—
48210-35670 note	Spring Assy, Rear RH 1988-08 → —	LN105,YN106 JPP	—
48210-35681 note	Spring Assy, Rear RH 1988-08 → —	LN110,RN106,110,YN110 JPP T1	—
48210-35760 note	Spring Assy, Rear RH 1988-08 → —	LN85 JPP TW1	—
48210-35830 note	Spring Assy, Rear RH 1991-08 → —	LN108,RN106 JPP TW1	—
48210-35850 note	Spring Assy, Rear RH 1991-08 → —	LN85,YN85 JPP T1	—
48210C — Bush(FOR REAR SPRING LEAF)
90389-14004	Bush(FOR REAR SPRING LEAF) 1988-08 → —	LN108,110,90,RN106,110,YN110,90 JPP	—
48211 — Leaf, Rear Spring, NO.1
48201-35620	Leaf, Rear Spring, NO.1 1988-08 → —	LN90,YN90 JPP	—
48201-35680	Leaf, Rear Spring, NO.1 1988-08 → —	LN110,RN106,110,YN110 JPP T1	—
48201-35830	Leaf, Rear Spring, NO.1 1991-08 → —	LN108,RN106 JPP TW1	—
48211-35640	Leaf, Rear Spring, NO.1 1988-08 → 1991-08 ended	LN85,YN85 JPP T1	—
48211-35670	Leaf, Rear Spring, NO.1 1988-08 → —	LN105,YN106 JPP	—
48211-35760	Leaf, Rear Spring, NO.1 1988-08 → —	LN85 JPP TW1	—
48211-35850	Leaf, Rear Spring, NO.1 1991-08 → —	LN85,YN85 JPP T1	—
48212 — Leaf, Rear Spring, NO.2
48202-35620	Leaf, Rear Spring, NO.2 1988-08 → —	LN90,YN90 JPP	—
48212-35640	Leaf, Rear Spring, NO.2 1988-08 → 1991-08 ended	LN85,YN85 JPP T1	—
48212-35670	Leaf, Rear Spring, NO.2 1988-08 → —	LN105,YN106 JPP	—
48212-35680	Leaf, Rear Spring, NO.2 1988-08 → —	LN110,RN106,110,YN110 JPP T1	—
48212-35760	Leaf, Rear Spring, NO.2 1988-08 → —	LN85 JPP TW1	—
48212-35830	Leaf, Rear Spring, NO.2 1991-08 → —	LN108,RN106 JPP TW1	—
48212-35850	Leaf, Rear Spring, NO.2 1991-08 → —	LN85,YN85 JPP T1	—
48213 — Leaf, Rear Spring, NO.3
48202-35640	Leaf, Rear Spring, NO.3 1988-08 → 1991-08 ended	LN85,YN85 JPP T1	—
48202-35670	Leaf, Rear Spring, NO.3 1988-08 → —	LN105,YN106 JPP	—
48202-35680	Leaf, Rear Spring, NO.3 1988-08 → —	LN110,RN106,110,YN110 JPP T1	—
48202-35760	Leaf, Rear Spring, NO.3 1988-08 → —	LN85 JPP TW1	—
48202-35830	Leaf, Rear Spring, NO.3 1991-08 → —	LN108,RN106 JPP TW1	—
48202-35850	Leaf, Rear Spring, NO.3 1991-08 → —	LN85,YN85 JPP T1	—
48213-35620	Leaf, Rear Spring, NO.3 1988-08 → —	LN90,YN90 JPP	—
48214 — Leaf, Rear Spring, NO.4
48203-35680	Leaf, Rear Spring, NO.4 1988-08 → —	LN110,RN106,110,YN110 JPP T1	—
48203-35830	Leaf, Rear Spring, NO.4 1991-08 → —	LN108,RN106 JPP TW1	—
48214-35640	Leaf, Rear Spring, NO.4 1988-08 → 1991-08 ended	LN85,YN85 JPP T1	—
48214-35670	Leaf, Rear Spring, NO.4 1988-08 → —	LN105,YN106 JPP	—
48214-35760	Leaf, Rear Spring, NO.4 1988-08 → —	LN85 JPP TW1	—
48214-35850	Leaf, Rear Spring, NO.4 1991-08 → —	LN85,YN85 JPP T1	—
48215 — Leaf, Rear Spring, NO.5
48203-35640	Leaf, Rear Spring, NO.5 1988-08 → 1991-08 ended	LN85,YN85 JPP T1	—
48203-35670	Leaf, Rear Spring, NO.5 1988-08 → —	LN105,YN106 JPP	—
48203-35760	Leaf, Rear Spring, NO.5 1988-08 → —	LN85 JPP TW1	—
48203-35850	Leaf, Rear Spring, NO.5 1991-08 → —	LN85,YN85 JPP T1	—
48215-35830	Leaf, Rear Spring, NO.5 1991-08 → —	LN108,RN106 JPP TW1	—
48220 — Spring Assy, Rear LH
48210-35620 note	Spring Assy, Rear LH 1988-08 → —	LN90,YN90 JPP	—
48210-35640 note	Spring Assy, Rear LH 1988-08 → 1991-08 ended	LN85,YN85 JPP T1	—
48210-35670 note	Spring Assy, Rear LH 1988-08 → —	LN105,YN106 JPP	—
48210-35681 note	Spring Assy, Rear LH 1988-08 → —	LN110,RN106,110,YN110 JPP T1	—
48210-35760 note	Spring Assy, Rear LH 1988-08 → —	LN85 JPP TW1	—
48210-35830 note	Spring Assy, Rear LH 1991-08 → —	LN108,RN106 JPP TW1	—
48210-35850 note	Spring Assy, Rear LH 1991-08 → —	LN85,YN85 JPP T1	—
48246 — Case, Rear Spring Clip Bolt
48146-60010	Case, Rear Spring Clip Bolt 1988-08 → 1991-08 ended	LN105,YN106 JPP	—
48146-60070	Case, Rear Spring Clip Bolt 1988-08 → —	LN110,RN106,110,YN110 JPP T1	—
48246-26020	Case, Rear Spring Clip Bolt 1991-08 → —	LN108,RN106 JPP TW1	—
48246-35160	Case, Rear Spring Clip Bolt 1988-08 → —	LN85,YN85 JPP	—
48247 — Bolt, Rear Spring, Center
48247-25160	Bolt, Rear Spring, Center 1991-08 → —	LN110,RN106,110,YN110 JPP T1	—
48247-26260	Bolt, Rear Spring, Center 1988-08 → 1991-08 ended	LN110,RN106,110,YN110 JPP	—
48247-35070	Bolt, Rear Spring, Center 1991-08 → —	LN85,YN85 JPP T1	—
48247-35620	Bolt, Rear Spring, Center 1988-08 → 1993-11 ended	LN90,YN90 JPP	—
48247-35630	Bolt, Rear Spring, Center 1988-08 → 1991-08 ended	LN85,YN85 JPP	—
48247-35630	Bolt, Rear Spring, Center 1991-08 → —	LN85 JPP TW1	—
48247-35810	Bolt, Rear Spring, Center 1993-11 → —	LN90,YN90 JPP	—
48247-36450	Bolt, Rear Spring, Center 1991-08 → —	LN108,RN106 JPP TW1	—
48247-36530	Bolt, Rear Spring, Center 1988-08 → —	LN105,YN106 JPP	—
48252 — Silencer, Rear Spring
48252-26070	Silencer, Rear Spring 1988-08 → —	LN10#,110,RN106,110,YN106,110 JPP	—
48252-35270	Silencer, Rear Spring 1988-08 → 1991-08 ended	LN90,YN90 JPP	—
48252-35270	Silencer, Rear Spring 1991-08 → —	LN90,YN90 JPP	—
48252-35630	Silencer, Rear Spring 1988-08 → —	LN85,YN85 JPP	—
48256 — Bolt, Hexagon(FOR REAR SPRING CLIP SET)
48256-26070	Bolt, Hexagon(FOR REAR SPRING CLIP SET) 1991-08 → 1995-11 ended	LN108,RN106 JPP TW1	—
48256-35160	Bolt, Hexagon(FOR REAR SPRING CLIP SET) 1988-08 → —	LN85,YN85 JPP	—
48256-35170	Bolt, Hexagon(FOR REAR SPRING CLIP SET) 1991-08 → —	LN105,YN106 JPP	—
48256-35360 note	Bolt, Hexagon(FOR REAR SPRING CLIP SET) 1988-08 → —	LN110,RN106,110,YN110 JPP T1	—
48256-36570	Bolt, Hexagon(FOR REAR SPRING CLIP SET) 1988-08 → 1991-08 ended	LN105,YN106 JPP	—
48256-36570 note	Bolt, Hexagon(FOR REAR SPRING CLIP SET) 1988-08 → —	LN110,RN106,110,YN110 JPP T1	—
48256-36570	Bolt, Hexagon(FOR REAR SPRING CLIP SET) 1995-11 → —	LN108,RN106 JPP TW1	—

No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
