Toyota Hilux (JPP)

1988-08 → 1997-08 · chassis RN1##,YN85,90,1##,LN85,90,1##,VZN130,KZN130 · catalogue 671550 · Europe

Discontinued model Data version 1998-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

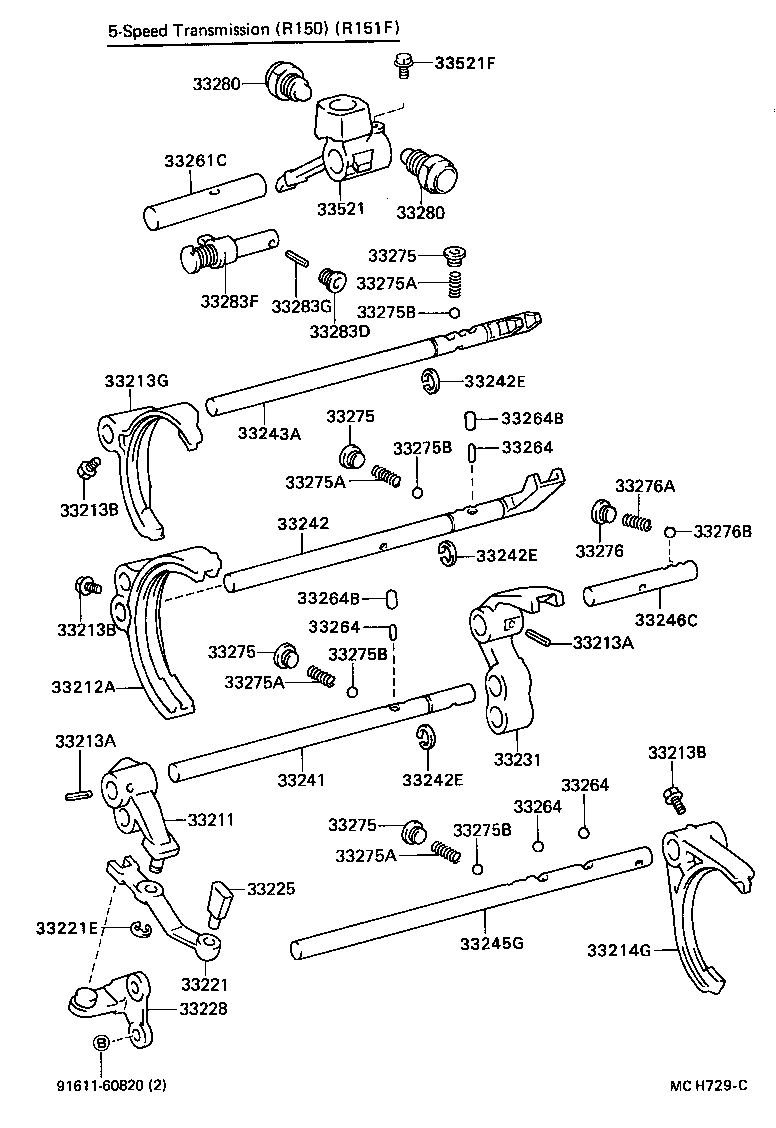

Exploded illustration MCH729C 33521F — PIN OR BOLT (FOR SHIFT LEVER HOUSING) (7 parts) 33280 — PIN ASSY, REVERSE RESTRICT (18 parts) 33261C — SHAFT, SHIFT & SELECT LEVER (3 parts) 33521 — HOUSING, SHIFT LEVER (11 parts) 33280 — PIN ASSY, REVERSE RESTRICT (18 parts) 33275 — SEAT, SHIFT DETENT BALL SPRING, NO.1 (4 parts) 33275A — SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE) (8 parts) 33283F — PIN, REVERSE RESTRICT (6 parts) 33283G — PIN, SLOTTED SPRING (FOR REVERSE RESTRICT PIN) (5 parts) 33275B — BALL, SHAFT DETENT (4 parts) 33283D — PLUG (FOR REVERSE RESTRICT PIN) (4 parts) 33213G — FORK, GEAR SHIFT, NO.2 (5 parts) 33242E — RING, SHAFT SNAP (FOR SHIFT FORK SHAFT) (2 parts) 33275 — SEAT, SHIFT DETENT BALL SPRING, NO.1 (4 parts) 33264B — ROLLER, NO.1 (FOR SHIFT INTERLOCK ) (2 parts) 33243A — SHAFT, GEAR SHIFT FORK, NO.2 (10 parts) 33275B — BALL, SHAFT DETENT (4 parts) 33264 — PIN, OR BALL, SHIFT INTERLOCK, NO.1 (7 parts) 33275A — SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE) (8 parts) 33276A — SPRING, COMPRESSION, NO.2 (FOR SHIFT DETENT BALL) (6 parts) 33213B — BOLT(FOR SHIFT FORK SET) (8 parts) 33242 — SHAFT, GEAR SHIFT FORK, NO.1 (9 parts) 33276B — BALL, SHIFT DETENT, NO.2 (3 parts) 33276 — SEAT, SHIFT DETENT BALL SPRING, NO.2 (5 parts) 33242E — RING, SHAFT SNAP (FOR SHIFT FORK SHAFT) (2 parts) 33264B — ROLLER, NO.1 (FOR SHIFT INTERLOCK ) (2 parts) 33246C — SHAFT, GEAR SHIFT FORK, NO.5 (2 parts) 33264 — PIN, OR BALL, SHIFT INTERLOCK, NO.1 (7 parts) 33213B — BOLT(FOR SHIFT FORK SET) (8 parts) 33213A — PIN, SLOTTED SPRING(FOR SHIFT FORK SET) (6 parts) 33275 — SEAT, SHIFT DETENT BALL SPRING, NO.1 (4 parts) 33275B — BALL, SHAFT DETENT (4 parts) 33275A — SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE) (8 parts) 33212A — FORK, GEAR SHIFT, NO.1 (3 parts) 33213A — PIN, SLOTTED SPRING(FOR SHIFT FORK SET) (6 parts) 33213B — BOLT(FOR SHIFT FORK SET) (8 parts) 33231 — HEAD, REVERSE SHIFT (6 parts) 33241 — SHAFT, REVERSE SHIFT FORK (7 parts) 33242E — RING, SHAFT SNAP (FOR SHIFT FORK SHAFT) (2 parts) 33264 — PIN, OR BALL, SHIFT INTERLOCK, NO.1 (7 parts) 33264 — PIN, OR BALL, SHIFT INTERLOCK, NO.1 (7 parts) 33211 — FORK, REVERSE SHIFT (3 parts) 33275 — SEAT, SHIFT DETENT BALL SPRING, NO.1 (4 parts) 33275B — BALL, SHAFT DETENT (4 parts) 33275A — SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE) (8 parts) 33225 — SHOE, SHIFT ARM (4 parts) 33221E — RING(FOR REVERSE SHIFT ARM END SHAFT) (1 parts) 33245G — SHAFT, GEAR SHIFT FORK, NO.4 (7 parts) 33214G — FORK, GEAR SHIFT, NO.3 (8 parts) 33221 — ARM, REVERSE SHIFT (5 parts) 33228 — BRACKET, REVERSE SHIFT ARM (3 parts) 9161160820 — not listed in this catalogue
MCH729C · 51 callouts, 1 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
182 parts on this figure
Part number Description Fitment Price
33211 — Fork, Reverse Shift
33211-28010 Fork, Reverse Shift
1988-08 → —
LN10#,110,85,90,YN106,110,85,90 JPP —
33211-35030 Fork, Reverse Shift
1989-08 → 1994-05 ended
KZN130,LN130,VZN130 JPP 5F —
33211-35050 Fork, Reverse Shift
1994-05 → 1995-11 ended
KZN130,LN130,VZN130 JPP 5F —
33212A — Fork, Gear Shift, NO.1
33212-22020 Fork, Gear Shift, NO.1
1988-08 → 1991-10 ended
RN106,110 JPP —
33212-30050 Fork, Gear Shift, NO.1
1991-10 → —
RN106,110 JPP —
33212-35032 Fork, Gear Shift, NO.1
1989-08 → 1995-11 ended
KZN130,LN130,VZN130 JPP 5F —
33213A — Pin, Slotted Spring(FOR SHIFT FORK SET)
90254-05001 Pin, Slotted Spring(FOR SHIFT FORK SET)
1989-08 → 1993-05 ended
LN130,VZN130 JPP 5F —
90254-05001 Pin, Slotted Spring(FOR SHIFT FORK SET)
1988-08 → 1993-05 ended
LN10#,110,85,90,YN106,110,85,90 JPP —
90254-05001 Pin, Slotted Spring(FOR SHIFT FORK SET)
1994-05 → —
LN10#,110,85,90,YN106,110,85,90 JPP —
90254-05001 Pin, Slotted Spring(FOR SHIFT FORK SET)
1993-05 → 1994-05 ended
KZN130,LN10#,110,130,85,90,VZN130,YN106,110,85,90 JPP 5F —
90254-05016 Pin, Slotted Spring(FOR SHIFT FORK SET)
1988-08 → 1994-05 ended
RN106,110 JPP —
90254-05016 Pin, Slotted Spring(FOR SHIFT FORK SET)
1994-05 → —
KZN130,LN130,RN106,110,VZN130 JPP 5F —
33213B — Bolt(FOR SHIFT FORK SET)
90105-06052 Bolt(FOR SHIFT FORK SET)
1988-08 → 1989-06 ended
LN105,110,85,90,YN106,110,85,90 JPP —
90105-06077 Bolt(FOR SHIFT FORK SET)
1994-05 → 1995-11 ended
KZN130,LN130,VZN130 JPP 5F —
90105-06077 Bolt(FOR SHIFT FORK SET)
1989-08 → 1994-05 ended
KZN130,LN130,VZN130 JPP 5F —
90105-06143 Bolt(FOR SHIFT FORK SET)
1993-05 → —
RN106,110 JPP —
90105-06143 Bolt(FOR SHIFT FORK SET)
1993-05 → —
LN10#,110,85,90,YN106,110,85,90 JPP —
90105-06143 Bolt(FOR SHIFT FORK SET)
1989-12 → 1993-05 ended
LN10#,110,85,90,RN106,110,YN106,110,85,90 JPP —
90105-06143 Bolt(FOR SHIFT FORK SET)
1989-06 → 1989-12 ended
LN105,110,85,90,YN106,110,85,90 JPP —
90113-06005 Bolt(FOR SHIFT FORK SET)
1988-08 → 1989-12 ended
RN106,110 JPP —
33213G — Fork, Gear Shift, NO.2
33213-22030 Fork, Gear Shift, NO.2
1988-08 → 1991-10 ended
RN106,110 JPP —
33213-30060 Fork, Gear Shift, NO.2
1991-10 → —
RN106,110 JPP —
33213-35032 Fork, Gear Shift, NO.2
1988-08 → 1992-09 ended
LN10#,110,85,90,YN106,110,85,90 JPP —
33213-35033 Fork, Gear Shift, NO.2
1992-09 → —
LN10#,110,85,90,YN106,110,85,90 JPP —
33213-35040 Fork, Gear Shift, NO.2
1989-08 → 1995-11 ended
KZN130,LN130,VZN130 JPP 5F —
33214G — Fork, Gear Shift, NO.3
33214-22030 Fork, Gear Shift, NO.3
1988-08 → 1991-10 ended
RN106,110 JPP —
33214-30060 Fork, Gear Shift, NO.3
1991-10 → 1992-01 ended
RN106,110 JPP —
33214-35020 Fork, Gear Shift, NO.3
1988-08 → 1993-05 ended
LN10#,110,85,90,YN106,110,85,90 JPP —
33214-35030 Fork, Gear Shift, NO.3
1989-08 → 1994-05 ended
KZN130,LN130,VZN130 JPP 5F —
33214-35040 Fork, Gear Shift, NO.3
1993-05 → —
LN10#,110,85,90,YN106,110,85,90 JPP —
33230-30010 Fork, Gear Shift, NO.3
1992-01 → 1994-05 ended
RN106,110 JPP —
33230-30011 Fork, Gear Shift, NO.3
1994-05 → —
RN106,110 JPP —
33230-35010 Fork, Gear Shift, NO.3
1994-05 → 1995-11 ended
KZN130,LN130,VZN130 JPP 5F —
33221 — Arm, Reverse Shift
33221-22011 Arm, Reverse Shift
1988-08 → 1991-08 ended
RN106,110 JPP —
33221-22020 Arm, Reverse Shift
1991-08 → —
RN106,110 JPP —
33221-28010 Arm, Reverse Shift
1988-08 → —
LN10#,110,85,90,YN106,110,85,90 JPP —
33221-35030 Arm, Reverse Shift
1989-08 → 1994-05 ended
KZN130,LN130,VZN130 JPP 5F —
33221-35050 Arm, Reverse Shift
1994-05 → 1995-11 ended
KZN130,LN130,VZN130 JPP 5F —
33221E — Ring(FOR REVERSE SHIFT ARM END SHAFT)
96160-01000 Ring(FOR REVERSE SHIFT ARM END SHAFT)
1989-08 → 1995-11 ended
KZN130,LN130,VZN130 JPP 5F —
33225 — Shoe, Shift Arm
33225-22011 Shoe, Shift Arm
1988-08 → 1991-08 ended
RN106,110 JPP —
33225-22020 Shoe, Shift Arm
1991-08 → —
RN106,110 JPP —
33225-35030 Shoe, Shift Arm
1988-08 → —
LN10#,110,85,90,YN106,110,85,90 JPP —
33225-35040 Shoe, Shift Arm
1989-08 → 1994-05 ended
KZN130,LN130,VZN130 JPP 5F —
33228 — Bracket, Reverse Shift Arm
33228-28010 Bracket, Reverse Shift Arm
1988-08 → —
LN10#,110,85,90,YN106,110,85,90 JPP —
33228-35010 Bracket, Reverse Shift Arm
1989-08 → 1994-05 ended
KZN130,LN130,VZN130 JPP 5F —
33228-35030 Bracket, Reverse Shift Arm
1994-05 → 1995-11 ended
KZN130,LN130,VZN130 JPP 5F —
33231 — Head, Reverse Shift
33231-22011 Head, Reverse Shift
1988-08 → 1991-08 ended
RN106,110 JPP —
33231-22040 Head, Reverse Shift
1991-08 → —
RN106,110 JPP —
33231-35040 Head, Reverse Shift
1988-08 → 1993-05 ended
LN10#,110,85,90,YN106,110,85,90 JPP —
33231-35060 Head, Reverse Shift
1989-08 → 1992-08 ended
LN130,VZN130 JPP 5F —
33231-35061 Head, Reverse Shift
1992-08 → 1994-05 ended
KZN130,LN130,VZN130 JPP 5F —
33231-35070 Head, Reverse Shift
1993-05 → —
LN10#,110,85,90,YN106,110,85,90 JPP —
33241 — Shaft, Reverse Shift Fork
33244-22020 Shaft, Reverse Shift Fork
1988-08 → 1991-08 ended
RN106,110 JPP —
33244-22021 Shaft, Reverse Shift Fork
1991-08 → 1991-10 ended
RN106,110 JPP —
33244-30050 Shaft, Reverse Shift Fork
1991-10 → —
RN106,110 JPP —
33244-35021 Shaft, Reverse Shift Fork
1988-08 → 1993-05 ended
LN10#,110,85,90,YN106,110,85,90 JPP —
33244-35040 Shaft, Reverse Shift Fork
1989-08 → 1994-05 ended
KZN130,LN130,VZN130 JPP 5F —
33244-35050 Shaft, Reverse Shift Fork
1993-05 → —
LN10#,110,85,90,YN106,110,85,90 JPP —
33244-35060 Shaft, Reverse Shift Fork
1994-05 → 1995-11 ended
KZN130,LN130,VZN130 JPP 5F —
33242 — Shaft, Gear Shift Fork, NO.1
33242-22020 Shaft, Gear Shift Fork, NO.1
1988-08 → 1991-08 ended
RN106,110 JPP —
33242-30070 Shaft, Gear Shift Fork, NO.1
1991-10 → —
RN106,110 JPP —
33242-30080 Shaft, Gear Shift Fork, NO.1
1991-08 → 1991-10 ended
RN106,110 JPP —
33242-35022 Shaft, Gear Shift Fork, NO.1
1988-08 → —
LN10#,110,85,90,YN106,110,85,90 JPP —
33242-35030 Shaft, Gear Shift Fork, NO.1
1989-08 → 1992-08 ended
LN130,VZN130 JPP 5F —
33242-35031 Shaft, Gear Shift Fork, NO.1
1992-08 → 1994-05 ended
LN130,VZN130 JPP 5F —
33242-35040 Shaft, Gear Shift Fork, NO.1
1994-05 → 1995-11 ended
LN130,VZN130 JPP 5F —
33242-35050 Shaft, Gear Shift Fork, NO.1
1994-05 → 1995-11 ended
KZN130 JPP —
33242-60051 Shaft, Gear Shift Fork, NO.1
1993-08 → 1994-05 ended
KZN130 JPP —
33242E — Ring, Shaft Snap (FOR SHIFT FORK SHAFT)
90520-12003 Ring, Shaft Snap (FOR SHIFT FORK SHAFT)
1989-08 → 1994-05 ended
KZN130,LN130,VZN130 JPP 5F —
90520-12003 Ring, Shaft Snap (FOR SHIFT FORK SHAFT)
1994-05 → 1995-11 ended
KZN130,LN130,VZN130 JPP 5F —
33243A — Shaft, Gear Shift Fork, NO.2
33240-22020 Shaft, Gear Shift Fork, NO.2
1988-08 → 1990-06 ended
RN106,110 JPP —
33240-22021 Shaft, Gear Shift Fork, NO.2
1990-06 → 1991-08 ended
RN106,110 JPP —
33240-22022 Shaft, Gear Shift Fork, NO.2
1991-08 → 1991-10 ended
RN106,110 JPP —
33240-30020 Shaft, Gear Shift Fork, NO.2
1991-10 → 1992-08 ended
RN106,110 JPP —
33243-30120 Shaft, Gear Shift Fork, NO.2
1992-08 → 1993-09 ended
RN106,110 JPP —
33243-30130 Shaft, Gear Shift Fork, NO.2
1993-09 → —
RN106,110 JPP —
33243-35042 Shaft, Gear Shift Fork, NO.2
1988-08 → —
LN10#,110,85,90,YN106,110,85,90 JPP —
33243-35070 Shaft, Gear Shift Fork, NO.2
1989-08 → 1992-08 ended
LN130,VZN130 JPP 5F —
33243-35071 Shaft, Gear Shift Fork, NO.2
1992-08 → 1994-05 ended
KZN130,LN130,VZN130 JPP 5F —
33243-35080 Shaft, Gear Shift Fork, NO.2
1994-05 → 1995-11 ended
KZN130,LN130,VZN130 JPP 5F —
33245G — Shaft, Gear Shift Fork, NO.4
33245-22010 Shaft, Gear Shift Fork, NO.4
1988-08 → 1991-08 ended
RN106,110 JPP —
33245-22011 Shaft, Gear Shift Fork, NO.4
1991-08 → —
RN106,110 JPP —
33245-35040 Shaft, Gear Shift Fork, NO.4
1988-08 → 1993-05 ended
LN10#,110,85,90,YN106,110,85,90 JPP —
33245-35050 Shaft, Gear Shift Fork, NO.4
1989-08 → 1991-01 ended
LN130,VZN130 JPP 5F —
33245-35070 Shaft, Gear Shift Fork, NO.4
1991-01 → 1994-05 ended
KZN130,LN130,VZN130 JPP 5F —
33245-35080 Shaft, Gear Shift Fork, NO.4
1993-05 → —
LN10#,110,85,90,YN106,110,85,90 JPP —
33245-35090 Shaft, Gear Shift Fork, NO.4
1994-05 → 1995-11 ended
KZN130,LN130,VZN130 JPP 5F —
33246C — Shaft, Gear Shift Fork, NO.5
33246-35020 Shaft, Gear Shift Fork, NO.5
1988-08 → —
LN10#,110,85,90,YN106,110,85,90 JPP —
33246-35030 Shaft, Gear Shift Fork, NO.5
1989-08 → 1994-05 ended
KZN130,LN130,VZN130 JPP 5F —
33261C — Shaft, Shift & Select Lever
33261-35080 Shaft, Shift & Select Lever
1988-08 → —
LN10#,110,YN106,110 JPP —
33261-35100 Shaft, Shift & Select Lever
1990-01 → 1994-05 ended
KZN130,LN130 JPP —
33261-35130 Shaft, Shift & Select Lever
1994-05 → 1995-11 ended
KZN130,LN130 JPP —
33264 — Pin, OR Ball, Shift Interlock, NO.1
33264-22010 Pin, OR Ball, Shift Interlock, NO.1
1988-08 → —
RN106,110 JPP —
90250-05029 note Pin, OR Ball, Shift Interlock, NO.1
1989-08 → 1994-05 ended
KZN130,LN130,VZN130 JPP 5F —
90250-05029 note Pin, OR Ball, Shift Interlock, NO.1
1994-05 → 1995-11 ended
KZN130,LN130,VZN130 JPP 5F —
90360-10003 note Pin, OR Ball, Shift Interlock, NO.1
1989-08 → 1994-05 ended
KZN130,LN130,VZN130 JPP 5F —
90360-10003 note Pin, OR Ball, Shift Interlock, NO.1
1988-08 → —
LN10#,110,85,90,YN106,110,85,90 JPP —
90361-10002 note Pin, OR Ball, Shift Interlock, NO.1
1988-08 → —
LN10#,110,85,90,YN106,110,85,90 JPP —
90361-10003 note Pin, OR Ball, Shift Interlock, NO.1
1988-08 → —
LN10#,110,85,90,YN106,110,85,90 JPP —
33264B — Roller, NO.1 (FOR SHIFT INTERLOCK )
90361-10003 note Roller, NO.1 (FOR SHIFT INTERLOCK )
1989-08 → 1994-05 ended
KZN130,LN130,VZN130 JPP 5F —
90361-10003 note Roller, NO.1 (FOR SHIFT INTERLOCK )
1994-05 → 1995-11 ended
KZN130,LN130,VZN130 JPP 5F —
33275 — Seat, Shift Detent Ball Spring, NO.1
90341-12008 note Seat, Shift Detent Ball Spring, NO.1
1988-08 → 1994-05 ended
KZN130,LN10#,110,130,85,90,VZN130,YN106,110,85,90 JPP 5F —
90341-12008 note Seat, Shift Detent Ball Spring, NO.1
1994-05 → —
LN10#,110,85,90,YN106,110,85,90 JPP —
90341-12014 note Seat, Shift Detent Ball Spring, NO.1
1994-05 → 1995-11 ended
KZN130,LN130,VZN130 JPP 5F —
90341-12014 note Seat, Shift Detent Ball Spring, NO.1
1988-08 → —
RN106,110 JPP —
33275A — Spring, Compression (FOR SHIFT DETENT BALL LOW SIDE)
90501-13004 note Spring, Compression (FOR SHIFT DETENT BALL LOW SIDE)
1988-08 → 1989-05 ended
RN110 JPP —
90501-14061 note Spring, Compression (FOR SHIFT DETENT BALL LOW SIDE)
1988-08 → 1989-04 ended
LN105,110,85,90,YN106,110,85,90 JPP —
90501-14062 note Spring, Compression (FOR SHIFT DETENT BALL LOW SIDE)
1988-08 → 1989-12 ended
LN105,110,85,90,YN106,110,85,90 JPP —
90501-14096 note Spring, Compression (FOR SHIFT DETENT BALL LOW SIDE)
1989-08 → 1994-05 ended
KZN130,LN130,VZN130 JPP 5F —
90501-14123 note Spring, Compression (FOR SHIFT DETENT BALL LOW SIDE)
1989-04 → —
LN10#,110,85,90,YN106,110,85,90 JPP —
90501-14123 note Spring, Compression (FOR SHIFT DETENT BALL LOW SIDE)
1989-05 → —
RN106,110 JPP —
90501-14132 note Spring, Compression (FOR SHIFT DETENT BALL LOW SIDE)
1989-12 → —
LN10#,110,85,90,YN106,110,85,90 JPP —
90501-16143 note Spring, Compression (FOR SHIFT DETENT BALL LOW SIDE)
1994-05 → 1995-11 ended
KZN130,LN130,VZN130 JPP 5F —
33275B — Ball, Shaft Detent
90360-10003 Ball, Shaft Detent
1988-08 → 1994-05 ended
KZN130,LN10#,110,130,85,90,VZN130,YN106,110,85,90 JPP 5F —
90360-10003 Ball, Shaft Detent
1994-05 → 1995-11 ended
KZN130,LN130,VZN130 JPP 5F —
90360-10003 Ball, Shaft Detent
1988-08 → —
RN106,110 JPP —
90360-10003 Ball, Shaft Detent
1994-05 → —
LN10#,110,85,90,YN106,110,85,90 JPP —
33276 — Seat, Shift Detent Ball Spring, NO.2
90341-12005 Seat, Shift Detent Ball Spring, NO.2
1988-08 → 1990-08 ended
RN106,110 JPP —
90341-12005 note Seat, Shift Detent Ball Spring, NO.2
1990-08 → 1992-08 ended
RN106,110 JPP —
90341-12005 Seat, Shift Detent Ball Spring, NO.2
1992-08 → 1995-01 ended
RN106,110 JPP —
90341-12008 Seat, Shift Detent Ball Spring, NO.2
1988-08 → 1994-05 ended
KZN130,LN10#,110,130,85,90,VZN130,YN106,110,85,90 JPP 5F —
90341-12008 Seat, Shift Detent Ball Spring, NO.2
1994-05 → —
LN10#,110,85,90,YN106,110,85,90 JPP —
33276A — Spring, Compression, NO.2 (FOR SHIFT DETENT BALL)
90501-10061 Spring, Compression, NO.2 (FOR SHIFT DETENT BALL)
1988-08 → 1994-05 ended
KZN130,LN10#,110,130,85,90,VZN130,YN106,110,85,90 JPP 5F —
90501-10061 Spring, Compression, NO.2 (FOR SHIFT DETENT BALL)
1994-05 → —
LN10#,110,85,90,YN106,110,85,90 JPP —
90501-13004 Spring, Compression, NO.2 (FOR SHIFT DETENT BALL)
1988-08 → 1989-05 ended
RN110 JPP —
90501-14123 Spring, Compression, NO.2 (FOR SHIFT DETENT BALL)
1989-05 → 1990-08 ended
RN106,110 JPP —
90501-14123 note Spring, Compression, NO.2 (FOR SHIFT DETENT BALL)
1990-08 → 1992-08 ended
RN106,110 JPP —
90501-14123 Spring, Compression, NO.2 (FOR SHIFT DETENT BALL)
1992-08 → —
RN106,110 JPP —
33276B — Ball, Shift Detent, NO.2
90360-10003 Ball, Shift Detent, NO.2
1988-08 → 1994-05 ended
KZN130,LN10#,110,130,85,90,VZN130,YN106,110,85,90 JPP 5F —
90360-10003 Ball, Shift Detent, NO.2
1988-08 → —
RN106,110 JPP —
90360-10003 Ball, Shift Detent, NO.2
1994-05 → —
LN10#,110,85,90,YN106,110,85,90 JPP —
33280 — Pin Assy, Reverse Restrict
33280-22020 note Pin Assy, Reverse Restrict
1988-08 → 1991-10 ended
RN106,110 JPP —
33280-22030 note Pin Assy, Reverse Restrict
1988-08 → 1991-10 ended
RN106,110 JPP —
33280-30040 note Pin Assy, Reverse Restrict
1991-10 → 1994-12 ended
RN106,110 JPP —
33280-30041 note Pin Assy, Reverse Restrict
1994-12 → —
RN106,110 JPP —
33280-30050 note Pin Assy, Reverse Restrict
1991-10 → 1995-01 ended
RN106,110 JPP —
33280-30051 note Pin Assy, Reverse Restrict
1995-01 → —
RN106,110 JPP —
33280-35020 note Pin Assy, Reverse Restrict
1988-08 → 1994-04 ended
LN10#,110,85,90,YN106,110,85,90 JPP —
33280-35021 note Pin Assy, Reverse Restrict
1994-04 → 1994-05 ended
LN10#,110,85,90,YN106,110,85,90 JPP —
33280-35021 note Pin Assy, Reverse Restrict
1994-05 → 1995-11 ended
VZN130 JPP 5F —
33280-35021 note Pin Assy, Reverse Restrict
1994-05 → —
KZN130,LN10#,110,130,85,90,YN106,110,85,90 JPP —
33280-35030 note Pin Assy, Reverse Restrict
1988-08 → 1994-04 ended
LN10#,110,85,90,YN106,110,85,90 JPP —
33280-35031 note Pin Assy, Reverse Restrict
1994-04 → —
LN10#,110,85,90,YN106,110,85,90 JPP —
33280-35060 note Pin Assy, Reverse Restrict
1989-08 → 1994-04 ended
KZN130,LN130,VZN130 JPP 5F —
33280-35060 note Pin Assy, Reverse Restrict
1994-04 → 1994-05 ended
VZN130 JPP 5F —
33280-35062 note Pin Assy, Reverse Restrict
1994-05 → 1995-11 ended
VZN130 JPP 5F —
33280-35062 note Pin Assy, Reverse Restrict
1994-05 → 1995-11 ended
KZN130,LN130 JPP —
33280-35070 note Pin Assy, Reverse Restrict
1989-08 → 1994-04 ended
KZN130,LN130,VZN130 JPP 5F —
33280-35070 note Pin Assy, Reverse Restrict
1994-04 → 1994-05 ended
VZN130 JPP 5F —
33283D — Plug (FOR REVERSE RESTRICT PIN)
90341-10065 Plug (FOR REVERSE RESTRICT PIN)
1988-08 → —
RN106,110 JPP —
90341-12008 Plug (FOR REVERSE RESTRICT PIN)
1988-08 → 1994-05 ended
KZN130,LN10#,110,130,VZN130,YN106,110 JPP 5F —
90341-12008 Plug (FOR REVERSE RESTRICT PIN)
1994-05 → —
LN10#,110,YN106,110 JPP —
90341-12014 Plug (FOR REVERSE RESTRICT PIN)
1994-05 → 1995-11 ended
KZN130,LN130,VZN130 JPP 5F —
33283F — Pin, Reverse Restrict
33280-22010 Pin, Reverse Restrict
1988-08 → 1991-11 ended
RN106,110 JPP —
33280-30060 Pin, Reverse Restrict
1991-11 → 1992-11 ended
RN106,110 JPP —
33280-30061 Pin, Reverse Restrict
1992-11 → —
RN106,110 JPP —
33280-35040 Pin, Reverse Restrict
1988-08 → —
LN10#,110,85,90,YN106,110,85,90 JPP —
33280-35050 Pin, Reverse Restrict
1989-08 → 1994-05 ended
KZN130,LN130,VZN130 JPP 5F —
33280-35100 Pin, Reverse Restrict
1994-05 → 1995-11 ended
KZN130,LN130,VZN130 JPP 5F —
33283G — Pin, Slotted Spring (FOR REVERSE RESTRICT PIN)
90254-05001 Pin, Slotted Spring (FOR REVERSE RESTRICT PIN)
1988-08 → 1991-10 ended
LN10#,110,130,85,90,VZN130,YN106,110,85,90 JPP 5F —
90254-05001 Pin, Slotted Spring (FOR REVERSE RESTRICT PIN)
1992-02 → —
KZN130,LN10#,110,130,85,90,VZN130,YN106,110,85,90 JPP 5F —
90254-05001 Pin, Slotted Spring (FOR REVERSE RESTRICT PIN)
1991-10 → 1992-02 ended
LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90 JPP 5F —
90254-05016 Pin, Slotted Spring (FOR REVERSE RESTRICT PIN)
1988-08 → 1991-10 ended
RN106,110 JPP —
90254-05016 Pin, Slotted Spring (FOR REVERSE RESTRICT PIN)
1992-02 → —
RN106,110 JPP —
33521 — Housing, Shift Lever
33502-35270 Housing, Shift Lever
1991-10 → 1993-09 ended
RN106,110 JPP —
33521-35070 Housing, Shift Lever
1988-08 → —
LN85,90,YN85,90 JPP —
33521-35090 Housing, Shift Lever
1988-08 → —
LN10#,110,YN106,110 JPP —
33521-35130 Housing, Shift Lever
1990-01 → 1992-08 ended
LN130 JPP —
33521-35131 Housing, Shift Lever
1992-08 → 1994-05 ended
KZN130,LN130 JPP —
33521-35150 Housing, Shift Lever
1989-08 → 1992-08 ended
VZN130 JPP 5F —
33521-35190 Housing, Shift Lever
1988-08 → 1991-10 ended
RN106,110 JPP —
33521-35231 Housing, Shift Lever
1993-09 → —
RN106,110 JPP —
33521-35240 Housing, Shift Lever
1992-08 → 1994-05 ended
VZN130 JPP 5F —
33521-35280 Housing, Shift Lever
1994-05 → 1995-11 ended
VZN130 JPP 5F —
33521-35290 Housing, Shift Lever
1994-05 → 1995-11 ended
KZN130,LN130 JPP —
33521F — Pin OR Bolt (FOR SHIFT LEVER HOUSING)
90105-08079 Pin OR Bolt (FOR SHIFT LEVER HOUSING)
1988-08 → 1989-12 ended
LN105,110,RN106,110,VZN130,YN106,110 JPP —
90105-08079 Pin OR Bolt (FOR SHIFT LEVER HOUSING)
1989-12 → 1994-05 ended
KZN130,LN130,RN106,110,VZN130 JPP 5F —
90105-08079 Pin OR Bolt (FOR SHIFT LEVER HOUSING)
1994-05 → 1995-09 ended
RN106,110,VZN130 JPP 5F —
90105-08079 Pin OR Bolt (FOR SHIFT LEVER HOUSING)
1995-09 → —
LN10#,110,85,90,RN106,110,VZN130 JPP 5F —
90113-08001 Pin OR Bolt (FOR SHIFT LEVER HOUSING)
1988-08 → 1989-12 ended
LN85,90,YN85,90 JPP —
90113-08001 Pin OR Bolt (FOR SHIFT LEVER HOUSING)
1989-12 → 1995-09 ended
LN10#,110,85,90,YN106,110,85,90 JPP —
90254-05016 Pin OR Bolt (FOR SHIFT LEVER HOUSING)
1994-05 → 1995-11 ended
KZN130,LN130 JPP —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
