Toyota Hilux (JPP)

1988-08 → 1997-08 · chassis RN1##,YN85,90,1##,LN85,90,1##,VZN130,KZN130 · catalogue 671550 · Europe

Discontinued model Data version 1998-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

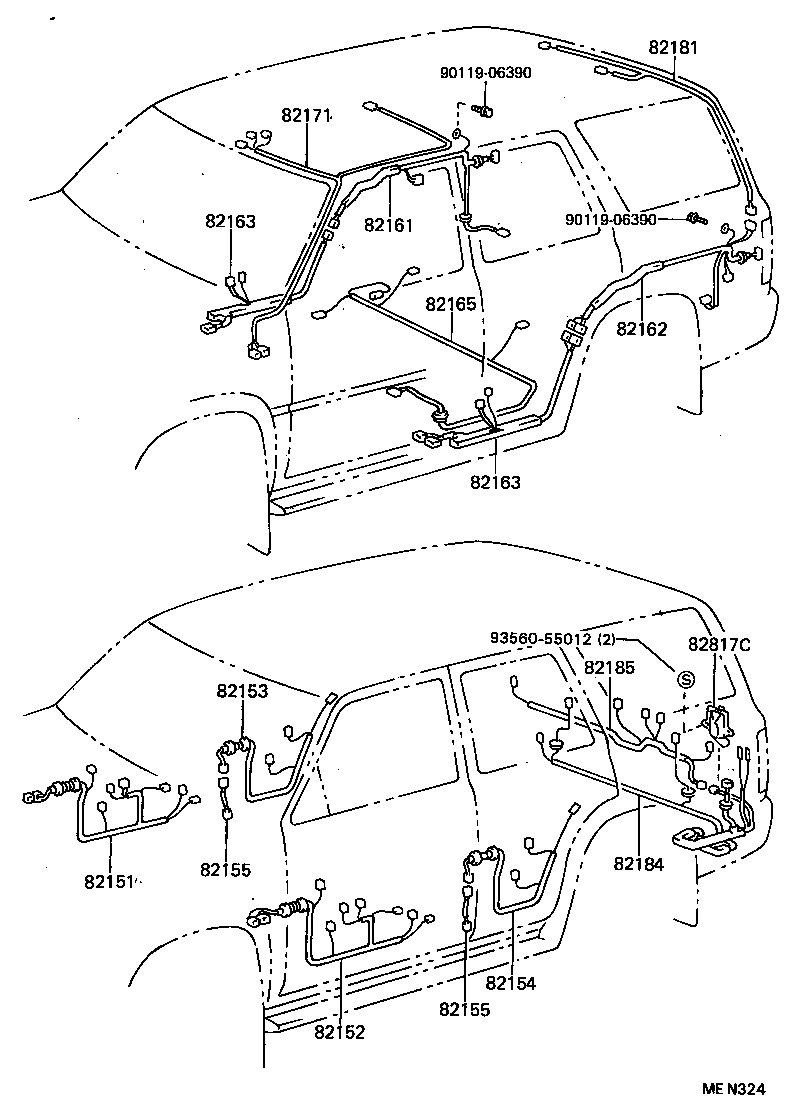

Exploded illustration MEN324 82181 — WIRE, LUGGAGE ROOM, NO.1 (5 parts) 9011906390 — not listed in this catalogue 82171 — WIRE, ROOF, NO.1 (20 parts) 82163 — WIRE, FLOOR, NO.3 (10 parts) 9011906390 — not listed in this catalogue 82161 — WIRE, FLOOR (3 parts) 82165 — WIRE, FRAME, NO.2 (6 parts) 82162 — WIRE, FLOOR, NO.2 (4 parts) 82163 — WIRE, FLOOR, NO.3 (10 parts) 9356055012 — not listed in this catalogue 82817C — PROTECTOR, WIRING HARNESS, NO.4 (1 parts) 82185 — WIRE, BACK DOOR, NO.2 (2 parts) 82153 — WIRE, REAR DOOR, NO.1 (4 parts) 82184 — WIRE, BACK DOOR, NO.1 (18 parts) 82155 — WIRE, CENTER PILLER, NO.1 (5 parts) 82151 — WIRE, FRONT DOOR, RH (5 parts) 82154 — WIRE, REAR DOOR, NO.2 (4 parts) 82155 — WIRE, CENTER PILLER, NO.1 (5 parts) 82152 — WIRE, FRONT DOOR, LH (8 parts)
MEN324 · 16 callouts, 3 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
95 parts on this figure
Part number Description Fitment Price
82151 — Wire, Front Door, RH
82151-35060 Wire, Front Door, RH
1991-08 → 1995-11 ended
KZN130,LN130,VZN130 JPP LHD —
82151-35090 Wire, Front Door, RH
1993-08 → 1995-11 ended
KZN130,VZN130 JPP RHD —
82151-35220 note Wire, Front Door, RH
1995-10 → 1997-01 ended
LN85 JPP TW1 —
82151-35220 note Wire, Front Door, RH
1995-11 → 1997-03 ended
LN108 JPP —
82151-89121 Wire, Front Door, RH
1989-08 → 1991-08 ended
LN130,VZN130 JPP —
82152 — Wire, Front Door, LH
82152-35050 Wire, Front Door, LH
1993-08 → 1995-11 ended
KZN130,VZN130 JPP RHD —
82152-35060 Wire, Front Door, LH
1991-08 → 1995-11 ended
KZN130,LN130,VZN130 JPP LHD —
82152-35180 note Wire, Front Door, LH
1995-10 → 1997-01 ended
LN85 JPP TW1 —
82152-35180 note Wire, Front Door, LH
1995-11 → 1997-03 ended
LN108 JPP —
82152-89114 note Wire, Front Door, LH
1989-12 → 1990-08 ended
LN130,VZN130 JPP —
82152-89114 Wire, Front Door, LH
1990-08 → 1991-08 ended
LN130,VZN130 JPP —
82152-89116 note Wire, Front Door, LH
1989-08 → 1989-12 ended
VZN130 JPP —
82152-89118 Wire, Front Door, LH
1989-08 → 1990-08 ended
LN130,VZN130 JPP —
82153 — Wire, Rear Door, NO.1
82153-35010 Wire, Rear Door, NO.1
1991-08 → 1995-11 ended
KZN130,LN130,VZN130 JPP —
82153-35030 note Wire, Rear Door, NO.1
1995-10 → 1997-01 ended
LN85 JPP TW1 —
82153-35030 note Wire, Rear Door, NO.1
1995-11 → 1997-03 ended
LN108 JPP —
82153-89101 Wire, Rear Door, NO.1
1989-08 → 1991-08 ended
LN130,VZN130 JPP —
82154 — Wire, Rear Door, NO.2
82153-35030 note Wire, Rear Door, NO.2
1995-10 → 1997-01 ended
LN85 JPP TW1 —
82153-35030 note Wire, Rear Door, NO.2
1995-11 → 1997-03 ended
LN108 JPP —
82154-35010 Wire, Rear Door, NO.2
1991-08 → 1995-11 ended
KZN130,LN130,VZN130 JPP —
82154-89101 Wire, Rear Door, NO.2
1989-08 → 1991-08 ended
LN130,VZN130 JPP —
82155 — Wire, Center Piller, NO.1
82155-35010 note Wire, Center Piller, NO.1
1995-11 → 1997-03 ended
LN108 JPP —
82155-35010 note Wire, Center Piller, NO.1
1995-10 → 1997-01 ended
LN85 JPP TW1 —
82155-35020 note Wire, Center Piller, NO.1
1995-10 → 1997-01 ended
LN85 JPP TW1 —
82155-35020 note Wire, Center Piller, NO.1
1995-11 → 1997-03 ended
LN108 JPP —
82155-89101 Wire, Center Piller, NO.1
1989-08 → 1990-08 ended
LN130,VZN130 JPP —
82161 — Wire, Floor
82161-35010 Wire, Floor
1991-08 → 1995-11 ended
KZN130,LN130,VZN130 JPP —
82161-89109 Wire, Floor
1989-08 → 1990-08 ended
LN130,VZN130 JPP —
82161-89111 Wire, Floor
1990-08 → 1991-08 ended
LN130,VZN130 JPP —
82162 — Wire, Floor, NO.2
82162-35060 Wire, Floor, NO.2
1991-08 → 1993-08 ended
LN130,VZN130 JPP —
82162-35061 Wire, Floor, NO.2
1993-08 → 1995-11 ended
KZN130,LN130,VZN130 JPP —
82162-89118 Wire, Floor, NO.2
1989-08 → 1990-08 ended
LN130,VZN130 JPP —
82162-89120 Wire, Floor, NO.2
1990-08 → 1991-08 ended
LN130,VZN130 JPP —
82163 — Wire, Floor, NO.3
82163-35020 note Wire, Floor, NO.3
1991-08 → 1995-11 ended
KZN130,LN130,VZN130 JPP —
82163-35040 note Wire, Floor, NO.3
1991-08 → 1993-08 ended
LN130,VZN130 JPP —
82163-35041 note Wire, Floor, NO.3
1993-08 → 1995-11 ended
KZN130,LN130,VZN130 JPP —
82163-89103 note Wire, Floor, NO.3
1989-08 → 1990-08 ended
LN130,VZN130 JPP —
82163-89105 note Wire, Floor, NO.3
1989-08 → 1990-08 ended
LN130,VZN130 JPP —
82163-89106 note Wire, Floor, NO.3
1989-08 → 1990-08 ended
LN130,VZN130 JPP —
82163-89107 note Wire, Floor, NO.3
1989-08 → 1990-08 ended
LN130,VZN130 JPP —
82163-89109 note Wire, Floor, NO.3
1989-08 → 1990-08 ended
LN130,VZN130 JPP —
82163-89112 note Wire, Floor, NO.3
1990-08 → 1991-08 ended
LN130,VZN130 JPP —
82163-89115 note Wire, Floor, NO.3
1990-08 → 1991-08 ended
LN130,VZN130 JPP —
82165 — Wire, Frame, NO.2
82165-35010 Wire, Frame, NO.2
1991-08 → 1995-11 ended
VZN130 JPP —
82165-89118 Wire, Frame, NO.2
1989-08 → 1990-08 ended
VZN130 JPP —
82165-89119 Wire, Frame, NO.2
1990-01 → 1990-08 ended
LN130 JPP —
82165-89121 Wire, Frame, NO.2
1990-08 → 1991-08 ended
VZN130 JPP —
82165-89126 Wire, Frame, NO.2
1991-08 → 1995-11 ended
KZN130,LN130 JPP —
82165-89129 Wire, Frame, NO.2
1990-08 → 1991-08 ended
LN130 JPP —
82171 — Wire, Roof, NO.1
82171-35010 Wire, Roof, NO.1
1991-08 → 1997-08 ended
LN105,85,RN106,YN106,85 JPP T1 —
82171-35020 Wire, Roof, NO.1
1991-08 → 1997-08 ended
LN110,90,RN110,YN110,90 JPP —
82171-35040 note Wire, Roof, NO.1
1991-08 → 1997-08 ended
LN110,90,RN110,YN110,90 JPP —
82171-35050 Wire, Roof, NO.1
1995-08 → 1997-08 ended
LN105 JPP RHD TW1 —
82171-35070 note Wire, Roof, NO.1
1995-08 → 1997-08 ended
LN105 JPP RHD TW1 —
82171-35090 Wire, Roof, NO.1
1991-08 → 1997-08 ended
LN10#,85,RN106 JPP LHD TW1 —
82171-35100 note Wire, Roof, NO.1
1991-08 → 1997-08 ended
LN10#,85,RN106 JPP LHD TW1 —
82171-35150 note Wire, Roof, NO.1
1991-08 → 1995-11 ended
KZN130,LN130,VZN130 JPP LHD —
82171-35160 note Wire, Roof, NO.1
1995-02 → 1995-08 ended
KZN130 JPP RHD —
82171-35160 Wire, Roof, NO.1
1991-08 → 1995-11 ended
KZN130,LN130,VZN130 JPP LHD —
82171-35220 Wire, Roof, NO.1
1993-08 → 1995-11 ended
KZN130,VZN130 JPP RHD —
82171-89117 Wire, Roof, NO.1
1988-08 → 1991-08 ended
LN105,85,RN106,YN106,85 JPP T1 —
82171-89118 Wire, Roof, NO.1
1988-08 → 1991-08 ended
LN110,90,RN110,YN110,90 JPP —
82171-89120 note Wire, Roof, NO.1
1988-08 → 1990-08 ended
LN110,90,RN110,YN110,90 JPP —
82171-89123 Wire, Roof, NO.1
1988-08 → 1991-08 ended
LN105,85 JPP TW1 —
82171-89128 note Wire, Roof, NO.1
1989-08 → 1990-08 ended
LN130,VZN130 JPP —
82171-89129 Wire, Roof, NO.1
1989-08 → 1991-08 ended
LN130,VZN130 JPP —
82171-89136 note Wire, Roof, NO.1
1990-08 → 1991-08 ended
LN130,VZN130 JPP —
82171-89137 note Wire, Roof, NO.1
1990-08 → 1991-08 ended
LN110,90,RN110,YN110,90 JPP —
82171-89139 note Wire, Roof, NO.1
1990-08 → 1991-08 ended
LN105,85 JPP TW1 —
82181 — Wire, Luggage Room, NO.1
82181-35010 Wire, Luggage Room, NO.1
1991-08 → 1995-11 ended
KZN130,LN130,VZN130 JPP —
82181-89101 note Wire, Luggage Room, NO.1
1989-08 → 1990-08 ended
LN130,VZN130 JPP —
82181-89102 Wire, Luggage Room, NO.1
1989-08 → 1990-08 ended
LN130,VZN130 JPP —
82181-89103 note Wire, Luggage Room, NO.1
1990-08 → 1991-08 ended
LN130,VZN130 JPP —
82181-89104 Wire, Luggage Room, NO.1
1990-08 → 1991-08 ended
LN130,VZN130 JPP —
82184 — Wire, Back Door, NO.1
82184-35060 Wire, Back Door, NO.1
1991-08 → 1995-11 ended
KZN130,LN130,VZN130 JPP LHD —
82184-35070 Wire, Back Door, NO.1
1993-08 → 1995-11 ended
KZN130,VZN130 JPP RHD —
82184-89110 note Wire, Back Door, NO.1
1989-08 → 1989-12 ended
VZN130 JPP —
82184-89110 note Wire, Back Door, NO.1
1989-12 → 1990-01 ended
VZN130 JPP —
82184-89110 note Wire, Back Door, NO.1
1990-01 → 1990-08 ended
LN130 JPP —
82184-89110 note Wire, Back Door, NO.1
1990-01 → 1990-08 ended
VZN130 JPP —
82184-89111 note Wire, Back Door, NO.1
1990-01 → 1990-08 ended
LN130 JPP —
82184-89111 note Wire, Back Door, NO.1
1990-01 → 1990-08 ended
VZN130 JPP —
82184-89111 note Wire, Back Door, NO.1
1989-12 → 1990-01 ended
VZN130 JPP —
82184-89111 note Wire, Back Door, NO.1
1989-08 → 1989-12 ended
VZN130 JPP —
82184-89112 Wire, Back Door, NO.1
1989-08 → 1990-08 ended
LN130,VZN130 JPP —
82184-89113 note Wire, Back Door, NO.1
1989-08 → 1990-08 ended
LN130,VZN130 JPP —
82184-89117 Wire, Back Door, NO.1
1990-08 → 1991-08 ended
LN130,VZN130 JPP —
82184-89118 note Wire, Back Door, NO.1
1990-08 → 1991-08 ended
LN130,VZN130 JPP —
82184-89119 note Wire, Back Door, NO.1
1990-08 → 1991-08 ended
LN130 JPP —
82184-89119 note Wire, Back Door, NO.1
1990-08 → 1991-08 ended
VZN130 JPP 5F —
82184-89120 note Wire, Back Door, NO.1
1990-08 → 1991-08 ended
LN130 JPP —
82184-89120 note Wire, Back Door, NO.1
1990-08 → 1991-08 ended
VZN130 JPP 5F —
82185 — Wire, Back Door, NO.2
82185-35010 Wire, Back Door, NO.2
1991-08 → 1995-11 ended
KZN130,LN130,VZN130 JPP —
82185-89101 Wire, Back Door, NO.2
1989-08 → 1991-08 ended
LN130,VZN130 JPP —
82817C — Protector, Wiring Harness, NO.4
82817-89141 Protector, Wiring Harness, NO.4
1989-08 → 1995-11 ended
KZN130,LN130,VZN130 JPP LHD —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
