Toyota Hilux (JPP)
1988-08 → 1997-08 · chassis RN1##,YN85,90,1##,LN85,90,1##,VZN130,KZN130 · catalogue 671550 · Europe
Discontinued model
Data version 1998-04

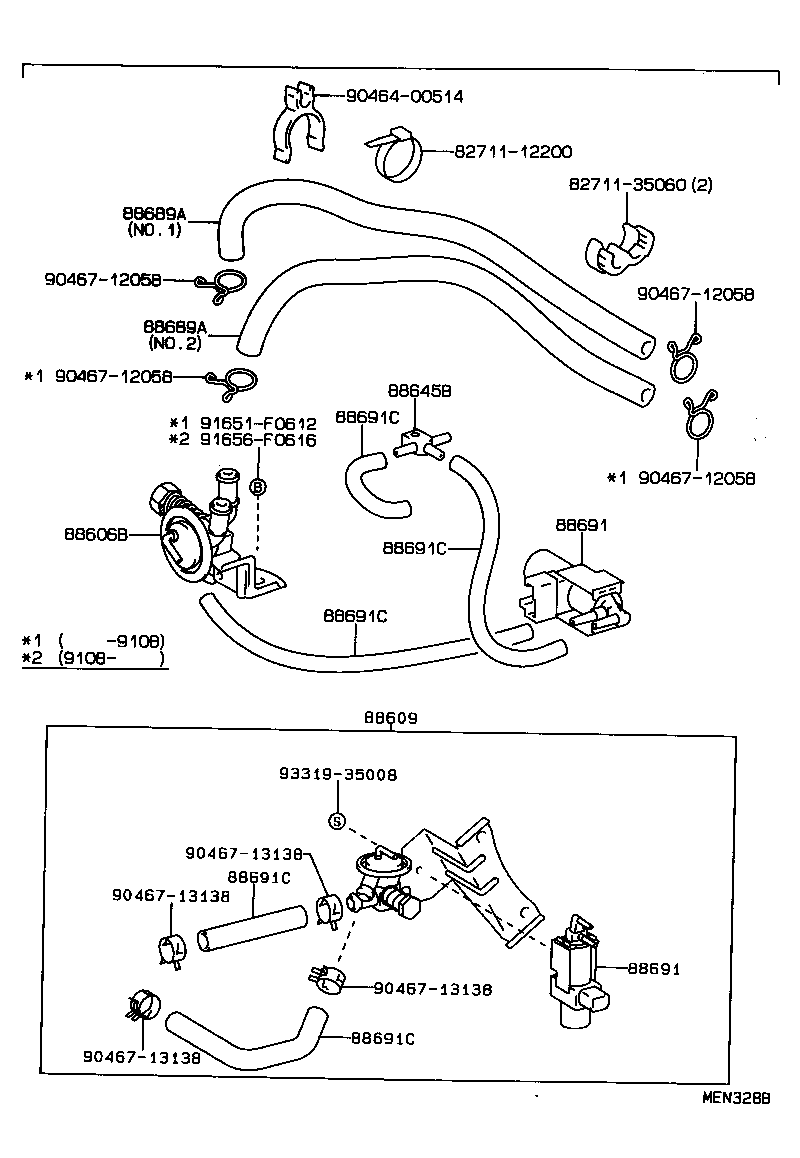

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 88606B — Diaphragm Sub-assy, Cooler | ||||
| 88606-89102 |
Diaphragm Sub-assy, Cooler
1989-08 → 1995-11
ended
|
VZN130 JPP LHD | — | |
| 88609 — Device Sub-assy, Idle UP | ||||
| 88609-89107 |
Device Sub-assy, Idle UP
1993-08 → 1995-11
ended
|
VZN130 JPP RHD | — | |
| 88645B — Joint, NO.1 (FOR IDLE UP DIVICE) | ||||
| 90413-04001 |
Joint, NO.1 (FOR IDLE UP DIVICE)
1991-08 → 1993-08
ended
|
VZN130 JPP | — | |
| 90413-04001 |
Joint, NO.1 (FOR IDLE UP DIVICE)
1993-08 → 1995-11
ended
|
VZN130 JPP LHD;KZN130,LN130 JPP | — | |
| 88689A — Hose, Cooler Vacuum NO.1 | ||||
| 88689-89102 note |
Hose, Cooler Vacuum NO.1
1989-08 → 1991-08
ended
|
VZN130 JPP | — | |
| 88689-89102 note |
Hose, Cooler Vacuum NO.1
1991-08 → 1995-11
ended
|
VZN130 JPP LHD | — | |
| 88689-89104 note |
Hose, Cooler Vacuum NO.1
1989-08 → 1991-08
ended
|
VZN130 JPP | — | |
| 88689-89104 note |
Hose, Cooler Vacuum NO.1
1991-08 → 1995-11
ended
|
VZN130 JPP LHD | — | |
| 88689-89105 |
Hose, Cooler Vacuum NO.1
1991-08 → 1995-11
ended
|
VZN130 JPP LHD | — | |
| 88691 — Valve, Magnet (FOR IDLE UP DEVICE) | ||||
| 88690-89128 |
Valve, Magnet (FOR IDLE UP DEVICE)
1988-08 → 1989-02
ended
|
YN110,85,90 JPP LHD | — | |
| 88690-89128 |
Valve, Magnet (FOR IDLE UP DEVICE)
1991-08 → 1994-08
ended
|
YN110,85,90 JPP LHD | — | |
| 88690-89129 |
Valve, Magnet (FOR IDLE UP DEVICE)
1991-08 → 1992-08
ended
|
LN10#,110 JPP LHD CBU | — | |
| 88690-89129 |
Valve, Magnet (FOR IDLE UP DEVICE)
1992-08 → —
|
LN10#,110,85,90 JPP LHD | — | |
| 88690-89129 |
Valve, Magnet (FOR IDLE UP DEVICE)
1990-10 → 1991-08
ended
|
LN105,110,85,90 JPP LHD CBU | — | |
| 88690-89129 |
Valve, Magnet (FOR IDLE UP DEVICE)
1988-08 → 1990-10
ended
|
LN110,85,90 JPP;LN105 JPP LHD +1 | — | |
| 88690-89135 |
Valve, Magnet (FOR IDLE UP DEVICE)
1989-08 → 1995-11
ended
|
VZN130 JPP LHD | — | |
| 88690-89138 |
Valve, Magnet (FOR IDLE UP DEVICE)
1990-01 → 1995-11
ended
|
KZN130,LN130 JPP | — | |
| 88691-89107 |
Valve, Magnet (FOR IDLE UP DEVICE)
1993-08 → 1995-11
ended
|
VZN130 JPP RHD | — | |
| 88691C — Hose, Vacuum (FOR IDLE UP DEVICE), NO.1 | ||||
| 90999-92002 note |
Hose, Vacuum (FOR IDLE UP DEVICE), NO.1
1991-08 → 1995-11
ended
|
VZN130 JPP LHD | — | |
| 90999-92002 note |
Hose, Vacuum (FOR IDLE UP DEVICE), NO.1
1993-08 → 1995-11
ended
|
VZN130 JPP RHD | — | |
| 90999-92003 note |
Hose, Vacuum (FOR IDLE UP DEVICE), NO.1
1993-08 → 1995-11
ended
|
VZN130 JPP RHD | — | |
| 90999-92006 note |
Hose, Vacuum (FOR IDLE UP DEVICE), NO.1
1993-08 → 1994-06
ended
|
KZN130 JPP | — | |
| 90999-92006 note |
Hose, Vacuum (FOR IDLE UP DEVICE), NO.1
1994-06 → 1995-11
ended
|
KZN130 JPP LHD | — | |
| 95411-10025 note |
Hose, Vacuum (FOR IDLE UP DEVICE), NO.1
1991-08 → 1992-03
ended
|
LN130 JPP | — | |
| 95411-10025 note |
Hose, Vacuum (FOR IDLE UP DEVICE), NO.1
1993-08 → 1995-11
ended
|
KZN130,LN130 JPP | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
