Toyota Hilux (JPP)
1988-08 → 1997-08 · chassis RN1##,YN85,90,1##,LN85,90,1##,VZN130,KZN130 · catalogue 671550 · Europe
Discontinued model
Data version 1998-04

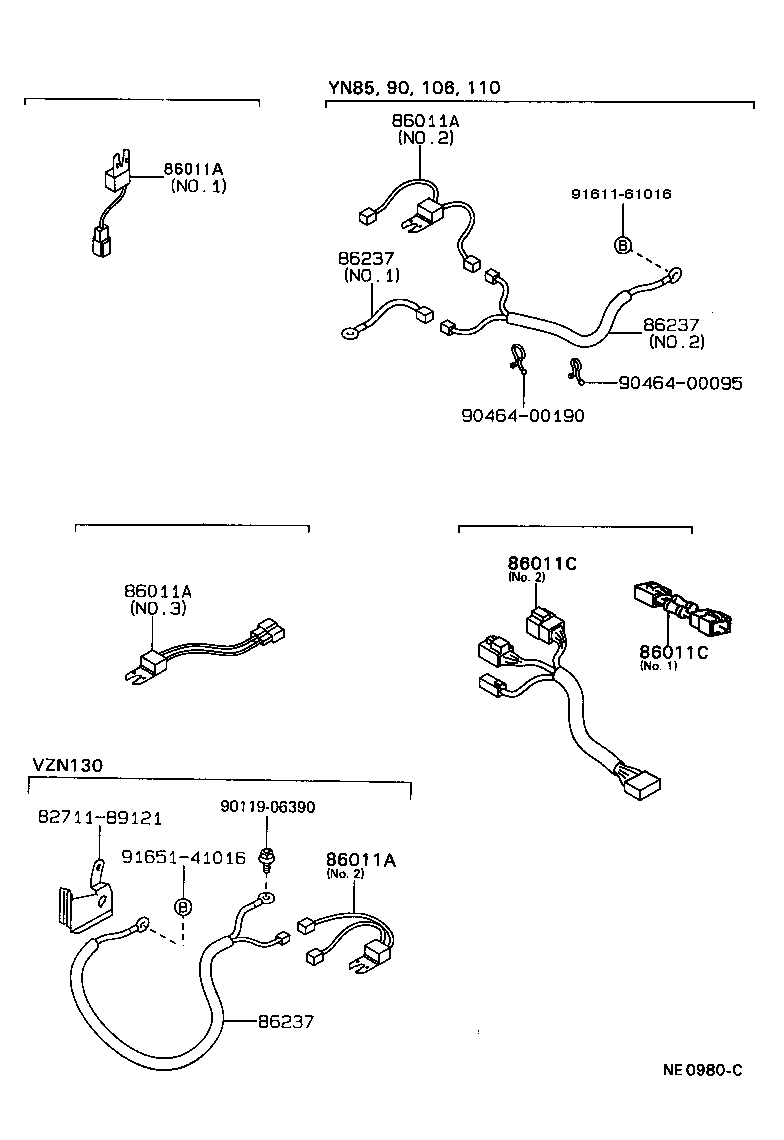

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 86011A — Condenser, Radio Setting | ||||
| 90980-04036 note |
Condenser, Radio Setting
1989-04 → 1989-08
ended
|
YN106,110,85,90 JPP | — | |
| 90980-04036 note |
Condenser, Radio Setting
1989-08 → 1995-11
ended
|
VZN130 JPP | — | |
| 90980-04040 |
Condenser, Radio Setting
1989-04 → —
|
LN10#,110,85,90,YN106,110,85,90 JPP | — | |
| 90980-04041 |
Condenser, Radio Setting
1989-04 → —
|
RN106,110 JPP | — | |
| 90980-04072 note |
Condenser, Radio Setting
1988-08 → 1989-04
ended
|
LN105,110,85,90,YN106,110,85,90 JPP | — | |
| 90980-04073 note |
Condenser, Radio Setting
1988-08 → 1989-04
ended
|
YN106,110,85,90 JPP | — | |
| 90980-04074 note |
Condenser, Radio Setting
1988-08 → 1989-04
ended
|
RN110 JPP | — | |
| 86011C — Filter, Noise | ||||
| 90980-05143 |
Filter, Noise
1988-08 → 1991-08
ended
|
LN105,110,130,85,90,RN106,110,VZN130,YN110,85,90 JPP LHD | — | |
| 86237 — Wire, Condenser | ||||
| 86237-89109 note |
Wire, Condenser
1988-08 → 1989-08
ended
|
YN106,110,85,90 JPP | — | |
| 86237-89110 note |
Wire, Condenser
1988-08 → 1989-08
ended
|
YN106,110,85,90 JPP | — | |
| 86237-89111 |
Wire, Condenser
1989-08 → 1995-11
ended
|
VZN130 JPP | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
