Toyota Hilux (JPP)

1988-08 → 1997-08 · chassis RN1##,YN85,90,1##,LN85,90,1##,VZN130,KZN130 · catalogue 671550 · Europe

Discontinued model Data version 1998-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mounting

11 part groups · 7 illustrations

Illustrations

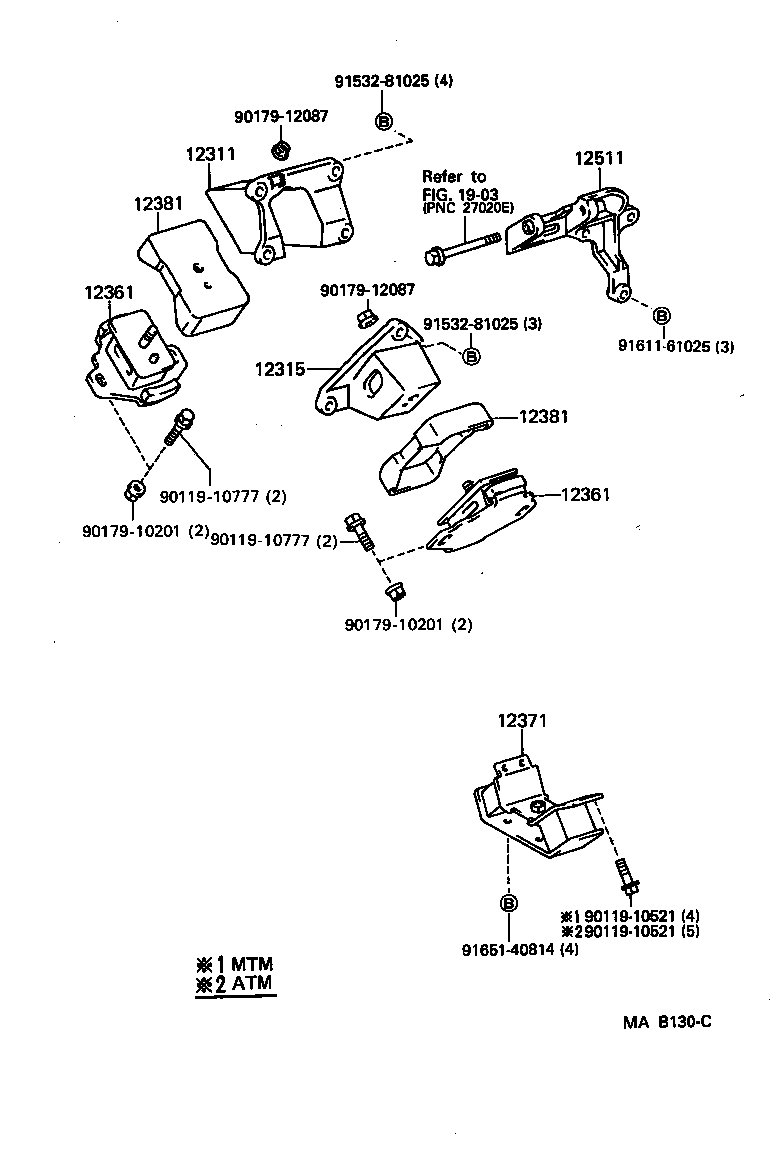

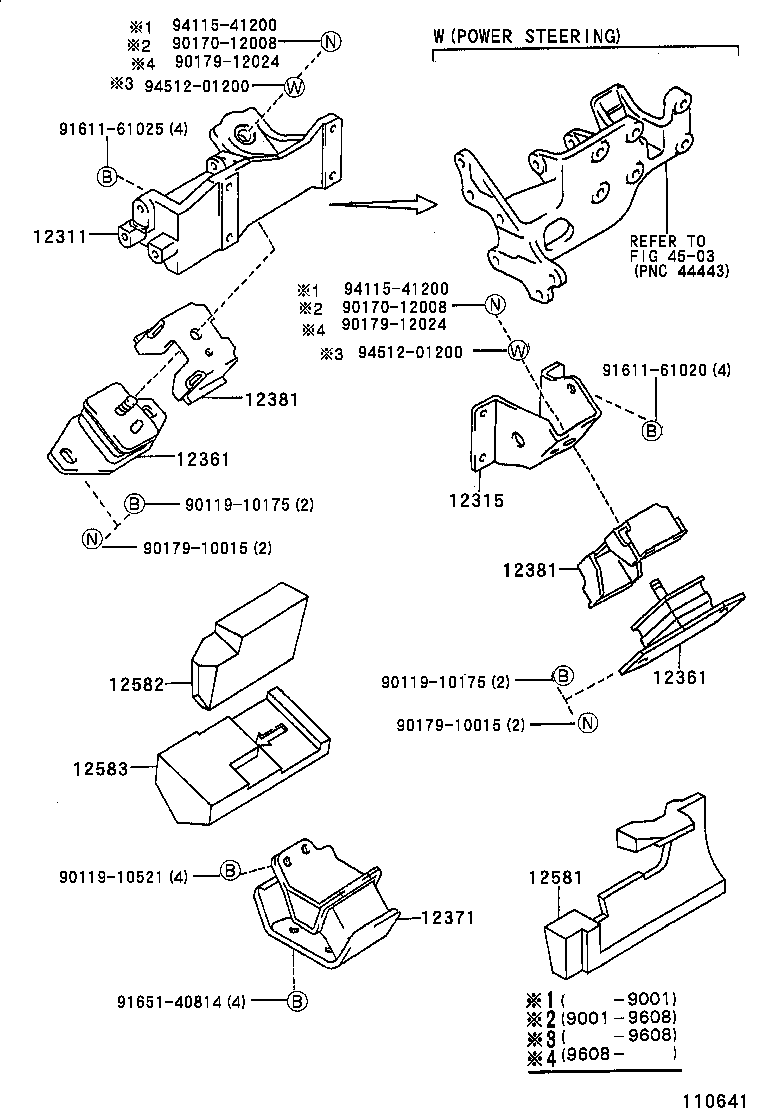

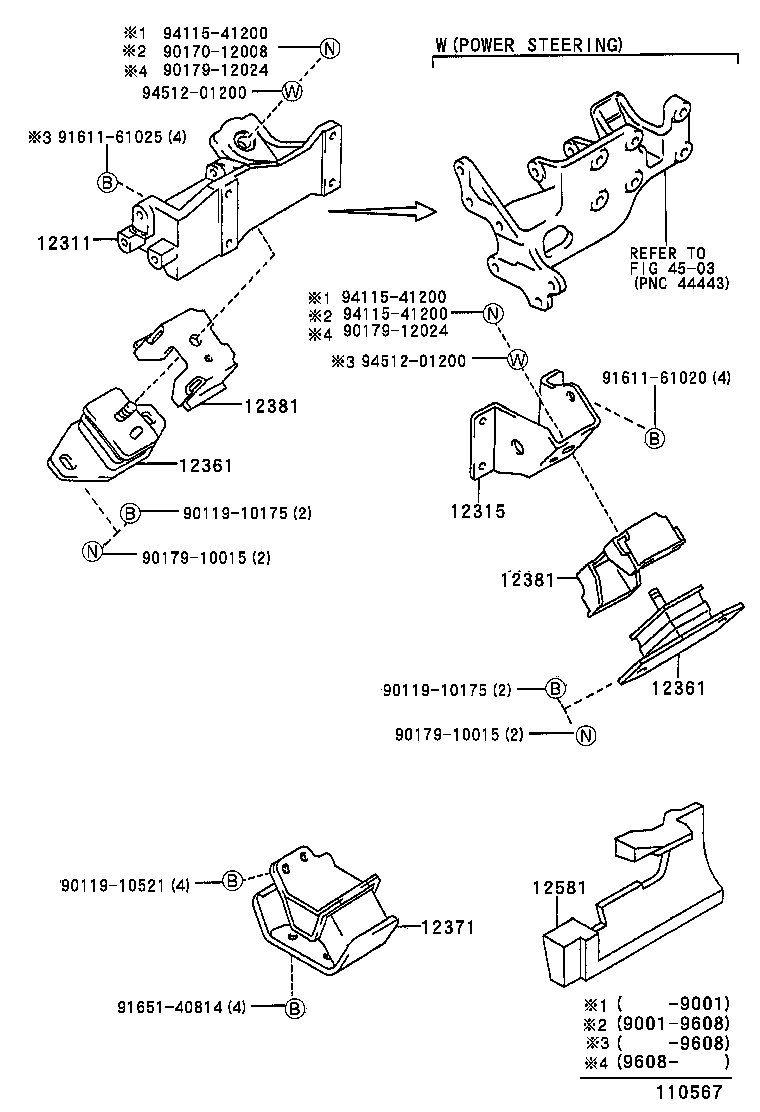

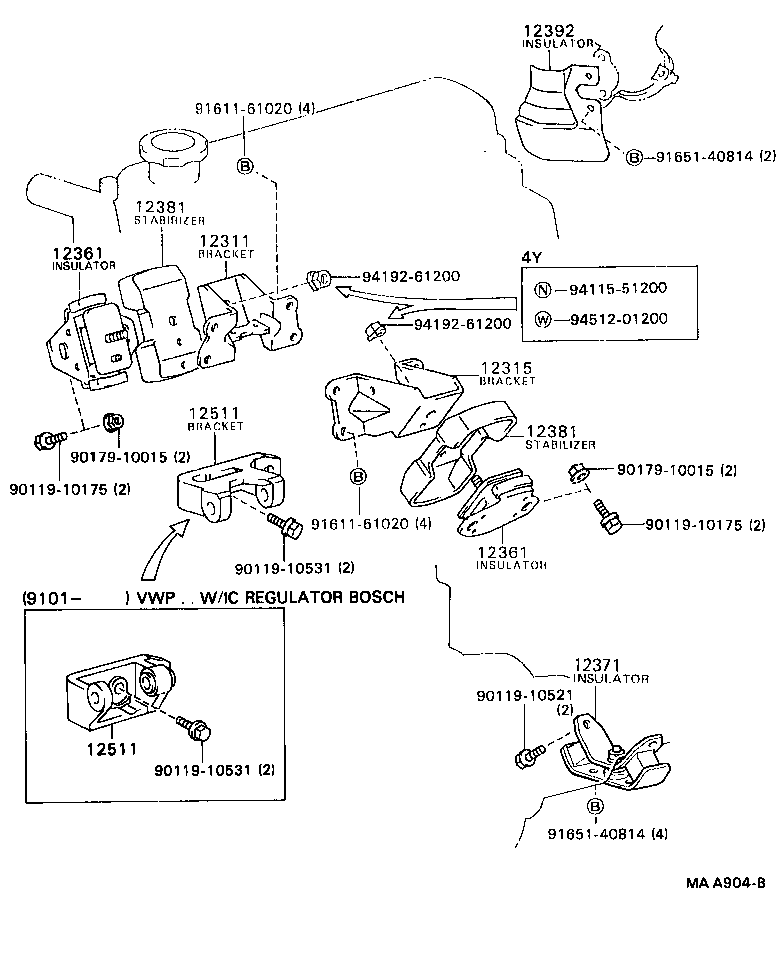

Figure MAG617A MAG617A 1993-08 → 1995-11 Figure 110641 110641 1988-08 → — Figure 110567 110567 1988-08 → 1995-11 Figure 110567 110567 1995-11 → — Figure MAA952B MAA952B 1988-08 → — Figure MAB130C MAB130C 1989-08 → 1995-11 Figure MAA904B MAA904B 1988-08 → 1994-08

Part groups

PNCDescription
12311 Bracket, Engine Mounting, Front NO.1 RH
12315 Bracket, Engine Mounting, Front NO.1 LH
12361 Insulator, Engine Mounting, Front
12371 Insulator, Engine Mounting, Rear NO.1
12381 Stabilizer, Engine Mounting
12392 Insulator, Engine Mounting Heat, Front LH
12511 Bracket, Alternator, NO.1
12511A Bush, Alternator Bracket
12581 Insulator, Cylinder Block, NO.1
12582 Insulator, Cylinder Block, NO.2
12583 Insulator, Cylinder Block, NO.3
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
