Toyota Hilux (JPP)

1988-08 → 1997-08 · chassis RN1##,YN85,90,1##,LN85,90,1##,VZN130,KZN130 · catalogue 671550 · Europe

Discontinued model Data version 1998-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Oil Pump

19 part groups · 7 illustrations

Illustrations

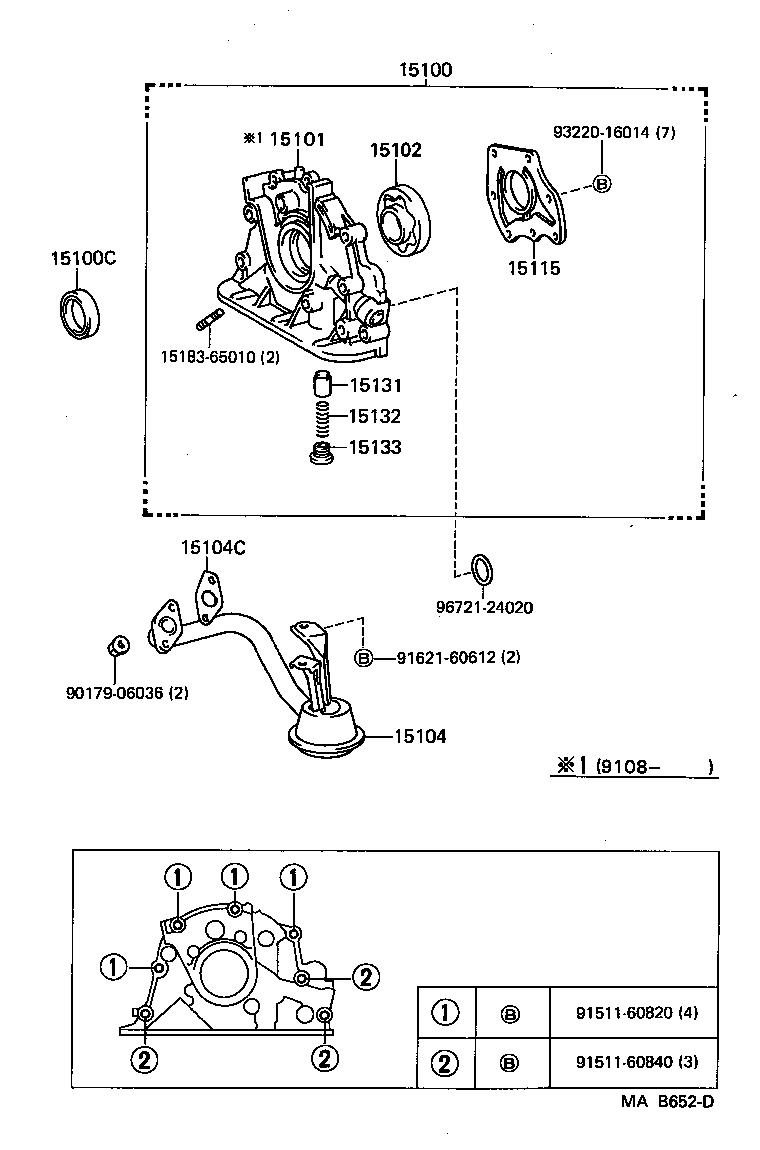

Figure MAG620 MAG620 1993-08 → 1995-11 Figure MAB314D MAB314D 1988-08 → — Figure MAB315F MAB315F 1988-08 → 1995-11 Figure MAB315F MAB315F 1988-08 → — Figure MAA961B MAA961B 1988-08 → — Figure MAB652D MAB652D 1989-08 → 1995-11 Figure MA6459A MA6459A 1988-08 → 1994-08

Part groups

PNCDescription
15100 Pump Assy, Oil
15100C Seal(FOR OIL PUMP)
15100H Bolt, Seal
15101 Body Sub-assy, Oil Pump
15102 Rotor Set, Oil Pump
15104 Strainer Sub-assy, Oil
15104C Gasket(FOR OIL STRAINER)
15104E Bolt, Stud(FOR OIL STRAINER)
15115 Cover, Oil Pump
15115A Ring, O(FOR OIL PUMP COVER)
15121 Gear, Oil Pump Drive
15122 Gear, Oil Pump Driven
15131 Valve, Oil Pump Relief
15132 Spring, Oil Pump Relief Valve
15133 Plug, Oil Pump Relief Valve
15134 Gasket, Oil Pump Relief Valve
15147 Gasket, Oil Strainer
15149 Gasket, Oil Strainer Flange
15193 Gasket, Oil Pump
